AKR 976 IX

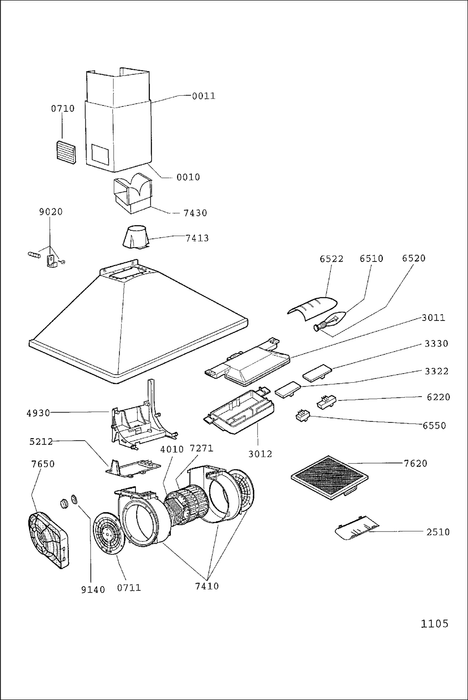

Product Details	S.P. Ref.	S.P. Code
Sold Out Chimney part fixed Regular price $0.00 Sale price $0.00 Regular price Unit price	001 0	4819 530 48637
Sold Out Chimney part sliding Regular price $0.00 Sale price $0.00 Regular price Unit price	001 1	4819 530 48638
Sold Out Grid,air Regular price $0.00 Sale price $0.00 Regular price Unit price	071 0	4819 442 68532
Sold Out Support motor Regular price $0.00 Sale price $0.00 Regular price Unit price	071 1	4819 404 79437
Sold Out Cover f. lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	251 0	4819 462 79986
Sold Out Cover Regular price $0.00 Sale price $0.00 Regular price Unit price	301 1	4819 418 79596
Sold Out Control panel Regular price $0.00 Sale price $0.00 Regular price Unit price	301 2	4819 452 99708
Sold Out Button light Regular price $0.00 Sale price $0.00 Regular price Unit price	332 2	4819 410 28938
Sold Out Button motor Regular price $0.00 Sale price $0.00 Regular price Unit price	333 0	4819 410 28939
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	401 0	4819 361 18433
Sold Out Connectionblock Regular price $0.00 Sale price $0.00 Regular price Unit price	493 0	4819 418 79594
Sold Out Cover Regular price $0.00 Sale price $0.00 Regular price Unit price	521 2	4819 462 79987
Sold Out Switch motor Regular price $0.00 Sale price $0.00 Regular price Unit price	622 0	4819 276 18053
Sold Out Lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 88088
Sold Out Holder,lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18173
Sold Out Reflector , lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 2	4819 460 49765
Sold Out Switch light Regular price $0.00 Sale price $0.00 Regular price Unit price	655 0	4819 276 18054
Sold Out Fan wheel Regular price $0.00 Sale price $0.00 Regular price Unit price	727 1	4819 515 28277
Sold Out Conveyor Regular price $0.00 Sale price $0.00 Regular price Unit price	741 0	4819 442 78237
Sold Out Connection Regular price $0.00 Sale price $0.00 Regular price Unit price	741 3	4812 526 48041
Sold Out Coupling piece Regular price $0.00 Sale price $0.00 Regular price Unit price	743 0	4819 526 48481
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	762 0	4819 458 58783
Sold Out Carbon filter DKF42 Regular price $0.00 Sale price $0.00 Regular price Unit price	765 0	4819 480 48311
Sold Out Hook Regular price $0.00 Sale price $0.00 Regular price Unit price	902 0	4819 401 18448
Sold Out Nut motor Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4819 505 18246

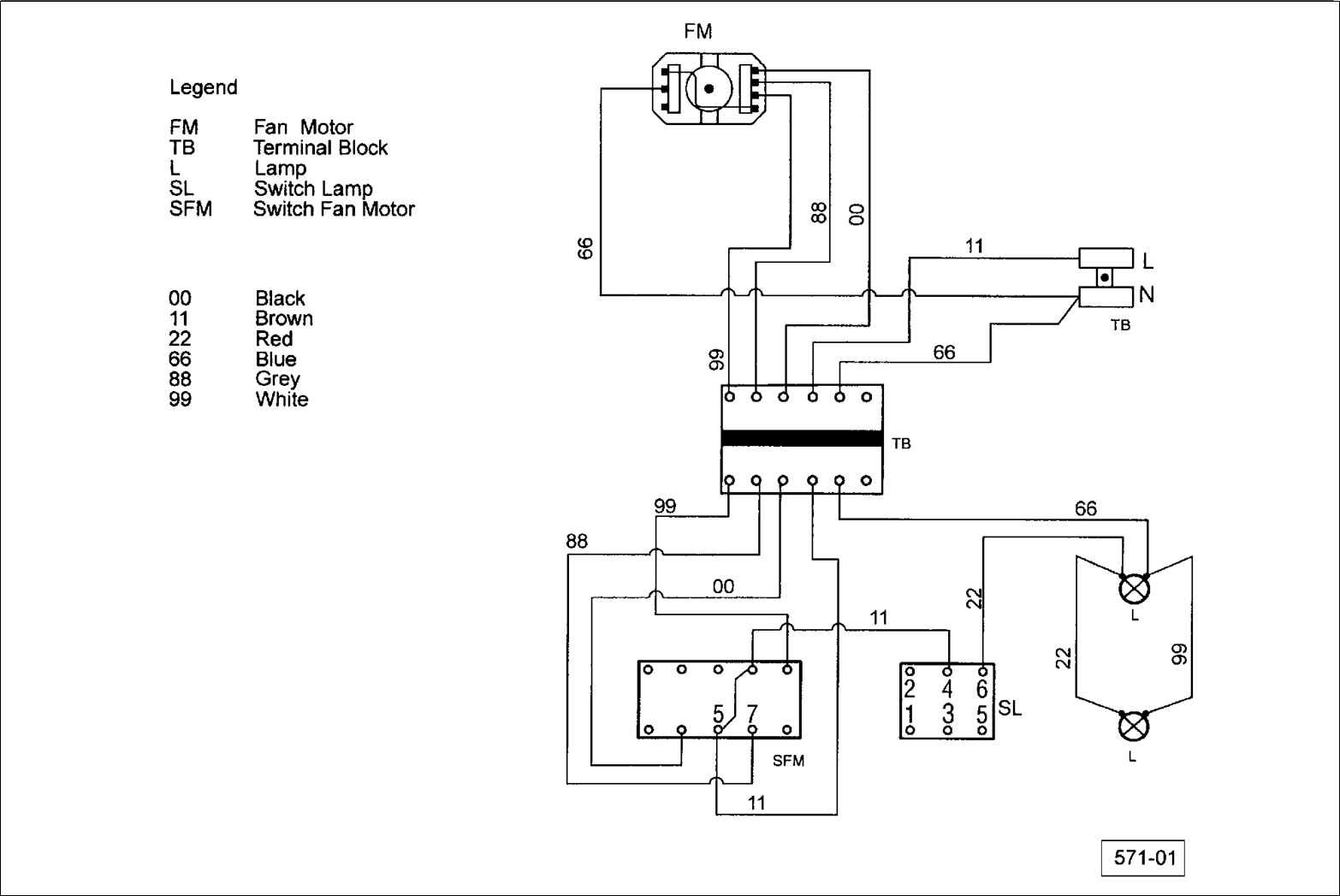

Wiring Diagram

Technical Data

Electricity

Voltage	220 - 230	V
Frequency	50	Hz

Power

Total	250	W
Fan motor	170	W
Illumination	2 x 40	W

Nominal air flow

Speed 1

External exhaustion	219	m³ /h
Recirculation	130	m³ /h

Speed 2

External exhaustion	336	m³ /h
Recirculation	278	m³ /h

Speed 3

External exhaustion	402	m³ /h
Recirculation	297	m³ /h

Noise level

Speed 1

External exhaustion	45	dB (A)
Recirculation	47	dB (A)

Speed 2

External exhaustion	63	dB (A)
Recirculation	66	dB (A)

Speed 3

External exhaustion	67	dB (A)
Recirculation	68	dB (A)

Distance from cooking area

Electric	600	mm
Gas	750	mm

Air exhaust

Flange

120

Parts Manual
