AKR 976 IX/2
AKR 976 IX/2

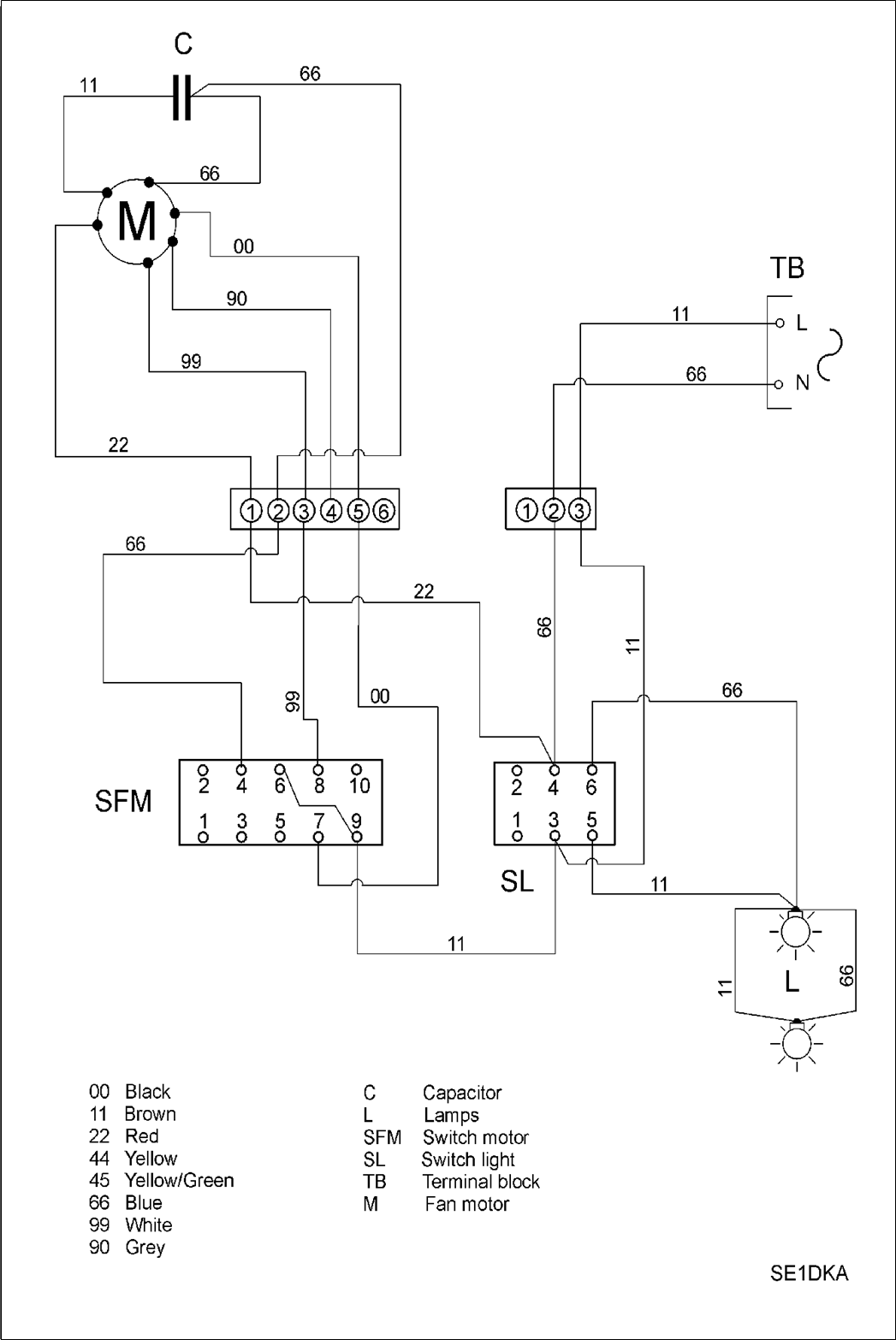

Wiring Diagram
Technical Data
Electricity
| Voltage | 220 - 240 | V |
| Frequency | 50 - 60 | Hz |
Power
| Total | 260 | W |
| Fan motor | 180 | W |
| Illumination | 2 x 40 | W |
Nominal air flow
Speed 1
| External exhaustion | 250 | mÂł /h |
| Recirculation | 150 | mÂł /h |
Speed 2
| External exhaustion | 370 | mÂł /h |
| Recirculation | 220 | mÂł /h |
Speed 3
| External exhaustion | 660 | mÂł /h |
| Recirculation | 330 | mÂł /h |
Noise level
Speed 1
| External exhaustion | 43 | dB (A) |
| Recirculation | 55 | dB (A) |
Speed 2
| External exhaustion | 52 | dB (A) |
| Recirculation | 63 | dB (A) |
Speed 3
| External exhaustion | 64 | dB (A) |
| Recirculation | 72 | dB (A) |
Distance from cooking area
| Electric | 650 | mm |
| Gas | 750 | mm |
Air exhaust
| Flange | ø 150 | mm |
