AKR602ELIX

AKR602ELIX

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Chimney part bottom

$0.00
$0.00
10
4812 530 49407

Chimney upper

$0.00
$0.00
11
4812 530 49039

Fastener chimney

$0.00
$0.00
15
4812 404 49595

Control panel complete

$0.00
$0.00
3010
4801 221 01962

Motor ,cpl

$0.00
$0.00
4000
4812 361 18657

MOT K42RP2223 RA

$0.00
$0.00
4010
4812 361 18656

TRANSFORM

$0.00
$0.00
4110
4812 142 88177

Box transformer

$0.00
$0.00
5210
4812 462 29404

Lamp halogen complete

$0.00
$0.00
6510
4819 134 48538

FAN WHEEL

$0.00
$0.00
7271
4819 515 28277

Connection

$0.00
$0.00
7413
4801 221 01088

LEFT HALF CONVEYOR

$0.00
$0.00
7415
4820 000 14731

RIGHT HALF CONVEYOR

$0.00
$0.00
7416
4820 000 14732

Fitting recirculation

$0.00
$0.00
7430
4812 530 29322

Filter, grease

$0.00
$0.00
7620
4801 221 02168

Carbon filter 2 pc.

$0.00
$0.00
7650
4812 490 38013

MULTI-CONNECTION FLANGE

$0.00
$0.00
7812
4812 532 78004

Hook

$0.00
$0.00
9020
4820 000 00885

Mounting kit

$0.00
$0.00
9930
4801 221 01961

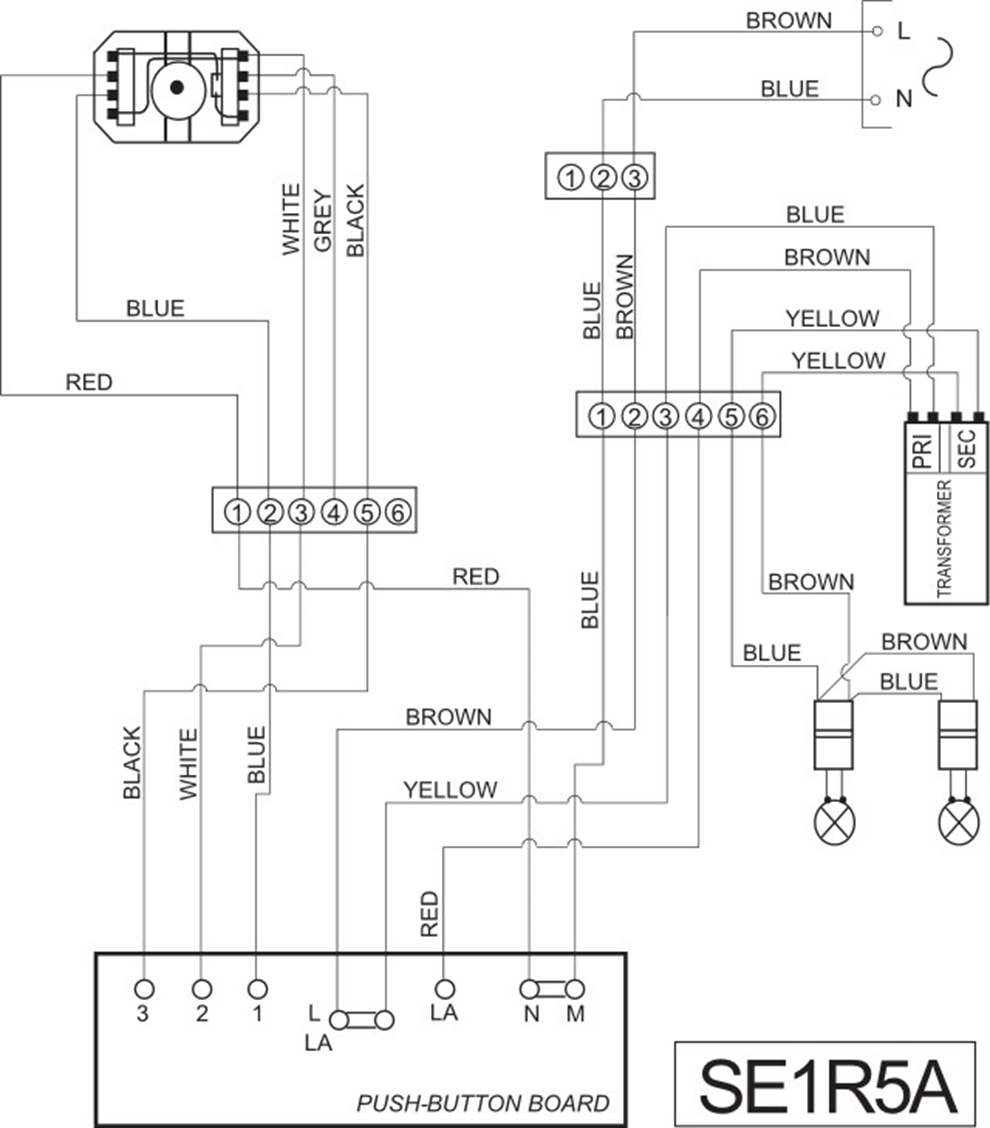

Wiring Diagram

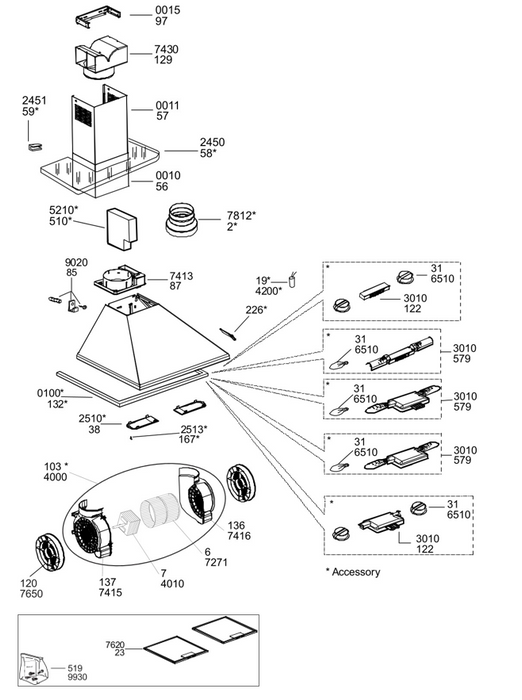

Parts Manual
