AKR610IX

AKR610IX

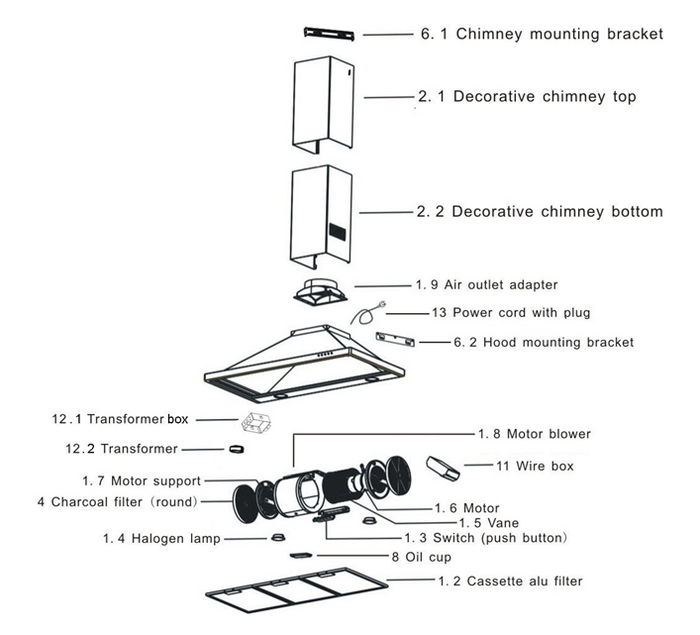

Exploded View 1

Exploded View 1

Product Details	S.P. Ref.	S.P. Code	Substitute Code	Industrial Code	Buy Now
Sold Out Cassette alu filter Regular price $0.00 Sale price $0.00 Regular price Unit price	1.2	A02110028
Sold Out Switch (push button) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.3	A04050072
Sold Out Switch wires Regular price $0.00 Sale price $0.00 Regular price Unit price	* 1.3.1	A04070085
Sold Out Switch box Regular price $0.00 Sale price $0.00 Regular price Unit price	* 1.3.2	A05120054
Sold Out Halogen lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4	A04080009
Sold Out Vane Regular price $0.00 Sale price $0.00 Regular price Unit price	1.5	A04020068
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	1.6	A04010179
Sold Out Motor Support Regular price $0.00 Sale price $0.00 Regular price Unit price	1.7	A05320006
Sold Out Air Outlet Adapter + Damper (Flaps) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.9 + * 7	A05010058
Sold Out Decorative Chimney Top (SS304) Regular price $0.00 Sale price $0.00 Regular price Unit price	2.1	C019070-AP
Sold Out Decorative Chimney Bottom (SS304) Regular price $0.00 Sale price $0.00 Regular price Unit price	2.2	C019027-AY
Sold Out Charcoal Filter (Round type) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	A05280013
Sold Out Chimney Mounting Bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	6.1	C014013-AB
Sold Out Hood Mounting Bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	6.2	C007009-AB
Sold Out Oil cup Regular price $0.00 Sale price $0.00 Regular price Unit price	8	A05090031
Sold Out Wire box (plastic box) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	A05120053
Sold Out Metal cover of wire box Regular price $0.00 Sale price $0.00 Regular price Unit price	* 11.1	C005014-AA
Sold Out PCB board with fuse on Regular price $0.00 Sale price $0.00 Regular price Unit price	* 11.2	A04030157
Sold Out Transformer Regular price $0.00 Sale price $0.00 Regular price Unit price	12.2	A04110016

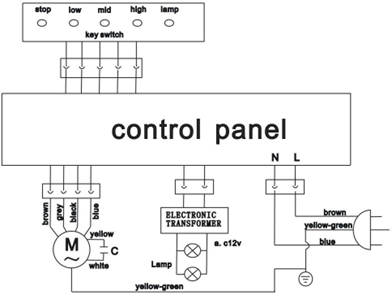

Wiring Diagram

Technical Data

Electricity

Voltage	220 - 240	V
Frequency	50	Hz

Power

Total	290	W
Fan motor	250	W
Illumination (Halogen lamp)	2 x 20	W

Nominal air flow

Speed 1

Externally vented	470	m³ /h
Recirculation	360	m³ /h

Speed 2

Externally vented	565	m³ /h
Recirculation	410	m³ /h

Speed 3

Externally vented	630	m³ /h
Recirculation	440	m³ /h

Noise level

Speed 1

Externally vented	53	dB (A)
Recirculation	58	dB (A)

Speed 2

Externally vented	57	dB (A)
Recirculation	60	dB (A)

Speed 3

Externally vented	60	dB (A)
Recirculation	61	dB (A)

Distance from cooking area

Electric	650	mm
Gas	750	mm

Air exhaust

Flange dia

150

mm

Parts Manual
