AKR620WH

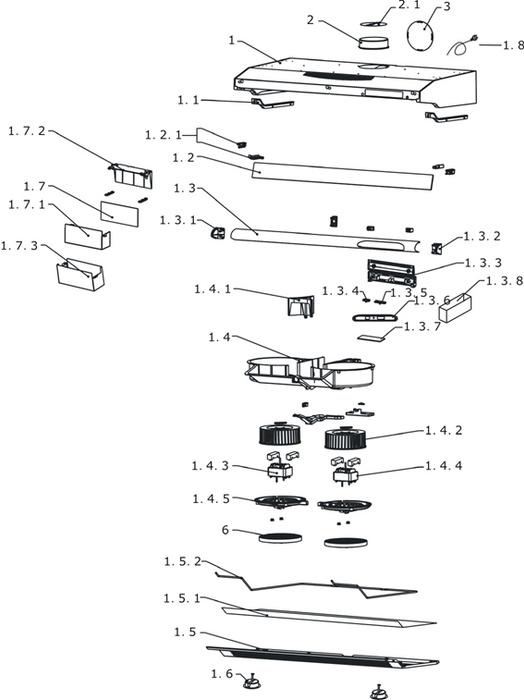

Product Details	S.P. Ref.	S.P. Code
Sold Out Sides panel protector(white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.1	A05400135
Sold Out Tempered glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1.2	A03010122
Sold Out Glass holder (left) (white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.2.1	A05310057
Sold Out Glass holder (left) (white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.2.1	A05310059
Sold Out Glass holder (right) (white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.2.1	A05310058
Sold Out Glass holder (right) (white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.2.1	A05310060
Sold Out Front panel holder (left) (white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.3.1	A05230055
Sold Out Front panel holder (right) (white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.3.2	A05230056
Sold Out Switch (Slide switch) (white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.3.3	A05120132
Sold Out Switch (Slide switch) (white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.3.4	A05170040
Sold Out Switch (Slide switch) (white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.3.5	A05170041
Sold Out Switch (Slide switch) (white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.3.6	A05160090
Sold Out Switch (Slide switch) (white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.3.7	A04030021
Sold Out Duting-Recirculating level Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.1	A05360012
Sold Out Vane (left) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.2	A04020043
Sold Out Vane (right) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.2	A04020044
Sold Out Motor (left) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.3	A04010222
Sold Out Motor (right) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.4	A04010223
Sold Out Motor support Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.5	A05320022
Sold Out Grease filter (3 layers) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.5.1	A02110117
Sold Out Filter retainer Regular price $0.00 Sale price $0.00 Regular price Unit price	1.5.2	A02070027
Sold Out LED lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	1.6	A04100045
Sold Out PCB board Regular price $0.00 Sale price $0.00 Regular price Unit price	1.7	A04030232
Sold Out Air outlet adapter Regular price $0.00 Sale price $0.00 Regular price Unit price	2	A05010041
Sold Out Damper (flaps) Regular price $0.00 Sale price $0.00 Regular price Unit price	2.1	C032004-AA
Sold Out Air outlet cover Regular price $0.00 Sale price $0.00 Regular price Unit price	3	A05010040
Sold Out Charcoal filter (accessory) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	A05280052

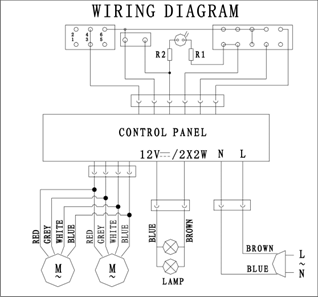

Wiring Diagram

Technical Data

Electricity

Voltage	220 - 240	V
Frequency	50	Hz

Power

Total	264	W
Fan motors	2 x 130	W
Illumination (LED lamp)	2 x 2	W

Nominal air flow

Speed 1

Externally vented

240

m³ /h

Speed 2

Externally vented

315

m³ /h

Speed 3

Externally vented

360

m³ /h

Noise level

Speed 1

Externally vented

44.5

dB (A)

Speed 2

Externally vented

51.5

dB (A)

Speed 3

Externally vented

53.8

dB (A)

Distance from cooking area

Electric	650	mm
Gas	750	mm

Air exhaust

Flange

120

Parts Manual
