AKR900IX

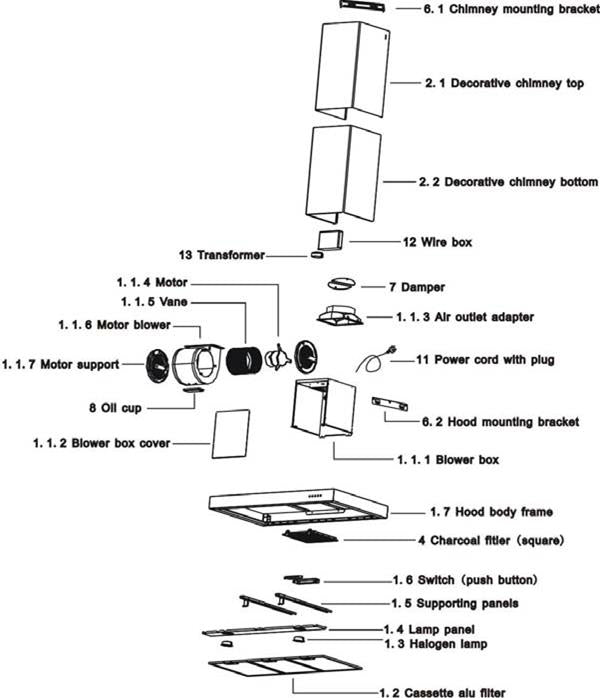

Product Details	S.P. Ref.	S.P. Code
Sold Out Air outlet adapter + damper (Flaps) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.1.3 + 7	A05010058
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	1.1.4	A04010168
Sold Out Vane Regular price $0.00 Sale price $0.00 Regular price Unit price	1.1.5	A04020041
Sold Out Motor support Regular price $0.00 Sale price $0.00 Regular price Unit price	1.1.7	A05320006
Sold Out Cassette alu filter Regular price $0.00 Sale price $0.00 Regular price Unit price	1.2	A02110053
Sold Out Halogen lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	1.3	A04080009
Sold Out Switch (push button) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.6	A04050072
Sold Out Switch (push button) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.6	A04050072
Sold Out Switch wires Regular price $0.00 Sale price $0.00 Regular price Unit price	* 1.6.2	A04070110
Sold Out Switch box Regular price $0.00 Sale price $0.00 Regular price Unit price	* 1.6.3	A05120054
Sold Out Decorative chimney top (SS304) Regular price $0.00 Sale price $0.00 Regular price Unit price	2.1	C019066-AP
Sold Out Decorative chimney bottom (SS304) Regular price $0.00 Sale price $0.00 Regular price Unit price	2.2	C019049-AP
Sold Out Charcoal filter (Square type) (240g charcoal grain) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	A05280045
Sold Out Chimney mounting bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	6.1	C014012-AB
Sold Out Hood mounting bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	6.2	C007009-AB
Sold Out Oil cup Regular price $0.00 Sale price $0.00 Regular price Unit price	8	A05090031
Sold Out Wire box (plastic box) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	A05120053
Sold Out Metal cover of wire box Regular price $0.00 Sale price $0.00 Regular price Unit price	* 12.1	C005014-AA
Sold Out PCB board with fuse on Regular price $0.00 Sale price $0.00 Regular price Unit price	* 12.2	A04030157
Sold Out Transformer Regular price $0.00 Sale price $0.00 Regular price Unit price	13	A04110017

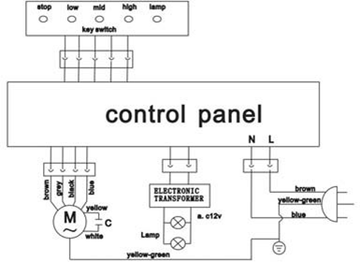

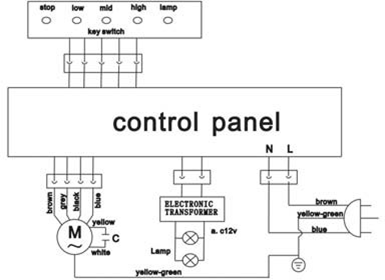

Wiring Diagram

Technical Data

Electricity

Voltage	220 - 240	V
Frequency	50	Hz

Power

Total	290	W
Fan motors	250	W
Illumination (Halogen lamp)	2x20	W

Nominal air flow

Speed 1

Externally vented	555	m³ /h
Recirculation	390	m³ /h

Speed 2

Externally vented	505	m³ /h
Recirculation	365	m³ /h

Speed 3

Externally vented	435	m³ /h
Recirculation	325	m³ /h

Noise level

Speed 1

Externally vented	60	dB (A)
Recirculation	58	dB (A)

Speed 2

Externally vented	58	dB (A)
Recirculation	57	dB (A)

Speed 3

Externally vented	54	dB (A)
Recirculation	54	dB (A)

Distance from cooking area

Electric	650	mm
Gas	750	mm

Air exhaust

Flange dia

150
