AKR902ELIX

Product Details	S.P. Ref.	S.P. Code
Sold Out Chimney part bottom Regular price $0.00 Sale price $0.00 Regular price Unit price	10	4812 530 49407
Sold Out Chimney upper Regular price $0.00 Sale price $0.00 Regular price Unit price	11	4812 530 48925
Sold Out Fastener chimney Regular price $0.00 Sale price $0.00 Regular price Unit price	15	4812 404 49595
Sold Out Control panel complete Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4801 221 01962
Sold Out Motor ,cpl Regular price $0.00 Sale price $0.00 Regular price Unit price	4000	4812 361 18657
Sold Out Box transformer Regular price $0.00 Sale price $0.00 Regular price Unit price	5210	4812 462 29404
Sold Out Lamp halogen complete Regular price $0.00 Sale price $0.00 Regular price Unit price	6510	4819 134 48538
Sold Out Connection Regular price $0.00 Sale price $0.00 Regular price Unit price	7413	4801 221 01088
Sold Out Fitting recirculation Regular price $0.00 Sale price $0.00 Regular price Unit price	7430	4812 530 29322
Sold Out Filter, grease Regular price $0.00 Sale price $0.00 Regular price Unit price	7620	4801 221 02168
Sold Out Carbon filter AMC 912 Regular price $0.00 Sale price $0.00 Regular price Unit price	7650	4812 490 38013
Sold Out Flange reduction 150-125-120mm Regular price $0.00 Sale price $0.00 Regular price Unit price	7812	4812 532 78004
Sold Out Hook Regular price $0.00 Sale price $0.00 Regular price Unit price	9020	4820 000 00885

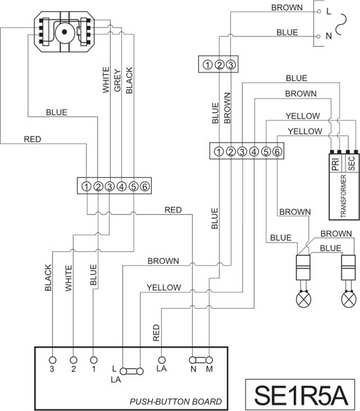

Wiring Diagram

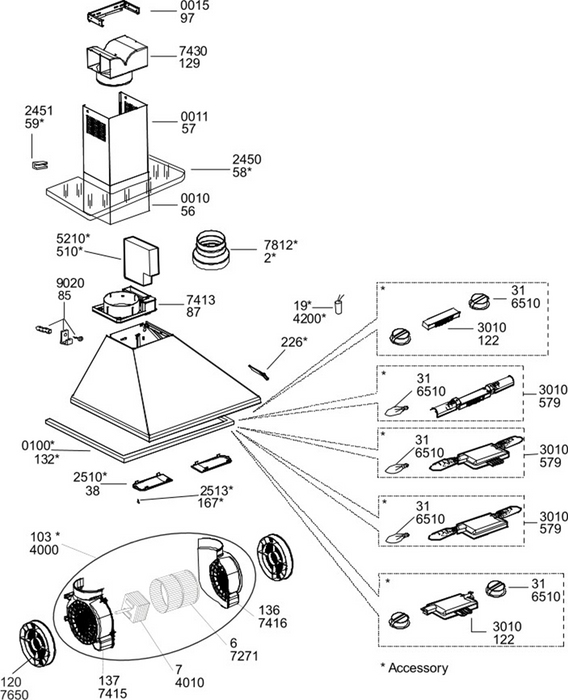

Parts Manual
