AKR940IX

AKR940IX

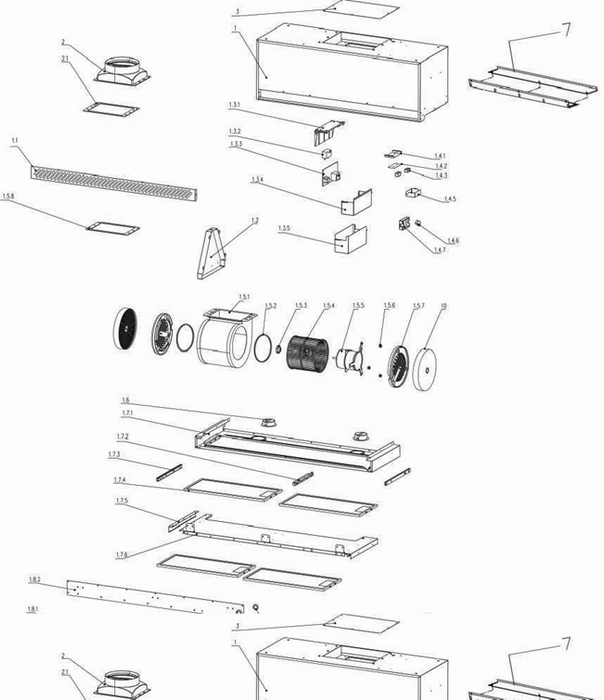

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Capacitor

$0.00
$0.00
1.3.2
A04090022

PCB board

$0.00
$0.00
1.3.3
A04030231

Micro switch

$0.00
$0.00
1.4.6
A04050082

Micro switch

$0.00
$0.00
1.4.7
A05120131

Vane

$0.00
$0.00
1.5.4
A04020068

Motor

$0.00
$0.00
1.5.5
A04010219

Motor support

$0.00
$0.00
1.5.7
A05320006

LED lamp

$0.00
$0.00
1.6
A04100045

Slide switch (black)

$0.00
$0.00
1.9.1
A05120132

Slide switch (black)

$0.00
$0.00
1.9.2
A04030021

Slide switch (black)

$0.00
$0.00
1.9.3
A05170038

Slide switch (black)

$0.00
$0.00
1.9.4
A05170039

Slide switch (black)

$0.00
$0.00
1.9.5
A05170111-AD7Y

Air outlet adapter (including damper (flaps))

$0.00
$0.00
2
A05010058

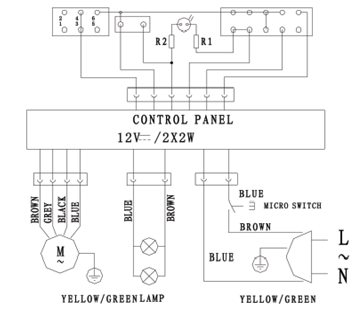

Wiring Diagram

Technical Data

Electricity

Voltage 220 - 240 V
Frequency 50 Hz

Power

Total 124 W
Fan motor 120 W
Illumination (LED lamp) 2 x 2 W

Nominal air flow

Speed 1

Externally vented 400 mÂł /h

Speed 2

Externally vented 483 mÂł /h

Speed 3

Externally vented 570 mÂł /h

Noise level

Speed 1

Externally vented 44.6 dB (A)

Speed 2

Externally vented 50.57 dB (A)

Speed 3

Externally vented 53.95 dB (A)

Distance from cooking area

Electric 650 mm
Gas 750 mm

Air exhaust

Flange dia 150 mm
Parts Manual
