AKZ97820IXAUS

Product Details	S.P. Ref.	S.P. Code
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	A0252	4801 211 01163
Sold Out Hinge soft Minerva BRERA Regular price $0.00 Sale price $0.00 Regular price Unit price	A0400	4810 111 23450
Sold Out Hinge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	A0470	4801 211 01154
Sold Out Handle Dynamic 9.7 Regular price $0.00 Sale price $0.00 Regular price Unit price	A1100	4810 110 82226
Sold Out Rubber door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	A1101	4812 466 68919
Sold Out Washer door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	A1102	4810 104 10709
Sold Out Exhaust fume. Regular price $0.00 Sale price $0.00 Regular price Unit price	A1214	4810 108 89793
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	A1215	4810 103 55314
Sold Out Door lock assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	A1300	4801 211 01623
Sold Out EXT GLASS KA+MOUNTING RAILS Regular price $0.00 Sale price $0.00 Regular price Unit price	A1410	4880 005 17898
Sold Out Oven door inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	A1420	4801 211 01609
Sold Out Door glass Regular price $0.00 Sale price $0.00 Regular price Unit price	A1430	4801 211 01611
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	A1431	4801 211 01613
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	A1433	4801 211 02664
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	A1910	4801 211 01583
Sold Out Fan cover Regular price $0.00 Sale price $0.00 Regular price Unit price	A2010	4810 106 96902
Sold Out Grid oven Regular price $0.00 Sale price $0.00 Regular price Unit price	A2450	4810 106 35612
Sold Out Baking tray enamelled grey Regular price $0.00 Sale price $0.00 Regular price Unit price	A2460	4810 106 74818
Sold Out Fat pan enamelled grey Regular price $0.00 Sale price $0.00 Regular price Unit price	A2470	4810 106 74817
Sold Out Grid support Minerva left/right Regular price $0.00 Sale price $0.00 Regular price Unit price	A2610	4810 107 62741
Sold Out Screw Regular price $0.00 Sale price $0.00 Regular price Unit price	A2614	4801 211 03347
Sold Out Sliding rail full extension left/right Regular price $0.00 Sale price $0.00 Regular price Unit price	A2615	4810 106 40995
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	A2617	4810 417 01023
Sold Out Control panel assy D1 9.7 Regular price $0.00 Sale price $0.00 Regular price Unit price	A3010	4810 111 00537
Sold Out Knob assembly D1 Regular price $0.00 Sale price $0.00 Regular price Unit price	A3320	4810 107 81764
Sold Out Knob ring D1 Regular price $0.00 Sale price $0.00 Regular price Unit price	A3340	4810 106 18353
Sold Out Display board VBL D1 assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	A3560	4810 108 74391
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	A4400	4810 107 81691
Sold Out Air cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	A4410	4801 211 03967
Sold Out Gasket. Regular price $0.00 Sale price $0.00 Regular price Unit price	A4412	4810 109 04602
Sold Out Rear panel oven Regular price $0.00 Sale price $0.00 Regular price Unit price	A4417	4810 602 80241
Sold Out Fan Regular price $0.00 Sale price $0.00 Regular price Unit price	A4430	4810 107 81712
Sold Out Heating element circular 2000W Regular price $0.00 Sale price $0.00 Regular price Unit price	A4510	4801 211 01186
Sold Out Heating element Pyro upper Regular price $0.00 Sale price $0.00 Regular price Unit price	A4520	4860 815 00036
Sold Out Heating element lower 1150W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	A4560	4810 105 51720
Sold Out Cable harness Navigator/D1-Antares Regular price $0.00 Sale price $0.00 Regular price Unit price	A4801	4801 211 01171
Sold Out THIS ITEM IS NOT FITTED TO THIS MODEL Regular price $0.00 Sale price $0.00 Regular price Unit price	A4838	4820 000 91621
Sold Out Clamp cable Regular price $0.00 Sale price $0.00 Regular price Unit price	A4901	4812 290 68255
Sold Out Cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	A4902	4812 321 48026
Sold Out Control board Prog. Antares Regular price $0.00 Sale price $0.00 Regular price Unit price	A5210	4810 111 14872
Sold Out Interface meat probe Regular price $0.00 Sale price $0.00 Regular price Unit price	A5212	4801 211 00219
Sold Out Thermostat 285#C Regular price $0.00 Sale price $0.00 Regular price Unit price	A5570	4810 105 52514
Sold Out Thermostat 165°C Regular price $0.00 Sale price $0.00 Regular price Unit price	A5571	4812 282 28314
Sold Out Oven lamp halogen 40W Regular price $0.00 Sale price $0.00 Regular price Unit price	A6510	4810 103 91431
Sold Out Halogen lamp complete assembly 40W Regular price $0.00 Sale price $0.00 Regular price Unit price	A6520	4810 106 38530
Sold Out Glass cover Regular price $0.00 Sale price $0.00 Regular price Unit price	A6560	4810 106 46361
Sold Out Temperature sensor Regular price $0.00 Sale price $0.00 Regular price Unit price	A6910	4801 211 01597
Sold Out Meat probe Regular price $0.00 Sale price $0.00 Regular price Unit price	A6940	4812 210 58077
Sold Out Meat probe assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	A6941	4812 210 58083
Sold Out Plug Regular price $0.00 Sale price $0.00 Regular price Unit price	A6942	4810 103 50523
Sold Out Spacer glass door Regular price $0.00 Sale price $0.00 Regular price Unit price	A9040	4801 211 01594
Sold Out Plug Regular price $0.00 Sale price $0.00 Regular price Unit price	A9042	4810 602 83111
Sold Out Nut 10x1.57 Regular price $0.00 Sale price $0.00 Regular price Unit price	A9141	4812 505 18439
Sold Out Nut Motor FC for Minerva Regular price $0.00 Sale price $0.00 Regular price Unit price	A9150	4810 107 81713
Sold Out Washer Regular price $0.00 Sale price $0.00 Regular price Unit price	A9210	4812 530 58187
Sold Out Damper black Regular price $0.00 Sale price $0.00 Regular price Unit price	A9930	4810 105 78780
Sold Out Kit oven fixation Regular price $0.00 Sale price $0.00 Regular price Unit price	A9931	4801 211 04721
Sold Out THIS ITEM IS NOT FITTED TO THIS MODEL Regular price $0.00 Sale price $0.00 Regular price Unit price	A9940	4820 000 91621

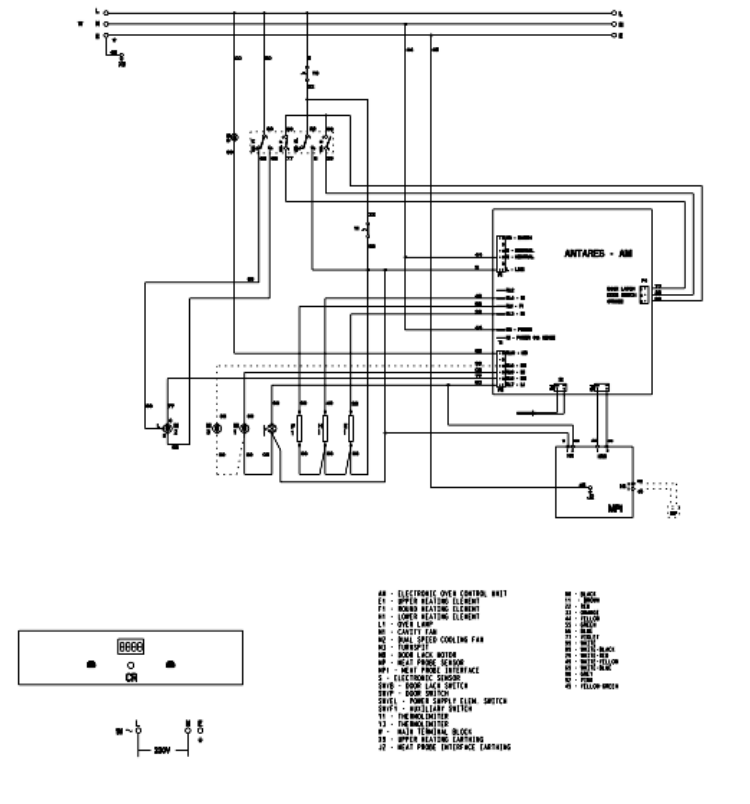

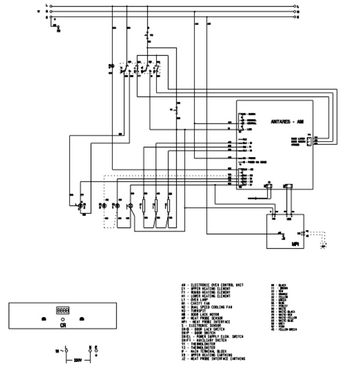

Wiring Diagram

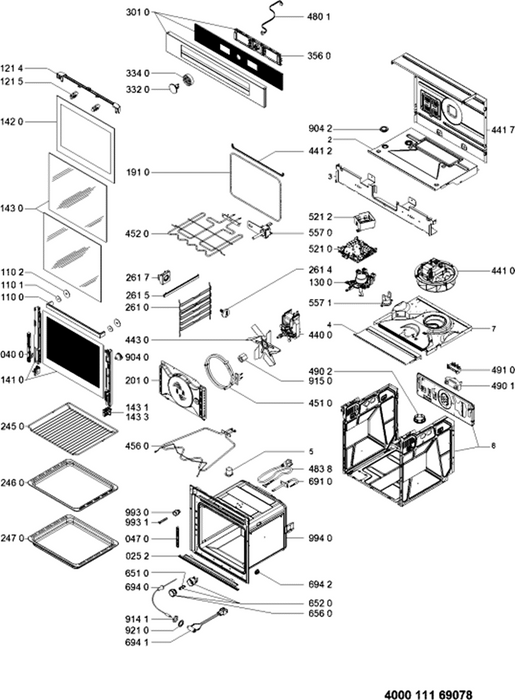

Parts Manual
