AKZM 756/WH

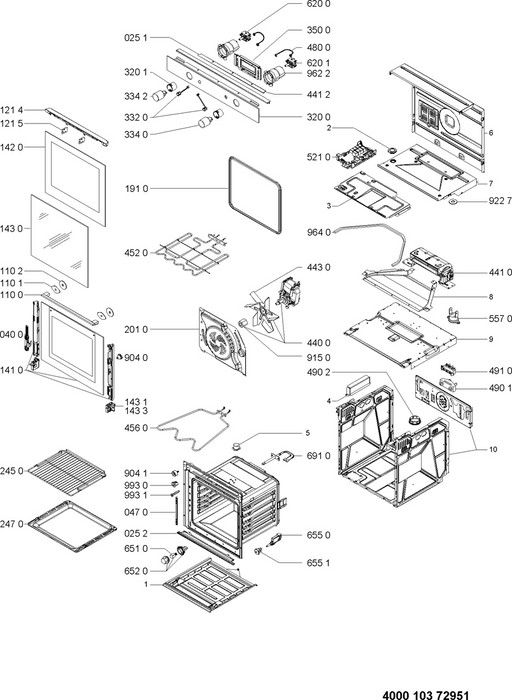

Product Details	S.P. Ref.	S.P. Code
Sold Out Profile Regular price $0.00 Sale price $0.00 Regular price Unit price	0251	4801 211 01152
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	0252	4801 211 01163
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4801 211 03202
Sold Out winge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4801 211 01154
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4801 211 01595
Sold Out Buffer piece door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4812 466 68928
Sold Out Rubber door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1102	4812 462 48451
Sold Out Exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	1214	4801 211 01593
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	1215	4801 211 01615
Sold Out Oven door assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4801 211 02667
Sold Out Inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4801 211 01609
Sold Out Door glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1430	4801 211 01611
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1431	4801 211 01613
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1433	4801 211 02664
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4801 211 01444
Sold Out Panel rear Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4801 211 02821
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4801 211 01183
Sold Out Fat pan enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	2470	4801 211 03007
Sold Out Control panel assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	3200	4801 211 02861
Sold Out Ring push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	3201	4801 211 02715
Sold Out Push button Regular price $0.00 Sale price $0.00 Regular price Unit price	3320	4801 211 01591
Sold Out Knob push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	3340	4801 211 02713
Sold Out Knob push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	3342	4801 211 02859
Sold Out Display G2 EVO analogue Regular price $0.00 Sale price $0.00 Regular price Unit price	3500	4810 103 64134
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4812 361 18492
Sold Out Air cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4801 211 01162
Sold Out Gasket water leakage Regular price $0.00 Sale price $0.00 Regular price Unit price	4412	4801 211 01151
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4819 515 48065
Sold Out Heating element upper/grill 2450W Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4801 211 03613
Sold Out Heating element lower 1150W Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4801 211 01147
Sold Out Cable harness selector switch-display Regular price $0.00 Sale price $0.00 Regular price Unit price	4800	4801 211 01172
Sold Out Clamp cable Regular price $0.00 Sale price $0.00 Regular price Unit price	4901	4812 290 68255
Sold Out Cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	4902	4812 321 48026
Sold Out Connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	4910	4812 290 68329
Sold Out Control unit Antares Regular price $0.00 Sale price $0.00 Regular price Unit price	5210	4801 211 03539
Sold Out Thermostat 155°C Regular price $0.00 Sale price $0.00 Regular price Unit price	5570	4801 211 01181
Sold Out Selector switch 9 position Regular price $0.00 Sale price $0.00 Regular price Unit price	6200	4801 211 02662
Sold Out Selector switch +/- incremental Regular price $0.00 Sale price $0.00 Regular price Unit price	6201	4801 211 01146
Sold Out Lamp halogen 40W Regular price $0.00 Sale price $0.00 Regular price Unit price	6510	4810 103 91431
Sold Out Lamp halogen 40W complete From: 06/11 Regular price $0.00 Sale price $0.00 Regular price Unit price	6520	4801 211 01148
Sold Out Switch door assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	6550	4801 211 01182
Sold Out Screwed joint door switch Regular price $0.00 Sale price $0.00 Regular price Unit price	6551	4801 211 01177
Sold Out Probe oven temperature Regular price $0.00 Sale price $0.00 Regular price Unit price	6910	4801 211 01179
Sold Out Spacer glass door Regular price $0.00 Sale price $0.00 Regular price Unit price	9040	4801 211 01594
Sold Out Damper oven door Regular price $0.00 Sale price $0.00 Regular price Unit price	9041	4801 211 04065
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	9150	4819 505 18145
Sold Out Rosette Regular price $0.00 Sale price $0.00 Regular price Unit price	9227	4819 532 28281
Sold Out Support push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	9622	4801 211 01167
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	9640	4801 211 02934
Sold Out Spacer oven Regular price $0.00 Sale price $0.00 Regular price Unit price	9930	4801 211 01185
Sold Out Kit Regular price $0.00 Sale price $0.00 Regular price Unit price	9931	4801 211 04721

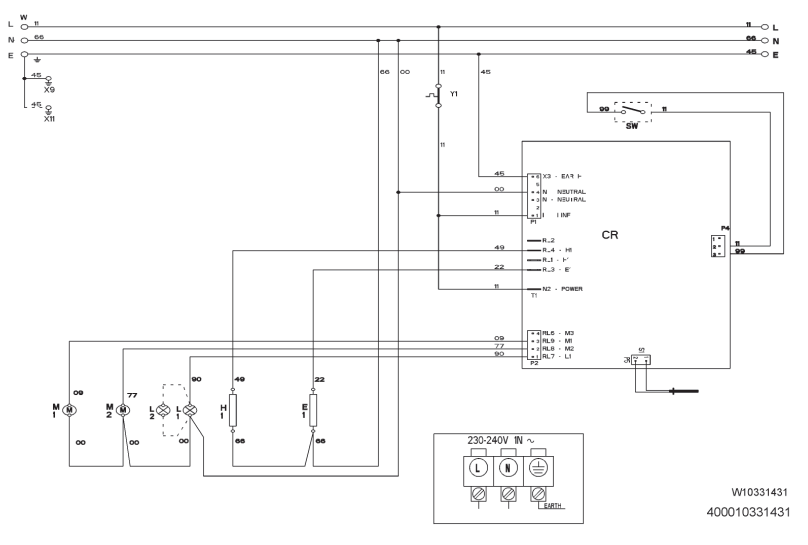

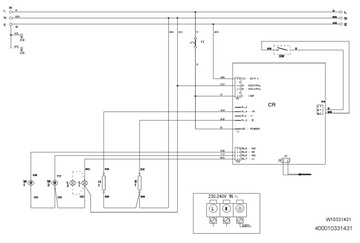

Wiring Diagram

Technical Data

Electrical Base Data

Rated Voltage	230-240	V~
Main connection	230-240 V 1N~ 50	Hz

Power Consumption

Total connected load	2700	W
Upper heating element/Grill	2550	W
Lower heating element	1200	W

Electrical Components

Auto timer

G2 EVO

Accessories

Fat pan enameled	452.5 x 375	mm
Grid chrome	451 x 375.2	mm

Parts Manual
