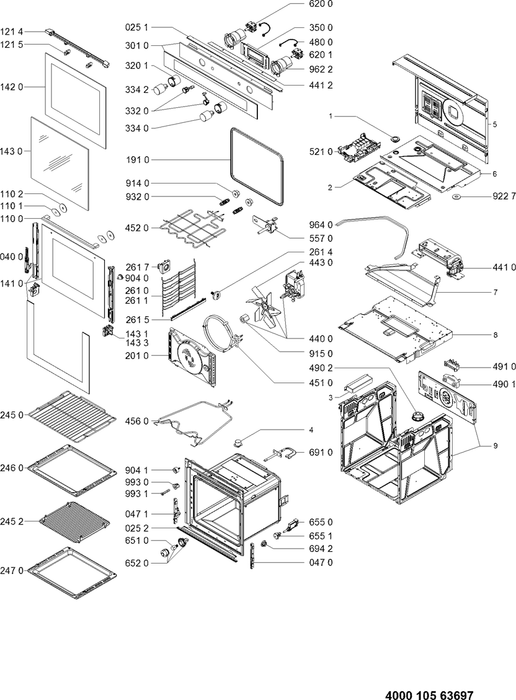

AKZM6540HIX

Product Details	S.P. Ref.	S.P. Code
Sold Out Profile ventilator Regular price $0.00 Sale price $0.00 Regular price Unit price	0251	4801 201 00539
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	0252	4801 211 01163
Sold Out Hinge oven door Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4810 104 75562
Sold Out Hinge support Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4810 103 08519
Sold Out Hinge support Regular price $0.00 Sale price $0.00 Regular price Unit price	0471	4810 104 75569
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4801 211 01595
Sold Out Buffer piece door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4812 466 68928
Sold Out Washer door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1102	4812 462 48451
Sold Out Exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	1214	4801 211 01593
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	1215	4801 211 01615
Sold Out Oven door assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4801 211 01592
Sold Out Inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4801 211 01609
Sold Out Door glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1430	4801 211 01611
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1431	4801 211 01613
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1433	4801 211 02664
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4801 211 01444
Sold Out Rear panel enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4801 211 01155
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4801 211 01183
Sold Out Grid pan set UK Regular price $0.00 Sale price $0.00 Regular price Unit price	2452	4810 601 16931
Sold Out Baking tray enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	2460	4801 211 03008
Sold Out Fat pan enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	2470	4801 211 03007
Sold Out Inset grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	2610	4801 211 03209
Sold Out Inset grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	2611	4801 211 03211
Sold Out Screw Regular price $0.00 Sale price $0.00 Regular price Unit price	2614	4801 211 03347
Sold Out Sliding rail left/right Regular price $0.00 Sale price $0.00 Regular price Unit price	2615	4801 211 03012
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	2617	4810 417 01023
Sold Out Glass panel + frame Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4801 211 01188
Sold Out Ring push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	3201	4801 211 02715
Sold Out Push button Regular price $0.00 Sale price $0.00 Regular price Unit price	3320	4801 211 01169
Sold Out Knob push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	3340	4801 211 01153
Sold Out Knob oven Regular price $0.00 Sale price $0.00 Regular price Unit price	3342	4801 211 01187
Sold Out Display G2 EVO analogue Regular price $0.00 Sale price $0.00 Regular price Unit price	3500	4810 103 64134
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4812 361 18492
Sold Out Air cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4801 211 01162
Sold Out Gasket water leakage Regular price $0.00 Sale price $0.00 Regular price Unit price	4412	4801 211 01151
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4819 515 48065
Sold Out Heating element circular 2000W Regular price $0.00 Sale price $0.00 Regular price Unit price	4510	4801 211 01186
Sold Out Heating element upper/grill 2450W Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4810 104 52558
Sold Out Heating element lower 1150W Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4801 211 01147
Sold Out Cable harness selector switch-display Regular price $0.00 Sale price $0.00 Regular price Unit price	4800	4801 211 01172
Sold Out Cable clamp Regular price $0.00 Sale price $0.00 Regular price Unit price	4901	4801 211 04772
Sold Out Cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	4902	4801 211 00013
Sold Out Connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	4910	4812 290 68329
Sold Out Power unit Ester Regular price $0.00 Sale price $0.00 Regular price Unit price	5210	4810 105 65095
Sold Out Thermostat 285°C Regular price $0.00 Sale price $0.00 Regular price Unit price	5570	4810 105 52514
Sold Out Oven switch 11 position Regular price $0.00 Sale price $0.00 Regular price Unit price	6200	4801 211 01145
Sold Out Selector switch +/- incremental Regular price $0.00 Sale price $0.00 Regular price Unit price	6201	4801 211 01146
Sold Out Lamp halogen 40W Regular price $0.00 Sale price $0.00 Regular price Unit price	6510	4810 103 91431
Sold Out Lamp halogen 40W cpl (bulb 481010391431) Regular price $0.00 Sale price $0.00 Regular price Unit price	6520	4801 211 01148
Sold Out Switch door assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	6550	4801 211 01182
Sold Out Screwed joint door switch Regular price $0.00 Sale price $0.00 Regular price Unit price	6551	4801 211 01177
Sold Out Probe oven temperature Regular price $0.00 Sale price $0.00 Regular price Unit price	6910	4801 211 01179
Sold Out Plug Regular price $0.00 Sale price $0.00 Regular price Unit price	6942	4810 103 50523
Sold Out Spacer glass door Regular price $0.00 Sale price $0.00 Regular price Unit price	9040	4801 211 01594
Sold Out Damper oven door Regular price $0.00 Sale price $0.00 Regular price Unit price	9041	4801 211 04065
Sold Out Nut M4 Regular price $0.00 Sale price $0.00 Regular price Unit price	9140	4812 505 18421
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	9150	4819 505 18145
Sold Out Rosette Regular price $0.00 Sale price $0.00 Regular price Unit price	9227	4819 532 28281
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	9320	4819 492 68714
Sold Out Support push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	9622	4801 211 01167
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	9640	4801 211 02934
Sold Out Spacer oven Regular price $0.00 Sale price $0.00 Regular price Unit price	9930	4801 211 01185
Sold Out Kit Regular price $0.00 Sale price $0.00 Regular price Unit price	9931	4801 211 04721

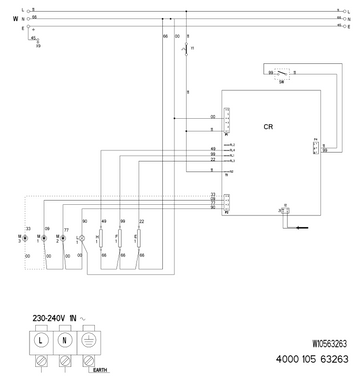

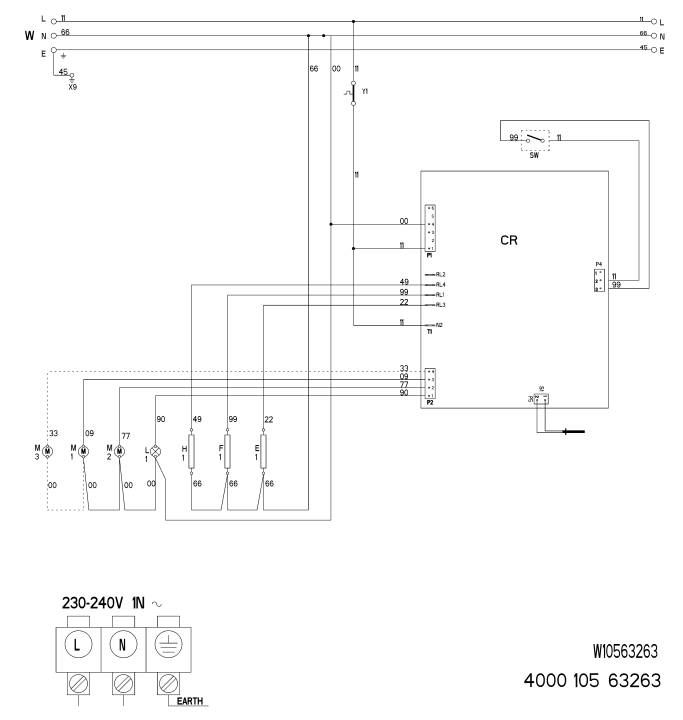

Wiring Diagram

Technical Data

Electrical Base Data

Rated Voltage

230-240 V~ 50

Power Consumption

Total connected load	2700	W
Upper heating element/Grill	2550	W
Forced air	2100	W
Lower heating element	1200	W

Electrical Components

Auto timer

G2 EVO

Accessories

Fat pan enameled	452.5 x 375	mm
Baking tray enameled	452.5 x 375	mm
Grid chrome	452.5 x 375.2	mm
Grid	375 x 340	mm

Parts Manual
