AKZM6570HIX

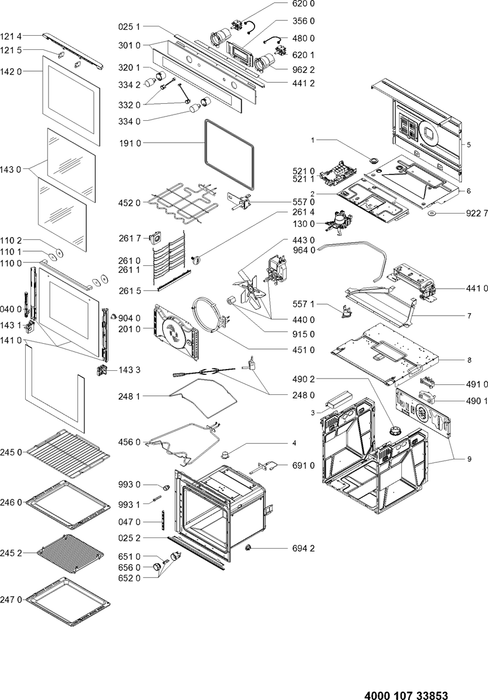

Product Details	S.P. Ref.	S.P. Code
Sold Out Profile ventilator Regular price $0.00 Sale price $0.00 Regular price Unit price	0251	4801 201 00539
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	0252	4801 211 01163
Sold Out Hinge oven door Brera-Soft Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4810 107 24324
Sold Out Hinge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4801 211 01154
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4801 211 01595
Sold Out Buffer piece door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4812 466 68928
Sold Out Washer door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1102	4812 462 48451
Sold Out Exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	1214	4801 211 01593
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	1215	4801 211 01615
Sold Out Door lock assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	1300	4810 105 55032
Sold Out Oven door assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4801 211 01592
Sold Out Oven door inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4801 211 01609
Sold Out Door glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1430	4801 211 01611
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1431	4801 211 01613
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1433	4801 211 02664
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4801 211 01583
Sold Out Fan cover Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4810 106 96902
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4810 105 18218
Sold Out Grid pan set UK Regular price $0.00 Sale price $0.00 Regular price Unit price	2452	4810 601 16931
Sold Out Baking tray enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	2460	4810 103 90279
Sold Out Fat pan enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	2470	4810 103 90239
Sold Out Kit motor turnspit + rotary spit Regular price $0.00 Sale price $0.00 Regular price Unit price	2480	4801 310 00139
Sold Out Turnspit support Regular price $0.00 Sale price $0.00 Regular price Unit price	2481	4801 211 01582
Sold Out Inset grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	2610	4801 211 03209
Sold Out Inset grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	2611	4801 211 03211
Sold Out Screw Regular price $0.00 Sale price $0.00 Regular price Unit price	2614	4801 211 03347
Sold Out Sliding shelf left/right Regular price $0.00 Sale price $0.00 Regular price Unit price	2615	4810 105 40544
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	2617	4810 417 01023
Sold Out Glass panel + frame Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4801 211 01188
Sold Out Ring push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	3201	4801 211 02715
Sold Out Push button Regular price $0.00 Sale price $0.00 Regular price Unit price	3320	4801 211 01169
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	3340	4810 105 67301
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	3342	4810 105 67869
Sold Out Display G2 EVO analogue Regular price $0.00 Sale price $0.00 Regular price Unit price	3560	4810 103 64134
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4812 361 18492
Sold Out Air cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4801 211 01584
Sold Out Gasket water leakage Regular price $0.00 Sale price $0.00 Regular price Unit price	4412	4801 211 01151
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4819 515 48065
Sold Out Heating element circular 2000W Regular price $0.00 Sale price $0.00 Regular price Unit price	4510	4801 211 01186
Sold Out Heating element upper/grill 2450W Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4840 000 00514
Sold Out Heating element lower 1150W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4810 105 51720
Sold Out Cable harness selector switch-display Regular price $0.00 Sale price $0.00 Regular price Unit price	4800	4801 211 01172
Sold Out Cable clamp Regular price $0.00 Sale price $0.00 Regular price Unit price	4901	4801 211 04772
Sold Out Cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	4902	4801 211 00013
Sold Out Connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	4910	4812 290 68329
Sold Out Power unit Ester Regular price $0.00 Sale price $0.00 Regular price Unit price	5210	4810 107 07098
Sold Out Power unit Ester Basic Regular price $0.00 Sale price $0.00 Regular price Unit price	5211	4810 106 57524
Sold Out Thermostat 285°C Regular price $0.00 Sale price $0.00 Regular price Unit price	5570	4810 105 52514
Sold Out Thermostat 155°C Regular price $0.00 Sale price $0.00 Regular price Unit price	5571	4812 282 28325
Sold Out Oven switch 11 position Regular price $0.00 Sale price $0.00 Regular price Unit price	6200	4801 211 01145
Sold Out Selector switch +/- incremental Regular price $0.00 Sale price $0.00 Regular price Unit price	6201	4801 211 01146
Sold Out Oven lamp halogen 40W Regular price $0.00 Sale price $0.00 Regular price Unit price	6510	4810 103 91431
Sold Out Halogen lamp complete assembly 40W Regular price $0.00 Sale price $0.00 Regular price Unit price	6520	4810 106 38530
Sold Out Glass cover Regular price $0.00 Sale price $0.00 Regular price Unit price	6560	4810 106 46361
Sold Out Temperature sensor Regular price $0.00 Sale price $0.00 Regular price Unit price	6910	4801 211 01597
Sold Out Plug Regular price $0.00 Sale price $0.00 Regular price Unit price	6942	4810 103 50523
Sold Out Spacer glass door Regular price $0.00 Sale price $0.00 Regular price Unit price	9040	4801 211 01594
Sold Out Nut fan motor Regular price $0.00 Sale price $0.00 Regular price Unit price	9150	4819 505 18145
Sold Out Washer Regular price $0.00 Sale price $0.00 Regular price Unit price	9227	4819 532 28281
Sold Out Support push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	9622	4801 211 01167
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	9640	4801 211 02934
Sold Out Damper black Regular price $0.00 Sale price $0.00 Regular price Unit price	9930	4810 105 78780
Sold Out Kit oven fixation Regular price $0.00 Sale price $0.00 Regular price Unit price	9931	4801 211 04721

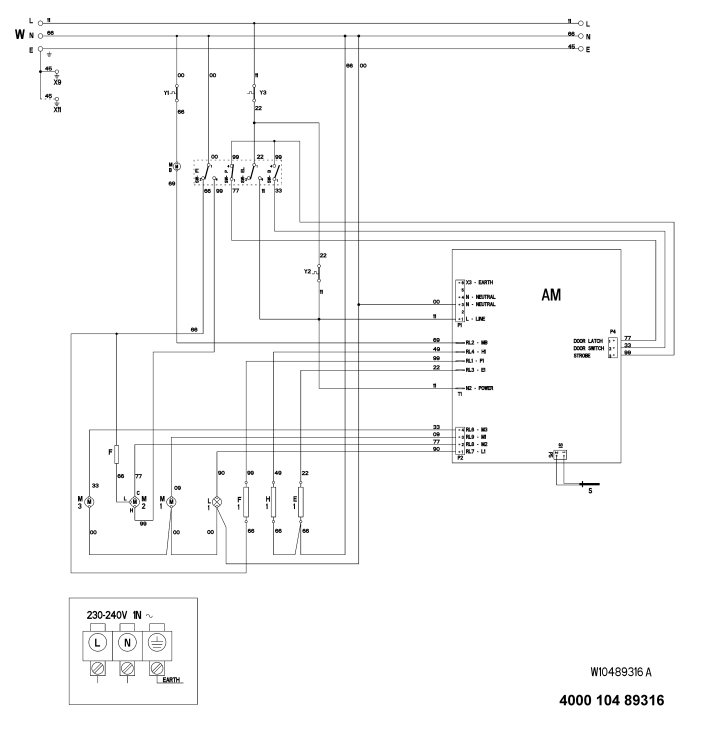

Wiring Diagram

Technical Data

Electrical Base Data

Rated Voltage

220-240 V~ 50/60

Power Consumption

Total connected load	2700	W
Upper heating element/Grill	2450	W
Forced air	2000	W
Lower heating element	1150	W

Electrical Components

Auto timer

G2 EVO

Accessories

Fat pan enameled	452.5 x 375	mm
Baking tray enameled	452.5 x 375	mm
Grid chrome	452.5 x 375.2	mm
Grid	375 x 340	mm

Parts Manual
