AKZM6600HIX

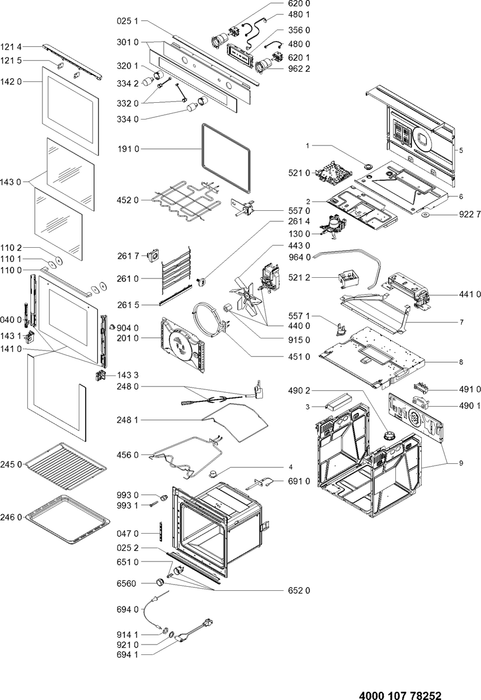

Product Details	S.P. Ref.	S.P. Code
Sold Out Profile ventilator Regular price $0.00 Sale price $0.00 Regular price Unit price	0251	4801 201 00539
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	0252	4801 211 01163
Sold Out Hinge oven door Brera-Soft Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4810 107 24324
Sold Out Hinge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4801 211 01154
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4801 211 01595
Sold Out Buffer piece door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4812 466 68928
Sold Out Washer door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1102	4812 462 48451
Sold Out Exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	1214	4801 211 01593
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	1215	4801 211 01615
Sold Out Door lock assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	1300	4801 211 01623
Sold Out Oven door outer assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4810 104 90198
Sold Out Oven door inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4801 211 01609
Sold Out Door glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1430	4801 211 01611
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1431	4801 211 02664
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1433	4801 211 01613
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4801 211 01583
Sold Out Cover fan Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4810 103 89996
Sold Out Grid oven Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4810 106 35612
Sold Out Baking tray enamelled grey Regular price $0.00 Sale price $0.00 Regular price Unit price	2460	4810 106 74818
Sold Out Kit motor turnspit + rotary spit Regular price $0.00 Sale price $0.00 Regular price Unit price	2480	4801 310 00139
Sold Out Turnspit support Regular price $0.00 Sale price $0.00 Regular price Unit price	2481	4801 211 01582
Sold Out Grid support Minerva left/right Regular price $0.00 Sale price $0.00 Regular price Unit price	2610	4810 107 62741
Sold Out Screw Regular price $0.00 Sale price $0.00 Regular price Unit price	2614	4801 211 03347
Sold Out Sliding rail full extension left/right Regular price $0.00 Sale price $0.00 Regular price Unit price	2615	4810 106 40995
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	2617	4810 417 01023
Sold Out Glass panel + frame Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4801 211 01166
Sold Out Ring push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	3201	4801 211 02715
Sold Out Push button Regular price $0.00 Sale price $0.00 Regular price Unit price	3320	4801 211 01169
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	3340	4810 105 67301
Sold Out Knob push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	3342	4810 105 68899
Sold Out Display board Navigator Regular price $0.00 Sale price $0.00 Regular price Unit price	3560	4810 107 42245
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4812 361 18492
Sold Out Air cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4801 211 01584
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4819 515 48065
Sold Out Heating element circular 2000W Regular price $0.00 Sale price $0.00 Regular price Unit price	4510	4801 211 01186
Sold Out Heating element upper/grill 2450W Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4840 000 00514
Sold Out Heating element lower 1150W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4810 105 51720
Sold Out Cable harness selector switch-display Regular price $0.00 Sale price $0.00 Regular price Unit price	4800	4801 211 01172
Sold Out Cable harness Navigator/D1-Antares Regular price $0.00 Sale price $0.00 Regular price Unit price	4801	4801 211 01171
Sold Out Cable clamp Regular price $0.00 Sale price $0.00 Regular price Unit price	4901	4801 211 04772
Sold Out Cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	4902	4801 211 00013
Sold Out Connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	4910	4812 290 68329
Sold Out Power unit Antares Regular price $0.00 Sale price $0.00 Regular price Unit price	5210	4810 106 76305
Sold Out Interface meat probe Regular price $0.00 Sale price $0.00 Regular price Unit price	5212	4801 211 00219
Sold Out Thermostat 285#C Regular price $0.00 Sale price $0.00 Regular price Unit price	5570	4810 105 52514
Sold Out Thermostat 155#C Regular price $0.00 Sale price $0.00 Regular price Unit price	5571	4812 282 28325
Sold Out Oven switch 11 position Regular price $0.00 Sale price $0.00 Regular price Unit price	6200	4801 211 01145
Sold Out Selector switch +/- incremental Regular price $0.00 Sale price $0.00 Regular price Unit price	6201	4801 211 01146
Sold Out Oven lamp halogen 40W Regular price $0.00 Sale price $0.00 Regular price Unit price	6510	4810 103 91431
Sold Out Halogen lamp complete assembly 40W Regular price $0.00 Sale price $0.00 Regular price Unit price	6520	4810 106 38530
Sold Out Glass cover Regular price $0.00 Sale price $0.00 Regular price Unit price	6560	4810 106 46361
Sold Out Temperature sensor Regular price $0.00 Sale price $0.00 Regular price Unit price	6910	4801 211 01597
Sold Out Meat probe Regular price $0.00 Sale price $0.00 Regular price Unit price	6940	4812 210 58077
Sold Out Cable harness + jack meat probe 430mm Regular price $0.00 Sale price $0.00 Regular price Unit price	6941	4810 106 34657
Sold Out Spacer glass door Regular price $0.00 Sale price $0.00 Regular price Unit price	9040	4801 211 01594
Sold Out Nut 10x1.57 Regular price $0.00 Sale price $0.00 Regular price Unit price	9141	4812 505 18439
Sold Out Nut fan motor Regular price $0.00 Sale price $0.00 Regular price Unit price	9150	4819 505 18145
Sold Out Washer Regular price $0.00 Sale price $0.00 Regular price Unit price	9210	4812 530 58187
Sold Out Washer Regular price $0.00 Sale price $0.00 Regular price Unit price	9227	4819 532 28281
Sold Out Support push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	9622	4801 211 01167
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	9640	4801 211 02934
Sold Out Damper black Regular price $0.00 Sale price $0.00 Regular price Unit price	9930	4810 105 78780
Sold Out Kit oven fixation Regular price $0.00 Sale price $0.00 Regular price Unit price	9931	4801 211 04721

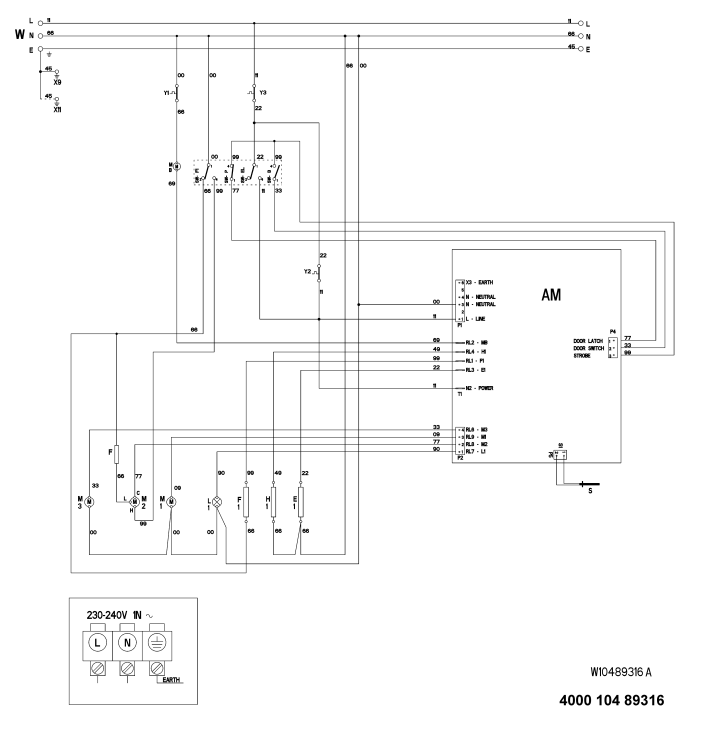

Wiring Diagram

Technical Data

Electrical Base Data

Rated Voltage

220-240 V~ 50/60

Power Consumption

Total connected load	2700	W
Upper heating element/Grill	2450	W
Forced air	2000	W
Lower heating element	1150	W

Electrical Components

Auto timer

Navigator

Accessories

Baking tray enameled	450.5 x 374.8	mm
Grid chrome	451 x 375.2	mm

Parts Manual
