Product Details	S.P. Ref.	S.P. Code
Sold Out Profile ventilator Regular price $0.00 Sale price $0.00 Regular price Unit price	0251	4801 201 00539
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	0252	4801 211 01163
Sold Out Hinge oven door Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4810 106 48931
Sold Out Hinge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4801 211 01154
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4801 211 01595
Sold Out Buffer piece door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4812 466 68928
Sold Out Washer door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1102	4812 462 48451
Sold Out Exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	1214	4801 211 01593
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	1215	4810 103 55314
Sold Out Oven door assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4801 211 01592
Sold Out Oven door inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4801 211 01609
Sold Out Door glass intermediate Regular price $0.00 Sale price $0.00 Regular price Unit price	1430	4810 107 77290
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1431	4801 211 01613
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1433	4801 211 02664
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4801 211 01444
Sold Out Cover fan Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4810 103 89996
Sold Out Grid oven Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4810 106 35612
Sold Out Fat pan enamelled grey Regular price $0.00 Sale price $0.00 Regular price Unit price	2470	4810 106 74817
Sold Out Grid support Minerva left/right Regular price $0.00 Sale price $0.00 Regular price Unit price	2610	4810 107 62741
Sold Out Control panel assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4810 107 86710
Sold Out Ring push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	3201	4801 211 02715
Sold Out Push button Regular price $0.00 Sale price $0.00 Regular price Unit price	3320	4801 211 01591
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	3340	4810 105 67348
Sold Out Knob IX Regular price $0.00 Sale price $0.00 Regular price Unit price	3342	4810 105 67883
Sold Out Display G2 EVO analogue Regular price $0.00 Sale price $0.00 Regular price Unit price	3560	4810 103 64134
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4812 361 18492
Sold Out Air cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4801 211 01162
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4819 515 48065
Sold Out Heating element circular 2000W Regular price $0.00 Sale price $0.00 Regular price Unit price	4510	4801 211 01186
Sold Out Heating element upper/grill 2450W Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4810 105 68824
Sold Out Heating element lower 1150W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4810 105 51720
Sold Out Cable harness selector switch-display Regular price $0.00 Sale price $0.00 Regular price Unit price	4800	4801 211 01172
Sold Out Cable clamp Regular price $0.00 Sale price $0.00 Regular price Unit price	4901	4801 211 04772
Sold Out Cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	4902	4801 211 00013
Sold Out Connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	4910	4812 290 68329
Sold Out Power unit Ester Regular price $0.00 Sale price $0.00 Regular price Unit price	5210	4810 106 33837
Sold Out Thermostat 285°C Regular price $0.00 Sale price $0.00 Regular price Unit price	5570	4810 105 52514
Sold Out Oven switch 11 position Regular price $0.00 Sale price $0.00 Regular price Unit price	6200	4801 211 01145
Sold Out Selector switch +/- incremental Regular price $0.00 Sale price $0.00 Regular price Unit price	6201	4801 211 01146
Sold Out Lamp halogen 40W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	6510	4810 103 91431
Sold Out Halogen lamp complete assembly 40W Regular price $0.00 Sale price $0.00 Regular price Unit price	6520	4810 106 38530
Sold Out Switch door assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	6550	4801 211 01182
Sold Out Screwed joint door switch Regular price $0.00 Sale price $0.00 Regular price Unit price	6551	4801 211 01177
Sold Out Glass cover Regular price $0.00 Sale price $0.00 Regular price Unit price	6560	4810 106 46361
Sold Out Probe oven temperature Regular price $0.00 Sale price $0.00 Regular price Unit price	6910	4801 211 01179
Sold Out Plug Regular price $0.00 Sale price $0.00 Regular price Unit price	6942	4810 103 50523
Sold Out Spacer glass door Regular price $0.00 Sale price $0.00 Regular price Unit price	9040	4801 211 01594
Sold Out Nut M4 Regular price $0.00 Sale price $0.00 Regular price Unit price	9140	4812 505 18421
Sold Out Nut fan motor Regular price $0.00 Sale price $0.00 Regular price Unit price	9150	4819 505 18145
Sold Out Washer Regular price $0.00 Sale price $0.00 Regular price Unit price	9227	4819 532 28281
Sold Out Spring upper heating element Regular price $0.00 Sale price $0.00 Regular price Unit price	9320	4819 492 68714
Sold Out Support push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	9622	4801 211 01167
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	9640	4801 211 02934
Sold Out Damper black Regular price $0.00 Sale price $0.00 Regular price Unit price	9930	4810 105 78780
Sold Out Kit oven fixation Regular price $0.00 Sale price $0.00 Regular price Unit price	9931	4801 211 04721

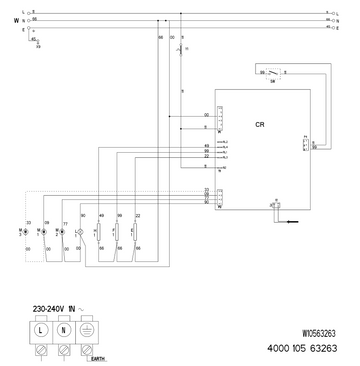

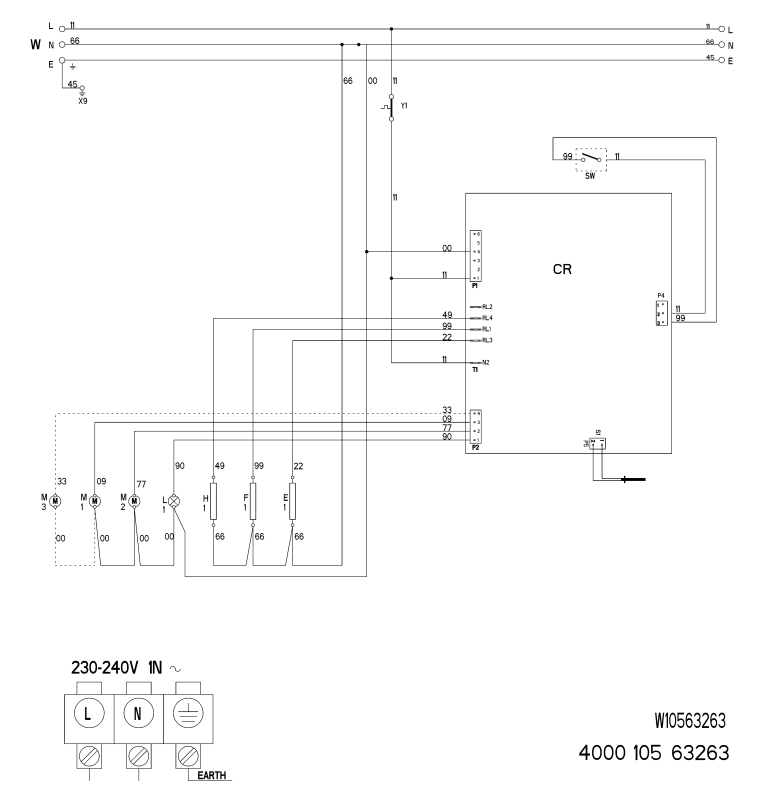

Wiring Diagram

Technical Data

Electrical Base Data

Rated Voltage

220-240 V~ 50/60

Power Consumption

Total connected load	2700	W
Upper heating element/Grill	2450	W
Forced air	2000	W
Lower heating element	1150	W

Electrical Components

Auto timer

G2 EVO

Accessories

Fat pan enameled	449.8 x 374.8	mm
Grid chrome	451 x 375.2	mm

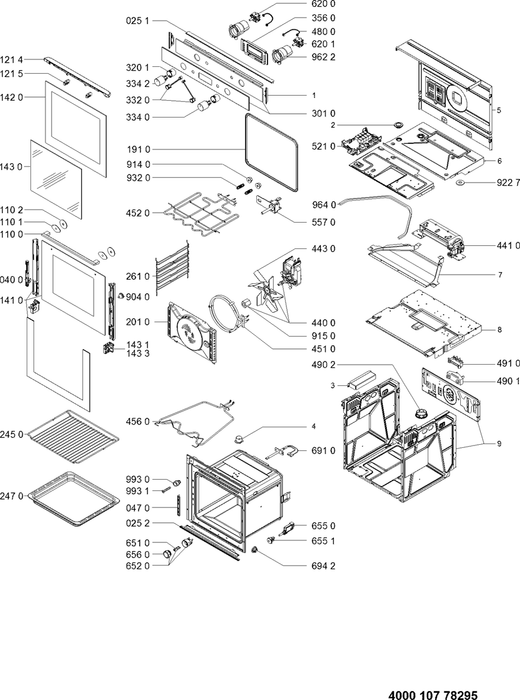

Parts Manual
