AKZM8920HIX

Product Details	S.P. Ref.	S.P. Code
Sold Out Profile ventilator Regular price $0.00 Sale price $0.00 Regular price Unit price	0251	4801 201 00539
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	0252	4801 211 01163
Sold Out Glass shelf induction Regular price $0.00 Sale price $0.00 Regular price Unit price	0310	4810 104 96114
Sold Out Hinge oven door Brera-Soft Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4810 107 45771
Sold Out Hinge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4801 211 01154
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4801 211 01595
Sold Out Buffer piece door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4812 466 68928
Sold Out Washer door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1102	4801 211 03197
Sold Out Exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	1214	4810 106 32458
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	1215	4810 106 33369
Sold Out Oven door outer assembly IX Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4810 106 84068
Sold Out Oven door internal assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4810 105 18291
Sold Out Support glass right Regular price $0.00 Sale price $0.00 Regular price Unit price	1431	4810 105 93001
Sold Out Door glass intermediate Regular price $0.00 Sale price $0.00 Regular price Unit price	1432	4810 105 82564
Sold Out support glass left Regular price $0.00 Sale price $0.00 Regular price Unit price	1433	4810 105 89909
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4801 211 01444
Sold Out Cover fan enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4810 106 96904
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4810 105 18218
Sold Out Fat pan enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	2470	4810 103 90239
Sold Out Pan induction oven Regular price $0.00 Sale price $0.00 Regular price Unit price	2473	4810 104 29088
Sold Out Accessory baking ring Regular price $0.00 Sale price $0.00 Regular price Unit price	2474	4810 105 88088
Sold Out Inset grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	2610	4801 211 03209
Sold Out Inset grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	2611	4801 211 03211
Sold Out Bracket right Regular price $0.00 Sale price $0.00 Regular price Unit price	2613	4810 105 60976
Sold Out Screw Regular price $0.00 Sale price $0.00 Regular price Unit price	2614	4801 211 03347
Sold Out Sliding shelf left/right Regular price $0.00 Sale price $0.00 Regular price Unit price	2615	4810 105 40544
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	2617	4810 417 01023
Sold Out Bracket oven grid Regular price $0.00 Sale price $0.00 Regular price Unit price	2618	4810 103 91241
Sold Out Bracket left Regular price $0.00 Sale price $0.00 Regular price Unit price	2619	4810 105 60979
Sold Out Control panel assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4810 106 60031
Sold Out Display Navigator Regular price $0.00 Sale price $0.00 Regular price Unit price	3560	4810 107 61277
Sold Out Control unit assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	3561	4801 211 02685
Sold Out Cable harness Regular price $0.00 Sale price $0.00 Regular price Unit price	4210	4810 105 24330
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4812 361 18492
Sold Out Air cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4801 211 01162
Sold Out Air cooling fan right G7 Regular price $0.00 Sale price $0.00 Regular price Unit price	4411	4801 211 00062
Sold Out Gasket water leakage Regular price $0.00 Sale price $0.00 Regular price Unit price	4412	4801 211 01151
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4819 515 48065
Sold Out Heating element circular 2000W Regular price $0.00 Sale price $0.00 Regular price Unit price	4510	4801 211 01186
Sold Out Heating element upper/grill 2450W Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4810 105 68824
Sold Out Housing plug Regular price $0.00 Sale price $0.00 Regular price Unit price	4523	4810 104 16985
Sold Out Heating element lower 1150W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4810 105 51720
Sold Out Cable harness touch display Regular price $0.00 Sale price $0.00 Regular price Unit price	4800	4801 211 01616
Sold Out Cable harness assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	4801	4810 105 74096
Sold Out Plug female Regular price $0.00 Sale price $0.00 Regular price Unit price	4835	4810 104 16983
Sold Out Cable clamp Regular price $0.00 Sale price $0.00 Regular price Unit price	4901	4801 211 04772
Sold Out Cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	4902	4801 211 00013
Sold Out Power unit Antares Regular price $0.00 Sale price $0.00 Regular price Unit price	5210	4810 107 42193
Sold Out Filter mains Regular price $0.00 Sale price $0.00 Regular price Unit price	5213	4810 105 24327
Sold Out Power unit induction Regular price $0.00 Sale price $0.00 Regular price Unit price	5214	4810 105 24319

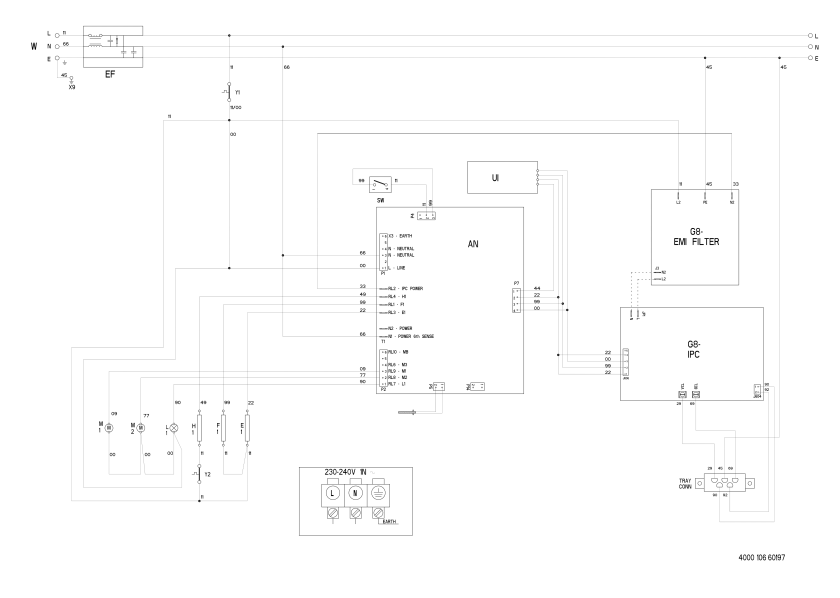

Wiring Diagram

Technical Data

Product Dimensions

Rated Voltage

220-240 V ~50/60

Power Consumtion

Total Connected Load	3650	W
Upper Heating Element/Grill	2450	W
Forced Air	2000	W
Low Heating Element	1150	W

Electrical Components

Auto Timer

Navigator

Accessories

Fat Pan Enameled	449.8 x 374.8	mm
Grid Chrome	451 x 375.2	mm
Induction Tray Glass	409 x 324	mm

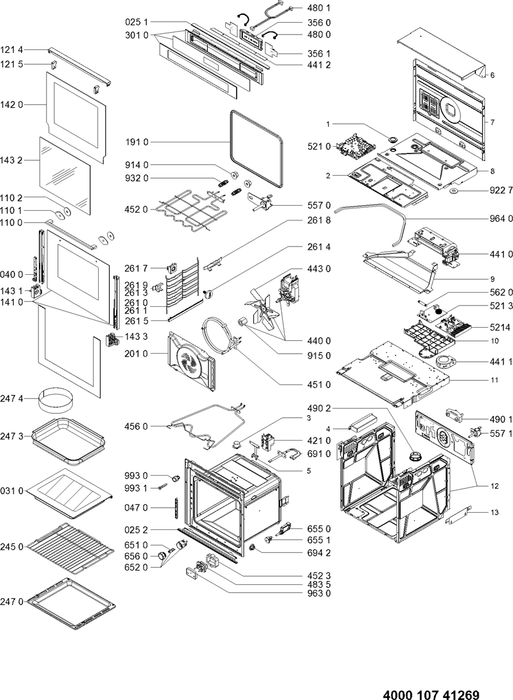

Parts Manual
