AWD712SOC

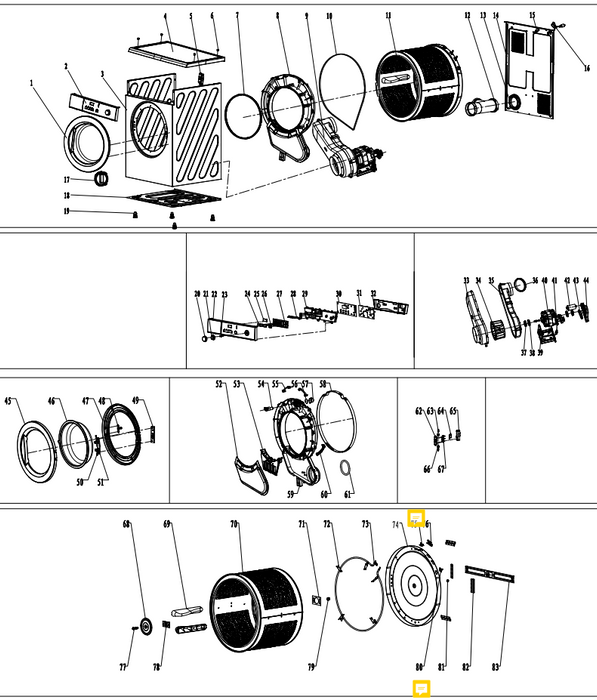

Product Details	S.P. Ref.	S.P. Code
Sold Out door as Regular price $0.00 Sale price $0.00 Regular price Unit price	1	208130000318
Sold Out control panel as Regular price $0.00 Sale price $0.00 Regular price Unit price	2	208130000281
Sold Out cabinet Regular price $0.00 Sale price $0.00 Regular price Unit price	3	218130000290
Sold Out top cover as Regular price $0.00 Sale price $0.00 Regular price Unit price	4	208130000280
Sold Out door lock as Regular price $0.00 Sale price $0.00 Regular price Unit price	5	208130000012
Sold Out screw cap Regular price $0.00 Sale price $0.00 Regular price Unit price	6	228130000367
Sold Out door gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	7	598130000045
Sold Out drum supporter as Regular price $0.00 Sale price $0.00 Regular price Unit price	8	228130000370
Sold Out motor as Regular price $0.00 Sale price $0.00 Regular price Unit price	9	218130000209
Sold Out drum belt Regular price $0.00 Sale price $0.00 Regular price Unit price	10	598130000071
Sold Out drum as Regular price $0.00 Sale price $0.00 Regular price Unit price	11	208130000681
Sold Out vent pipe Regular price $0.00 Sale price $0.00 Regular price Unit price	12	228130000372
Sold Out vent pipe cuff Regular price $0.00 Sale price $0.00 Regular price Unit price	13	228130000591
Sold Out back cover Regular price $0.00 Sale price $0.00 Regular price Unit price	14	218130000196
Sold Out reset button as Regular price $0.00 Sale price $0.00 Regular price Unit price	15	208130000298
Sold Out power cord Regular price $0.00 Sale price $0.00 Regular price Unit price	16	258130000328
Sold Out vent pipe cover Regular price $0.00 Sale price $0.00 Regular price Unit price	17	228130000592
Sold Out under base Regular price $0.00 Sale price $0.00 Regular price Unit price	18	218130000267
Sold Out adjustable leg Regular price $0.00 Sale price $0.00 Regular price Unit price	19	228130000116
Sold Out selet knob Regular price $0.00 Sale price $0.00 Regular price Unit price	20	228130000377
Sold Out knob bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	21	228130000364
Sold Out control panel as Regular price $0.00 Sale price $0.00 Regular price Unit price	22	228130000374
Sold Out knob shaft Regular price $0.00 Sale price $0.00 Regular price Unit price	23	228130000041
Sold Out selet button Regular price $0.00 Sale price $0.00 Regular price Unit price	24	228130000375
Sold Out display window Regular price $0.00 Sale price $0.00 Regular price Unit price	25	228130000036
Sold Out power button Regular price $0.00 Sale price $0.00 Regular price Unit price	26	228130000441
Sold Out button bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	27	228130000289
Sold Out LED display Regular price $0.00 Sale price $0.00 Regular price Unit price	28	228130000037
Sold Out PCB case Regular price $0.00 Sale price $0.00 Regular price Unit price	29	228130000042
Sold Out operate PCB Regular price $0.00 Sale price $0.00 Regular price Unit price	30	268130000057
Sold Out Main PCB Regular price $0.00 Sale price $0.00 Regular price Unit price	31	268130000138
Sold Out PCB cover Regular price $0.00 Sale price $0.00 Regular price Unit price	32	228130000043
Sold Out front fan cover Regular price $0.00 Sale price $0.00 Regular price Unit price	33	228130000402
Sold Out fan as Regular price $0.00 Sale price $0.00 Regular price Unit price	34	208130000009
Sold Out rear fan Regular price $0.00 Sale price $0.00 Regular price Unit price	35	228130000403
Sold Out venting gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	36	598130000039
Sold Out motor cover Regular price $0.00 Sale price $0.00 Regular price Unit price	37	228130000460
Sold Out motor cushion Regular price $0.00 Sale price $0.00 Regular price Unit price	38	598130000069
Sold Out motor fixture Regular price $0.00 Sale price $0.00 Regular price Unit price	39	218130000209
Sold Out motor Regular price $0.00 Sale price $0.00 Regular price Unit price	40	278039000038
Sold Out idler spring Regular price $0.00 Sale price $0.00 Regular price Unit price	41	575000090933
Sold Out capacitance Regular price $0.00 Sale price $0.00 Regular price Unit price	42	258130000058
Sold Out small idler belt Regular price $0.00 Sale price $0.00 Regular price Unit price	43	598130000072
Sold Out motor support Regular price $0.00 Sale price $0.00 Regular price Unit price	44	228130000459
Sold Out door outer frame Regular price $0.00 Sale price $0.00 Regular price Unit price	45	228130000404
Sold Out door inter window Regular price $0.00 Sale price $0.00 Regular price Unit price	46	248130000014
Sold Out door inner frame Regular price $0.00 Sale price $0.00 Regular price Unit price	47	228130000369
Sold Out door hook Regular price $0.00 Sale price $0.00 Regular price Unit price	48	228130000049
Sold Out hinge suppor plate Regular price $0.00 Sale price $0.00 Regular price Unit price	49	218130000194
Sold Out door hinge cap Regular price $0.00 Sale price $0.00 Regular price Unit price	50	228110000208
Sold Out door hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	51	218130000193
Sold Out drum supporter cover Regular price $0.00 Sale price $0.00 Regular price Unit price	52	228130000210
Sold Out filter as Regular price $0.00 Sale price $0.00 Regular price Unit price	53	208130000475
Sold Out lamp socket Regular price $0.00 Sale price $0.00 Regular price Unit price	54	258130000023
Sold Out lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	54	208130000652
Sold Out drum guide plate Regular price $0.00 Sale price $0.00 Regular price Unit price	55	228130000011
Sold Out lamp gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	56	598130000012
Sold Out lamp cap Regular price $0.00 Sale price $0.00 Regular price Unit price	57	228130000012
Sold Out felt Regular price $0.00 Sale price $0.00 Regular price Unit price	58	598130000046
Sold Out drum supporter Regular price $0.00 Sale price $0.00 Regular price Unit price	59	228130000370
Sold Out moisture sensor Regular price $0.00 Sale price $0.00 Regular price Unit price	60	218130000021
Sold Out venting gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	61	598130000002
Sold Out door lock body Regular price $0.00 Sale price $0.00 Regular price Unit price	62	228130000006
Sold Out hook holder spring Regular price $0.00 Sale price $0.00 Regular price Unit price	63	575000090457
Sold Out micro switch Regular price $0.00 Sale price $0.00 Regular price Unit price	64	258130000008
Sold Out micro switch cover Regular price $0.00 Sale price $0.00 Regular price Unit price	65	228130000009
Sold Out hook holder Regular price $0.00 Sale price $0.00 Regular price Unit price	66	228130000008
Sold Out door lock cover Regular price $0.00 Sale price $0.00 Regular price Unit price	67	228130000007
Sold Out shaft as Regular price $0.00 Sale price $0.00 Regular price Unit price	68	208130000004
Sold Out lifter Regular price $0.00 Sale price $0.00 Regular price Unit price	69	228130000458
Sold Out Inner barrel riveting as Regular price $0.00 Sale price $0.00 Regular price Unit price	70	208130000683
Sold Out tub back cover fixed plate Regular price $0.00 Sale price $0.00 Regular price Unit price	71	218130000143
Sold Out heater fixture B Regular price $0.00 Sale price $0.00 Regular price Unit price	72	218130000016
Sold Out heater Regular price $0.00 Sale price $0.00 Regular price Unit price	73	208130000292
Sold Out heater plate Regular price $0.00 Sale price $0.00 Regular price Unit price	74	218130000014
Sold Out resettable thermostat 170deg for the heater Regular price $0.00 Sale price $0.00 Regular price Unit price	75	258130000189
Sold Out thermostat fixture Regular price $0.00 Sale price $0.00 Regular price Unit price	76	575000090528
Sold Out drum shaft Regular price $0.00 Sale price $0.00 Regular price Unit price	77	218130000032
Sold Out inside bucket bearings as Regular price $0.00 Sale price $0.00 Regular price Unit price	78	208130000029
Sold Out bearing supporter B Regular price $0.00 Sale price $0.00 Regular price Unit price	79	218130000012
Sold Out non resettable thermostat for the drum Regular price $0.00 Sale price $0.00 Regular price Unit price	80	258130000033
Sold Out spring washer Regular price $0.00 Sale price $0.00 Regular price Unit price	NA	572000090159
Sold Out nut Regular price $0.00 Sale price $0.00 Regular price Unit price	81	573000090149
Sold Out drum as fixture Regular price $0.00 Sale price $0.00 Regular price Unit price	82	218130000015
Sold Out heater plate frame Regular price $0.00 Sale price $0.00 Regular price Unit price	83	218130000020

Wiring Diagram

Technical Data

Voltage	220-240V 50Hz
Weight	33.5 Kg
Heater	1800W
Dimention WxDxH	595555850mm
Drying System	Air vented
Humidity control	Conductimetric sensor
Motor	Single-phase asynchronous motor with capacitor
Temperature control	NTC sensor
Error alarms	3

Parts Manual
