AWG 274

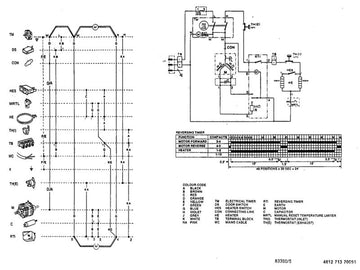

Wiring Diagram
Technical Data
| Model | AWG 274 |
Dimension
| Height | 85 | cm |
| Width | 59.6 | cm |
| Depth | 53.0 | cm |
| Depth when rear vent hose assembled | 60 | cm |
Weight
| With packing | ca. 31.5 | kg |
| Without packing | ca. 31 | kg |
General specifications
| Voltage | 220 / 50 | V / Hz |
| Connected load | 2.7 | kW |
| Fuse | 15 | A |
| Wall socket must have an efficient earth connection |
Drum Data
| Volume | 105 | l |
| Drum Speed | 55 / 59 | rpm |
| Maximum capacity of dry laundry | ||
| Programs: | ||
| Cotton | Maxi. 5 | kg |
| Rotation | 10.54 min. clockwise | |
| 1.5 min. anti-clockwise |
| Air flow | 140 | m3/h |
Electrical building parts
| Heating | twin tubular sheathed element | |
| Power consumption: | ||
| Low Setting | 1250 | W |
| High setting | 2500 | W |
Motor
| Permanent split capacitor induction. 4 pole reversing. Thermal overload protection | approx. 130 | °C |
| Alternative Types: | ||
| OLMO-P/N 3951.01 | 8 µF capacitor | |
| EMERSON K58ZZBLW-9277 | 8 µF capacitor | |
| LEMAC 54542-205 | 8 µF capacitor | |
| EMERSON K58ZZNND-4782 | 8 µF capacitor | |
| CESET PN CPI 4/78-149/CR01 | 8 µF capacitor |
Timer
| Sibel Electric single pole | ||
| Type | CS 1079 | |
| Duration | max. 120 | min |
Reversing Timer
| Electric motor driven | ZBN 8221 D 03 | |
| Eaton single pole -24 minutes complete cycle -Features 2,5 ohms resistance to internal switching voltage surge. | ||
| a) Alternates main motor current -forward 10,5 minutes -reverse 1,5 minutes | ||
| b) Alternates heater current -on 10 minutes -off 2 minutes |
Thermostats
| Heater temperature limiter (MRTL) | ||
| Bi -metal -contacts normally closed | ||
| Contacts open | 120 ± 5 | °C |
| Contacts reset by manual operation | ||
| Inlet (heater) thermostat | ||
| Bi -metal -contacts normally closed | ||
| Contacts open | 143 ± 4 | °C |
| Contacts reset | 110 ± 8 | °C |
| Exhaust thermostat | ||
| Bi -metal -contacts normally closed | ||
| Contacts open | 60 ± 3 | °C |
| Contacts reset | 49 ± 4 | °C |
| Accessories | ||
| Stacking kit | (White surround) for dual stacked appliances | |
| Wall / window vent kit | For permanent installations |
