AWZ 121

Product Details	S.P. Ref.	S.P. Code
Sold Out Bottom Regular price $0.00 Sale price $0.00 Regular price Unit price	004 0	4812 530 48144
Sold Out Foot adjustable Regular price $0.00 Sale price $0.00 Regular price Unit price	011 0	4812 500 18054
Sold Out Roll Regular price $0.00 Sale price $0.00 Regular price Unit price	012 0	4812 528 78033
Sold Out Shaft Front + Roll Regular price $0.00 Sale price $0.00 Regular price Unit price	012 1	4812 528 98003
Sold Out Shaft rear; rear Regular price $0.00 Sale price $0.00 Regular price Unit price	012 2	4812 520 28068
Sold Out Front panel Regular price $0.00 Sale price $0.00 Regular price Unit price	021 0	4812 440 19387
Sold Out Panel side Regular price $0.00 Sale price $0.00 Regular price Unit price	022 0	4812 440 19445
Sold Out Panel rear from 98/34 Regular price $0.00 Sale price $0.00 Regular price Unit price	024 0	4812 440 19467
Sold Out Panel rear to 98/33 Regular price $0.00 Sale price $0.00 Regular price Unit price	024 0	4812 440 19441
Sold Out Table top Regular price $0.00 Sale price $0.00 Regular price Unit price	030 0	4812 440 19389
Sold Out Door Regular price $0.00 Sale price $0.00 Regular price Unit price	100 0	4812 417 38012
Sold Out Door lock Regular price $0.00 Sale price $0.00 Regular price Unit price	131 0	4812 271 38362
Sold Out Pin Door Regular price $0.00 Sale price $0.00 Regular price Unit price	133 0	4812 417 28049
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	191 0	4812 466 68539
Sold Out Drum coated; coated Regular price $0.00 Sale price $0.00 Regular price Unit price	220 0	4812 418 18199
Sold Out Drum lifter Regular price $0.00 Sale price $0.00 Regular price Unit price	223 0	4812 418 88027
Sold Out Belt 1970-H 7 Regular price $0.00 Sale price $0.00 Regular price Unit price	271 0	4812 358 18155
Sold Out Pulley jokey Regular price $0.00 Sale price $0.00 Regular price Unit price	273 0	4812 358 18055
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	275 0	4812 492 68129
Sold Out Gasket Drum front Regular price $0.00 Sale price $0.00 Regular price Unit price	291 0	4812 466 68563
Sold Out Gasket Fluff Filter Regular price $0.00 Sale price $0.00 Regular price Unit price	291 1	4812 466 68541
Sold Out Gasket Drum rear Regular price $0.00 Sale price $0.00 Regular price Unit price	291 2	4812 466 68562
Sold Out Control panel Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4812 452 19338
Sold Out Insert panel Regular price $0.00 Sale price $0.00 Regular price Unit price	322 0	4812 452 19695
Sold Out Knob Timer Regular price $0.00 Sale price $0.00 Regular price Unit price	331 0	4812 413 48285
Sold Out Button Regular price $0.00 Sale price $0.00 Regular price Unit price	333 0	4812 276 18249
Sold Out Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	344 0	4812 464 48108
Sold Out Pilot lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	351 0	4812 134 48202
Sold Out Buzzer Regular price $0.00 Sale price $0.00 Regular price Unit price	355 0	4819 280 18015
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	401 0	4812 361 18247
Sold Out Clamp Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	401 1	4812 401 18226
Sold Out Capacitor 10 mF Regular price $0.00 Sale price $0.00 Regular price Unit price	420 0	4812 121 18144
Sold Out Interf.filter Regular price $0.00 Sale price $0.00 Regular price Unit price	421 0	4812 121 18121
Sold Out Blower Wheel; Wheel Regular price $0.00 Sale price $0.00 Regular price Unit price	443 0	4812 361 18248
Sold Out Heating element 2500W Regular price $0.00 Sale price $0.00 Regular price Unit price	456 0	4812 259 28674
Sold Out Connect.cable 5m Regular price $0.00 Sale price $0.00 Regular price Unit price	490 0	4812 321 18043
Sold Out Connect.cable 3m Regular price $0.00 Sale price $0.00 Regular price Unit price	490 0	4812 321 18042
Sold Out Strain relief Regular price $0.00 Sale price $0.00 Regular price Unit price	490 1	4812 321 28367
Sold Out Timer EC4605.01 TRA; EC4605.01 Regular price $0.00 Sale price $0.00 Regular price Unit price	503 0	4812 282 18457
Sold Out Thermostat Regular price $0.00 Sale price $0.00 Regular price Unit price	551 6	4812 271 28369
Sold Out Switch start reset Regular price $0.00 Sale price $0.00 Regular price Unit price	621 1	4812 278 18003
Sold Out Switch Gentle Regular price $0.00 Sale price $0.00 Regular price Unit price	621 2	4812 276 18246
Sold Out Switch Start Regular price $0.00 Sale price $0.00 Regular price Unit price	633 0	4812 276 18248
Sold Out Pin Start Reset Regular price $0.00 Sale price $0.00 Regular price Unit price	633 1	4812 276 18271
Sold Out Heating chamber Regular price $0.00 Sale price $0.00 Regular price Unit price	743 0	4812 530 48147
Sold Out Air guide Regular price $0.00 Sale price $0.00 Regular price Unit price	743 1	4812 530 48145
Sold Out Seal for blower Regular price $0.00 Sale price $0.00 Regular price Unit price	743 2	4812 466 68538
Sold Out Filter Regular price $0.00 Sale price $0.00 Regular price Unit price	761 0	4812 480 58077
Sold Out Accessory hose kit AMH 577 Regular price $0.00 Sale price $0.00 Regular price Unit price	787 0	4812 310 18413
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	794 0	4812 466 28107
Sold Out Bracket Roller Regular price $0.00 Sale price $0.00 Regular price Unit price	902 1	4812 256 38002
Sold Out Clamp Regular price $0.00 Sale price $0.00 Regular price Unit price	902 3	4812 532 28915
Sold Out Clip fix Regular price $0.00 Sale price $0.00 Regular price Unit price	903 0	4812 532 28028
Sold Out Clip Regular price $0.00 Sale price $0.00 Regular price Unit price	903 1	4812 290 88053
Sold Out Clip Regular price $0.00 Sale price $0.00 Regular price Unit price	903 2	4812 401 18195
Sold Out Screw Torx 4,2x13 Regular price $0.00 Sale price $0.00 Regular price Unit price	910 0	4812 502 38057
Sold Out Screw 4,0x16-TORX Regular price $0.00 Sale price $0.00 Regular price Unit price	912 0	4812 502 48015
Sold Out Screw M5 x 10 Regular price $0.00 Sale price $0.00 Regular price Unit price	912 1	4812 502 38142
Sold Out Ring circlip Triring Regular price $0.00 Sale price $0.00 Regular price Unit price	922 0	4812 532 58005
Sold Out Ring circlip Regular price $0.00 Sale price $0.00 Regular price Unit price	922 1	4812 532 58007
Sold Out Protector Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	962 0	4812 466 38012
Sold Out Adapter Regular price $0.00 Sale price $0.00 Regular price Unit price	993 0	4812 263 78014

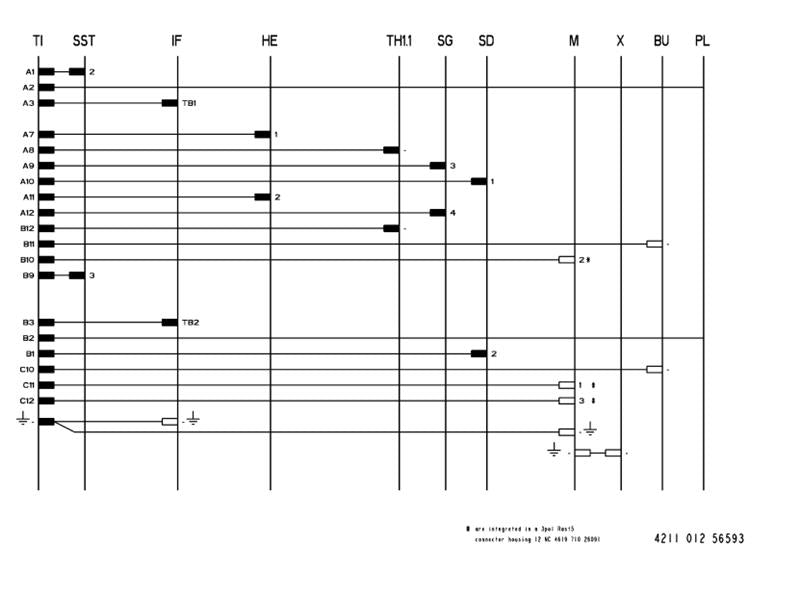

Wiring Diagram

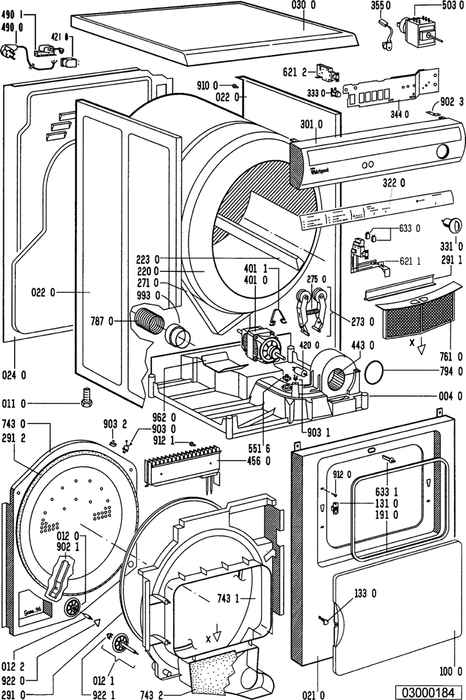

Parts Manual
