AWZ 135
AWZ 135

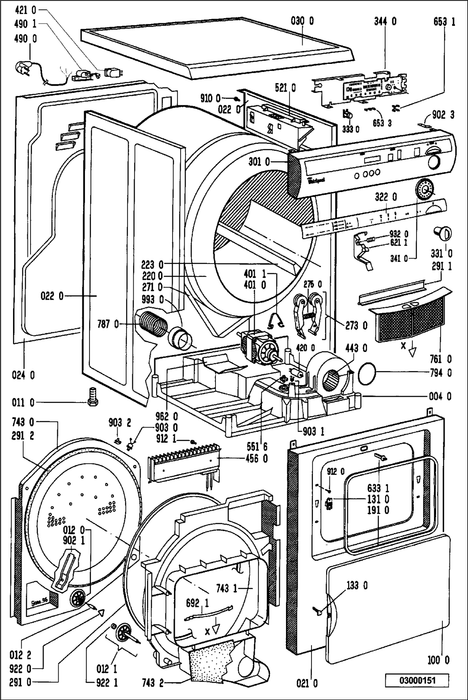

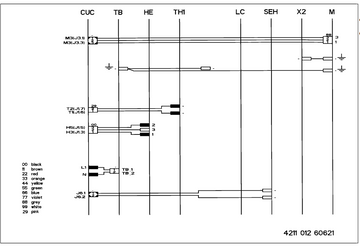

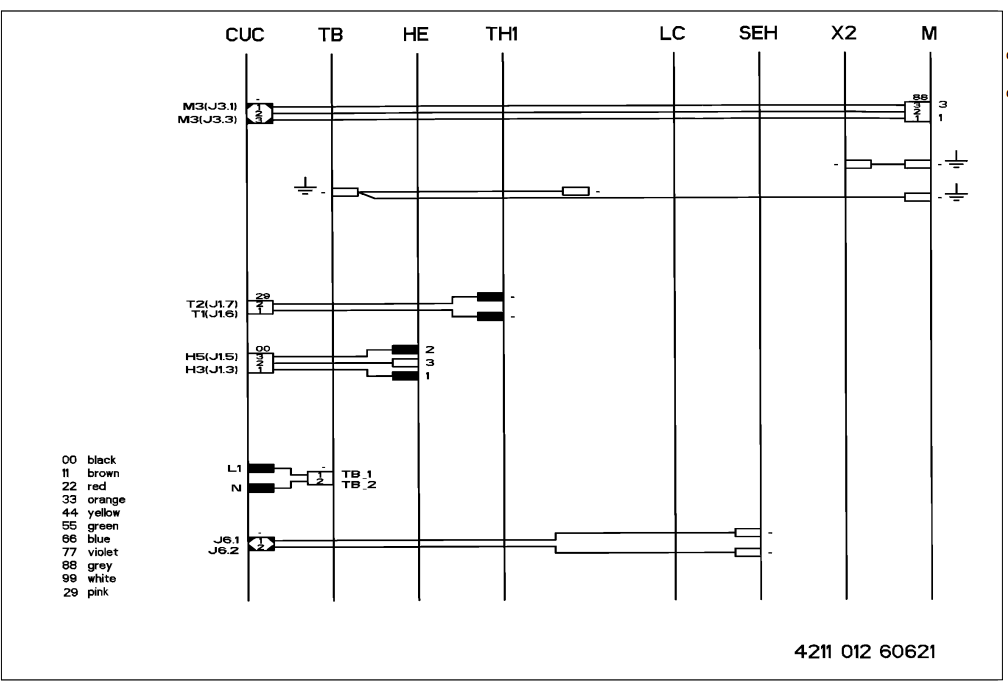

Wiring Diagram
Technical Data
Dimensions
| Height | 85.0 | cm |
| Width | 59.5 | cm |
| Depth | 56.0 | cm |
Weight
| Gross Weight | 33 | kg |
| Net weight | 31 | kg |
Surroundings temperature
| Max.room temperature | 35 | ËšC |
| Min. room temperature | 5 | ËšC |
Humidity
| Max. relative humidity | 95 | % |
Power connection
| Voltage | 230 | V |
| Frequency | 50 | Hz |
| Connected load | 2,3 | kW |
| Fuse | 10 | A |
Drum data
| Volume | 104 | l |
| Drum speed (empty) | 56 ± 3 | rpm |
| Airflow | 120 - 160 | m3 /h |
Maximum loading capacity
| Cotton | 5 | kg |
| Easy care | 2,5 | kg |
Exhaust hose
| Inner diameter | 10 | cm |
| Maximum allowable | ||
| length (with 2 bows) | 4 | m |
Electrical components
Heating
| Type | Aluminium mass heating | |
| Nominal voltage | 230 | V |
| Nominal power | 2050 ± 5% | W |
| Resistor R 20 | 23,5-28 | Ω |
Thermostats
Safety thermostat (in heater) TL
| Switching point off | 270 ± 10 | ˚C |
Fluff thermostat (in heater) TH 1.2
| Switching point on | 195 ± 7,5 | ˚C |
| Switching point off | 220 ± 7,5 | ˚C |
Exhausting thermostat (in bottom) TH 1.1
| Switching point on | 45 ± 5 | ˚C |
| Switching point off | 60 ± 4 | ˚C |
Timer
| Type | Electronic Timer Eaton SL49WR2 3203 | |
| Nominal voltage | 230 | V |
| Frequency | 50 / 60 | Hz |
| Rated current for: Main motor | ≤ 6 | A |
| Heater | ≤ 16 | A |
| Drumlight | ≤ 0.1 | A |
| Ambient temperature | up to 50 | ËšC |
| Storage temperature | -25 to 85 | ËšC |
Main- and blower motor
| Type | 1-phase asynchronous | |
| Nominal voltage | 230 | V |
| Frequency | 50 | Hz |
| Power consumption | 295 ± 7% | W |
| Resistances of coils: | ||
| Main coil (2-3) | 24,7 ± 7% | Ω |
| Auxiliary coil (2-1) | 25,6 ± 7% | Ω |
| Rated speed with 5kg laundry and 100 % rest humidity | 2730 | rpm |
| Capacitor | 10 | µF |
Display
WH display module Low
| Type | EATON MV19WR1 2910 | |
| No. of LEDs | 6 | |
| Buttons | START | |
| GENTLE | ||
| RAPID | ||
| BUZZER | ||
| Program selector | 12 positions | |
| integrated ON / OFF contact 24 V AC |
Radio interference filter
| Type | ISKRA KPB 7325 | |
| Nominal voltage max | 275 | V |
| Nominal capacity | 0,1 µFX1 + 2x 0,022 µF Y2 + 1 M | Ω |
