AWZ 220
AWZ 220

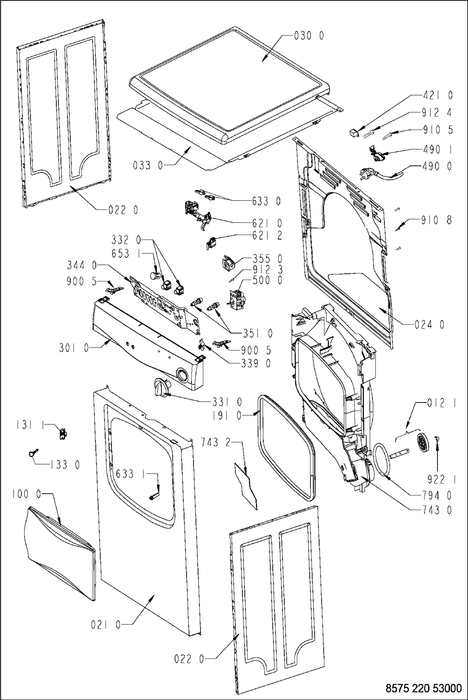

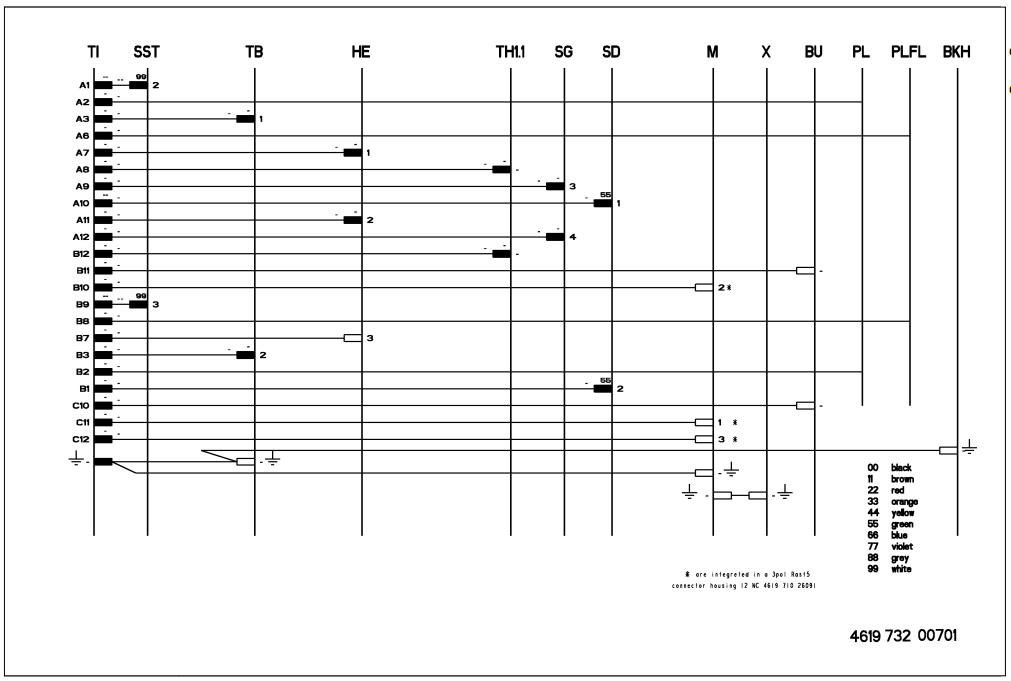

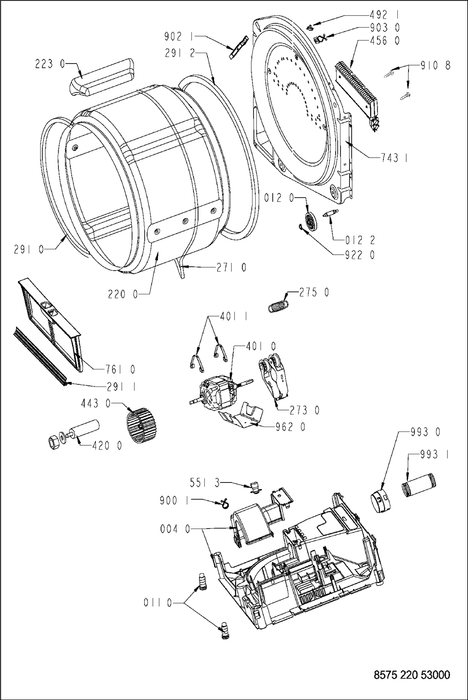

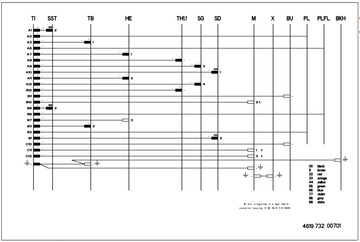

Wiring Diagram
Technical Data
Dimensions
| Height | 85 | cm |
| Width | 59.5 | cm |
| Depth | 56 | cm |
Weight
| Gross Weight | 33 | kg |
| Net weight | 31 | kg |
Surroundings temperature
| Room temperature maximum | 35 | ËšC |
| Room temperature minimum | 5 | ËšC |
Humidity
| Relative humidity maximum | 95 | % |
Power connection
| Voltage | 230 | V | Frequency | 50 | Hz |
| Connected load | 2.3 | kW | Fuse | 10 | A |
Drum data
| Volume | 104 | l |
| Drum speed (empty) | 56 ± 3 | rpm | Airflow | 120 - 160 | m3 /h |
Capacity of laundry
| Cotton | 5 | kg |
| Easy care | 2.5 | kg |
Exhaust hose
| Inner diameter | 10 | cm |
| Maxi.allowable length (with 2 bows) | 4 | m |
Electrical components
Heating
| Type | Aluminium mass heating | |
| Nominal voltage | 230 +10%/ -15% | V | Nominal power | 2050 ± 5% | W |
| Heating resistances: | ||
| Connecting points | 23.5 - 28 | Ω |
Thermostats
Safety thermostat (in heater) TL
| Switch off temperature | 298 - 10 | ËšC | Heat resistance of slolder | 260 | ËšC |
Fluff thermostat (in heater) TH 1.2
| Switch off temperature | 220 ± 7.5 | ˚C |
Exhausting thermostat (in bottom) TH 1.1
| Switching point on | 38 ± 5 | ˚C | Switching point off | 53 ± 4 | ˚C |
Timer
| Type | Electromechanical Timer Eaton EC 4605 | Nominal voltage | 230 +10% / -15% | V |
| Frequency | 50 | Hz | Number of steps | 60 | A |
| Stop | 01 | Heating (138 min.) | 02 - 53 |
| Cool down (6 min.) | 54 - 55 | Stop | 60 |
| Reversing cycle | 2’- 6’- 2’- 80’ | Ambient temperature | 5 to 75 | ˚C |
| Storage temperature | up to 85 | ËšC |
Main- and blower motor
| Type | 1-phase asynchronous | Nominal voltage | 230 +10% / -15% | V |
| Frequency | 50 | Hz | Power consumption | 295 ± 7% | W |
| Resistances of coils: | Main coil (2-3) | 24,7 ± 7% | Ω |
| Auxiliary coil (2-1) | 25,6 ± 7% | Ω | Rated speed with 5kg laundry and 100 % rest humidity | 2730 | rpm |
| Capacitor | 10 ± 7% | µF |
Radio interference filter
| Type | ISKRA KPB 7325 | Voltage max | 275 | V |
| Capacity | 100 nFX1 + 2x 22 nF Y2 +1M | Ω |
Door switch SD
| Nominal voltage | 230 +10% / -15% | V | Nominal current | 16 | A |
Buzzer
| type | Eichhoff E 2778 | Nominal voltage | 230 +10% / -15% | V |
| Resistance of coil | 7 ± 15 % | kΩ |
Push buttons
| Start switch SST | Nominal voltage | 230 +10% / -15% | V |
| Nominal current | 16 | A |
| Gentle switch SG | Nominal voltage | 230 +10% / -15% | V |
| Nominal current | 16 | A |
