AWZ 233
AWZ 233

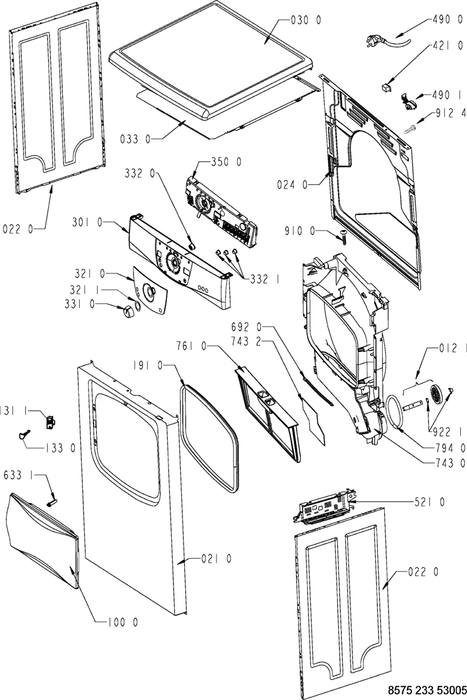

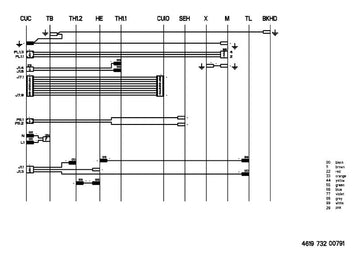

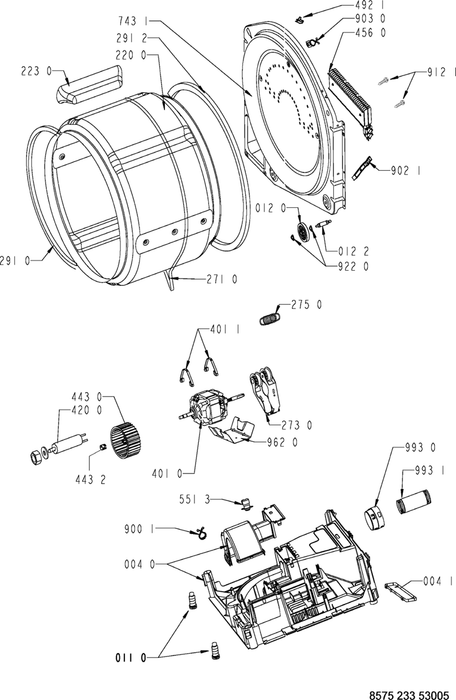

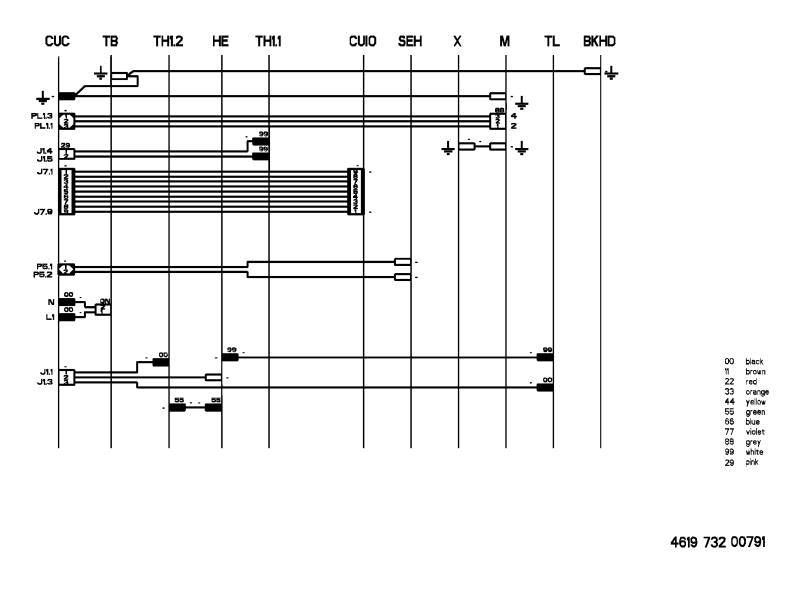

Wiring Diagram
Technical Data
Dimensions + Weight
| Height | 85 | cm |
| Width | 59.5 | cm |
| Depth | 56 | cm |
Weight
| Gross | 33 | kg |
| net | 31 | kg |
Surroundings temperature
| Room temperature | 5 - 35 | °C |
Humidity
| Relative humidity max. | 95 | % |
Electrical base data
| Voltage | 230 | V |
| Frequency | 50 | Hz |
| Fuse | 10 | A |
| Total connected load | 2.3 | kW |
Drum data
| Volume | 104 | l |
| Drum speed | 56 ± 3 | rpm |
Airflow
| 120 - 160 | m 3 /h |
Capacity of laundry
| Cotton max. | 5 | kg |
| Easy care max. | 2.5 | kg |
Electrical components
| Heating element: | ||
| Type | Aluminium mass | |
| Nominal voltage | 230 +10%, -15% | V |
| Total power | 2050 W ± 5 | % |
| Heating resistances: | ||
| Connection points | 23.5 - 28 | Ω |
| Exhaust hose: | ||
| Inner diameter | 10 | cm |
| Max. allowable length (with 2 bows) | 4 | cm |
THERMOSTATS
Safety thermostat (in heater) TL
| Switch off temperature | 298 -10 | °C |
Fluff thermostat (in heater) TH 1.2
| Switch off temperature | 220 ± 7.5 | °C |
| Exhausting thermostat (in airchannel) | TH 1.1 | |
| Type | ELTH 261P | |
| Switch on temperature | 38 ± 4 | °C |
| Switch off temperature | 53 ± 3 | °C |
Control module
| caution: if one of the thermostats (tl, th1.2) is defective, the whole heating element has to be changed for safety reason! therefore, the thermostats are not available as separate spare parts! | ||
| Type | Electronic Timer Flextronics max.options | |
| Nominal voltage | 230 V ± 10 | % |
| Frequency | 50/60 | Hz |
| Rated current: | ||
| Motor | ≤ 6 | A |
| Heating | ≤ 16 | A |
| Drum light | ≤ 0.1 | A |
| Ambient temperature | up to 50 | °C |
| Storage temperature | up to 85 | °C |
Main- and blower motor
| Type | 1-phase asynchronous | Nominal voltage | 230 +10% / -15% | V |
| Frequency | 50 | Hz | Power consumption | 295 ± 7% | W |
| Resistances of coils: | Main coil (2-3) | 24,7 ± 7% | Ω |
| Auxiliary coil (2-1) | 25,6 ± 7% | Ω | Rated speed with 5kg laundry and 100 % rest humidity | 2730 | rpm |
| Capacitor | 10 ± 7% | µF |
Radio interference filter
| Type | EICHHOFF BV 16.250/119 | Voltage max. | 250 | V |
| Capacity | 100 nF X1 + 2 x 15 nF Y2 | Ω |
Display
| No. of LEDs | 19 + Start | LED | Program selector | 12 positions integrated ON/OFF contact 24 V AC |
| Options | Start | |
| Gentle | ||
| Buzzer | ||
| Rapid |
