AWZ 3413
AWZ 3413

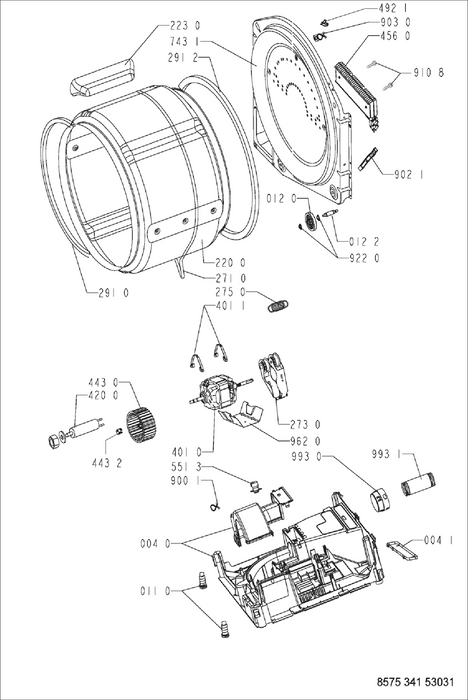

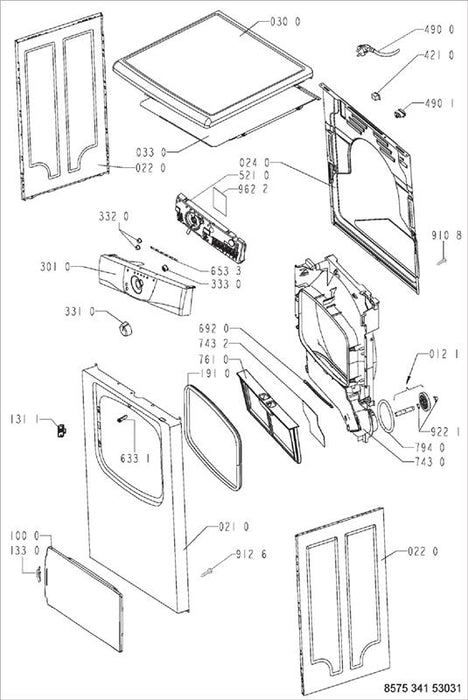

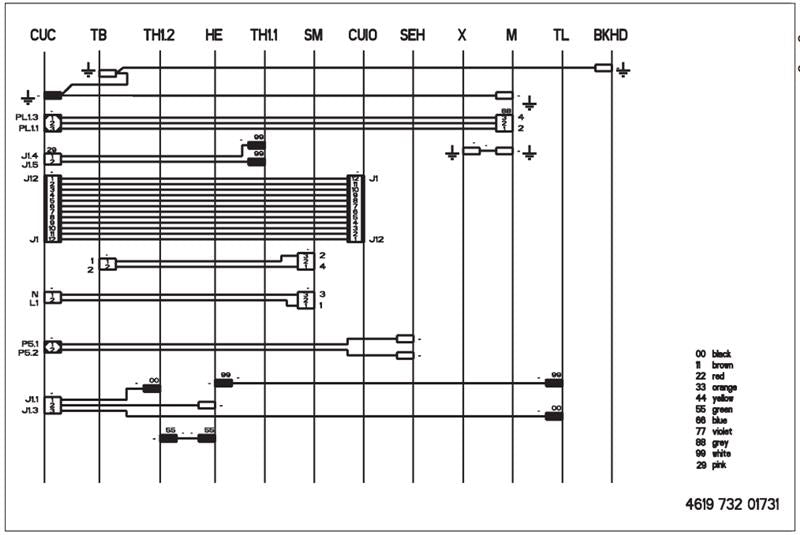

Wiring Diagram
Technical Data
Dimensions
| Height | 85 | cm |
| Width | 59.5 | cm |
| Depth | 56 | cm |
Weight
| Gross Weight | 33 | kg |
| Net weight | 31 | kg |
Surroundings temperature
| Room temperature maximum | 35 | ËšC |
| Room temperature minimum | 5 | ËšC |
Humidity
| Relative humidity maximum | 95 | % |
Power connection
| Voltage | 220 - 240 | V | Frequency | 50 | Hz |
| Connected load | 2.3 | kW | Fuse | 10 | A |
Drum data
| Volume | 112 | l |
| Drum speed (empty) | 56 ± 3 | rpm | Airflow | 120 - 160 | m3 /h |
Capacity of laundry
| Cotton | 6 | kg |
| Easy care | 2.5 | kg |
Exhaust hose
| Inner Diameter | 10 | cm | Maximum allowable length (with 2 bows) | 4 | m |
Electrical components
Heating
| Type | Aluminium mass heating | |
| Nominal voltage | 230 + 10% / -15% | V | Nominal power | 2500 ± 5% | W |
| Heating resistances: | ||
| Connecting points R20 | 23.5 - 28 | Ω |
Thermostats
Safety thermostat (in heater) TL
| Switch off (temp.) | 298 - 10 | ËšC | Heat resistance of solder | 260 | ËšC |
Fluff thermostat (in heater) TH 1.2
| Switch off (temp.) | 220 ± 7.5 | ˚C | Hysteresis | 12 - 25 | K |
Exhausting thermostat (in airchannel) TH 1.1
| Switch on (temp.) | 38 ± 5 | ˚C | Switch off (temp.) | 53 ± 4 | ˚C |
Control module
| Type | Alphatronic | Nominal voltage | 230 +10% / -15% | V |
| Frequency | 50/60 | Hz |
Rated currents
| Motor | ≤10 | A | Heater | ≤16 | A |
Temperature
| Ambient | up to 85 | ËšC | Storage | -25 to 85 | ËšC |
Main- and blower motor
| Type | 1-phase asynchronous | Nominal voltage | 230 +10% / -15% | V |
| Frequency | 50 | Hz | Power consumption | 295 | W ± 7% |
| Resistances of coils: | Main coil (2-3) | 24.7 | Ω |
| Auxiliary coil (2-1) | 25.6 | Ω | Rated speed with 5 kg laundry and 100% rest humidity | 2730 | rpm |
| Capacitor | 10 | µF |
Radio interference filter
| Type | ISKRA KPB 7325 | Voltage max | 275 | V |
| Capacity | 100 nF X1 + 2 x 15 nF Y2 + 1M | Ω |
Buzzer
| Integrated on the electronic display. |
Display
| No. of LEDs | 7 | |
| Program selector | 11 positions integrated ON/OFF |
Effciency Class
| Energy class |
