AWZ 650
AWZ 650

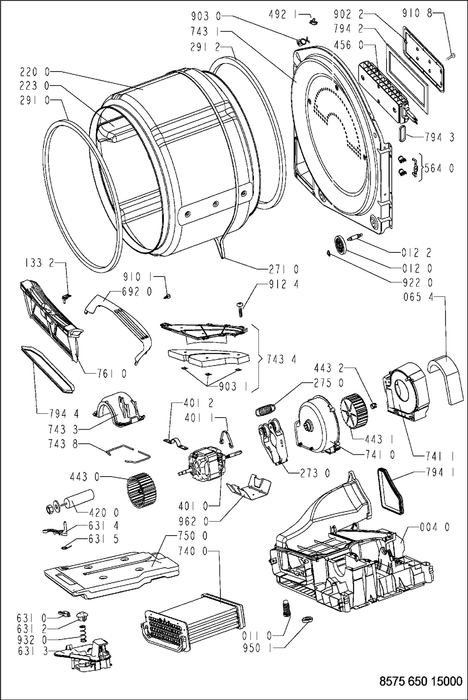

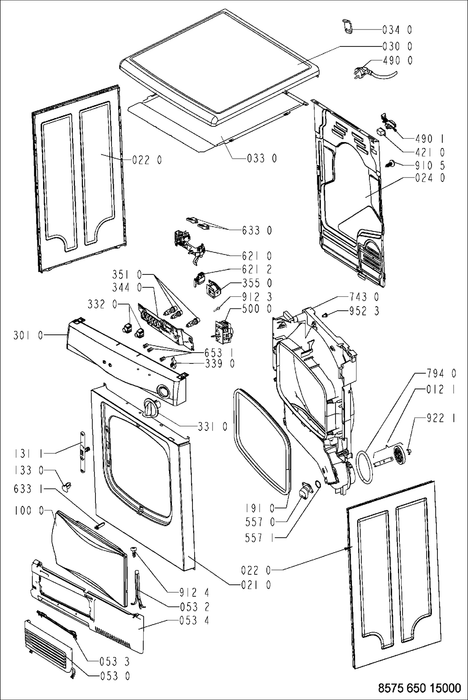

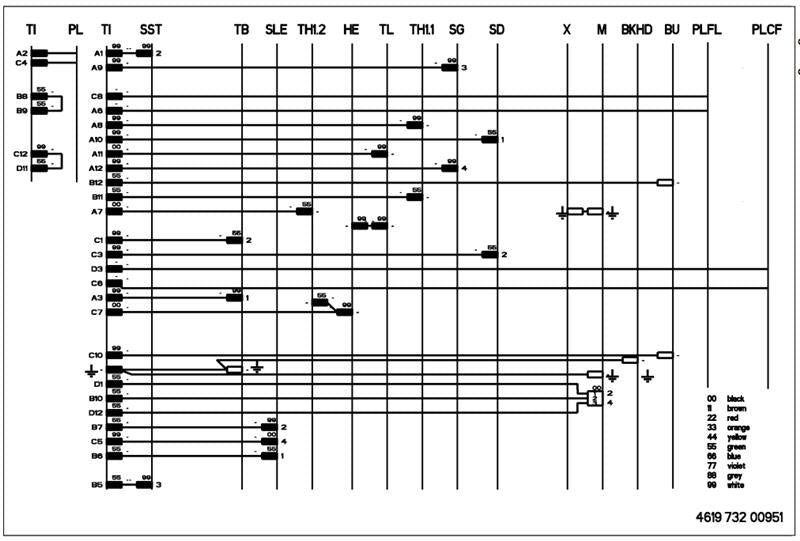

Wiring Diagram
Technical Data
Dimensions
| Height | 85 | cm |
| Width | 59.5 | cm |
| Depth | 60 | cm |
Weight
| Gross Weight | 40 | kg |
| Net weight | 38 | kg |
Surroundings temperature
| Room temperature maximum | 35 | ËšC |
| Room temperature minimum | 5 | ËšC |
Humidity
| Relative humidity maximum | 95 | % |
Power connection
| Voltage | 230 | V | Frequency | 50 | Hz |
| Connected load | 2.19 | kW | Fuse | 13 | A |
Drum data
| Volume | 112 | l |
| Drum speed (empty) | 57 ± 2 | rpm | Airflow | 120 - 160 | m3 /h |
Airflow
| Circulation air flow | 200 +10 / -30 | m3 /h |
| Cooling air flow | 180 +10/ -30 | m3 /h |
Capacity of laundry
| Cotton | 5 | kg |
| Easy care | 2.5 | kg |
Heat exchanger
| 3 plates |
Condenswater evacuation
| Condenswater container | 2.9 | l |
Electrical components
Heating
| Type | IRCA 1T.8294004 | |
| Nominal voltage | 230 + 10% / -15% | V | Nominal power | 1900 ± 5% | W |
| Heating resistances: | ||
| Connecting points | 25.2 - 28.4 | Ω |
Thermostats
Fluff thermostat (in heater) TH 1.2
| Switch on temperature | 165 ± 10 | ˚C | Switch off temperature | 210 ± 9 | ˚C |
| Color code | Green |
Safety thermostat (in heater) TL
| Switch on temperature | <-35 | ˚C | Switch off temperature | 260 ± 10 | ˚C |
Exhausting thermostat (in airchannel) TH 1.1
| Switch on temperature | 68 ± 3 | ˚C | Switch off temperature | 83 ± 3 | ˚C |
Timer
| Type | Electromechanical Timer Invensys EC 4795 | Nominal voltage | 230 +10% / -15% | V |
| Frequency | 50 | Hz | Number of steps | 60 | A |
| Stop | 01 | Heating (138 min.) | 02 - 51 |
| Cool down (9 min.) | 52 - 54 | Anticreasing (9 min) | 55 - 57 |
| Anticreasing + drain (3min) | 58 | Stop | 59 - 60 | ËšC |
| Ambient temperature | up to 75 | ËšC | Storage temperature | up to 85 | ËšC |
Rated currents
| Motor | max ≤6 | A | Heater | max ≤16 | A |
| Drum light | max ≤0.1 | A |
Main- and blower motor
| Type | 1-phase asynchronous | Nominal voltage | 230 +10% / -15% | V |
| Frequency | 50 ± 3 | Hz | Power consumption | 285 ± 7% | W |
| Resistances of coils: | Main coil (2-3) | 18.8 ± 7% | Ω |
| Auxiliary coil (3-4) | 18 ± 7% | Ω | Rated speed with 5 kg laundry and 70% rest humidity | 2700 | rpm |
| Capacitor | 10 ± 10% | µF |
Radio interference filter
| Type | ISKRA KPB 7325 | Voltage max | 275 | V |
| Capacity | 0.25µ F X1 + 2x 0.022 µ F Y2+1M | Ω |
Door switch SD
| Type | S16 Bitron | V | Voltage | 230 | A |
| Nominal current | 16± 15% | A |
Micro switch SLE
| Type | Cherry D45 | Kind of switch | Single pole |
| Contact system | Change over contact/spring contact | Voltage | 230+10% / -15% | V |
| Frequency | 50/60 | Hz | Current | 15 | A |
Push buttons
| Start | Gentle |
