AWZ 7303
AWZ 7303

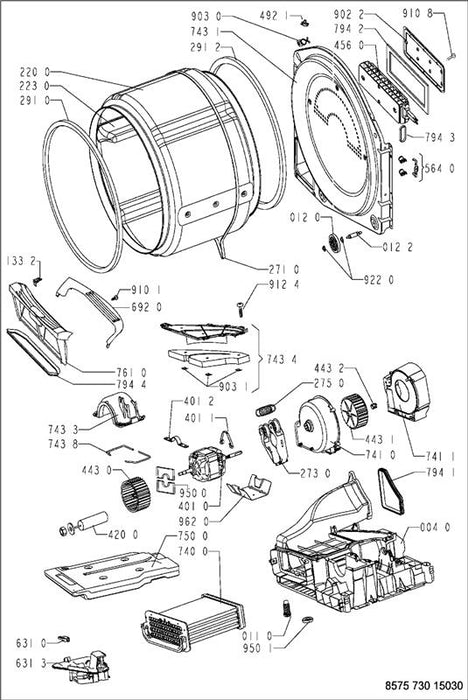

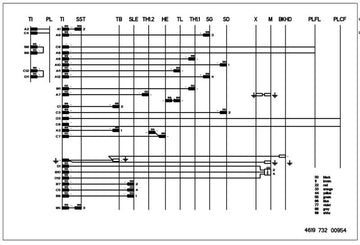

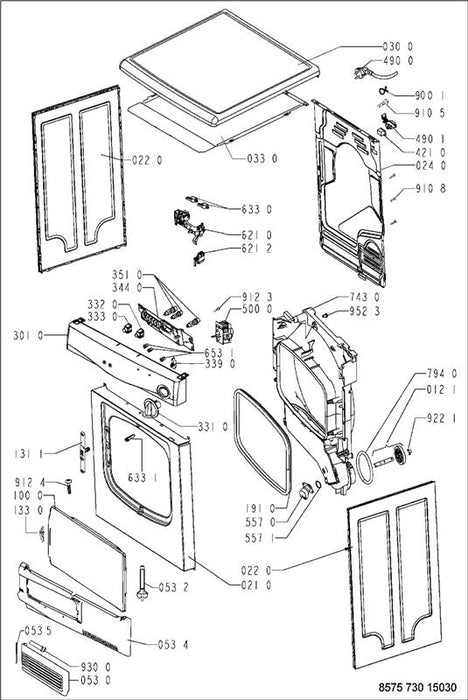

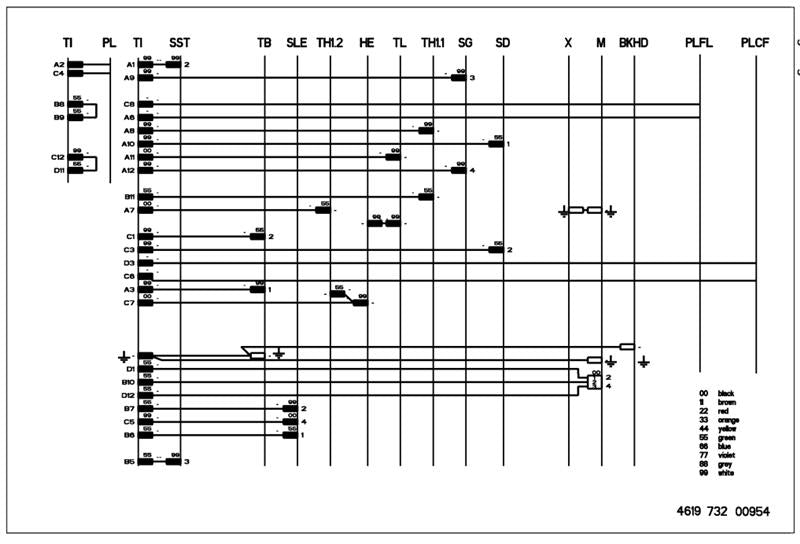

Wiring Diagram
Technical Data
Dimensions
| Height | 85 | cm |
| Width | 59.5 | cm |
| Depth | 60 | cm |
Weight
| Gross Weight | 40 | kg |
| Net weight | 38 | kg |
Surroundings temperature
| Max.room temperature | 35 | ËšC |
| Min. room temperature | 5 | ËšC |
Humidity
| Max. relative humidity | 95 | % |
Power connection
| Voltage | 230 - 240 | V | Frequency | 50 | Hz |
| Connected load | 2.19 | kW | Fuse | 13 | A |
Drum data
| Volume | 112 | l |
| Drum speed (empty) | 57 ± 2 | rpm |
Airflow
| Circulation air flow | 200 +10/ -30 | m3 /h | Cooling air flow | 180 +10/ -30 | m3 /h |
Capacity of laundry
| Cotton max. | 6 | kg |
| Easy care max. | 2.5 | kg |
Condenswater evacuation
| Condenswater container | 3 | l |
Electrical components
Heating
| Type | IRCA 1T.8294004 | |
| Nominal voltage | 240 +10%/ -15% | V | Nominal power | 1900 | W ± 5% |
| Heating resistances: | ||
| Connecting points R20 | 25.2-28.4 | Ω |
Thermostats
SFluff thermostat (in heater) TH 1.2
| Switch on temperature | 165 ± 10 | ˚C | Switch off temperature | 210 ± 9 | ˚C |
| Color code | Green |
Safety thermostat (in heater) TL
| Switch on temperature | <-35 | ˚C | Switch off temperature | 260 ± 10 | ˚C |
Exhausting thermostat (in airchannel) TH 1.1
| Switch on temperature | 68 ± 3 | ˚C | Switch off temperature | 83 ± 3 | ˚C |
Timer
| Type | Electromechanical INVENSYS | Nominal voltage | 230 +10%/ -15% | V |
| Frequency | 50 | Hz | Number of steps: | 60 |
| Stop | 01 | Heating (138 min.) | 02 - 51 |
| Cool down (12 min.) | 52 - 55 | Anticreasing (6 min.) | 56 - 57 |
| Anticreasing + drain (6min.) | 58 - 59 | Stop | 60 |
| Ambient temperature | up to 85 | ËšC | Storage temperature | -25 to 85 | ËšC |
Main- and blower motor
| Type | 1-phase asynchronous | Nominal voltage | 230 +10% / -15% | V |
| Frequency | 50 ± 3 | Hz | Power consumption | 285 | W ± 7% |
| Resistances of coils: | Main coil (2-3) | 18.8 | Ω ± 7% |
| Auxiliary coil (3-4) | 18 | Ω ± 7% | Rated speed | 2700 | rpm |
| Capacitor | 10 | µF ± 10% |
Radio interference filter
| Type | ISKRA KPB 7325 | Voltage max | 275 | V |
| Capacity | 0.25 µ F X1 + 2 x 0.022 µ F Y2 + 1M | Ω |
Door switch SD
| Nominal voltage | 230 | V |
Micro switch SLE
| Kind of switch | Single pole | |
| Contact | Change over contact/spring contact | |
| Voltage | 230 +10%/ -15% | V |
| Frequency | 50/60 | Hz |
| Current | 15 | A |
Start switch SST
| Nominal voltage | 230 +10%/ -15% | V |
| Nominal current | 16 | A |
Gentle switch SG
| Nominal voltage | 230 +10%/ -15% | V |
| Nominal current | 16 | A |
Push buttons
| Start | SST | |
| Gentle | SG |
Efficiency class
| Energy class | D |
