DE210

Exploded View 1

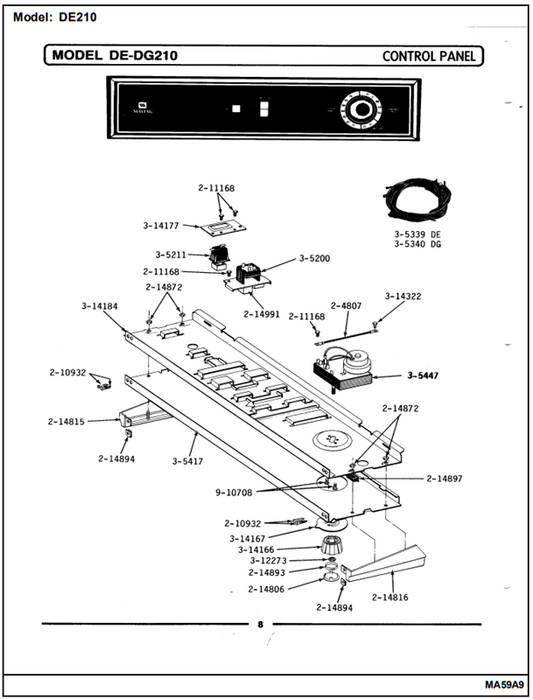

Product Details	S.P. Ref.	S.P. Code	Substitute Code	Industrial Code	Buy Now
Sold Out GRND.WIRE,SUPP.PLTE TO TOP CVR Regular price $0.00 Sale price $0.00 Regular price Unit price		204807
Sold Out SCREW, #8 X 9/16 CTSK Regular price $0.00 Sale price $0.00 Regular price Unit price		210932
Sold Out SCREW, #8 X 5/16 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price		211168
Sold Out CAP FOR TIMER KNOB Regular price $0.00 Sale price $0.00 Regular price Unit price		214806
Sold Out END CAP F/CONTROL PANEL-LH Regular price $0.00 Sale price $0.00 Regular price Unit price		214815
Sold Out END CAP F/CONTROL PANEL-RH Regular price $0.00 Sale price $0.00 Regular price Unit price		214816
Sold Out PALNUT, END CAP Regular price $0.00 Sale price $0.00 Regular price Unit price		214872
Sold Out DETENT RING F/TIMER KNOB CA Regular price $0.00 Sale price $0.00 Regular price Unit price		214893
Sold Out FASTENER, END CAP Regular price $0.00 Sale price $0.00 Regular price Unit price		214894
Sold Out PAD, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price		214897
Sold Out BUTTON FOR SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price		214991
Sold Out TEMPERATURE SELECTOR SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price		305200
Sold Out PUSH TO START SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price		305211
Sold Out TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price		305447
Sold Out MAIN WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price		305339
Sold Out MAIN WIRE HARNESS Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price		305340
Sold Out CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price		305417
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price		312273
Sold Out KNOB FOR TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price		314166
Sold Out TIMER DIAL INDICATOR Regular price $0.00 Sale price $0.00 Regular price Unit price		314167
Sold Out BRACKET FOR START SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price		314177
Sold Out BACK UP PLATE Regular price $0.00 Sale price $0.00 Regular price Unit price		314184
Sold Out SCREW, #8-32 X 3/8 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price		314322
Sold Out SCREW -RELAY TO TUB SUPPORT Regular price $0.00 Sale price $0.00 Regular price Unit price		910708

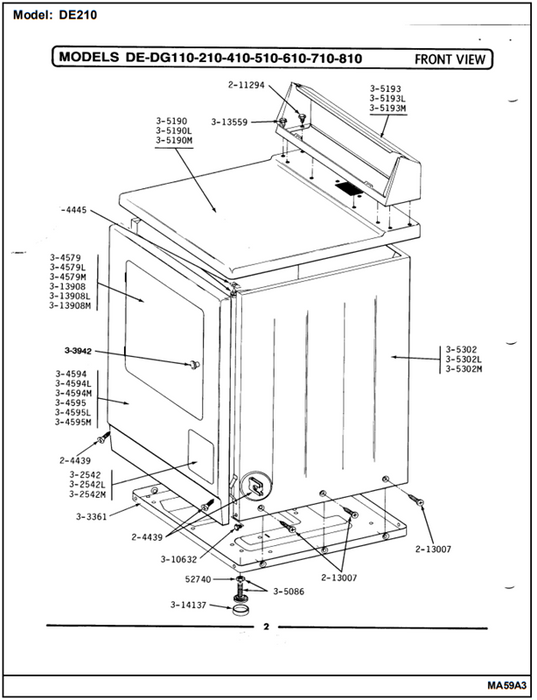

Product Details	S.P. Ref.	S.P. Code
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	1	052740
Sold Out SCREW & FSTNER ASSY(FRT.PANEL) Regular price $0.00 Sale price $0.00 Regular price Unit price	2	204439
Sold Out SCREW & FASTENER ASY. Regular price $0.00 Sale price $0.00 Regular price Unit price	3	204445
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	4	211294
Sold Out SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	5	213007
Sold Out ACCESS DOOR-WHITE Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	6 N	302542
Sold Out ACCESS DOOR-ALMOND Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	7 N	302542L
Sold Out ACCESS DOOR-HARVEST WHEAT Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	8 N	302542M
Sold Out BASE ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	9	303361
Sold Out DOOR-WHITE Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	304579
Sold Out FRONT PANEL-WHITE Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	13 N	304594
Sold Out FRONT PANEL-ALMOND Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	14 N	304594L
Sold Out FRONT PANEL-HARVEST WHEAT Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	15 N	304594M
Sold Out FRONT PANEL-WHITE Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	304595
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	19	305086
Sold Out TOP COVER-WHITE Regular price $0.00 Sale price $0.00 Regular price Unit price	20 N	305190
Sold Out CONSOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	23	305193
Sold Out CABINET-WHITE Regular price $0.00 Sale price $0.00 Regular price Unit price	26 N	305302
Sold Out KNOB AND SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	29 N	303942
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	30	310632
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	31	313559
Sold Out DOOR PANEL-WHITE Regular price $0.00 Sale price $0.00 Regular price Unit price	32 N	313908
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	35	314137

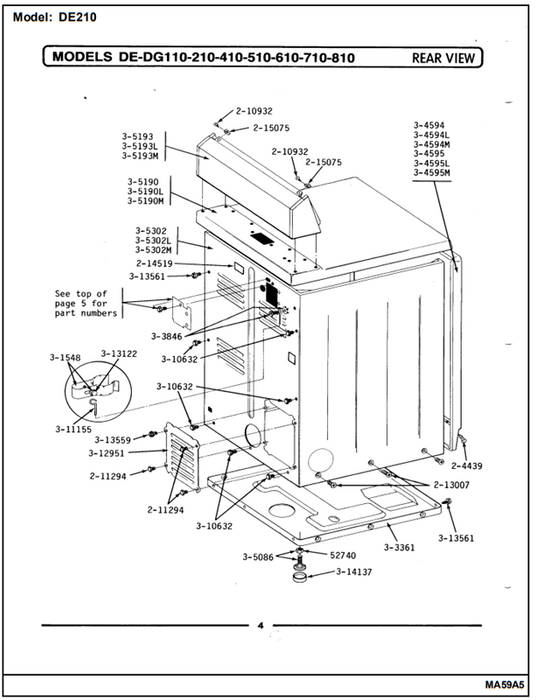

Product Details	S.P. Ref.	S.P. Code
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	1	052740
Sold Out CONVERTER Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	2	201808
Sold Out SCREW & FSTNER ASSY(FRT.PANEL) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	204439
Sold Out SCREW, #8 X 9/16 CTSK Regular price $0.00 Sale price $0.00 Regular price Unit price	4	210932
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	5	211294
Sold Out GROMMET, CORD Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	6	211881
Sold Out SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	7	213007
Sold Out LABEL, ELECTRICAL INSTRUCTION Regular price $0.00 Sale price $0.00 Regular price Unit price	8	214519
Sold Out FASTENER,CNTRL PNL TO CONSOLE Regular price $0.00 Sale price $0.00 Regular price Unit price	9	215075
Sold Out CLAMP, GROUND (W/SCREW) Regular price $0.00 Sale price $0.00 Regular price Unit price	10	301548
Sold Out POWER CORD Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	11	302521
Sold Out BASE ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	12	303361
Sold Out SCREW & WASHER ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	13	303846
Sold Out FRONT PANEL-WHITE Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	14 N	304594
Sold Out FRONT PANEL-ALMOND Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	15 N	304594L
Sold Out FRONT PANEL-HARVEST WHEAT Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	304594M
Sold Out FRONT PANEL-WHITE Regular price $0.00 Sale price $0.00 Regular price Unit price	17 N	304595
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	20	305086
Sold Out TOP COVER-WHITE Regular price $0.00 Sale price $0.00 Regular price Unit price	21 N	305190
Sold Out CONSOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	24	305193
Sold Out CABINET-WHITE Regular price $0.00 Sale price $0.00 Regular price Unit price	27 N	305302
Sold Out SCREW Note: SCREW, TERM. BRKT. TO CAB. Regular price $0.00 Sale price $0.00 Regular price Unit price	-	310632
Sold Out SCREW Note: SCREW, CAB. TO BASE (3) TUMBLER BACK TO CAB. (3) Regular price $0.00 Sale price $0.00 Regular price Unit price	30	310632
Sold Out GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	31	311155
Sold Out WASHER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	32	311270
Sold Out SCREW, #10-32 X 1/2 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	33 N	311423
Sold Out NUT, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	34	311484
Sold Out STRAP, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	35	312184
Sold Out SCREW, #10-24 X 3/4 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	36	312209
Sold Out BRACKET, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	37	312904
Sold Out COVER, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	38	312905
Sold Out COVER, ACCESS Regular price $0.00 Sale price $0.00 Regular price Unit price	39	312951
Sold Out SCREW - BAFFLE TO TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	40	313122
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	41	313559
Sold Out SCREW----NA Note: SCREW,TUMBLER BACK TO CAB (1) CABINET TO BASE (1) Regular price $0.00 Sale price $0.00 Regular price Unit price	42 N	313561
Sold Out SCREW----NA Note: CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	313561
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	43	314137
Sold Out BLOCK, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	44	400008

Product Details	S.P. Ref.	S.P. Code
Sold Out SCREW & FSTNER ASSY(FRT.PANEL) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	204439
Sold Out SCREW Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	3	212949
Sold Out FASTENER, PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	212982
Sold Out ACCESS DOOR-WHITE Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	5 N	302542
Sold Out ACCESS DOOR-ALMOND Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	6 N	302542L
Sold Out ACCESS DOOR-HARVEST WHEAT Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	7	302542M
Sold Out DOOR SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	8	304575
Sold Out DOOR SWITCH Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	9	304576
Sold Out DOOR HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	10	304577
Sold Out DOOR LATCH KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	11 N	306436
Sold Out DOOR-WHITE Regular price $0.00 Sale price $0.00 Regular price Unit price	14 N	304579
Sold Out FRONT PANEL-WHITE Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	15 N	304594
Sold Out FRONT PANEL-ALMOND Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	304594L
Sold Out FRONT PANEL-HARVEST WHEAT Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	17 N	304594M
Sold Out FRONT PANEL-WHITE Regular price $0.00 Sale price $0.00 Regular price Unit price	20	304595
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	21	305753
Sold Out SWITCH, DOOR Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	22 N	305754
Sold Out INNER DOOR WITH KNOB & SCRE Regular price $0.00 Sale price $0.00 Regular price Unit price	23 N	305835
Sold Out KNOB AND SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	24	303942
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	25 N	310376
Sold Out BUSHING FOR ACCESS STUD Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	26	312301
Sold Out SLEEVE-ACCESS PANEL STUD Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	27	312369
Sold Out TWIN FASTENER Regular price $0.00 Sale price $0.00 Regular price Unit price	31	313907
Sold Out CLIP, DOOR LINER TO OUTER PNL Regular price $0.00 Sale price $0.00 Regular price Unit price	32	313910
Sold Out DOOR STRIKE RETAINER Regular price $0.00 Sale price $0.00 Regular price Unit price	33	313911
Sold Out DOOR STRIKE Regular price $0.00 Sale price $0.00 Regular price Unit price	34	313912
Sold Out INSTRUCTION LABEL Regular price $0.00 Sale price $0.00 Regular price Unit price	35	313927
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	36	314062
Sold Out DOOR SEAL Regular price $0.00 Sale price $0.00 Regular price Unit price	37 N	314077
Sold Out GAS IGNITION LABEL Regular price $0.00 Sale price $0.00 Regular price Unit price	38	314119
Sold Out SEAL FOR FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	39 N	314286
Sold Out SCREW FOR DOOR KNOB NA Regular price $0.00 Sale price $0.00 Regular price Unit price		314347

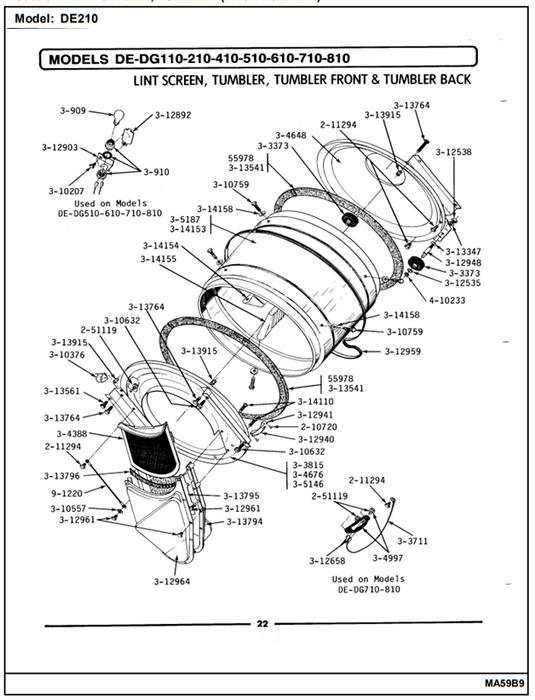

Product Details	S.P. Ref.	S.P. Code
Sold Out RUBBER ADHESIVE, 2 OZ TUBE Regular price $0.00 Sale price $0.00 Regular price Unit price	1	055978
Sold Out RIVET Regular price $0.00 Sale price $0.00 Regular price Unit price	2	210720
Sold Out SCREW Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	3	211294
Sold Out SCREW Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	4	251119
Sold Out APPLIANCE BULB - 40 WATT Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	5	300909
Sold Out RECEPTACLE Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	6 N	300910
Sold Out BEARING & ROLLER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	7	303373
Sold Out SENSOR GROUND WIRE Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	8	303711
Sold Out TUMBLER FRONT SUB Regular price $0.00 Sale price $0.00 Regular price Unit price	9	303815
Sold Out LINT SCREEN Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	304388
Sold Out TUMBLER BACK WITH SEAL Regular price $0.00 Sale price $0.00 Regular price Unit price	11 N	304648
Sold Out TUMBLER FRONT ASSEMBLY Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	12	304676
Sold Out SENSOR ASSEMBLY WITH SCREWS Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	13	304997
Sold Out TUMBLER FRONT ASSEMBLY Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	14 N	305146
Sold Out TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	15	305187
Sold Out SCREW, #6 X 1/4 INCH Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	16	310207
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	17	310376
Sold Out WASHER Regular price $0.00 Sale price $0.00 Regular price Unit price	18	310557
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	19	310632
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	20	310759
Sold Out WASHER, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	21	312535
Sold Out NUT, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	22	312538
Sold Out RECEPTACLE, SENSOR GROUND WIRE Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	23	312658
Sold Out LENS Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	24 N	312892
Sold Out LAMP BRACKET Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	25 N	312903
Sold Out BEARING PAD F/TUMBLER FRONT Regular price $0.00 Sale price $0.00 Regular price Unit price	26	312940
Sold Out BEARING FOR TUMBLER FRONT Regular price $0.00 Sale price $0.00 Regular price Unit price	27	312941
Sold Out SHAFT, TUMBLER ROLLER Regular price $0.00 Sale price $0.00 Regular price Unit price	28	312948
Sold Out BELT, TUMBLER & MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	29	312959
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	30	312961
Sold Out OUTLET DUCT - OUTER HALF Regular price $0.00 Sale price $0.00 Regular price Unit price	31	312964
Sold Out WASHER, SPRING (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	32	313347
Sold Out TUMBLER SEAL Regular price $0.00 Sale price $0.00 Regular price Unit price	33	313541
Sold Out SCREW NA Regular price $0.00 Sale price $0.00 Regular price Unit price	34 N	313561
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	35 N	313764
Sold Out OUTLET GRID AND DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	36 N	313794
Sold Out GUIDE FOR LINT SCREEN Regular price $0.00 Sale price $0.00 Regular price Unit price	37	313795
Sold Out LINT SEAL Regular price $0.00 Sale price $0.00 Regular price Unit price	38	313796
Sold Out COVER, THREAD Regular price $0.00 Sale price $0.00 Regular price Unit price	39 N	313915
Sold Out SCREW, INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	40	314110
Sold Out TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	41 N	314153
Sold Out TUMBLER BAFFLE - SHORT Regular price $0.00 Sale price $0.00 Regular price Unit price	42 N	314154
Sold Out TUMBLER BAFFLE - TALL Regular price $0.00 Sale price $0.00 Regular price Unit price	43	314155
Sold Out WASHER Regular price $0.00 Sale price $0.00 Regular price Unit price	44	314158
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	45	410233
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	46	901220

Product Details	S.P. Ref.	S.P. Code

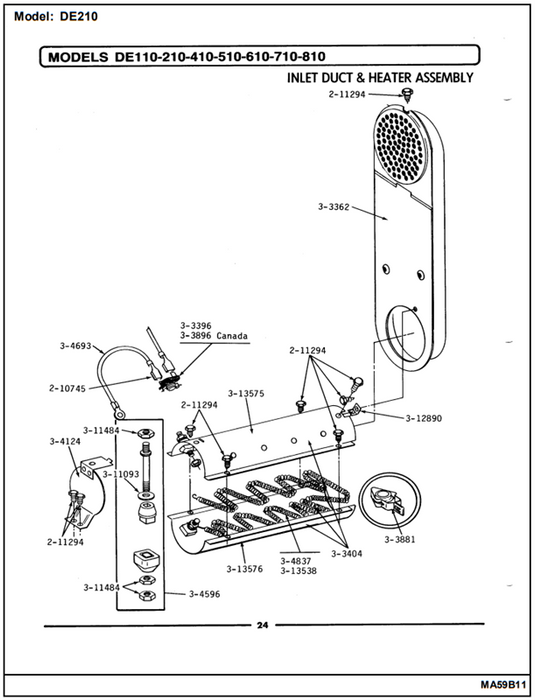

Sold Out WIRE TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	1	210745
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	2	211294
Sold Out INLET DUCT ASSEMBLY - DE Regular price $0.00 Sale price $0.00 Regular price Unit price	3	303362
Sold Out THERMOSTAT, HI-LIMIT (ELEC) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	303396
Sold Out HEATER ASSEMBLY COMPLETE Regular price $0.00 Sale price $0.00 Regular price Unit price	5	303404
Sold Out CLIP AND INSULATOR ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	6	303881
Sold Out HI-LIMIT THERMOSTAT-CANADA Regular price $0.00 Sale price $0.00 Regular price Unit price	7	303896
Sold Out HEATER SHIELD Regular price $0.00 Sale price $0.00 Regular price Unit price	8	304124
Sold Out TERMINAL INSULATOR ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	9	304596
Sold Out JUMPER WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	10	304693
Sold Out HEATER ELEMENT KIT (208V) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	304837
Sold Out WASHER, 7/32 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	12	311093
Sold Out NUT, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	13	311484
Sold Out RETAINER, HEATER CHAMBER Regular price $0.00 Sale price $0.00 Regular price Unit price	14	312890
Sold Out HEATER CHAMBER, BOTTOM Regular price $0.00 Sale price $0.00 Regular price Unit price	15	313576
Sold Out HEATER ELEMENT 240 VOLT Regular price $0.00 Sale price $0.00 Regular price Unit price	15	313538
Sold Out HEATER CHAMBER, TOP Regular price $0.00 Sale price $0.00 Regular price Unit price	16	313575

Product Details	S.P. Ref.	S.P. Code

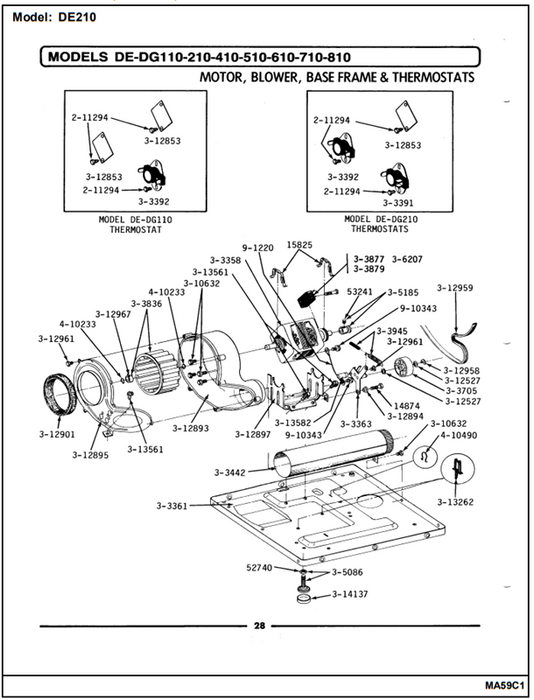

Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	1	014874
Sold Out CLIP, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	2	015825
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	3	052740
Sold Out SET SCREW, PULLEY Regular price $0.00 Sale price $0.00 Regular price Unit price	4	053241
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	5	211294
Sold Out MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	6	303358
Sold Out BASE ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	7	303361
Sold Out IDLER ARM & SHAFT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	8	303363
Sold Out CYCLING THERMOSTAT 155 DEG. Note: CYCLING THERMOSTAT-155 Regular price $0.00 Sale price $0.00 Regular price Unit price	9	303391
Sold Out CYCLING THERMOSTAT 140 DEG. Regular price $0.00 Sale price $0.00 Regular price Unit price	10	303392
Sold Out COOL-DOWN THERMOSTAT Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	11	303394
Sold Out EXHAUST DUCT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	12	303442
Sold Out PULLEY, IDLER Regular price $0.00 Sale price $0.00 Regular price Unit price	13	303705
Sold Out BLOWER WHEEL ASSEMBLY & CLAMP Regular price $0.00 Sale price $0.00 Regular price Unit price	14	303836
Sold Out SWITCH, MOTOR Note: PROD.#3-3358-2, #3-3358-4 & #3-3358-7 Regular price $0.00 Sale price $0.00 Regular price Unit price	15	303877
Sold Out SWITCH, MOTOR STARTPROD. Note: SWITCH, MOTOR START Regular price $0.00 Sale price $0.00 Regular price Unit price	16	303879
Sold Out IDLER SPRING ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	17	303945
Sold Out CYCLING THERMOSTAT 150 DEG. Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	18	304474
Sold Out CYCLING THERMOSTAT 140 DEG. Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	19	304475
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	20	305086
Sold Out PULLEY, MOTOR (W/SET SCREW) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	305185
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	22	310632
Sold Out SWITCH, MOTOR START-PROD. Note: SWITCH, MOTOR START 9 Regular price $0.00 Sale price $0.00 Regular price Unit price	23 N	306207
Sold Out WASHER, IDLER SHAFT (QTY-1) Regular price $0.00 Sale price $0.00 Regular price Unit price	24	312527
Sold Out COVER FOR THERMOSTAT OPENIN Regular price $0.00 Sale price $0.00 Regular price Unit price	25 N	312853
Sold Out HOUSING, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	26	312893
Sold Out SLEEVE, IDLER ARM Regular price $0.00 Sale price $0.00 Regular price Unit price	27 N	312894
Sold Out COVER FOR BLOWER NA Regular price $0.00 Sale price $0.00 Regular price Unit price	28 N	312895
Sold Out SUPPORT, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	29 N	312897
Sold Out SEAL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	30	312901
Sold Out RETAINING RING, IDLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	31	312958
Sold Out BELT, TUMBLER & MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	32	312959
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	33	312961
Sold Out CLAMP, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	34	312967
Sold Out RETAINER, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	35 N	313262
Sold Out SCREW NA Regular price $0.00 Sale price $0.00 Regular price Unit price	36 N	313561
Sold Out SPACER, IDLER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	37	313582
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	38	314137
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	39	410233
Sold Out SPRING, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	410	410490
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	41	901220
Sold Out SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	42	910343

Product Details	S.P. Ref.	S.P. Code

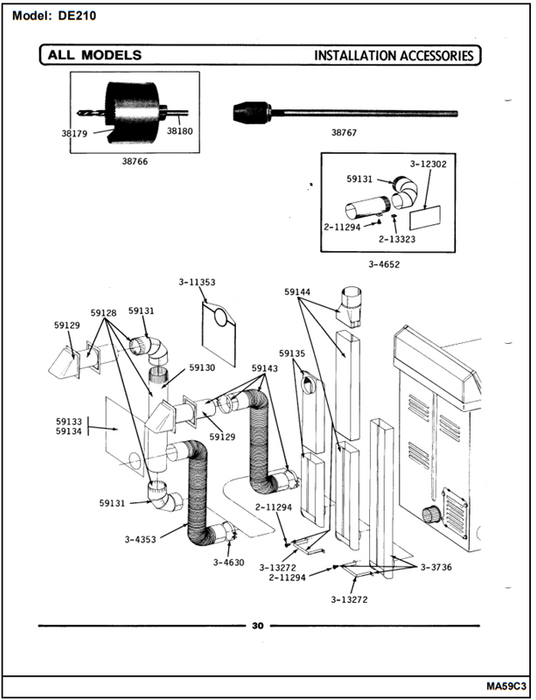

Sold Out BLADE, SAW Regular price $0.00 Sale price $0.00 Regular price Unit price	1 N	038179
Sold Out REPLACEMENT DRILL Regular price $0.00 Sale price $0.00 Regular price Unit price	2 N	038180
Sold Out HOLE SAW W/DRILL BIT Regular price $0.00 Sale price $0.00 Regular price Unit price	3 N	038766
Sold Out EXTENSION CHUCK, DRILL Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	038767
Sold Out STANDARD 4" VENT KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	5 N	059128
Sold Out HOOD, VENT Regular price $0.00 Sale price $0.00 Regular price Unit price	6	059129
Sold Out PIPE, VENTING Regular price $0.00 Sale price $0.00 Regular price Unit price	7	059130
Sold Out ELBOW, VENTING (4") Regular price $0.00 Sale price $0.00 Regular price Unit price	8	059131
Sold Out ALUMINUM WINDOW 4X12X18 Regular price $0.00 Sale price $0.00 Regular price Unit price	9 N	059133
Sold Out PLATE, ALUM. WINDOW (15"X20") Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	059134
Sold Out VENT DUCT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	11	059135
Sold Out FLEXIBLE VENT KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	12	059143
Sold Out RECTANGULAR VENT KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	13 N	059144
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	14	211294
Sold Out FASTENER, EXHAUST DUCT KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	15	213323
Sold Out EXHAUST DEFLECTOR KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	303736
Sold Out FLEXIBLE ALUMINUM VENT DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	17	304353
Sold Out CLAMP, FLEXIBLE DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	18	304630
Sold Out EXHAUST DUCT KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	19	304652
Sold Out BAG, LINT (DACRON) Regular price $0.00 Sale price $0.00 Regular price Unit price	20	311353
Sold Out INSULATION, EXHAUST DUCT KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	21	312302
Sold Out BRACKET, EXHAUST DEFLECTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	22 N	313272

Product Details	S.P. Ref.	S.P. Code
Sold Out MOTOR 240-50 Regular price $0.00 Sale price $0.00 Regular price Unit price	1	304656
Sold Out MOTOR PULLEY - 50 CYCLE Regular price $0.00 Sale price $0.00 Regular price Unit price	2	305186
Sold Out TIMER 240-50 Regular price $0.00 Sale price $0.00 Regular price Unit price	3	305453
Sold Out HEATER ELEMENT 240-50 Regular price $0.00 Sale price $0.00 Regular price Unit price	4	313950

Wiring Diagram

Parts Manual

Search our store

DE210

DE210

204807

210932

211168

214806

214815

214816

214872

214893

214894

214897

214991

305200

305211

305447

305339

305340

305417

312273

314166

314167

314177

314184

314322

910708

052740

204439

204445

211294

213007

302542

302542L

302542M

303361

304579

304594

304594L

304594M

304595

305086

305190

305193

305302

303942

310632

313559

313908

314137

052740

201808

204439

210932

211294

211881

213007

214519

215075

301548

302521

303361

303846

304594

304594L

304594M

304595

305086

305190

305193
