DG19CS

DG19CS

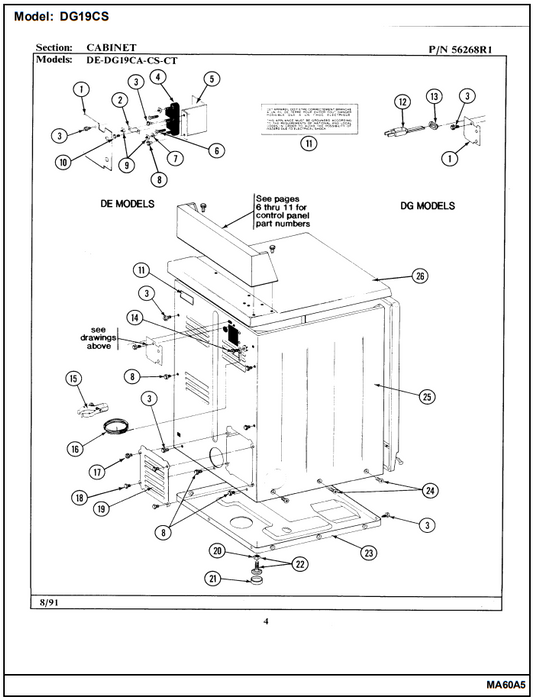

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

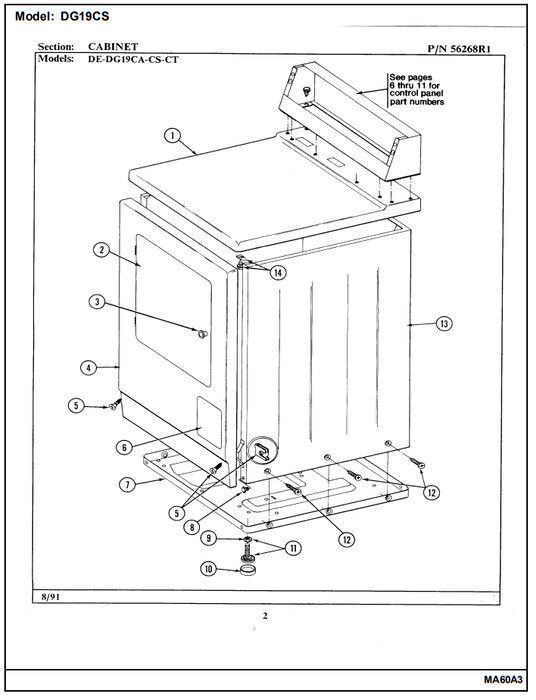

TOP COVER-WHITE Note: TOP COVER (WHT)

$0.00
$0.00
1 N
305191

DOOR PANEL-WHITE Note: DOOR PANEL (WHT)

$0.00
$0.00
2 N
313908

DOOR-WHITE Note: DOOR (WHT)

$0.00
$0.00
2 N
304579

KNOB AND SCREW Note: KNOB & SCREW

$0.00
$0.00
3 N
303942

FRONT PANEL-WHITE Note: FRONT PANEL (WHT)

$0.00
$0.00
4 N
304594

SCREW & FSTNER ASSY(FRT.PANEL) Note: SCREW & FSTNER ASSY (FT.PNL)

$0.00
$0.00
5
204439

ACCESS DOOR-WHITE Note: ACCESS DOOR (WHT)

$0.00
$0.00
6 N
302542

BASE ASSY.

$0.00
$0.00
7
303361

SCREW

$0.00
$0.00
8
310632

NUT

$0.00
$0.00
9
052740

FOOT, RUBBER

$0.00
$0.00
10
314137

ADJUSTABLE LEG & NUT

$0.00
$0.00
11
305086

SCREW, CABINET

$0.00
$0.00
12
213007

CABINET-WHITE Note: CABINET (WHT)

$0.00
$0.00
13 N
305302

SCREW & FASTENER ASY.

$0.00
$0.00
14
204445

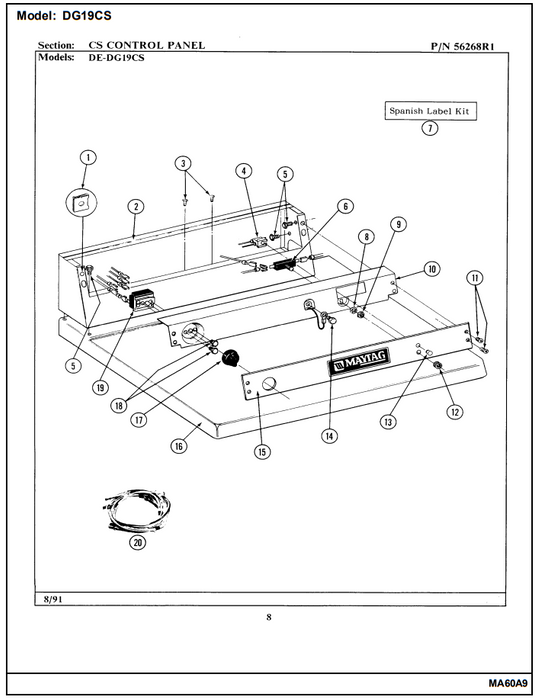

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

FASTENER

$0.00
$0.00
1
215003

CONSOLE-WHITE Note: CONSOLE (WHT)

$0.00
$0.00
2
305213

SCREW, #8-32 X 3/8 INCH Note: SCREW, POWER CORD

$0.00
$0.00
3
314322

SCREW

$0.00
$0.00
3
211294

INDICATOR LAMP

$0.00
$0.00
4
305396

SCREW

$0.00
$0.00
5
212276

START SWITCH WITH NUTS Note: START SWITCH W/NUTS

$0.00
$0.00
6
303204

SPANISH LABEL KIT Note: LABEL KIT, SPANISH

$0.00
$0.00
7 N
305856

LOCK WASHER

$0.00
$0.00
8
312751

HEX NUT ON SWITCH Note: HEX NUT ON SWITCH

$0.00
$0.00
9
312706

BACK UP PLATE-WHITE Note: BACK UP PLATE (WHT)

$0.00
$0.00
10 N
314176

KNURLED NUT

$0.00
$0.00
12
312702

LENS FOR CONTROL PANEL Note: LENS, CONTROL PANEL

$0.00
$0.00
13
213099

SCREW

$0.00
$0.00
14
211252

CONTROL PANEL Note: CONTROL PANEL

$0.00
$0.00
15 N
314246

TOP COVER-WHITE Note: TOP COVER (WHT)

$0.00
$0.00
16 N
305191

KNOB FOR SELECTOR SWITCH Note: KNOB, SELECTOR SWITCH

$0.00
$0.00
17
205663

SCREW

$0.00
$0.00
18
313588

SELECTOR SWITCH

$0.00
$0.00
19
303420

MAIN WIRE HARNESS

$0.00
$0.00
20 N
305413

SCREW, #8 X 1/2 INCH

$0.00
$0.00
314
212277

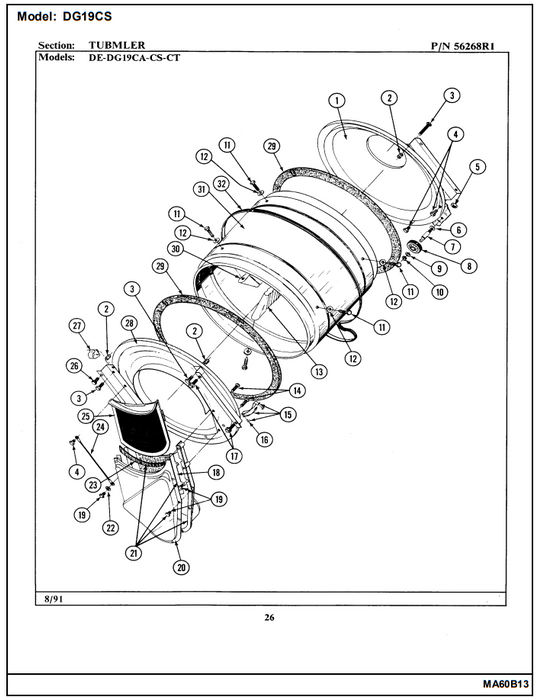

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

TUMBLER BACK

$0.00
$0.00
1
306660

COVER, THREAD

$0.00
$0.00
2 N
313915

NUT, ROLLER SHAFT

$0.00
$0.00
3 N
312538

WASHER, SPRING (ROLLER SHAFT) Note: WASHER, SPRING (ROLLER SFT)

$0.00
$0.00
4
313347

SHAFT, TUMBLER ROLLER

$0.00
$0.00
5
312948

BEARING & ROLLER ASSEMBLY

$0.00
$0.00
6
303373

WASHER, ROLLER SHAFT

$0.00
$0.00
7
312535

RING, RETAINING

$0.00
$0.00
8
410233

SCREW

$0.00
$0.00
9
310759

WASHER

$0.00
$0.00
10
314158

TUMBLER BAFFLE - TALL Note: TUMBLER BAFFLE (TALL)

$0.00
$0.00
11
314155

BAFFLE (TALL)

$0.00
$0.00
12
314804

SCREW, INLET DUCT

$0.00
$0.00
13
314110

TUMBLER BEARING KIT

$0.00
$0.00
13
306508

RIVET

$0.00
$0.00
14
210720

SCREW

$0.00
$0.00
15
310632

GUIDE FOR LINT SCREEN Note: GUIDE, LINT SCREEN

$0.00
$0.00
16
313795

SCREW

$0.00
$0.00
17
312961

OUTLET DUCT - OUTER HALF Note: OUTLET DUCT (OUTER HALF)

$0.00
$0.00
18
312964

OUTLET DUCT & GRID Note: OUTLET DUCT & GRID

$0.00
$0.00
19
306657

WASHER

$0.00
$0.00
20
310557

LINT SEAL

$0.00
$0.00
21
313796

TICKETS (1000) 2-14146 Note: TICKETS (1000) 2-14146

$0.00
$0.00
22
204810

LINT SCREEN

$0.00
$0.00
23
306665

SCREW NA

$0.00
$0.00
24 N
313561

CLIP, WIRE HARNESS Note: CLIP (WIRE HARNESS)

$0.00
$0.00
25
310376

TUMBLER FRONT NA

$0.00
$0.00
26 N
306670

RUBBER ADHESIVE, 2 OZ TUBE Note: RUBBER ADHESIVE (2 OZ TUBE)

$0.00
$0.00
27
55978

TUMBLER SEAL

$0.00
$0.00
28 N
313541

SEAL, TUMBLER

$0.00
$0.00
29
314820

TUMBLER BAFFLE - SHORT Note: TUMBLER BAFFLE (SHORT)

$0.00
$0.00
29
314154

BAFFLE (SHORT)

$0.00
$0.00
29
314803

TUMBLER Note: TUMBLER W/BAFFLES

$0.00
$0.00
30
305187

TUMBLER W/BAFFLES Note: TUMBLER W/BAFFLES

$0.00
$0.00
30 N
306663

BELT, TUMBLER & MOTOR Note: BELT, TUMBLER & MOTOR

$0.00
$0.00
31
312959
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

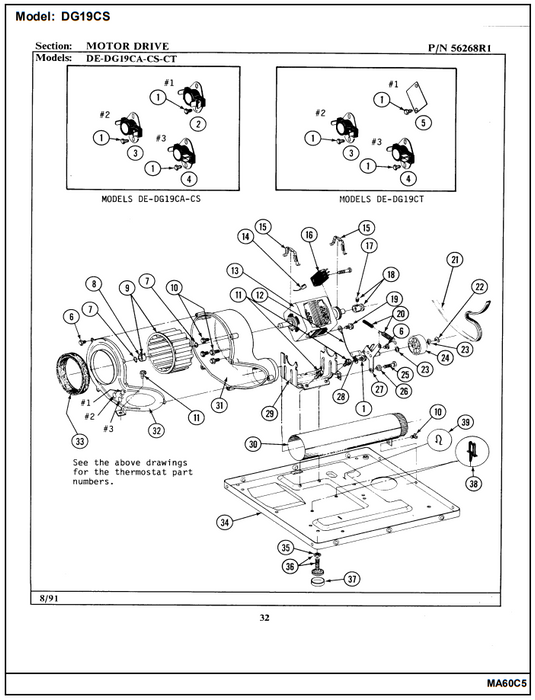

SCREW

$0.00
$0.00
1
211294

THERMOSTAT, PERMANENT PRESS

$0.00
$0.00
2
303225

CYCLING THERMOSTAT 140 DEG. Note: CYCLING THERMOSTAT (140 DEG.)

$0.00
$0.00
3
303392

CYCLING THERMOSTAT 155 DEG. Note: CYCLING THERMOSTAT (155 DEG.)

$0.00
$0.00
4
303391

SCREW

$0.00
$0.00
6
312961

RING, RETAINING

$0.00
$0.00
7
410233

CLAMP, BLOWER HOUSING

$0.00
$0.00
8
312967

BLOWER WHEEL ASSEMBLY & CLAMP

$0.00
$0.00
9
303836

SCREW

$0.00
$0.00
10
310632

SCREW----NA

$0.00
$0.00
11 N
313561

WIRE, GROUND

$0.00
$0.00
12
901220

MOTOR

$0.00
$0.00
13
303358

CLIP, MOTOR

$0.00
$0.00
15
015825

SWITCH, MOTOR START-PROD. Note: SWITCH, MOTOR START PROD. #3-3358-8 & #3-3358-9

$0.00
$0.00
16 N
306207

SWITCH, MOTOR STARTPROD. Note: SWITCH, MOTOR START PROD. #3-3358 & #3-3358-6

$0.00
$0.00
16
303879

SWITCH, MOTOR Note: SWITCH, MOTOR START PROD. #3-3358-2, #3-3358-4 & #3-3358-7

$0.00
$0.00
16
303877

SET SCREW, PULLEY

$0.00
$0.00
17
053241

PULLEY, MOTOR (W/SET SCREW)

$0.00
$0.00
18
305185

SCREW, GROUND WIRE

$0.00
$0.00
19
910343

IDLER SPRING ASSEMBLY

$0.00
$0.00
20
303945

BELT, TUMBLER & MOTOR

$0.00
$0.00
21
312959

RETAINING RING, IDLER SHAFT

$0.00
$0.00
22
312958

WASHER, IDLER SHAFT (QTY-1)

$0.00
$0.00
23
312527

PULLEY, IDLER

$0.00
$0.00
24
303705

SCREW

$0.00
$0.00
25
014874

SLEEVE, IDLER ARM

$0.00
$0.00
26 N
312894

IDLER ARM & SHAFT ASSY.

$0.00
$0.00
27
303363

SPACER, IDLER BRACKET

$0.00
$0.00
28
313582

SUPPORT, MOTOR

$0.00
$0.00
29 N
312897

EXHAUST DUCT ASSY.

$0.00
$0.00
30
303442

HOUSING, BLOWER

$0.00
$0.00
31
312893

COVER FOR BLOWER HOUSING Note: COVER, BLOWER HOUSING

$0.00
$0.00
32
313770

SEAL, BLOWER

$0.00
$0.00
33
312901

BASE ASSY.

$0.00
$0.00
34
303361

NUT

$0.00
$0.00
35
052740

ADJUSTABLE LEG & NUT

$0.00
$0.00
36
305086

FOOT, RUBBER

$0.00
$0.00
37
314137

RETAINER, WIRE HARNESS

$0.00
$0.00
38 N
313262

SPRING, WIRE HARNESS

$0.00
$0.00
39
410490

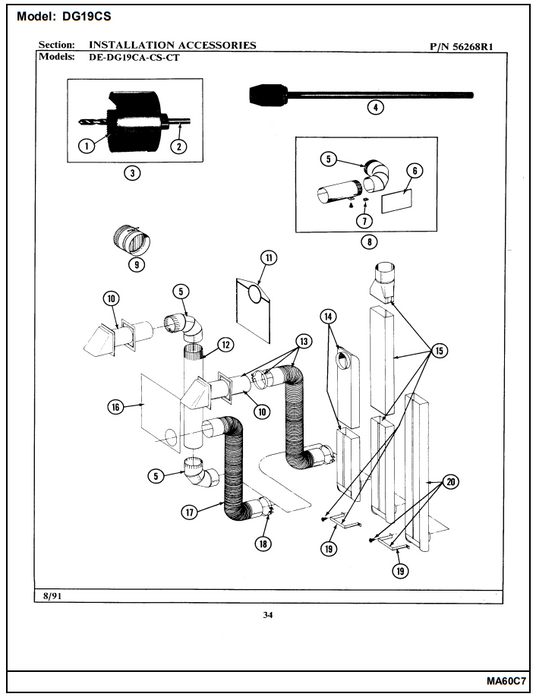

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

BLADE, SAW

$0.00
$0.00
1 N
038179

REPLACEMENT DRILL

$0.00
$0.00
2 N
038180

HOLE SAW W/DRILL BIT

$0.00
$0.00
3 N
038766

EXTENSION CHUCK, DRILL

$0.00
$0.00
4 N
038767

ELBOW, VENTING (4")

$0.00
$0.00
5
059131

INSULATION, EXHAUST DUCT KIT

$0.00
$0.00
6
312302

FASTENER, EXHAUST DUCT KIT

$0.00
$0.00
7
213323

EXHAUST DUCT KIT

$0.00
$0.00
8
304652

SCREW

$0.00
$0.00
8
211294

DAMPER, BACK DRAFT

$0.00
$0.00
9 N
059146

HOOD, VENT

$0.00
$0.00
10
059129

BAG, LINT (DACRON)

$0.00
$0.00
11
311353

PIPE, VENTING

$0.00
$0.00
12
059130

FLEXIBLE VENT KIT

$0.00
$0.00
13
059143

VENT DUCT ASSY.

$0.00
$0.00
14
059135

RECTANGULAR VENT KIT

$0.00
$0.00
15 N
059144

PLATE, ALUM. WINDOW (15"X20")

$0.00
$0.00
16 N
059134

FLEXIBLE ALUMINUM VENT DUCT

$0.00
$0.00
17
304353

CLAMP, FLEXIBLE DUCT

$0.00
$0.00
18
304630

SCREW

$0.00
$0.00
19
211294

BRACKET, EXHAUST DEFLECTOR

$0.00
$0.00
19 N
313272

EXHAUST DEFLECTOR KIT

$0.00
$0.00
20 N
303736

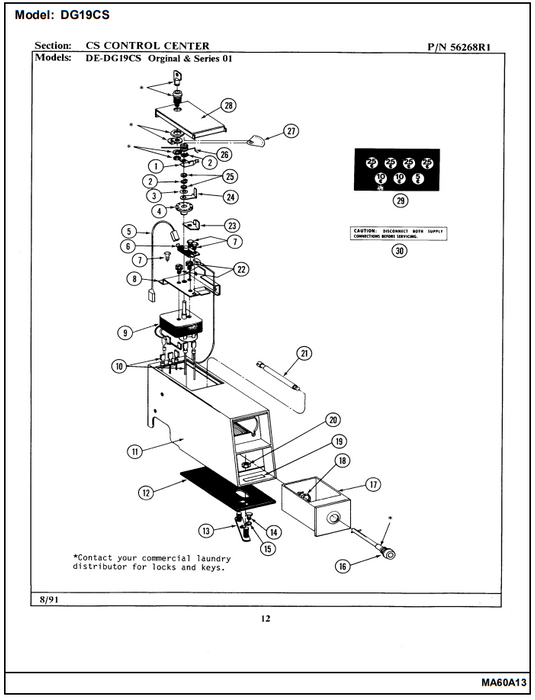

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

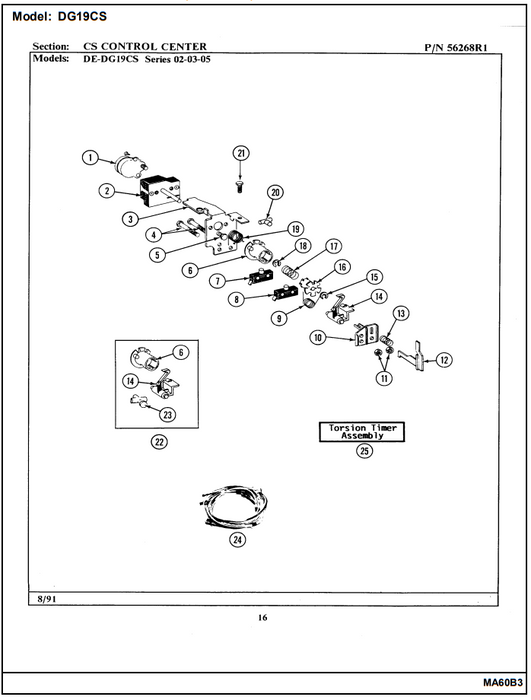

RETURN LEVER

$0.00
$0.00
1
312068

LOCK RING FOR TIMER SHAFT Note: LOCK RING, TIMER SHAFT

$0.00
$0.00
2
211790

SPRING WASHER

$0.00
$0.00
3
312073

RATCHET FOR TIMER Note: RATCHET, TIMER

$0.00
$0.00
4 N
312070

WIRE ASSEMBLY

$0.00
$0.00
5 N
303707

SWITCH FOR COIN SLIDE Note: SWITCH, COIN SLIDE

$0.00
$0.00
6
301774

SCREW, #8 X 5/16 INCH

$0.00
$0.00
7
211168

TIMER SUPPORT BRACKET

$0.00
$0.00
8
312250

TIMER MOTOR

$0.00
$0.00
9 N
304587

TIMER

$0.00
$0.00
9
303743

MAIN WIRE HARNESS

$0.00
$0.00
10 N
305413

OUTER CASE-WHITE----NA Note: OUTER CASE (WHT)

$0.00
$0.00
11 N
305395

GASKET, METER CASE

$0.00
$0.00
12
214660

MTG. STRAP NA

$0.00
$0.00
13 N
203307

SCREW

$0.00
$0.00
14
211294

WASHER

$0.00
$0.00
15
910309

SPRING WASHER FOR LOCK Note: SPRING WASHER, LOCK

$0.00
$0.00
16 N
213626

COIN BOX-WHITE Note: COIN BOX (WHT)

$0.00
$0.00
17
205423

NUT, HEX

$0.00
$0.00
18
212328

INSTRUCTION LABEL

$0.00
$0.00
19
313439

NUT

$0.00
$0.00
20
052740

BOLT, LOCKING

$0.00
$0.00
21
213035

SCREW

$0.00
$0.00
22
211251

STOP FOR ACTUATOR Note: STOP, ACTUATOR

$0.00
$0.00
23
312069

TIMER ACTUATOR LEVER

$0.00
$0.00
24
313309

WASHER

$0.00
$0.00
25
410730

RETURN SPRING FOR ACTUATOR Note: RETURN SPRING, ACTUATOR

$0.00
$0.00
26
312071

TIME INDICATOR GAGE

$0.00
$0.00
27
314073

DOOR, ACCESS (WHT) Note: DOOR, ACCESS (WHT)

$0.00
$0.00
28
203188

ACCESS DOOR-HARVEST WHEAT Note: (H. WHEAT)

$0.00
$0.00
28
203188M

COINAGE DECAL

$0.00
$0.00
29
214648

INSTRUCTION LABEL

$0.00
$0.00
30
313439
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

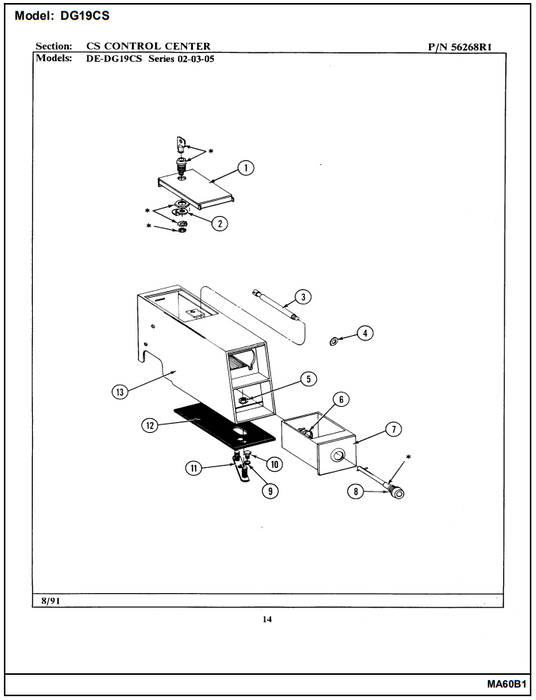

DOOR, ACCESS (WHT)

$0.00
$0.00
1
203188

LOCKING CAM

$0.00
$0.00
2
213750

BOLT, LOCKING

$0.00
$0.00
3
213035

LOCK WASHER

$0.00
$0.00
4
910181

NUT

$0.00
$0.00
5
052740

NUT, HEX

$0.00
$0.00
6
212328

COIN BOX-WHITE Note: COIN BOX (WHT)

$0.00
$0.00
7
205423

SPRING WASHER FOR LOCK Note: SPRING WASHER, LOCK

$0.00
$0.00
8 N
213626

WASHER

$0.00
$0.00
9
910309

SCREW

$0.00
$0.00
10
211294

MTG. STRAP NA

$0.00
$0.00
11 N
203307

GASKET, METER CASE

$0.00
$0.00
12
214660

CONTROL CENTER-WHITE Note: CONTROL CENTER (WHT)

$0.00
$0.00
13 N
305824

OUTER CASE-WHITE Note: OUTER CASE (WHT)

$0.00
$0.00
13
205646
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

TIMER MOTOR RPR Note: TIMER MOTOR

$0.00
$0.00
1
305870

TIMER - CANADA RPR Note: TIMER (CANADA)

$0.00
$0.00
2
305813

TIMER

$0.00
$0.00
2
305796

WIRE HARNESS FOR TIMER Note: WIRE HARNESS, TIMER

$0.00
$0.00
2
305800

INSTRUCTION LABEL

$0.00
$0.00
3 N
314341

TIMER MOUNTING BRACKET

$0.00
$0.00
3
314333

SCREW

$0.00
$0.00
4
315277

SCREW -RELAY TO TUB SUPPORT Note: SCREW, RELAY (TUB SUPPORT)

$0.00
$0.00
5
910708

INDEX WHEEL

$0.00
$0.00
6
314546

BYPASS SWITCH FOR HEATER Note: BYPASS SWITCH, HEATER

$0.00
$0.00
7
305799

BYPASS SWITCH FOR MOTOR Note: BYPASS SWITCH, MOTOR

$0.00
$0.00
8
305798

ACTUATOR SPRING

$0.00
$0.00
9
314332

SWITCH AND SLIDER BRACKET Note: SWITCH & SLIDER BRACKET

$0.00
$0.00
10
314339

HEX. NUT, #6-32 Note: HEX. NUT (#6-32)

$0.00
$0.00
11
052634

SLIDER

$0.00
$0.00
12
314337

HELICAL SPRING

$0.00
$0.00
13
314340

ACTUATOR, SWITCH

$0.00
$0.00
14
314548

LOCK RING FOR TIMER SHAFT Note: LOCK RING, TIMER SHAFT

$0.00
$0.00
15
211790

DRIVER FOR INDEX WHEEL Note: DRIVER, INDEX WHEEL

$0.00
$0.00
16
314330

SPRING, TIMER KNOB

$0.00
$0.00
17
211065

E CLIP

$0.00
$0.00
18
312270

RETURN SPRING

$0.00
$0.00
19
314331

TIME ADJUSTMENT PEG

$0.00
$0.00
20
314335

SCREW, #8 X 5/16 INCH Note: SCREW (#8 X 5/16 INCH)

$0.00
$0.00
21
211168

TORSION-TIMER KIT Note: TORSION, TIMER KIT

$0.00
$0.00
22
306104

ADJUSTMENT RETURN STOP

$0.00
$0.00
23
314547

WIRE HARNESS FOR TIMER Note: WIRE HARNESS, TIMER

$0.00
$0.00
24
305800

MAIN WIRE HARNESS

$0.00
$0.00
24 N
305413

TORSION TIMER ASSM COMPLETE Note: TORSION TIMER ASSY COMPLETE

$0.00
$0.00
25
305797
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

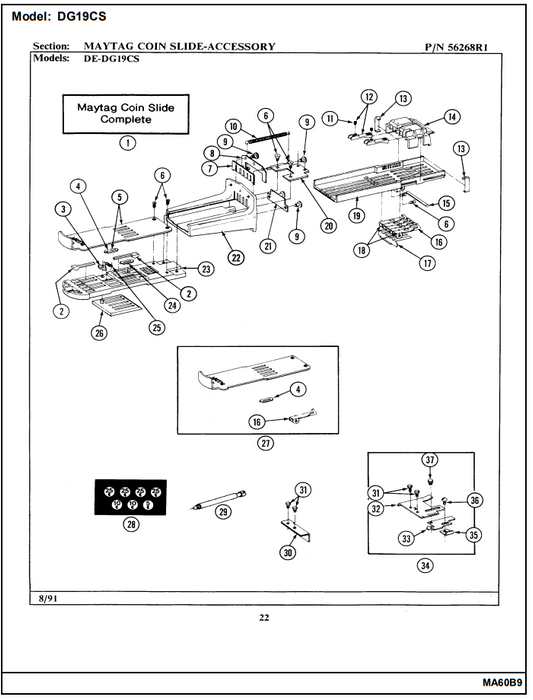

MAYTAG COIN SLIDE

$0.00
$0.00
1 N
205470

PLUG FOR COIN OPENING Note: PLUG, COIN OPENING

$0.00
$0.00
2 N
214590

RATCHET ARM

$0.00
$0.00
3
214572

NICKEL INSERT

$0.00
$0.00
4 N
215111

SLIDE PLATE W/NICKEL INSERT

$0.00
$0.00
5 N
206152

SCREW

$0.00
$0.00
6
214597

GATE FOR COIN OPENING Note: GATE, COIN OPENING

$0.00
$0.00
7
214578

RETAINER FOR GATE Note: RETAINER, GATE

$0.00
$0.00
8 N
214579

STUD FOR COIN SLIDE Note: STUD, COIN SLIDE

$0.00
$0.00
9 N
214574

RETURN SPRING

$0.00
$0.00
10
214581

SET SCREW FOR GAGE Note: SET SCREW, GAGE

$0.00
$0.00
11 N
214599

MOVABLE COIN GAGE

$0.00
$0.00
12 N
205471

SPRING CLIP

$0.00
$0.00
13
214589

MEASURING BLOCK ASSEMBLY

$0.00
$0.00
14 N
205419

PIN FOR LOWER GAGE ARM Note: PIN, LOWER GAGE ARM

$0.00
$0.00
15 N
214583

LOWER GAGE ARM

$0.00
$0.00
16 N
215109

SPRING FOR LOWER GAGE ARM Note: SPRING, LOWER GAGE ARM

$0.00
$0.00
17
214596

LOWER GAGE ARM ASSEMBLY

$0.00
$0.00
18
205343

BASE INSERT FOR HOUSING Note: BASE INSERT, HOUSING

$0.00
$0.00
19
214594

END BRACKET FOR SLIDE Note: END BRACKET, SLIDE

$0.00
$0.00
20 N
214576

RETAINER FOR GAGE SPRING Note: RETAINER, GAGE SPRING

$0.00
$0.00
21 N
214580

HOUSING FOR COIN SLIDE Note: HOUSING, COIN SLIDE

$0.00
$0.00
22
214584

SLIDE BODY

$0.00
$0.00
23 N
214595

DIME INSERT

$0.00
$0.00
24 N
214645

SPRING FOR RATCHET ARM Note: SPRING, RATCHET ARM

$0.00
$0.00
25
214582

STOP BLOCK ASSEMBLY

$0.00
$0.00
26
205350

SLIDE PLATE W/NICKEL INSERT

$0.00
$0.00
27 N
206152

COINAGE DECAL

$0.00
$0.00
28
214648

BOLT, LOCKING

$0.00
$0.00
29
213035

BRACKET FOR COIN SLIDE Note: BRACKET, COIN SLIDE

$0.00
$0.00
30
314334

SCREW

$0.00
$0.00
31
212707

BRACKET FOR SLIDE Note: BRACKET, SLIDE

$0.00
$0.00
32 N
312577

SLIDE ADJUSTMENT

$0.00
$0.00
33
312578

ACTUATOR KIT-DRYER SLIDES

$0.00
$0.00
34 N
302924

ZERO SLIDE ADJUSTMENT

$0.00
$0.00
35
312576

SCREW ADJUSTMENT ASSEMBLY

$0.00
$0.00
36 N
312603

SCREW

$0.00
$0.00
37
313588
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

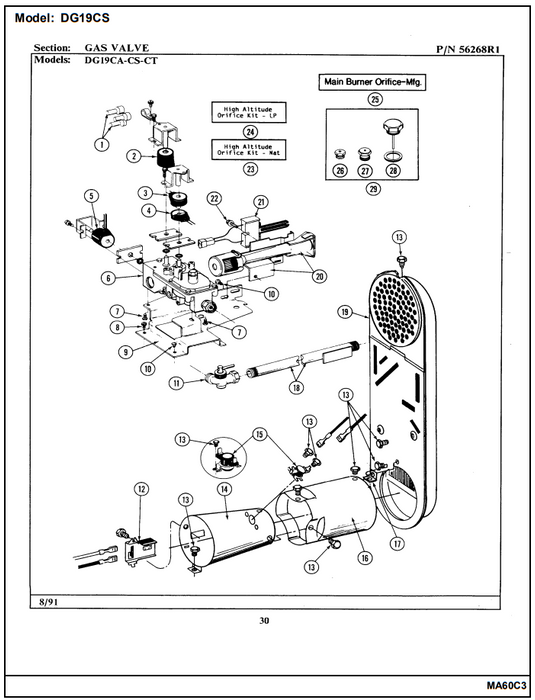

CLOSED CONNECTOR

$0.00
$0.00
1
311546

SECONDARY COIL

$0.00
$0.00
2
305603

HOLDING COIL

$0.00
$0.00
3
305604

BOOSTER COIL

$0.00
$0.00
4
305605

SIDE COIL

$0.00
$0.00
5
304626

GAS VALVE ASSEMBLY

$0.00
$0.00
6
303777

SCREW, HEX HD #8 X 3/8 INCH

$0.00
$0.00
7 N
211410

SCREW NA

$0.00
$0.00
8 N
313561

GAS VALVE BRACKET

$0.00
$0.00
9
312929

SCREW

$0.00
$0.00
10
310632

SHUT-OFF, GAS VALVE

$0.00
$0.00
11
303349

SENSOR, RADIANT

$0.00
$0.00
12
303377

SCREW

$0.00
$0.00
13
211294

CONE, COMBUSTION

$0.00
$0.00
14
303368

THERMOSTAT, HI-LIMIT GAS

$0.00
$0.00
15
305169

CONE, EXTENSION (COMBUSTION)

$0.00
$0.00
16
303841

RETAINER, HEATER CHAMBER

$0.00
$0.00
17
312890

PIPE & BRACKET ASSY.

$0.00
$0.00
18
303383

INLET DUCT ASSEMBLY - DG

$0.00
$0.00
19
303369

BURNER ASSEMBLY

$0.00
$0.00
19
304974

IGNITER ASSY, GAS VALVE

$0.00
$0.00
20
304970

SCREW

$0.00
$0.00
20
304971

ORIFICE KIT, LP-HIGH ALT.

$0.00
$0.00
21
306489

ORIFICE KIT, NAT-HIGH ALT.

$0.00
$0.00
22
306488

MAIN BURNER ORIFICE-MFG

$0.00
$0.00
23 N
313381

MAIN BURNER ORIFICE - LPG

$0.00
$0.00
24 N
313325

INTERNAL ORIFICE - LPG

$0.00
$0.00
25 N
313326

SCREW ASSM - BLUE BLOCK OPE

$0.00
$0.00
26 N
302810

CONVERSION KIT-NAT. TO LPG

$0.00
$0.00
27 N
303779
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

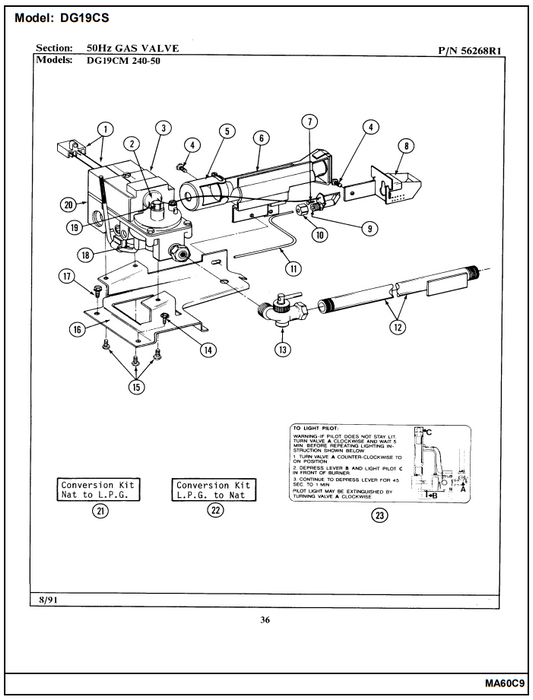

MAIN BURN. SOLENOID 230-50 Note: MAIN BURN. SOLENOID (240-50)

$0.00
$0.00
1
302813

MAIN BURNER SOLENOID

$0.00
$0.00
1
302812

PILOT WITH PRESSURE SWITCH Note: PILOT W/PRESSURE SWITCH

$0.00
$0.00
2 N
302814

ORIFICE FOR MAIN BURNER Note: ORIFICE, MAIN BURNER

$0.00
$0.00
- N
311641

ORIFICE FOR MAIN BURNER Note: ORIFICE, MAIN BURNER

$0.00
$0.00
3 N
311643

ORIFICE FOR MAIN BURNER Note: ORIFICE, MAIN BURNER

$0.00
$0.00
3
311639

ORIFICE FOR MAIN BURNER Note: ORIFICE, MAIN BURNER

$0.00
$0.00
3 N
311641

SCREW, #10 X 3/8

$0.00
$0.00
4
014872

AIR SHUTTER

$0.00
$0.00
5 N
311910

BURNER ASSEMBLY

$0.00
$0.00
6 N
304697

SCREW

$0.00
$0.00
7
311711

PILOT SHIELD ASSEMBLY

$0.00
$0.00
8 N
304699

PILOT ORIFICE-LPG Note: PILOT ORIFICE (LP)

$0.00
$0.00
9
311482

PILOT ORIFICE

$0.00
$0.00
9
311418

PILOT ORIFICE-MFG. Note: PILOT ORIFICE (MFG.)

$0.00
$0.00
9 N
311481

PILOT ORIFICE-LP Note: PILOT ORIFICE (LP)

$0.00
$0.00
9
311480

COMPRESSION NUT

$0.00
$0.00
10
310692

COMPRESSION SLEEVE

$0.00
$0.00
10
310693

PILOT TUBE

$0.00
$0.00
11
312483

PIPE & BRACKET ASSY.

$0.00
$0.00
12
303383

SHUT-OFF, GAS VALVE

$0.00
$0.00
13
303349

SCREW

$0.00
$0.00
14
310632

SCREW, HEX HD #8 X 3/8 INCH

$0.00
$0.00
15 N
211410

GAS CONTROL BRACKET

$0.00
$0.00
16 N
313965

SCREW, HEX HD #8 X 3/8 INCH

$0.00
$0.00
17 N
211410

GASKET FOR PILOT Note: GASKET, PILOT

$0.00
$0.00
18 N
312488

SCREW

$0.00
$0.00
18 N
810146

SCREW ASSM - BLUE BLOCK OPE Note: SCREW ASSY, BLUE BLOCK OPE

$0.00
$0.00
19 N
302810

SCREW ASSEMBLY - LEAK LIMIT Note: SCREW ASSEMBLY, LEAK LIMIT

$0.00
$0.00
19 N
302809

GAS VALVE 240-50 Note: GAS VALVE (240-50)

$0.00
$0.00
20
304698

CONVERSION KIT-NAT. TO LPG Note: CONVERSION KIT (NAT.TO LPG)

$0.00
$0.00
21 N
301456

CONVERSION KIT-LPG TO NAT. Note: CONVERSION KIT (LP TO NAT.)

$0.00
$0.00
22
301539

GAS BURNER INSTRUCT LABEL

$0.00
$0.00
23 N
313967
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

COVER, TERMINAL

$0.00
$0.00
1
312905

STRAP, GROUND Note: PART NOT USED

$0.00
$0.00
2
312184

SCREW NA

$0.00
$0.00
3 N
313561

BLOCK, TERMINAL Note: PART NOT USED

$0.00
$0.00
4
400008

BRACKET, TERMINAL BLOCK Note: PART NOT USED

$0.00
$0.00
5
312904

SCREW

$0.00
$0.00
8
310632

POWER CORD Note: POWER CORD

$0.00
$0.00
12
302521

GROMMET, CORD Note: CORD GROMMET

$0.00
$0.00
13
211881

SCREW & WASHER ASSY.

$0.00
$0.00
14
303846

CLAMP, GROUND (W/SCREW)

$0.00
$0.00
15
301548

GROUND WIRE

$0.00
$0.00
16
311155

SCREW

$0.00
$0.00
17
313559

SCREW

$0.00
$0.00
18
211294

COVER, ACCESS

$0.00
$0.00
19
312951

NUT

$0.00
$0.00
20
052740

FOOT, RUBBER

$0.00
$0.00
21
314137

ADJUSTABLE LEG & NUT

$0.00
$0.00
22
305086

BASE ASSY.

$0.00
$0.00
23
303361

SCREW, CABINET

$0.00
$0.00
24
213007

CABINET-WHITE Note: CABINET (WHT)

$0.00
$0.00
25 N
305302

TOP COVER-WHITE Note: TOP COVER (WHT)

$0.00
$0.00
26 N
305191
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

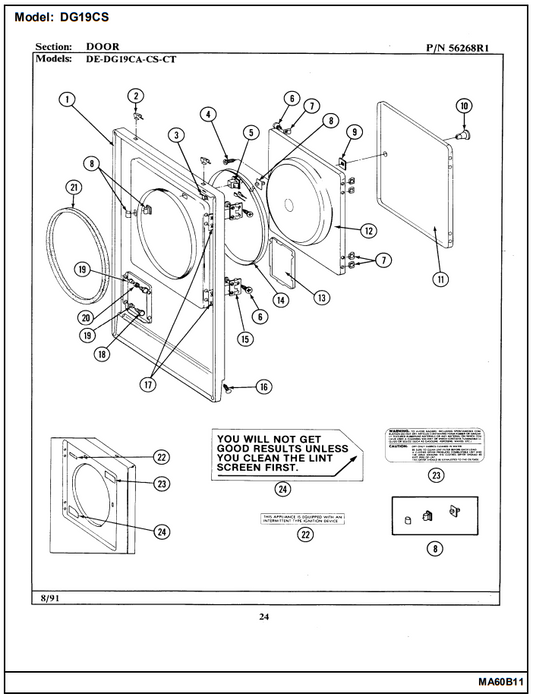

FRONT PANEL-WHITE Note: FRONT PANEL (WHT)

$0.00
$0.00
1 N
304594

FASTENER, PANEL

$0.00
$0.00
2
212982

CLIP, WIRE HARNESS

$0.00
$0.00
3
310376

SCREW FOR DOOR KNOB----NA Note: SCREW, DOOR KNOB

$0.00
$0.00
4 N
314347

DOOR SWITCH

$0.00
$0.00
5
304575

SWITCH, DOOR

$0.00
$0.00
5
305753

SCREW

$0.00
$0.00
6
314062

CLIP, DOOR LINER TO OUTER PNL Note: CLIP, DOOR LINER (OUTER PNL)

$0.00
$0.00
7
313910

DOOR LATCH KIT

$0.00
$0.00
8
306436

DOOR STRIKE RETAINER

$0.00
$0.00
9
313911

KNOB AND SCREW Note: KNOB & SCREW

$0.00
$0.00
10 N
303942

DOOR Note: DOOR (WHT)

$0.00
$0.00
11
306668

INNER DOOR WITH KNOB Note: INNER DOOR W/KNOB

$0.00
$0.00
12 N
306676

ACCESS DOOR-WHITE Note: ACCESS DOOR (WHITE)

$0.00
$0.00
13 N
302542

DOOR SEAL

$0.00
$0.00
14
314077

DOOR HINGE

$0.00
$0.00
15 N
304577

SCREW & FSTNER ASSY(FRT.PANEL) Note: SCREW & FSTNER ASSY (FT.PNL)

$0.00
$0.00
16
204439

TWIN FASTENER

$0.00
$0.00
17
313907

SCREW

$0.00
$0.00
18
212949

BUSHING FOR ACCESS STUD Note: BUSHING, ACCESS STUD

$0.00
$0.00
19 N
312301

SLEEVE-ACCESS PANEL STUD Note: SLEEVE, ACCESS PANEL STUD

$0.00
$0.00
20
312369

SEAL FOR FRONT PANEL Note: SEAL, FRONT PANEL

$0.00
$0.00
21
314286

GAS IGNITION LABEL

$0.00
$0.00
22 N
314119

INSTRUCTION LABEL

$0.00
$0.00
23
313927

LABEL, LINT SCREEN INSTRUCTION Note: LABEL, LINT SCREEN INSTR.

$0.00
$0.00
24 N
313340
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

SCREW, #10 X 3/8

$0.00
$0.00
1
014872

OUTER CASE-WHITE Note: OUTER CASE (WHT)

$0.00
$0.00
2 N
205701

RETAINER, TIMER KNOB

$0.00
$0.00
5
211605

TIMER 240-50 Note: TIMER (240-50)

$0.00
$0.00
6 N
303744

MOTOR 240-50 Note: MOTOR (240-50)

$0.00
$0.00
7
304656

BURNER ASSEMBLY

$0.00
$0.00
8 N
304697

GAS VALVE 240-50 Note: GAS VALVE (240-50)

$0.00
$0.00
9
304698

PILOT SHIELD ASSEMBLY

$0.00
$0.00
10 N
304699

COMBUSTION CONE

$0.00
$0.00
11 N
304706

MOTOR PULLEY - 50 CYCLE Note: MOTOR PULLEY (50 CYCLE)

$0.00
$0.00
12
305186

MOTOR PULLEY - 50 CYCLE Note: MOTOR PULLEY (50 CYCLE)

$0.00
$0.00
13
305186

MAIN WIRE HARNESS 240-50 Note: MAIN WIRE HARNESS (240-50)

$0.00
$0.00
14 N
305358

PILOT LAMP

$0.00
$0.00
15 N
305473

TIMER 240-50 Note: TIMER (240-50)

$0.00
$0.00
16
305812

TIMER MOTOR 240-50 Note: TIMER MOTOR (240-50)

$0.00
$0.00
17
306527

COMPRESSION SLEEVE

$0.00
$0.00
18
310693

SCREW

$0.00
$0.00
19
311711

AIR SHUTTER

$0.00
$0.00
20 N
311910

PILOT TUBE

$0.00
$0.00
21
312483

GAS CONTROL BRACKET

$0.00
$0.00
22 N
313965

GAS BURNER INSTRUCT LABEL

$0.00
$0.00
23 N
313967

Wiring Diagram

Parts Manual
