DSCR80320
DSCR80320

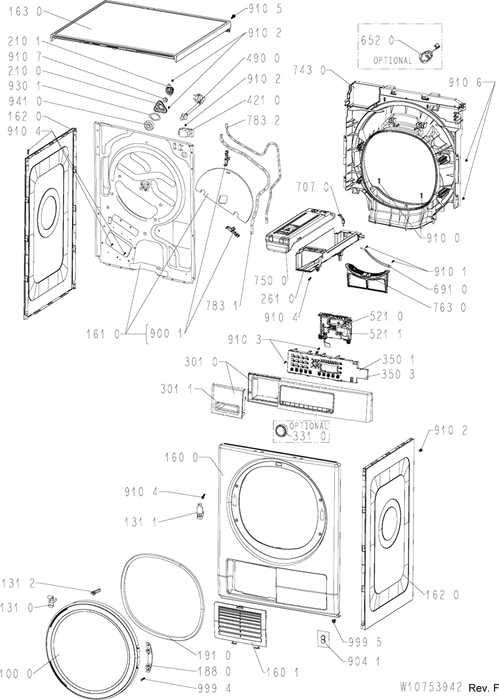

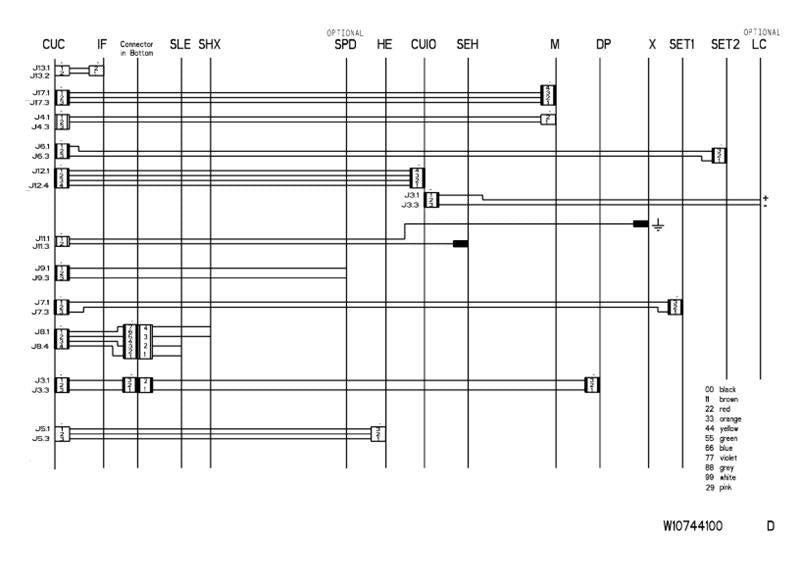

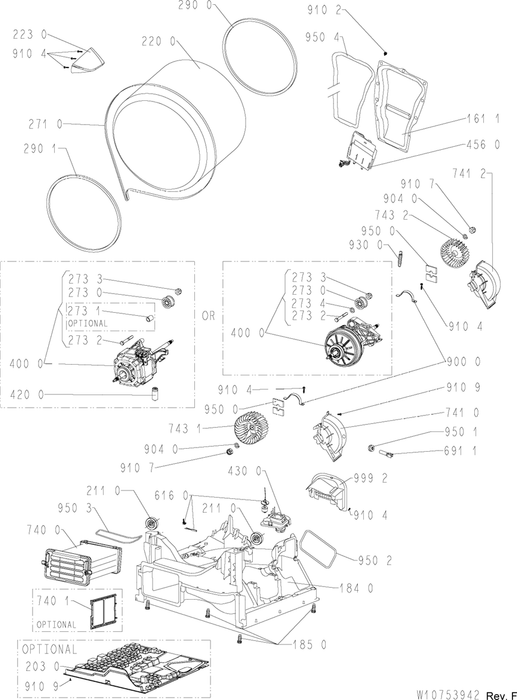

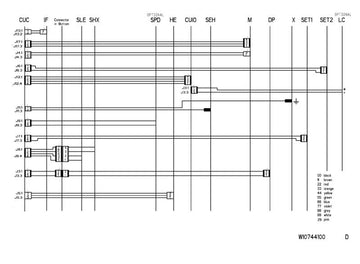

Wiring Diagram
Technical Data
Dimensions + Weight
| Height | 85 | cm |
| Width | 60 | cm |
| Depth | 63 | cm |
Weight
| Net | 38 | kg |
Electrical base data
| Voltage | 230 | V |
| Frequency | 50 | Hz |
| Fuse | 10 | A |
| Total connected load | 2.3 | kW |
Surroundings temperature
| Room temperature max. | 35 | °C |
| Room temperature min. | 5 | °C |
Heating element
| Nominal voltage | 230 V +10 / -15 | % |
| Total power | 2 x 1000 W ± 5 | % |
| Resistor NTC 1000 W | 46.86 | Ω |
| Resistor NTC 2000 W | 23.43 | Ω |
Thermostats condenser
| Safety thermostat | TL | |
| Switch off temperature | 180°C ± 3 | K |
| SET2 | ||
| 0°C | 38.4 | kΩ |
| 25°C | 12.0 | kΩ |
| 60°C | 3.0 | kΩ |
| 70°C | 2.2 | kΩ |
| 95°C | 0.1 | kΩ |
| 100°C | 0.8 | kΩ |
| 110°C | 0.6 | kΩ |
| 130°C | 0.4 | kΩ |
| 180°C | 0.1 | kΩ |
| SET1 | ||
| 0°C | 36.0 | kΩ |
| 30°C | 9.8 | kΩ |
| 40°C | 6.7 | kΩ |
| 50°C | 4.6 | kΩ |
| 60°C | 3.2 | kΩ |
| 70°C | 2.3 | kΩ |
| 95°C | 1.1 | kΩ |
Main- and blower motor + MCU
| Type | Brushless Permanent Magnet (BPM) | |
| Nominal voltage | 220 - 240 | V |
| Frequency | 50/60 | Hz |
| Power Consumption | 150 W ± 20 | % |
| Nominal current | 1.25 A ± 20 | % |
Condensation pump
| Type | 1-phase | |
| Nominal voltage | 220 - 240 V +10 / -15 | % |
| Frequency | 50 | Hz |
| Resistance (20°C) | 716 | Ω |
| Power Consumption | 7.5 ± 3 | W |
| Capacity (height 1.1m) | 2.6 | l/min |
Reed contacts
Water Level
| Type | SLE | |
| Nominal voltage | 5 | V |
| Current | 0.5 | mA |
Heat exchanger
| Type | SHX | Nominal voltage | 5 | V |
| Current | 0.5 | mA |
Door switch
| Type | SD | Nominal voltage | 5 | V |
| Current | 50 | mA |
Drum light - optional
| Type | LC | |
| Nominal voltage | 2.9 - 5 | V | Power | 0.5 | W |
| Current | 46 - 160 | mA |
Control unit central
| Type | Fuujin | Nominal voltage | 220 - 240 | V |
| Frequency | 50/60 | Hz |
Control unit display
| Nominal voltage | 5 V ± 0.5 | V |
| Current | max. 350 | mA | Nominal voltage | 12 | V |
| Current | max.20 | mA |
