FDLR90250

FDLR90250

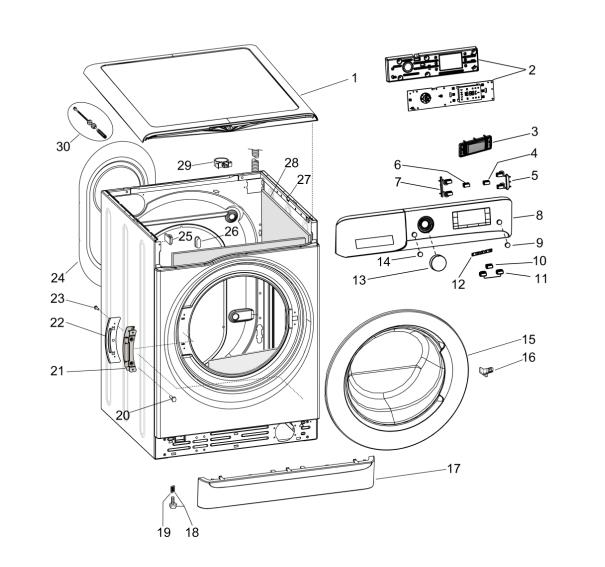

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

worktop - 71lt combo global white

$0.00
$0.00
001
4880 005 18543

module ui cpl. lcd nel i1

$0.00
$0.00
002
4880 007 28743

frame display premium

$0.00
$0.00
003
4880 005 02178

pushbutton lcd fc symbol (1)

$0.00
$0.00
004
4880 008 47173

option button iright (2) symb fesh care

$0.00
$0.00
005
4880 008 47172

pushbutton bk symbols fc lcd(1)

$0.00
$0.00
006
4880 008 47171

option button symb bk sx fc (2)

$0.00
$0.00
007
4880 008 47170

control panel fdlr90250

$0.00
$0.00
008
4880 008 52356

pushbutton start/pause premium gw

$0.00
$0.00
009
4880 005 18731

option button lcd fc wm down (1)_symbol

$0.00
$0.00
010
4880 008 47174

option button lcd fc wm down (2)_symbol

$0.00
$0.00
0111
4880 008 49041

collar components knob aq hd lcd

$0.00
$0.00
013
4820 000 88958

knob asm wht/chr/ins.fc plus combo

$0.00
$0.00
013
4880 008 46521

pushbutton on/off gw premium fc

$0.00
$0.00
014
4880 005 21883

door dual frame assy cro/w fresh care

$0.00
$0.00
015
4880 005 32991

lock

$0.00
$0.00
016
4810 105 64917

plinth white gw indesit innex

$0.00
$0.00
017
4880 005 08843

levering foot 2,3 cm

$0.00
$0.00
018
4880 005 33677

foot spring (11x8.5mm)

$0.00
$0.00
019
4820 000 27600

bolt trlbt m4x8 t esag

$0.00
$0.00
020
4820 000 88787

hinge kit door

$0.00
$0.00
021
4810 109 06624

hinge plate door futura

$0.00
$0.00
024
4820 000 88235

rear cover - white gw

$0.00
$0.00
025
4880 005 09407

cable clamp hose

$0.00
$0.00
026
4820 000 22035

blanking plate-rear (test plug) windy

$0.00
$0.00
027
4880 005 10051

cabinet white gw 535 indesit innex

$0.00
$0.00
029
4880 005 16012

drain hose holder

$0.00
$0.00
029
4820 000 27167

wiring stop

$0.00
$0.00
029
4820 000 74293

junction clamp

$0.00
$0.00
029
4880 003 87160

drain hose collar

$0.00
$0.00
030
4820 000 27172

grab handle plug button white

$0.00
$0.00
030
4880 006 28945

transit bolts kit (1 screw + 1 spacer)

$0.00
$0.00
099
4880 002 59495

bracket kit cabinet

$0.00
$0.00
099
4820 000 88295

screw vite plst 3x12 tsp

$0.00
$0.00
4820 000 86798

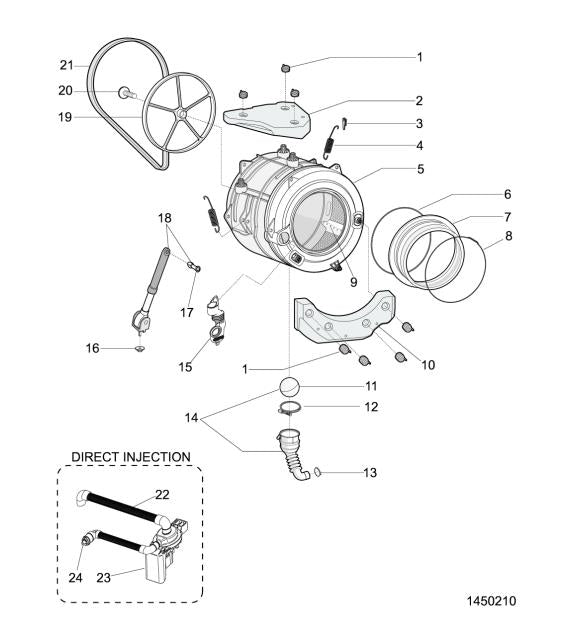

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

fixing spring counterweight aq 71lt

$0.00
$0.00
001
4820 000 31716

upper counterweight futura 13.8 kg

$0.00
$0.00
002
4820 000 88468

anchorage pad - suspension spring aqual

$0.00
$0.00
003
4820 000 29587

suspension spring 71lt prime k=8,5 n/mm

$0.00
$0.00
004
4820 000 90236

tank plastic 71 ultra wm dir.in. harmony

$0.00
$0.00
005
4880 006 30552

bellows clamp (tank front) aq hd

$0.00
$0.00
006
4820 000 88303

door bellows d340,d354,70 ngo freshcare

$0.00
$0.00
007
4880 008 46522

ring retaining front d340 freshcare

$0.00
$0.00
008
4810 109 14776

removable washing paddles high end

$0.00
$0.00
009
4820 000 23250

front counterweight 14.5kg ngo low dens

$0.00
$0.00
010
4880 008 53976

front counterweight 13,4 kg

$0.00
$0.00
010
4820 000 31715

ball oko evo ii

$0.00
$0.00
011
4820 000 27908

hose clamp

$0.00
$0.00
012
4820 000 22783

hose tub to pump 71lt a class di

$0.00
$0.00
014
4880 008 46511

hose dispenser to tank futura

$0.00
$0.00
015
4820 000 31806

nut m6 with washer

$0.00
$0.00
016
4880 007 38504

pin damper

$0.00
$0.00
017
4880 007 81016

kit shock absorber 120n futura 71 lt

$0.00
$0.00
018
4820 000 89614

drum pulley d=280 mm h=20 mm

$0.00
$0.00
019
4880 004 81388

m8 x 20 tefl. 10.9 screw

$0.00
$0.00
020
4820 000 70058

belt h8 1194 j6

$0.00
$0.00
021
4820 000 22990

hose tub-pump direct injection

$0.00
$0.00
022
4820 000 89114

pump assy di recirc. 71lt freshcare a

$0.00
$0.00
023
4880 008 46509

hose tub-pump diverter

$0.00
$0.00
024
4880 003 75749

torx m8 x 27 dri-loc screw

$0.00
$0.00
099
4820 000 74649

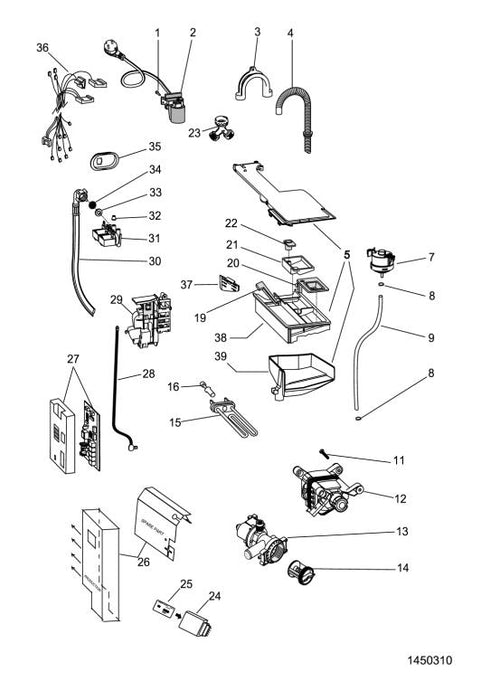

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

self-scraping screw 3,5x8

$0.00
$0.00
001
4820 000 27921

supply cable l=2550mm three phase +filt

$0.00
$0.00
002
4880 002 79639

plastic -u- to make drain hose hook

$0.00
$0.00
003
4820 000 72836

spring hose clamp (black)

$0.00
$0.00
004
4880 006 98039

drain hose =2050 mm

$0.00
$0.00
004
4820 000 89606

innex 9kg dispens.asm 535 wm bks

$0.00
$0.00
005
4880 008 48949

linear pressure switch 2,5 0:300mm small

$0.00
$0.00
007
4820 000 23288

pipe pressostat l=710

$0.00
$0.00
009
4820 000 88308

screw locking motor/tub

$0.00
$0.00
011
4820 000 78095

motor 1400 bpm h27 62l

$0.00
$0.00
012
4880 005 33611

drain pump 220-240v 50hz flap

$0.00
$0.00
013
4880 005 17420

drain pump 220-240v 50hz noise less

$0.00
$0.00
013
4880 008 55480

filter element kit

$0.00
$0.00
014
4820 000 22946

filter element kit copreci

$0.00
$0.00
014
4820 000 23381

heater wash 1700/230v 2tf

$0.00
$0.00
015
4880 003 80151

thermistor ntc

$0.00
$0.00
016
4820 000 22721

drawer latch indesit innex

$0.00
$0.00
019
4820 000 32154

siphon detergent container indesit innex

$0.00
$0.00
022
4820 000 32155

adapter for indesit hardware key.

$0.00
$0.00
024
4820 000 95666

smart reader for card 8kb 32kb + hood

$0.00
$0.00
024
4880 002 72306

card fdlr90250 32kb 400011631480

$0.00
$0.00
025
4880 008 52357

module windy strip bpm h50, m3.2

$0.00
$0.00
027
4880 008 46515

door lock fl evo em rast5 rold

$0.00
$0.00
029
4810 108 85440

hose inlet mech.aqs-1500mm

$0.00
$0.00
030
4880 005 68453

fill valve 2 way (7lt rst 2.5)

$0.00
$0.00
031
4820 000 22813

seal - dispenser to valve.

$0.00
$0.00
032
4820 000 22667

sealing washer-mains inlet hose

$0.00
$0.00
033
4820 000 25916

inlet hose filter

$0.00
$0.00
034
4820 000 25917

electrovalve support 1 ev

$0.00
$0.00
035
4820 000 27185

wiring dj pump windy

$0.00
$0.00
036
4880 005 22923

wiring drain pump windy

$0.00
$0.00
036
4880 005 16626

wiring earth windy

$0.00
$0.00
036
4880 005 16628

wiring bpm motor

$0.00
$0.00
036
4880 005 20008

wiring unit interface windy

$0.00
$0.00
036
4880 005 15821

wiring pressure sensor +wash ntc

$0.00
$0.00
036
4880 005 15820

hose clampl=99 5pz

$0.00
$0.00
036
4880 005 13579

wiring filter/door lock windy

$0.00
$0.00
036
4880 005 15816

wiring heater wash windy

$0.00
$0.00
036
4880 005 15818

wiring evp+evw windy

$0.00
$0.00
036
4880 005 15819

divider for soap dispenser drawer innex

$0.00
$0.00
037
4820 000 32173

detergent drawer innex 9kg

$0.00
$0.00
038
4820 000 32152

dispenser body innex 9 kg bks

$0.00
$0.00
039
4880 007 29792
