LDG7600AGW

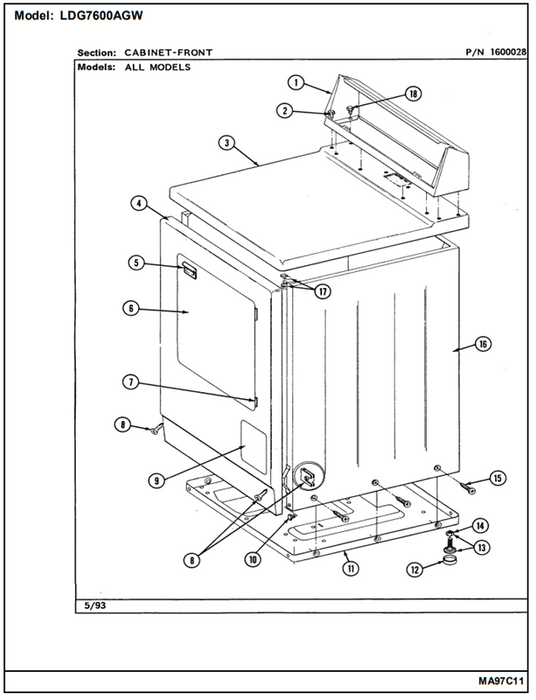

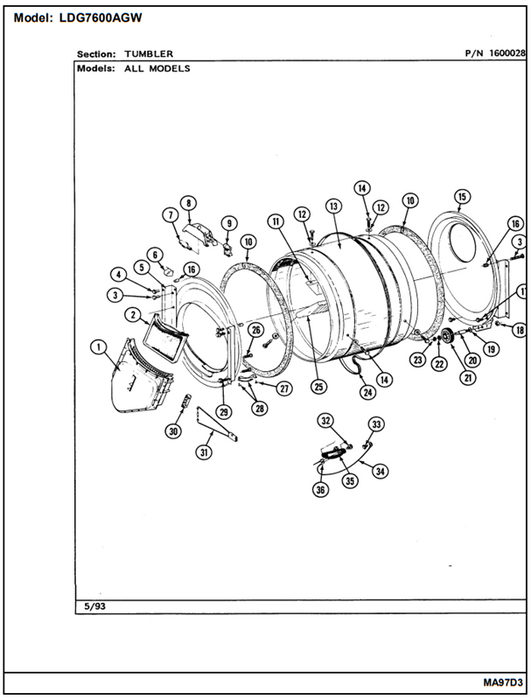

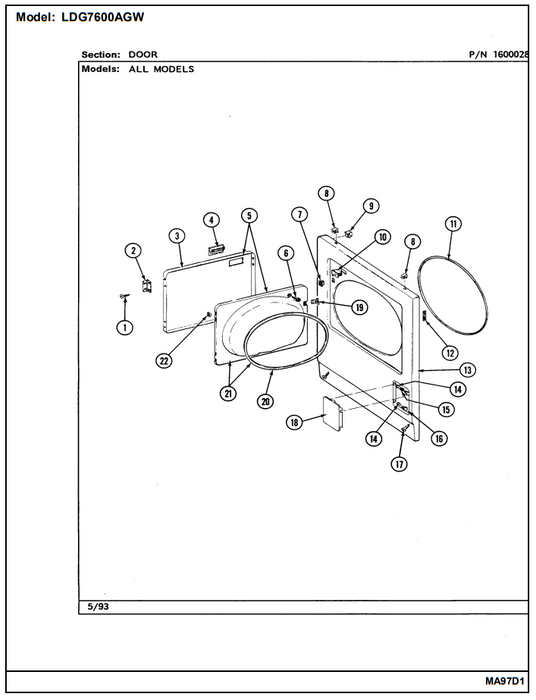

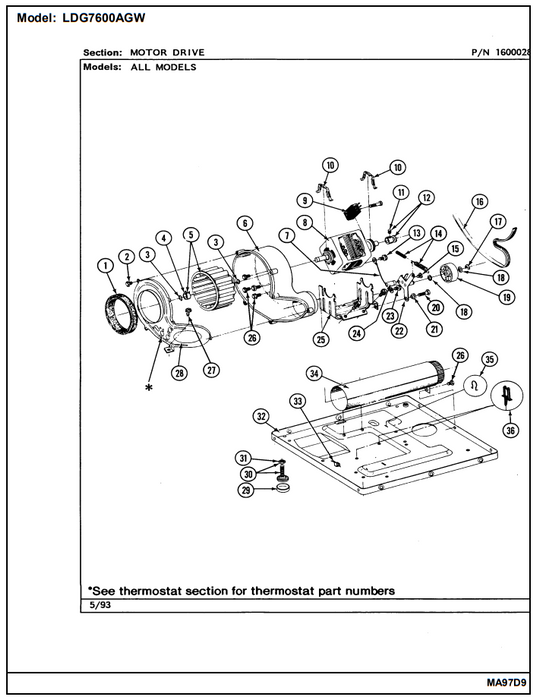

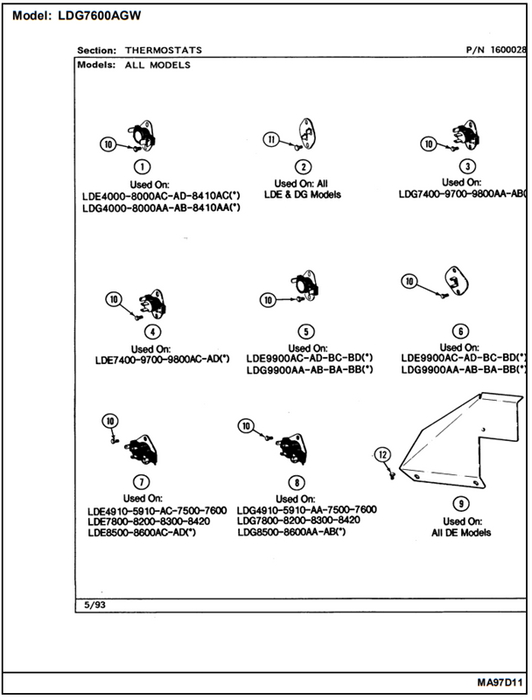

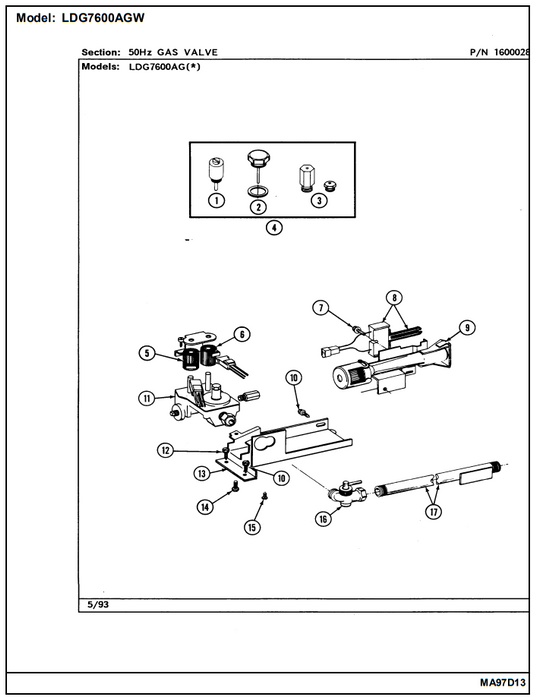

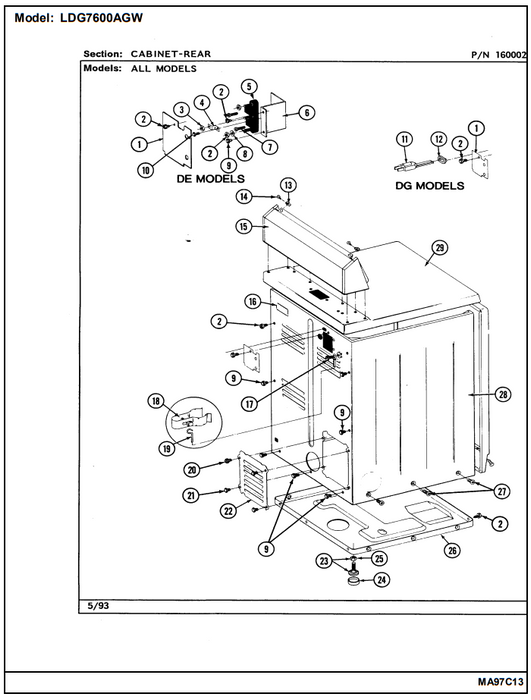

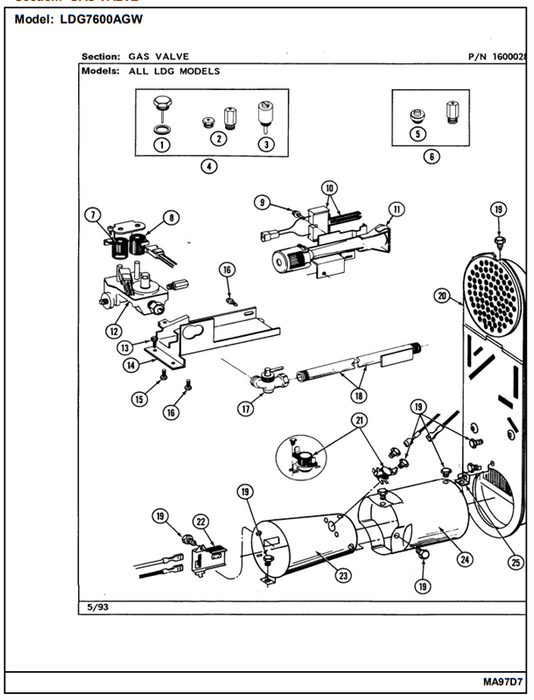

Exploded View 1

Product Details	S.P. Ref.	S.P. Code
Sold Out PALNUT, END CAP Regular price $0.00 Sale price $0.00 Regular price Unit price	1	214872
Sold Out BACK UP PLATE Note: PLATE, BACK-UP Regular price $0.00 Sale price $0.00 Regular price Unit price	2 N	314184
Sold Out SCREW, #8 X 9/16 CTSK Note: SCREW, END CAP & CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	3	210932
Sold Out END CAP LH Note: END CAP, L.H. Regular price $0.00 Sale price $0.00 Regular price Unit price	4	207215
Sold Out FASTENER, END CAP Regular price $0.00 Sale price $0.00 Regular price Unit price	5	214894
Sold Out CONTROL PANEL Note: PANEL, CONTROL Regular price $0.00 Sale price $0.00 Regular price Unit price	6 N	308263
Sold Out DIAL SKIRT Note: DIAL, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	7	315042
Sold Out KNOB, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	8	315041
Sold Out NUT Note: NUT, TIMER KNOB Regular price $0.00 Sale price $0.00 Regular price Unit price	9	312273
Sold Out CAP, KNOB Regular price $0.00 Sale price $0.00 Regular price Unit price	10	215821
Sold Out END CAP RH Note: END CAP, R.H. Regular price $0.00 Sale price $0.00 Regular price Unit price	11	207216
Sold Out PAD, CONTROL PANEL Note: PAD, CUSHION Regular price $0.00 Sale price $0.00 Regular price Unit price	12 N	214897
Sold Out SCREW, SWITCHES Note: SCREW, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	13	315317
Sold Out TIMER RPR Regular price $0.00 Sale price $0.00 Regular price Unit price	14	308218
Sold Out SCREW Note: SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	15	211294
Sold Out GRND.WIRE,SUPP.PLTE TO TOP CVR Note: WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	16	204807
Sold Out SCREW, #8 X 5/16 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	17	211168
Sold Out BUZZER - NON-ADJUSTABLE Regular price $0.00 Sale price $0.00 Regular price Unit price	18	305205
Sold Out TEMP CONTROL SWITCH 3 BUTTON Note: SWITCH, TEMPERATURE Regular price $0.00 Sale price $0.00 Regular price Unit price	19	307304
Sold Out RESISTOR, MED TEMP GAS Regular price $0.00 Sale price $0.00 Regular price Unit price	20	306917
Sold Out SCREW-TEMP. SWITCH TO PANEL Note: SCREW, TEMPERATURE SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	21	213117
Sold Out SWITCH PUSH TO START Note: SWITCH, PUSH TO START Regular price $0.00 Sale price $0.00 Regular price Unit price	22	307305
Sold Out WIRE HARNESS Note: WIRE HARNESS, MAIN Regular price $0.00 Sale price $0.00 Regular price Unit price	23 N	308330
Sold Out HARNESS, WIRE Note: WIRE HARNESS, MAIN Regular price $0.00 Sale price $0.00 Regular price Unit price	23 N	308493
Sold Out GUIDE, QUICK REF. - MAYTAG Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	16000327
Sold Out MANUAL, USE & CARE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	315077

Product Details	S.P. Ref.	S.P. Code
Sold Out CONSOLE (WHT) Note: (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	305193
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	2	313559
Sold Out TOP COVER ASSY Note: (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	307104
Sold Out PANEL, FRONT (WHT) Note: (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	308000
Sold Out FRONT PANEL Note: (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	307998
Sold Out HANDLE WHITE Note: (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	314946
Sold Out DOOR ASSY. COMPLETE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	6 N	307111
Sold Out PANEL, OUTER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	314966
Sold Out HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	7	307099
Sold Out SCREW & FSTNER ASSY(FRT.PANEL) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	204439
Sold Out ACCESS DOOR-WHITE Note: (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	9 N	302542
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	10	310632
Sold Out BASE ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	11	303361
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314137
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	13	305086
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	14	052740
Sold Out SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	15	213007
Sold Out CABINET (WHT) Note: (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	307124
Sold Out SCREW & FASTENER ASY. Regular price $0.00 Sale price $0.00 Regular price Unit price	17	204445
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	18	211294

Product Details	S.P. Ref.	S.P. Code
Sold Out COVER, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	1	312905
Sold Out SCREW NA Regular price $0.00 Sale price $0.00 Regular price Unit price	2 N	313561
Sold Out NUT, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	3	311484
Sold Out STRAP, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	4	312184
Sold Out BLOCK, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	5	400008
Sold Out BRACKET, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	6	312904
Sold Out SCREW, #10-24 X 3/4 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	7	312209
Sold Out WASHER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	8	311270
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	9	310632
Sold Out SCREW, #10-32 X 1/2 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	311423
Sold Out POWER CORD Regular price $0.00 Sale price $0.00 Regular price Unit price	11	302521
Sold Out GROMMET, CORD Regular price $0.00 Sale price $0.00 Regular price Unit price	12	211881
Sold Out FASTENER,CNTRL PNL TO CONSOLE Note: FASTENER, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	13	215075
Sold Out SCREW, #8 X 9/16 CTSK Note: SCREW, CONTROL PANEL (CHR) Regular price $0.00 Sale price $0.00 Regular price Unit price	14	210932
Sold Out CONSOLE (WHT) Note: CONSOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	305193
Sold Out LABEL, ELECTRICAL INSTRUCTION Regular price $0.00 Sale price $0.00 Regular price Unit price	16	214519
Sold Out SCREW & WASHER ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	17	303846
Sold Out CLAMP, GROUND (W/SCREW) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	301548
Sold Out GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	19	311155
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	20	211294
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	21	313559
Sold Out COVER, ACCESS Regular price $0.00 Sale price $0.00 Regular price Unit price	22	312951
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	23	305086
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	24	314137
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	25	052740
Sold Out BASE ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	26	303361
Sold Out CAP FOR TIMER KNOB Note: CAP, TIMER KNOB Regular price $0.00 Sale price $0.00 Regular price Unit price	27	213077
Sold Out CABINET (WHT) Note: CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	28 N	307124
Sold Out TOP COVER ASSY Note: TOP COVER ASSY. (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	29	307104

Product Details	S.P. Ref.	S.P. Code
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	1	314062
Sold Out HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	2	307099
Sold Out PANEL, OUTER (WHT) Note: PANEL, OUTER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	314966
Sold Out HANDLE WHITE Note: HANDLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	314946
Sold Out DOOR ASSY. COMPLETE (WHT) Note: DOOR ASSY. COMPLETE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5 N	307111
Sold Out SCREW - INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	6	312960
Sold Out DOOR LATCH KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	7	306436
Sold Out FASTENER, PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	8	212982
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	9	310376
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	305753
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	305754
Sold Out SEAL, FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314937
Sold Out TWIN FASTENER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	313907
Sold Out PANEL, FRONT (WHT) Note: PANEL, FRONT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	13 N	308000
Sold Out FRONT PANEL Note: PANEL, FRONT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	13 N	307998
Sold Out BUSHING FOR ACCESS STUD Regular price $0.00 Sale price $0.00 Regular price Unit price	14 N	312301
Sold Out SLEEVE-ACCESS PANEL STUD Regular price $0.00 Sale price $0.00 Regular price Unit price	15	312369
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	16	212949
Sold Out SCREW & FSTNER ASSY(FRT.PANEL) Note: SCREW & FSTNER ASSY (FT PANEL) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	204439
Sold Out ACCESS DOOR-WHITE Note: ACCESS DOOR (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	18 N	302542
Sold Out DOOR STRIKE Regular price $0.00 Sale price $0.00 Regular price Unit price	19	314936
Sold Out DOOR SEAL Regular price $0.00 Sale price $0.00 Regular price Unit price	20	314935
Sold Out DOOR, INNER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	307098
Sold Out LABEL, INSTRUCTION CANADA Note: (CANADA) Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	315441
Sold Out LABEL, INSTRUCTION Regular price $0.00 Sale price $0.00 Regular price Unit price	-	314941
Sold Out CLIP, DOOR LINER TO OUTER PNL Note: CLIP, DOOR LINER Regular price $0.00 Sale price $0.00 Regular price Unit price	22	313910

Product Details	S.P. Ref.	S.P. Code
Sold Out DUCT, OUTLET ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	1	307112
Sold Out LINT SCREEN Regular price $0.00 Sale price $0.00 Regular price Unit price	2	307213
Sold Out LINT FILTER Regular price $0.00 Sale price $0.00 Regular price Unit price	2 N	307107
Sold Out SCREW Note: SCREW, TUMBLER SUPPORT Regular price $0.00 Sale price $0.00 Regular price Unit price	3 N	313764
Sold Out SCREW----NA Note: SCREW, WATER VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	313561
Sold Out TUMBLER FRONT W/SEAL Note: FRONT, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	5 N	307117
Sold Out TUMBLE FRONT ASSY W/SEAL Note: FRONT, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	307311
Sold Out FRONT, TUMBLER (W/SEAL) Note: FRONT, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	307109
Sold Out CLIP, WIRE HARNESS Note: CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	6	310376
Sold Out LIGHT Regular price $0.00 Sale price $0.00 Regular price Unit price	7	307100
Sold Out ENCLOSURE, LIGHT Regular price $0.00 Sale price $0.00 Regular price Unit price	8	314955
Sold Out HOLDER, LIGHT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	307097
Sold Out SEAL, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	10	314820
Sold Out BAFFLE (SHORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314803
Sold Out WASHER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314158
Sold Out TUMBLER W/BAFFLES Note: TUMBLER (W/BAFFLES) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	306663
Sold Out TUMBLER W/OUT BAFFLES Note: TUMBLER (W/OUT BAFFLES) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	314802
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	14	310759
Sold Out BACK, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	307114
Sold Out BACK, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	308544
Sold Out COVER, THREAD Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	313915
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	17	211294
Sold Out NUT, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	18	312538
Sold Out WASHER, SPRING (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	19	313347
Sold Out SHAFT, TUMBLER ROLLER Regular price $0.00 Sale price $0.00 Regular price Unit price	20	312948
Sold Out BEARING & ROLLER ASSEMBLY Note: ROLLER (W/BEARING) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	303373
Sold Out WASHER, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	22	312535
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	23	410233
Sold Out BELT, TUMBLER & MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	24	312959
Sold Out BAFFLE (TALL) Regular price $0.00 Sale price $0.00 Regular price Unit price	25	314804
Sold Out SCREW, INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	26	314110
Sold Out RIVET Regular price $0.00 Sale price $0.00 Regular price Unit price	27	210720
Sold Out TUMBLER BEARING KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	28	306508
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	29	310632
Sold Out SWITCH HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	30	315020
Sold Out REED SWITCH ASSY Note: REED SWITCH ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	31	307206
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	32	251119
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	33	211294
Sold Out SENSOR GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	34	303711
Sold Out SENSOR ASSEMBLY WITH SCREWS Note: SENSOR ASSEMBLY (W/SCREWS) Regular price $0.00 Sale price $0.00 Regular price Unit price	35	304997
Sold Out RECEPTACLE, SENSOR GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	36	312658

Product Details	S.P. Ref.	S.P. Code	Substitute Code	Industrial Code	Buy Now
Sold Out SCREW ASSM - BLUE BLOCK OPE Regular price $0.00 Sale price $0.00 Regular price Unit price		302810
Sold Out MAIN BURNER ORIFICE KIT-LPG Regular price $0.00 Sale price $0.00 Regular price Unit price		305861
Sold Out PLUG, BLOCKING (LPG REGULATOR) Regular price $0.00 Sale price $0.00 Regular price Unit price		306184
Sold Out CONVERSION KIT (NATURAL TO LP) Note: CONVERSION KIT (NAT TO LP) Regular price $0.00 Sale price $0.00 Regular price Unit price		306195
Sold Out LEAK LIMITER (LPG) Regular price $0.00 Sale price $0.00 Regular price Unit price		314602
Sold Out CONVERSION KIT (LP TO NATURAL) Note: CONVERSION KIT (LP TO NAT) Regular price $0.00 Sale price $0.00 Regular price Unit price		306204
Sold Out COIL, HOLDING & BOOSTER Regular price $0.00 Sale price $0.00 Regular price Unit price		306106
Sold Out COIL, SECONDARY Regular price $0.00 Sale price $0.00 Regular price Unit price		306105
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price		304971
Sold Out IGNITER ASSY, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price		304970
Sold Out BURNER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price		304974
Sold Out VALVE, GAS Regular price $0.00 Sale price $0.00 Regular price Unit price		306176
Sold Out SCREW NA Regular price $0.00 Sale price $0.00 Regular price Unit price		313561
Sold Out BRACKET, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price		314566
Sold Out SHUT-OFF, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price		303349
Sold Out PIPE & BRACKET ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price		303383
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price		211294
Sold Out THERMOSTAT, HI-LIMIT (GAS) Regular price $0.00 Sale price $0.00 Regular price Unit price		303395
Sold Out SENSOR, RADIANT Regular price $0.00 Sale price $0.00 Regular price Unit price		303377
Sold Out CONE, EXTENSION (COMBUSTION) Regular price $0.00 Sale price $0.00 Regular price Unit price		303841
Sold Out RETAINER, HEATER CHAMBER Regular price $0.00 Sale price $0.00 Regular price Unit price		312890
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price		314082
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price		313559
Sold Out INLET DUCT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price		308504
Sold Out INLET DUCT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price		307119
Sold Out CONE, COMBUSTION Regular price $0.00 Sale price $0.00 Regular price Unit price		308549
Sold Out CONE, COMBUSTION Regular price $0.00 Sale price $0.00 Regular price Unit price		303368

Product Details	S.P. Ref.	S.P. Code
Sold Out CYCLING THERMOSTAT 140 DEG. Note: CYCLING THERMOSTAT (140 DEG.) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	304475
Sold Out CUT-OFF, THERMAL Regular price $0.00 Sale price $0.00 Regular price Unit price	2	306604
Sold Out THERMOSTAT, MULTI TEMP (GAS) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	306910
Sold Out THERMOSTAT,(ELEC) MULTI-TEMP Regular price $0.00 Sale price $0.00 Regular price Unit price	4	306911
Sold Out THERMOSTAT, LIMIT Regular price $0.00 Sale price $0.00 Regular price Unit price	5	307200
Sold Out THERMISTOR, TEMP. CONTROL Regular price $0.00 Sale price $0.00 Regular price Unit price	6	307208
Sold Out THERMOSTAT, MULTI-TEMP (ELEC) Regular price $0.00 Sale price $0.00 Regular price Unit price	7	307249
Sold Out THERMOSTAT, MULTI-TEMP (GAS) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	307250
Sold Out COVER, THERMOSTAT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	315122
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	10	211294
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314848
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	12	310632

Product Details	S.P. Ref.	S.P. Code
Sold Out PLUG, BLOCKING (LPG REGULATOR) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	306184
Sold Out SCREW ASSM - BLUE BLOCK OPE Regular price $0.00 Sale price $0.00 Regular price Unit price	2 N	302810
Sold Out MAIN BURNER ORIFICE KIT-LPG Regular price $0.00 Sale price $0.00 Regular price Unit price	3 N	305861
Sold Out CONVERSION KIT (NATURAL TO LP) Note: CONVERSION KIT (NAT TO LP) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	306195
Sold Out HOLDING - BOOSTER COIL Regular price $0.00 Sale price $0.00 Regular price Unit price	5	307931
Sold Out SECONDARY COIL Regular price $0.00 Sale price $0.00 Regular price Unit price	6	307930
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	7	304971
Sold Out IGNITER ASSY, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	8	304970
Sold Out BURNER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	9	304974
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	10	310632
Sold Out GAS VALVE - 120V-50HZ Note: GAS VALVE (240V-50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	307927
Sold Out SCREW NA Regular price $0.00 Sale price $0.00 Regular price Unit price	12 N	313561
Sold Out BRACKET, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	13	314566
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	14	314082
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	15	313559
Sold Out SHUT-OFF, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	16	303349
Sold Out CONE, COMBUSTION Regular price $0.00 Sale price $0.00 Regular price Unit price	17	308549
Sold Out COMBUSTION CONE Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	304706
Sold Out PIPE & BRACKET ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	17	303383

Product Details	S.P. Ref.	S.P. Code
Sold Out MOTOR 240-50 Note: MOTOR (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	304656
Sold Out MOTOR PULLEY - 50 CYCLE Note: MOTOR PULLEY (50 CYCLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	2	305186
Sold Out HEATER ASSEMBLY (240-50) Note: HEATER ASSY (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	307180
Sold Out HEATER SUB-ASSEMBLY 240V Note: HEATER SUBASSY (240V 50/60HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	307186
Sold Out THERMOSTAT, MULTI-TEMP (ELEC) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	307249
Sold Out GAS VALVE - 120V-50HZ Note: GAS VALVE (240V-50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	307927
Sold Out TRANSFORMER 240V 50HZ Note: TRANSFORMER (240V-50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	7	307928
Sold Out TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	8	308219
Sold Out COMBUSTION CONE Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	304706
Sold Out WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	9 N	308330
Sold Out CONE, COMBUSTION Regular price $0.00 Sale price $0.00 Regular price Unit price	9	308549

Product Details	S.P. Ref.	S.P. Code
Sold Out SEAL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	312901
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	2	312961
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	3	410233
Sold Out CLAMP, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	4	312967
Sold Out BLOWER WHEEL ASSEMBLY & CLAMP Note: IMPELLER, BLOWER (W/CLAMP) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	303836
Sold Out HOUSING, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	6	312893
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	7	901220
Sold Out MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	8	303358
Sold Out SWITCH, MOTOR Note: SWITCH, EXTERNAL START W/PRODUCTION #3-3358-2, 3-3358-4 & 3-3358-7 Regular price $0.00 Sale price $0.00 Regular price Unit price	9	303877
Sold Out SWITCH, MOTOR STARTPROD. Note: SWITCH, EXTERNAL START W/PRODUCTION #3-358 & 3-3358-6 Regular price $0.00 Sale price $0.00 Regular price Unit price	9	303879
Sold Out SWITCH, MOTOR START-PROD. Note: SWITCH, EXTERNAL START W/PRODUCTION #3-3358- 8 & 3-3358-9 Regular price $0.00 Sale price $0.00 Regular price Unit price	9 N	306207
Sold Out CLIP, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	015825
Sold Out SET SCREW, PULLEY Regular price $0.00 Sale price $0.00 Regular price Unit price	11	053241
Sold Out PULLEY, MOTOR (W/SET SCREW) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	305185
Sold Out SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	13	910343
Sold Out IDLER SPRING ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	14	303945
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	15	312961
Sold Out BELT, TUMBLER & MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	16	312959
Sold Out RETAINING RING, IDLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	17	312958
Sold Out WASHER, IDLER SHAFT (QTY-1) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	312527
Sold Out PULLEY, IDLER Regular price $0.00 Sale price $0.00 Regular price Unit price	19	303705
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	20	014874
Sold Out SLEEVE, IDLER ARM Regular price $0.00 Sale price $0.00 Regular price Unit price	21 N	312894
Sold Out IDLER ARM & SHAFT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	22	303363
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	23	211294
Sold Out SPACER, IDLER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	24	313582
Sold Out SUPPORT, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	25 N	312897
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	26	310632
Sold Out SCREW ---- NA Regular price $0.00 Sale price $0.00 Regular price Unit price	27 N	313561
Sold Out COVER, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	28	314846
Sold Out COVER FOR BLOWER Note: COVER, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	28	314778
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	29	314137
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	30	305086
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	31	052740
Sold Out BASE ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	32	303361
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	33	310376
Sold Out EXHAUST DUCT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	34	303442
Sold Out SPRING, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	35	410490
Sold Out RETAINER, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	36 N	313262

Wiring Diagram

Parts Manual

Search our store

LDG7600AGW

LDG7600AGW

214872

314184

210932

207215

214894

308263

315042

315041

312273

215821

207216

214897

315317

308218

211294

204807

211168

305205

307304

306917

213117

307305

308330

308493

16000327

315077

305193

313559

307104

308000

307998

314946

307111

314966

307099

204439

302542

310632

303361

314137

305086

052740

213007

307124

204445

211294

312905

313561

311484

312184

400008

312904

312209

311270

310632

311423

302521

211881

215075

210932

305193

214519

303846

301548

311155

211294

313559
