MDE10CSAGW

Exploded View 1

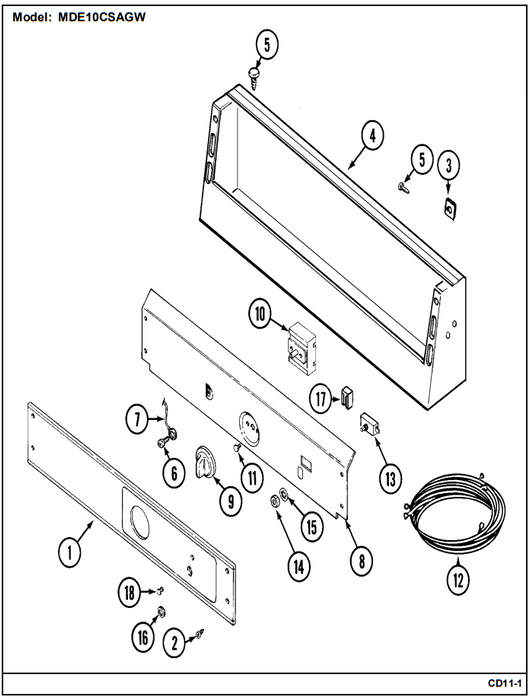

Product Details	S.P. Ref.	S.P. Code
Sold Out PANEL, CONTROL (CS) Note: PANEL, CONTROL Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001022
Sold Out SCREW, TORX Note: SCREW, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	2	215506
Sold Out FASTENER Note: FASTENER, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	3	215003
Sold Out CONTROL COVER (WHT) Note: CONSOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	306689
Sold Out SCREW Note: SCREW, CONSOLE Regular price $0.00 Sale price $0.00 Regular price Unit price	5	212276
Sold Out SCREW Note: SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	6	211252
Sold Out WIRE, GROUND Note: GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	7	205810
Sold Out BACK-UP PLATE - WHITE Note: BRACKET, CONTROL PANEL (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	314912
Sold Out KNOB, SELECTOR SWITCH Note: KNOB, SELECTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	9	306938
Sold Out SWITCH, CYCLE SELECTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	307237
Sold Out SCREW Note: SCREW, SELECTOR SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	11	313588
Sold Out HARNESS, WIRE (240-50 COMM) Note: WIRE HARNESS, MAIN Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001563
Sold Out WIRE HARNESS Note: WIRE HARNESS, MAIN Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001507
Sold Out WIRE HARNESS, MAIN Note: WIRE HARNESS, MAIN Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001026
Sold Out SWITCH, PUSH-TO-START Note: SWITCH, PUSH TO START Regular price $0.00 Sale price $0.00 Regular price Unit price	13	306940
Sold Out HEX NUT ON SWITCH Note: NUT, SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	14	Y312706
Sold Out LOCK WASHER Note: WASHER, SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	15	312751
Sold Out KNURLED NUT Note: NUT, KNURLED Regular price $0.00 Sale price $0.00 Regular price Unit price	16	Y312702
Sold Out LIGHT, INDICATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	17	22001365
Sold Out LENS, INDICATOR (AMBER) Note: LENS, INDICATOR LIGHT Regular price $0.00 Sale price $0.00 Regular price Unit price	18	215564

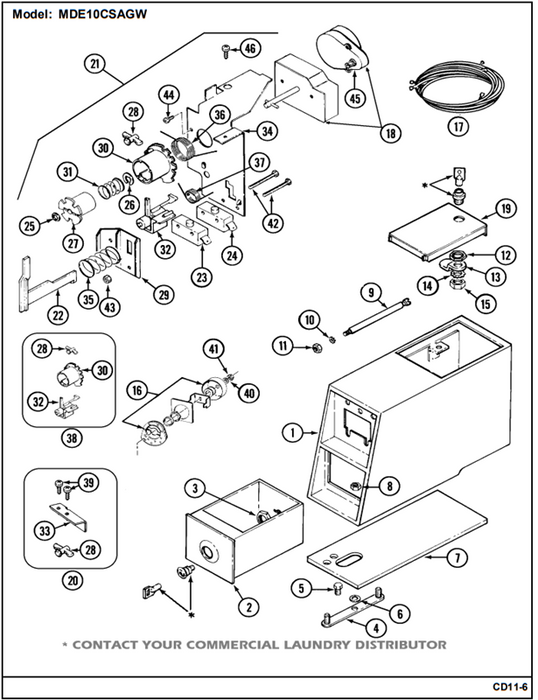

Product Details	S.P. Ref.	S.P. Code
Sold Out COIN METER CASE (WHT) Note: COIN METER CASE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	206952
Sold Out VAULT, COIN (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	2	207913
Sold Out NUT, HEX Note: NUT, LOCKING BOLT Regular price $0.00 Sale price $0.00 Regular price Unit price	3	212328
Sold Out MTG. STRAP----NA Note: STRAP, MOUNTING Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	203307
Sold Out SCREW Note: SCREW, MOUNTING STRAP Regular price $0.00 Sale price $0.00 Regular price Unit price	5	211294
Sold Out WASHER Note: WASHER, STRAP SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	6	910309
Sold Out GASKET, METER CASE Regular price $0.00 Sale price $0.00 Regular price Unit price	7	214660
Sold Out NUT Note: NUT, CASE MOUNTING Regular price $0.00 Sale price $0.00 Regular price Unit price	8	Y052740
Sold Out BOLT, LOCKING Note: BOLT, LOCKING Regular price $0.00 Sale price $0.00 Regular price Unit price	9	215559
Sold Out LOCK WASHER Note: LOCKWASHER, LOCKING BOLT Regular price $0.00 Sale price $0.00 Regular price Unit price	10	910387
Sold Out NUT Note: NUT, LOCKING BOLT Regular price $0.00 Sale price $0.00 Regular price Unit price	11	Y052721
Sold Out NUT, HEX Note: NUT, CAM LOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	12	212328
Sold Out LOCKING CAM Note: TAB, LOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	13	213750
Sold Out WASHER, LOCK Note: LOCKWASHER, LOCK CAM Regular price $0.00 Sale price $0.00 Regular price Unit price	14	22001354
Sold Out NUT Note: NUT, LOCK CAM Regular price $0.00 Sale price $0.00 Regular price Unit price	15	22001355
Sold Out LOCK CAM ASSY. NA Note: LOCK CAM ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	207914
Sold Out LOCKWASHER Note: LOCKWASHER, LOCK CAM Regular price $0.00 Sale price $0.00 Regular price Unit price	-	216203
Sold Out WIRE HARNESS, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	17	33001195
Sold Out TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001155
Sold Out DOOR, ACCESS (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	19	204216
Sold Out BRACKET FOR SLIDE & ADJ RTN ST Note: ACTUATOR KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	20	Y308109
Sold Out TORSION TIMER ASSY. (240-50HZ) Note: TIMER TORSION ASSY. (240-50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33001276
Sold Out SLIDER Regular price $0.00 Sale price $0.00 Regular price Unit price	22	314337
Sold Out BYPASS SWITCH FOR MOTOR Note: SWITCH, BY-PASS (MOTOR) Regular price $0.00 Sale price $0.00 Regular price Unit price	23	305798
Sold Out BYPASS SWITCH FOR HEATER Note: SWITCH, BY-PASS (HEATER) Regular price $0.00 Sale price $0.00 Regular price Unit price	24	Y305799
Sold Out LOCK RING FOR TIMER SHAFT Note: RETAINER, SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	25	211790
Sold Out E CLIP Note: CLIP, SPRING RETAINER Regular price $0.00 Sale price $0.00 Regular price Unit price	26	312270
Sold Out DRIVER FOR INDEX WHEEL Note: DRIVER, INDEX WHEEL Regular price $0.00 Sale price $0.00 Regular price Unit price	27	314330
Sold Out TIME ADJUSTMENT PEG Note: PEG, TINE ADJUSTMENT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	28	314335
Sold Out ADJUSTMENT RETURN STOP Note: STOP, ADJUSTABLE RETURN Regular price $0.00 Sale price $0.00 Regular price Unit price	28	314547
Sold Out SWITCH AND SLIDER BRACKET Note: BRACKET, SWITCH & SLIDER Regular price $0.00 Sale price $0.00 Regular price Unit price	29	314339
Sold Out INDEX WHEEL Note: WHEEL, INDEX Regular price $0.00 Sale price $0.00 Regular price Unit price	30	314546
Sold Out SPRING, TIMER KNOB Note: SPRING, INDEX WHEEL Regular price $0.00 Sale price $0.00 Regular price Unit price	31	211065
Sold Out ACTUATOR, SWITCH Note: ACTUATOR, SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	32	314548
Sold Out BRACKET FOR COIN SLIDE Note: BRACKET, COIN SLIDE Regular price $0.00 Sale price $0.00 Regular price Unit price	33	314334
Sold Out BRACKET, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	34	33001207
Sold Out HELICAL SPRING Note: SPRING, HELICAL Regular price $0.00 Sale price $0.00 Regular price Unit price	35	314340
Sold Out RETURN SPRING Note: SPRING, TORSION RETURN Regular price $0.00 Sale price $0.00 Regular price Unit price	36	314331
Sold Out ACTUATOR SPRING Note: SPRING, ACTUATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	37	314332
Sold Out TORSION-TIMER KIT Note: ACTUATOR KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	38	306104
Sold Out SCREW Note: SCREW, SLIDE BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	39	212707
Sold Out WASHER, LOCK Note: LOCKWASHER, CAM LOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	40	22001354
Sold Out NUT Note: NUT, CAM LOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	41	22001355
Sold Out SCREW Note: SCREW, BY-PASS SWITCHES Regular price $0.00 Sale price $0.00 Regular price Unit price	42	315277
Sold Out HEX. NUT, #6-32 Note: NUT, BY-PASS SWITCHES Regular price $0.00 Sale price $0.00 Regular price Unit price	43	Y052634
Sold Out SCREW -RELAY TO TUB SUPPORT Note: SCREW, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	44	910708
Sold Out MOTOR, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	45	Y308991
Sold Out SCREW, #8 X 5/16 INCH Note: SCREW, TIMER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	46	211168

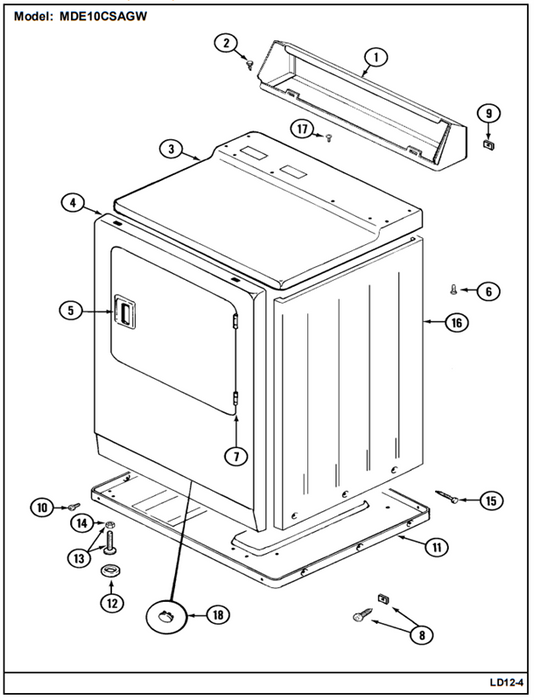

Product Details	S.P. Ref.	S.P. Code
Sold Out CONTROL COVER (WHT) Note: CONSOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1 N	306689
Sold Out SCREW Note: SCREW, CONSOLE Regular price $0.00 Sale price $0.00 Regular price Unit price	2	212276
Sold Out TOP (WHT) Note: COVER, TOP (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001163
Sold Out PANEL, FRONT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33001242
Sold Out HANDLE, DOOR (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001241
Sold Out SCREW Note: SCREW, TOP COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	6	214354
Sold Out HINGE, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001230
Sold Out SCREW & FSTNER ASSY(FRT.PANEL) Note: SCREW & FASTNER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	8	204439
Sold Out FASTENER,CNTRL PNL TO CONSOLE Note: FASTENER, CONSOLE Regular price $0.00 Sale price $0.00 Regular price Unit price	9	215075
Sold Out SCREW----NA Note: SCREW, CABINET TO BASE Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	313561
Sold Out SCREW Note: SCREW, CABINET TO BASE Regular price $0.00 Sale price $0.00 Regular price Unit price	10	310632
Sold Out BASE ASSY. Note: BASE ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	11	Y303361
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314137
Sold Out ADJUSTABLE LEG & NUT Note: LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	13	305086
Sold Out NUT Note: NUT, LEG Regular price $0.00 Sale price $0.00 Regular price Unit price	14	Y052740
Sold Out SCREW, CABINET Note: SCREW, CABINET SIDES Regular price $0.00 Sale price $0.00 Regular price Unit price	15	213007
Sold Out CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	33001159
Sold Out SCREW, GROUND WIRE TO BASE--NA Note: SCREW, GROUND CONSOLE Regular price $0.00 Sale price $0.00 Regular price Unit price	17	210186
Sold Out PLUG, SIGHT HOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001132

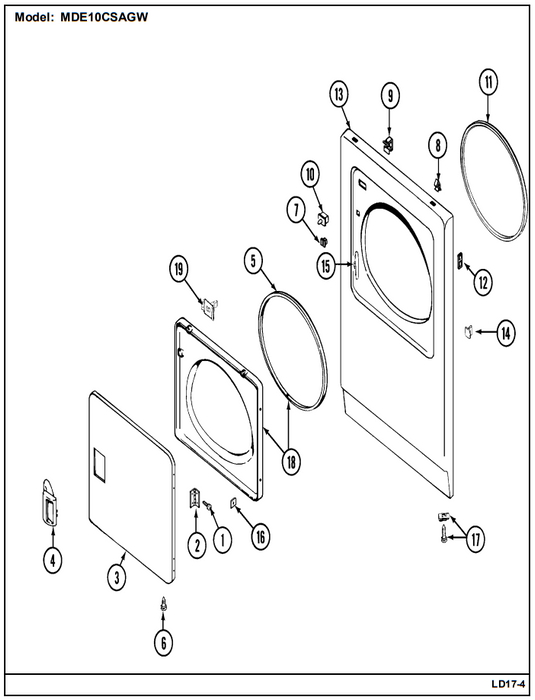

Product Details	S.P. Ref.	S.P. Code
Sold Out SCREW Note: SCREW, DOOR HINGE & PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	1	Y314062
Sold Out HINGE, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001230
Sold Out DOOR (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001240
Sold Out HANDLE, DOOR (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33001241
Sold Out SEAL, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001131
Sold Out PLUG, SIGHT HOLE (WHT) Note: PLUG, SIGHT HOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001132
Sold Out CATCH, DOOR (FEMALE) Regular price $0.00 Sale price $0.00 Regular price Unit price	7	Y304578
Sold Out FASTENER, PANEL Note: FASTENER, SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	8	212982
Sold Out CLIP, WIRE HARNESS Note: CLIP, CABLE Regular price $0.00 Sale price $0.00 Regular price Unit price	9	310376
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	305753
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33001509
Sold Out SEAL, FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314937
Sold Out NUT, SPEED Note: SPEEDNUT, HINGE SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	12 N	33001173
Sold Out SCREW, PLASTIC Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	33001172
Sold Out PANEL, FRONT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001242
Sold Out PLUG, DOOR CATCH Regular price $0.00 Sale price $0.00 Regular price Unit price	14 N	33001174
Sold Out COVER, HINGE HOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001175
Sold Out CLIP, DOOR LINER TO OUTER PNL Note: FASTENER, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	16	313910
Sold Out SCREW & FSTNER ASSY(FRT.PANEL) Note: SCREW & FASTENER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	17	204439
Sold Out DOOR, INNER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001243
Sold Out STRIKE PLATE Note: BRACKET, STRIKE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	314944
Sold Out DOOR STRIKE Note: STRIKE, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	19	314936

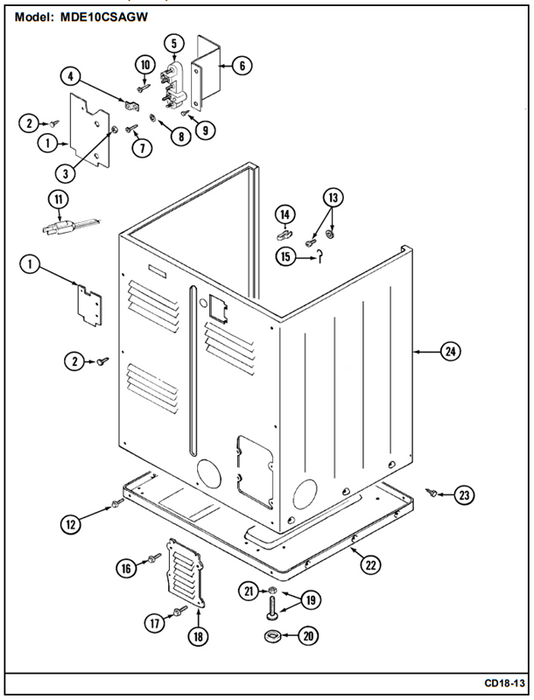

Product Details	S.P. Ref.	S.P. Code
Sold Out COVER, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	1	Y312905
Sold Out SCREW----NA Note: SCREW, TERMINAL COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	2 N	313561
Sold Out NUT, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	3	311484
Sold Out BLOCK, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	5	400008
Sold Out BRACKET, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	6	Y312904
Sold Out SCREW, #10-24 X 3/4 INCH Note: SCREW, TERMINAL BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	7	Y312209
Sold Out WASHER, TERMINAL BLOCK Note: WASHER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	8	Y311270
Sold Out WASHER, 7/32 INCH Note: WASHER, BRASS Regular price $0.00 Sale price $0.00 Regular price Unit price	8	311093
Sold Out SCREW Note: SCREW, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	9	310632
Sold Out SCREW Note: SCREW, CABINET TO BASE Regular price $0.00 Sale price $0.00 Regular price Unit price	12	310632
Sold Out SCREW----NA Note: SCREW, CABINET TO BASE Regular price $0.00 Sale price $0.00 Regular price Unit price	12 N	313561
Sold Out SCREW & WASHER ASSY. Note: SCREW & WASHER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	13	303846
Sold Out CLAMP, GROUND (W/SCREW) Note: GROUND CLAMP & SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	14	301548
Sold Out GRND.WIRE,SUPP.PLTE TO TOP CVR Note: GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	15	204807
Sold Out SCREW Note: SCREW, ACCESS COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	16	313559
Sold Out SCREW Note: SCREW, ACCESS COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	17	211294
Sold Out COVER, ACCESS Regular price $0.00 Sale price $0.00 Regular price Unit price	18	Y312951
Sold Out ADJUSTABLE LEG & NUT Note: LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	19	305086
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	20	314137
Sold Out NUT Note: NUT, LEG Regular price $0.00 Sale price $0.00 Regular price Unit price	21	Y052740
Sold Out BASE ASSY. Note: BASE ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	22	Y303361
Sold Out SCREW, CABINET Note: SCREW, CABINET SIDES Regular price $0.00 Sale price $0.00 Regular price Unit price	23	213007
Sold Out CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	24 N	33001159

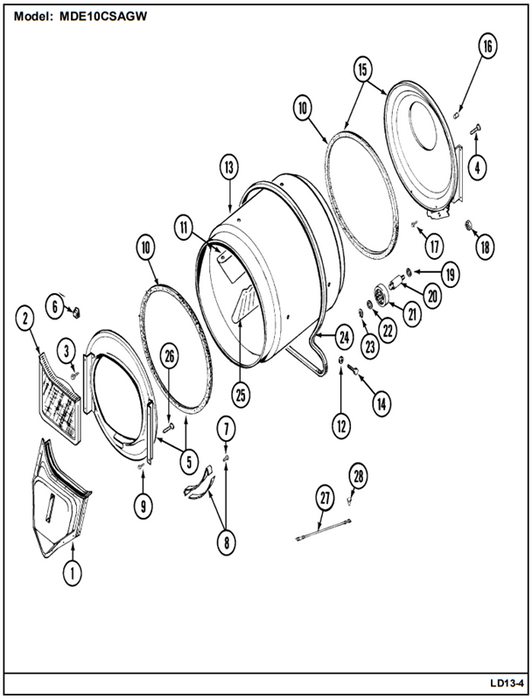

Product Details	S.P. Ref.	S.P. Code
Sold Out DUCT ASSY., OUTLET Note: OUTLET DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001016
Sold Out FILTER, LINT Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001170
Sold Out SCREW Note: SCREW, TUMBLER SUPPORT Regular price $0.00 Sale price $0.00 Regular price Unit price	3 N	313764
Sold Out SCREW----NA Note: SCREW, TUMBLER FRONT & BACK Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	313561
Sold Out FRONT, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001179
Sold Out CLIP, WIRE HARNESS Note: CLIP, CABLE Regular price $0.00 Sale price $0.00 Regular price Unit price	6	310376
Sold Out RIVET Regular price $0.00 Sale price $0.00 Regular price Unit price	7	210720
Sold Out TUMBLER BEARING KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306508
Sold Out SCREW Note: SCREW, TUMBLER FRONT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	310632
Sold Out SEAL, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	10	314820
Sold Out BAFFLE (SHORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33001012
Sold Out WASHER Note: WASHER, BAFFLE Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314158
Sold Out DRYER TUMBLER, W/O BAFFLES Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001108
Sold Out SCREW Note: SCREW, TUMBLER BAFFLE Regular price $0.00 Sale price $0.00 Regular price Unit price	14	Y310759
Sold Out BACK, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001178
Sold Out COVER, THREAD Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	313915
Sold Out SCREW Note: SCREW, TUMBLER BACK Regular price $0.00 Sale price $0.00 Regular price Unit price	17	310632
Sold Out NUT, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	18	312538
Sold Out WASHER, SPRING (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	19	Y313347
Sold Out SHAFT, TUMBLER ROLLER Regular price $0.00 Sale price $0.00 Regular price Unit price	20	312948
Sold Out BEARING & ROLLER ASSEMBLY Note: ROLLER (W/BEARING) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	Y303373
Sold Out WASHER, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	22	312535
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	23	410233
Sold Out BELT, TUMBLER & MOTOR Note: BELT, DRUM Regular price $0.00 Sale price $0.00 Regular price Unit price	24	312959
Sold Out BAFFLE, TALL Note: BAFFLE (TALL) Regular price $0.00 Sale price $0.00 Regular price Unit price	25	33001004
Sold Out SCREW, INLET DUCT Note: SCREW, OUTLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	26	Y314110
Sold Out WIRE, GROUND Note: GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	27	901220
Sold Out SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	28	910343

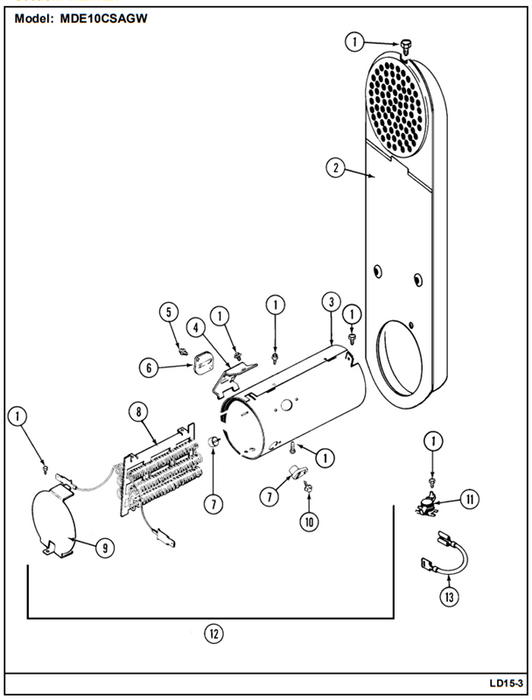

Product Details	S.P. Ref.	S.P. Code
Sold Out SCREW Note: SCREW, HEATER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	211294
Sold Out INLET DUCT ASSY. Note: DUCT, INLET Regular price $0.00 Sale price $0.00 Regular price Unit price	2	308503
Sold Out HEATER ENCLOSURE Note: ENCLOSURE, HEATER Regular price $0.00 Sale price $0.00 Regular price Unit price	3	314995
Sold Out BRACKET, THERMAL FUSE Regular price $0.00 Sale price $0.00 Regular price Unit price	4	315346
Sold Out SCREW Note: SCREW, THERMAL FUSE Regular price $0.00 Sale price $0.00 Regular price Unit price	5	314848
Sold Out FUSE, THERMAL Regular price $0.00 Sale price $0.00 Regular price Unit price	6	307473
Sold Out INSULATOR, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	7	314998
Sold Out HEATER SUB-ASSEMBLY (208V) Note: HEATER SUB-ASSEMBLY (208V) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y308613
Sold Out HEATER SUB-ASSEMBLY Note: HEATER SUB-ASSEMBLY (W/1,3,7,10) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	308615
Sold Out SHIELD, RADIANT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	314999
Sold Out SCREW Note: SCREW, TERMINAL INSULATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	314554
Sold Out THERMOSTAT, HI-LIMIT (ELEC) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	303396
Sold Out HEATER ASSEMBLY (240-50) Note: HEATER ASSEMBLY (COMPLETE) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	307180
Sold Out WIRE, JUMPER Regular price $0.00 Sale price $0.00 Regular price Unit price	13	Y307173
Sold Out CONVERSION KIT (240V TO 208V) Regular price $0.00 Sale price $0.00 Regular price Unit price	14	Y308590

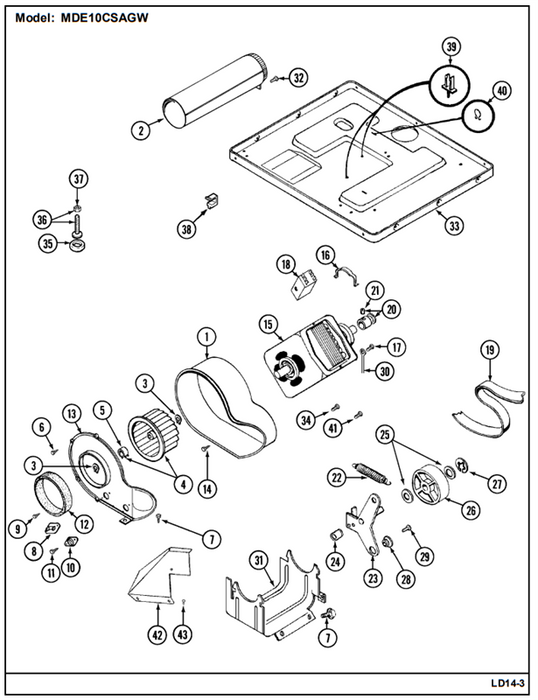

Product Details	S.P. Ref.	S.P. Code
Sold Out HOUSING, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	312893
Sold Out EXHAUST DUCT ASSY. Note: EXHAUST DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	2	Y303442
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	3	410233
Sold Out BLOWER WHEEL ASSEMBLY & CLAMP Note: IMPELLER, BLOWER (W/CLAMP) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	303836
Sold Out CLAMP, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	5	312967
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	6	312961
Sold Out SCREW NA Regular price $0.00 Sale price $0.00 Regular price Unit price	7 N	313561
Sold Out THERMOSTAT, MULTI-TEMP Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306967
Sold Out CYCLING THERMOSTAT 140 DEG. Note: CYCLING THERMOSTAT (140 DEG.) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	303392
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	9	211294
Sold Out CUT-OFF, THERMAL Regular price $0.00 Sale price $0.00 Regular price Unit price	10	306604
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314848
Sold Out SEAL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	312901
Sold Out COVER FOR BLOWER Note: COVER, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	13	314778
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	14	310632
Sold Out MOTOR 240-50 Note: MOTOR (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	Y304656
Sold Out CLIP, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	16	Y015825
Sold Out SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	17	910343
Sold Out SWITCH, MOTOR STARTPROD. Note: SWITCH, MOTOR EXTERNAL START (#303358, # 303358-6) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	Y303879
Sold Out SWITCH, MOTOR START-PROD. Note: SWITCH, MOTOR EXTERNAL START (#303358-8, #303358- 9) Regular price $0.00 Sale price $0.00 Regular price Unit price	18 N	306207
Sold Out SWITCH, MOTOR Note: SWITCH, MOTOR EXTERNAL START #303358-2, #303358-4, 303358-7 Regular price $0.00 Sale price $0.00 Regular price Unit price	18	303877
Sold Out BELT, TUMBLER & MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	19	312959
Sold Out MOTOR PULLEY - 50 CYCLE Note: MOTOR PULLEY (W/SET SCREW) Regular price $0.00 Sale price $0.00 Regular price Unit price	20	305186
Sold Out SET SCREW, PULLEY Note: SCREW, SET Regular price $0.00 Sale price $0.00 Regular price Unit price	21	Y053241
Sold Out IDLER SPRING ASSEMBLY Note: IDLER SPRING ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	22	Y303945
Sold Out IDLER ARM & SHAFT ASSY. Note: IDLER ARM & SHAFT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	23	303363
Sold Out SPACER, IDLER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	24	Y313582
Sold Out WASHER, IDLER SHAFT (QTY-1) Regular price $0.00 Sale price $0.00 Regular price Unit price	25	312527
Sold Out PULLEY, IDLER Note: PULLEY, IDLER (W/BEARING) Regular price $0.00 Sale price $0.00 Regular price Unit price	26	303705
Sold Out RETAINING RING, IDLER SHAFT Note: RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	27	312958
Sold Out SLEEVE, IDLER ARM Regular price $0.00 Sale price $0.00 Regular price Unit price	28 N	Y312894
Sold Out SCREW Note: SCREW, IDLER ARM & SLEEVE Regular price $0.00 Sale price $0.00 Regular price Unit price	29	Y014874
Sold Out WIRE, GROUND Note: GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	30	901220
Sold Out SUPPORT, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	31 N	312897
Sold Out SCREW Note: SCREW, EXHAUST DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	32	310632
Sold Out BASE Note: BASE ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	33	Y305084
Sold Out SCREW Note: SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	34	211294
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	35	314137
Sold Out ADJUSTABLE LEG & NUT Note: LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	36	305086
Sold Out NUT Note: NUT, LEG Regular price $0.00 Sale price $0.00 Regular price Unit price	37	Y052740
Sold Out CLIP, WIRE HARNESS Note: CLIP, CABLE Regular price $0.00 Sale price $0.00 Regular price Unit price	38	310376
Sold Out RETAINER, WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	39	315471
Sold Out SPRING, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	40	410490
Sold Out SCREW Note: SCREW, SPACER Regular price $0.00 Sale price $0.00 Regular price Unit price	41	312961

Wiring Diagram

Parts Manual

Search our store

MDE10CSAGW

MDE10CSAGW

33001022

215506

215003

306689

212276

211252

205810

314912

306938

307237

313588

33001563

33001507

33001026

306940

Y312706

312751

Y312702

22001365

215564

206952

207913

212328

203307

211294

910309

214660

Y052740

215559

910387

Y052721

212328

213750

22001354

22001355

207914

216203

33001195

33001155

204216

Y308109

33001276

314337

305798

Y305799

211790

312270

314330

314335

314547

314339

314546

211065

314548

314334

33001207

314340

314331

314332

306104

212707

22001354

22001355

315277

Y052634

910708

Y308991
