MDE16CSDGW

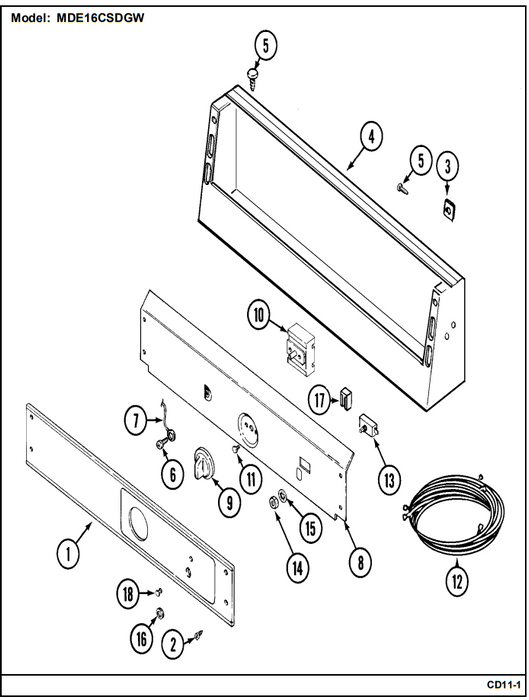

Exploded View 1

Product Details	S.P. Ref.	S.P. Code
Sold Out FACIA - CS (CONTROL PANEL) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33002938
Sold Out SCREW, TORX Note: SCREW, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	2	215506
Sold Out SCREW, TORX Note: FASTENER, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	3	215506
Sold Out CONSOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22003089
Sold Out SCREW Note: SCREW, CONSOLE Regular price $0.00 Sale price $0.00 Regular price Unit price	5	212276
Sold Out SCREW Note: SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	6	211252
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	7	205810
Sold Out BRACKET, BACK (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	33002522
Sold Out KNOB, SELECTOR SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	9	306938
Sold Out SWITCH, CYCLE SELECTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	307237
Sold Out SCREW Note: SCREW, SELECTOR SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	11	313588
Sold Out WIRE HARNESS, MAIN Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33002243
Sold Out SWITCH, PUSH-TO-START Regular price $0.00 Sale price $0.00 Regular price Unit price	13	306940
Sold Out HEX NUT ON SWITCH Note: NUT, SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	14	Y312706
Sold Out LOCK WASHER Note: WASHER, LOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	15	312751
Sold Out KNURLED NUT Note: NUT, KNURLED Regular price $0.00 Sale price $0.00 Regular price Unit price	16	Y312702
Sold Out LIGHT, INDICATOR Note: LAMP, INDICATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	17	22001365
Sold Out LENS, INDICATOR (AMBER) Note: LENS, INDICATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	18	215564
Sold Out USE & CARE MANUAL Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002671
Sold Out MANUAL, SERVICE-NO REFUND Regular price $0.00 Sale price $0.00 Regular price Unit price	-	16009021
Sold Out MANUAL, OWNERS Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002712

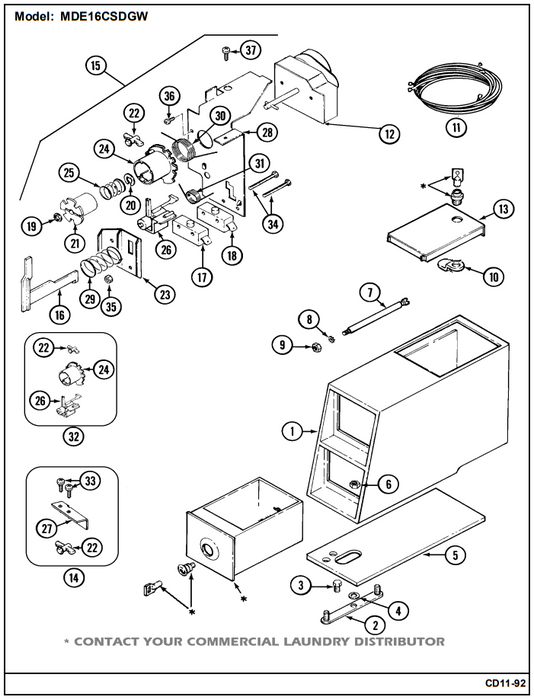

Product Details	S.P. Ref.	S.P. Code
Sold Out VAULT, COIN (WHT)CS Regular price $0.00 Sale price $0.00 Regular price Unit price	1	22002478
Sold Out STRAP, MOUNTING Regular price $0.00 Sale price $0.00 Regular price Unit price	2	22001810
Sold Out SCREW Note: SCREW, MOUNTING STRAP Regular price $0.00 Sale price $0.00 Regular price Unit price	3	211294
Sold Out WASHER Note: WASHER, STRAP SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	4	910309
Sold Out GASKET, CONTROL CENTER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	22002072
Sold Out NUT Note: NUT, CASE MOUNTING Regular price $0.00 Sale price $0.00 Regular price Unit price	6	Y052740
Sold Out LOCKING BOLT, COIN SLIDE Note: BOLT, LOCKING Regular price $0.00 Sale price $0.00 Regular price Unit price	7	22001903
Sold Out LOCK WASHER Note: LOCKWASHER, LOCKING BOLT Regular price $0.00 Sale price $0.00 Regular price Unit price	8	910387
Sold Out NUT Note: NUT, LOCKING BOLT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	Y052721
Sold Out LOCKING CAM Regular price $0.00 Sale price $0.00 Regular price Unit price	10	22003677
Sold Out WIRE HARNESS, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33001195
Sold Out TIMER (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33002136
Sold Out DOOR, ACCESS(WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33002772
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001883
Sold Out LATCH, ACCESS DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001882
Sold Out GROMMET, DOUBLE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001881
Sold Out ACTUATOR, DRYER KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33002598
Sold Out TORSION TIMER ASSY. (240-50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001276
Sold Out SLIDER Regular price $0.00 Sale price $0.00 Regular price Unit price	16	314337
Sold Out BYPASS SWITCH FOR MOTOR Note: SWITCH, BY-PASS (MOTOR) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	305798
Sold Out BYPASS SWITCH FOR HEATER Note: SWITCH, BY-PASS (HEATER) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	Y305799
Sold Out LOCK RING FOR TIMER SHAFT Note: RETAINER, SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	19	211790
Sold Out E CLIP Note: CLIP, SPRING RETAINER Regular price $0.00 Sale price $0.00 Regular price Unit price	20	312270
Sold Out DRIVER FOR INDEX WHEEL Note: DRIVER, INDEX WHEEL Regular price $0.00 Sale price $0.00 Regular price Unit price	21	314330
Sold Out ADJUSTMENT RETURN STOP Note: STOP, ADJUSTABLE RETURN Regular price $0.00 Sale price $0.00 Regular price Unit price	22	314547
Sold Out TIME ADJUSTMENT PEG Note: PEG, TINE ADJUSTMENT Regular price $0.00 Sale price $0.00 Regular price Unit price	22	314335
Sold Out SWITCH AND SLIDER BRACKET Note: BRACKET, SWITCH & SLIDER Regular price $0.00 Sale price $0.00 Regular price Unit price	23	314339
Sold Out INDEX WHEEL Note: WHEEL, INDEX Regular price $0.00 Sale price $0.00 Regular price Unit price	24	314546
Sold Out SPRING, TIMER KNOB Note: SPRING, INDEX WHEEL Regular price $0.00 Sale price $0.00 Regular price Unit price	25	211065
Sold Out ACTUATOR, SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	26	33002967
Sold Out ACTUATOR, SWITCH Note: ACTUATOR, SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	26	314548
Sold Out BRACKET, COIN SLIDE Regular price $0.00 Sale price $0.00 Regular price Unit price	27	33001708
Sold Out TIMER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	28	33002702
Sold Out HELICAL SPRING Note: SPRING, HELICAL Regular price $0.00 Sale price $0.00 Regular price Unit price	29	314340
Sold Out RETURN SPRING Note: SPRING, TORSION RETURN Regular price $0.00 Sale price $0.00 Regular price Unit price	30	314331
Sold Out ACTUATOR SPRING Note: SPRING, ACTUATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	31	314332
Sold Out TORSION-TIMER KIT Note: ACTUATOR KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	32	306104
Sold Out SCREW Note: SCREW, SLIDE BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	33	212707
Sold Out SCREW Note: SCREW, BY-PASS SWITCHES Regular price $0.00 Sale price $0.00 Regular price Unit price	34	315277
Sold Out HEX. NUT, #6-32 Note: NUT, BY-PASS SWITCHES Regular price $0.00 Sale price $0.00 Regular price Unit price	35	Y052634
Sold Out SCREW -RELAY TO TUB SUPPORT Note: SCREW, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	36	910708
Sold Out SCREW, #8 X 5/16 INCH Note: SCREW, TIMER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	37	211168

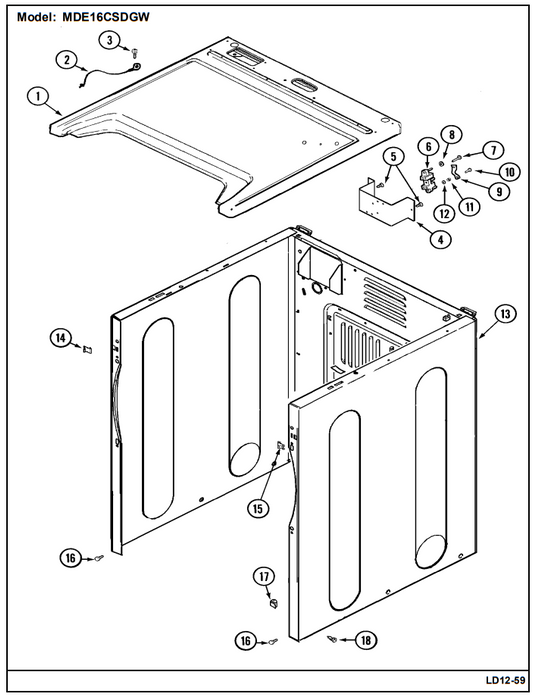

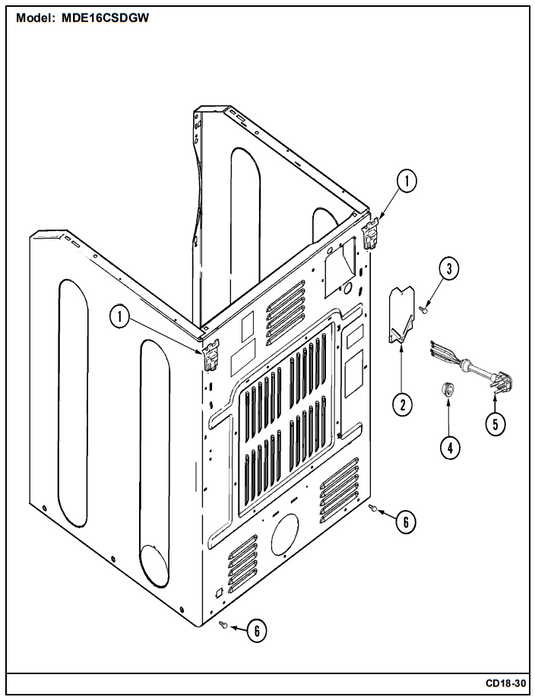

Product Details	S.P. Ref.	S.P. Code
Sold Out COVER, TOP (WHT-AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33002633
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	2	22001959
Sold Out SCREW, GROUND WIRE TO BASE--NA Note: SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	3	210186
Sold Out BRACKET, TERMINAL BLOCK NA Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	33001826
Sold Out SCREW Note: SCREW, TERMINAL BLOCK BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	5	22001995
Sold Out SHIELD, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002106
Sold Out BLOCK, TERMINAL (EXPORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33002259
Sold Out SCREW, #10-24 X 3/4 INCH Note: SCREW, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	7	Y312209
Sold Out WASHER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	8	Y311270
Sold Out STRAP, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	9	Y312184
Sold Out SCREW----NA Note: SCREW, GROUND STRAP Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	33001245
Sold Out NUT, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	11	311484
Sold Out WASHER, 7/32 INCH Note: WASHER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	12	311093
Sold Out CABINET ASSY (WHT-AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	13 N	33002642
Sold Out CLIP Regular price $0.00 Sale price $0.00 Regular price Unit price	14	22002049
Sold Out FRONT PANEL BRACKET/FASTENER Note: RETAINER, SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	15	213280
Sold Out SCREW Note: SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	16	22001995
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	17	310376
Sold Out SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	18	213007

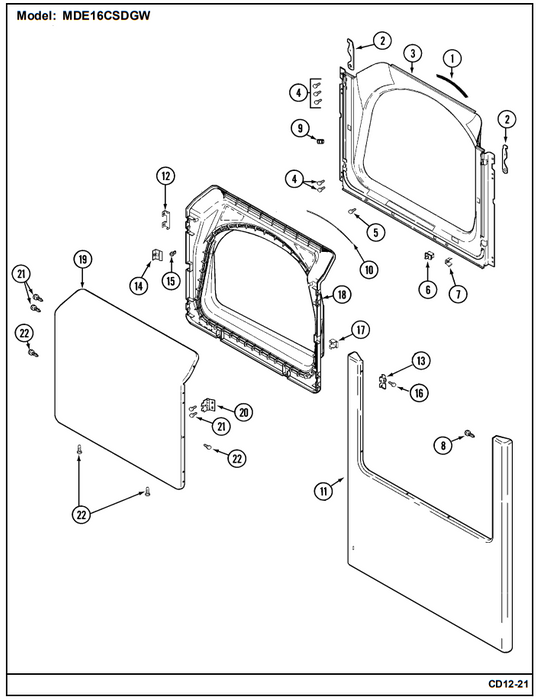

Product Details	S.P. Ref.	S.P. Code
Sold Out SEAL, SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001767
Sold Out HOOK, SECURITY Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33002597
Sold Out SHROUD (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001900
Sold Out SCREW Note: SCREW, TUMBLER FRONT & SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22001995
Sold Out SCREW (HEX HEAD) Note: SCREW, SHROUD & OUTLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001855
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33002239
Sold Out BRACKET, HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001760
Sold Out CLIP, GROUNDING Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22002244
Sold Out SCREW Note: SCREW, HINGE BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	8	22002243
Sold Out CATCH, DOOR (FEMALE) Regular price $0.00 Sale price $0.00 Regular price Unit price	9	Y304578
Sold Out SEAL, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33002094
Sold Out CLIP, LOWER FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22002239
Sold Out PANEL, FRONT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33001901
Sold Out CLIP, DOOR (DOUBLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	22002038
Sold Out BUSHING, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001771
Sold Out BRACKET, STRIKE Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001793
Sold Out STRIKE, DOOR (MALE) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001761
Sold Out CLIP, DOOR (SINGLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	16	22002039
Sold Out PLUG, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	17	33001763
Sold Out DOOR, INNER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001899
Sold Out DOOR, OUTER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33001904
Sold Out HINGE, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	20	33001759
Sold Out SCREW Note: SCREW, HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	21	22002062
Sold Out SCREW #8-18AB WAFER HD Regular price $0.00 Sale price $0.00 Regular price Unit price	22	22002063
Sold Out COVER, HINGE HOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	23	33001764
Sold Out SCREW Note: SCREW, HINGE HOLE COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	24	33001846

Product Details	S.P. Ref.	S.P. Code
Sold Out HINGE, PLASTIC Regular price $0.00 Sale price $0.00 Regular price Unit price	1	22004095
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001995
Sold Out COVER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001795
Sold Out SCREW (#10-3/8") Note: SCREW, TERMINAL BLOCK COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33002190
Sold Out SCREW, LATCH Note: SCREW, TERMINAL BLOCK GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y912873
Sold Out NUT, POWER CORD CLAMP Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002260
Sold Out CLAMP, POWER CORD Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002258
Sold Out CLAMP, POWER CORD Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22004502
Sold Out SCREW Note: SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	6	22001995

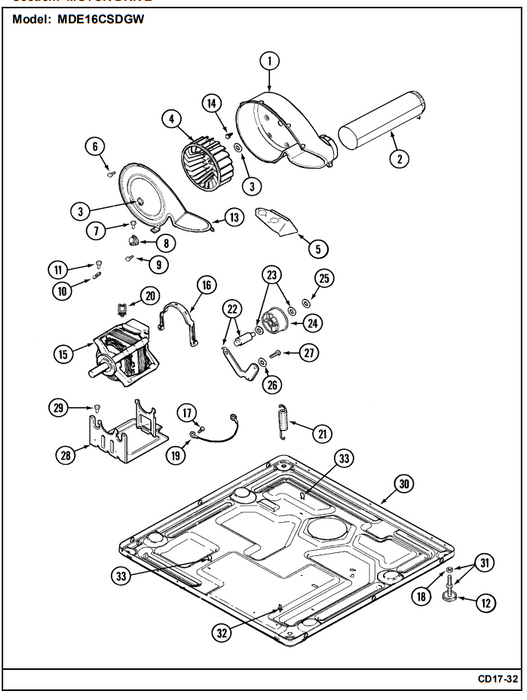

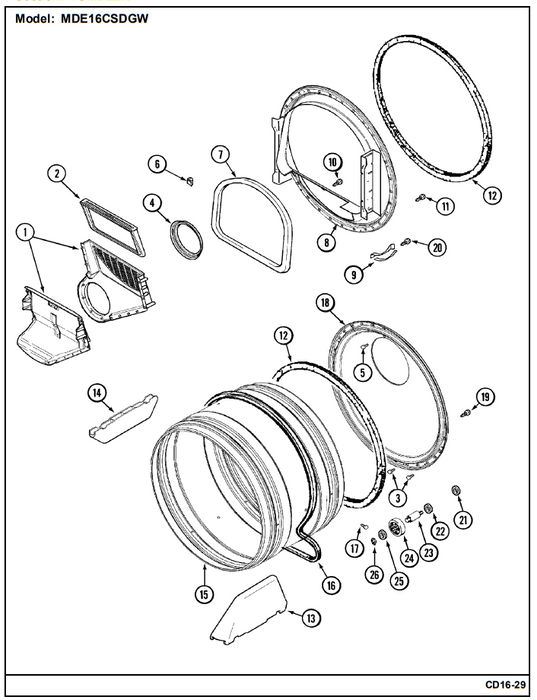

Product Details	S.P. Ref.	S.P. Code
Sold Out OUTLET DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001799
Sold Out LINT FILTER Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33002790
Sold Out SCREW, #8 X 9/16 CTSK Note: SCREW, INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	3	210932
Sold Out SEAL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33002560
Sold Out SCREW Note: SCREW, INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	5	22001996
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	6	310376
Sold Out SEAL, SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001767
Sold Out FRONT, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	33001802
Sold Out TUMBLER BEARING KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	306508
Sold Out SCREW----NA Note: SCREW, OUTLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	312311
Sold Out SCREW (HEX HEAD) Note: SCREW, OUTLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33001855
Sold Out SEAL, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001807
Sold Out BAFFLE (TALL) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001756
Sold Out BAFFLE (SHORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001755
Sold Out TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001794
Sold Out V-BELT (TUMBLER) Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33002535
Sold Out SCREW, BAFFLE Regular price $0.00 Sale price $0.00 Regular price Unit price	17	33001788
Sold Out TUMBLER BACK & SEAL AS-PACK Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33002779
Sold Out TUMBLER BACK & SEAL Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33003037
Sold Out SCREW Note: SCREW, TUMBLER BACK Regular price $0.00 Sale price $0.00 Regular price Unit price	19	22001995
Sold Out RIVET Regular price $0.00 Sale price $0.00 Regular price Unit price	20	210720
Sold Out NUT, HEX (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33001443
Sold Out WASHER, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	22	312535
Sold Out SHAFT, TUMBLER ROLLER Regular price $0.00 Sale price $0.00 Regular price Unit price	23	312948
Sold Out BEARING & ROLLER ASSEMBLY Note: ROLLER (W/BEARING) Regular price $0.00 Sale price $0.00 Regular price Unit price	24	Y303373
Sold Out WASHER, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	25	312535
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	26	410233

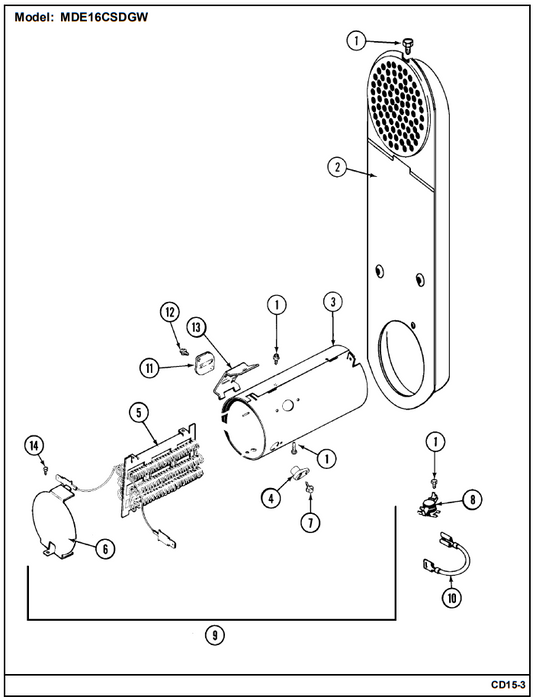

Product Details	S.P. Ref.	S.P. Code
Sold Out SCREW Note: SCREW, HEATER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	211294
Sold Out ASSY,INLET DUCT-ELEC Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33003038
Sold Out INLET DUCT ASSEMBLY (ELECTRIC) Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33002767
Sold Out HEATER ENCLOSURE Regular price $0.00 Sale price $0.00 Regular price Unit price	3	314995
Sold Out INSULATOR, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	4	314998
Sold Out HEATER SUB-ASSEMBLY 240V Regular price $0.00 Sale price $0.00 Regular price Unit price	5	307186
Sold Out SHIELD, RADIANT Regular price $0.00 Sale price $0.00 Regular price Unit price	6	314999
Sold Out SCREW Note: SCREW, TERMINAL INSULATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	7 N	314554
Sold Out THERMOSTAT, HI-LIMIT (ELEC) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	303396
Sold Out HEATER ASSEMBLY(COMPLETE) 240 Regular price $0.00 Sale price $0.00 Regular price Unit price	9	33002159
Sold Out WIRE, JUMPER Regular price $0.00 Sale price $0.00 Regular price Unit price	10	Y307173
Sold Out FUSE, THERMAL Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33002261
Sold Out SCREW, END OF CYCLE NA Regular price $0.00 Sale price $0.00 Regular price Unit price	12 N	33001860
Sold Out BRACKET, THERMAL FUSE Regular price $0.00 Sale price $0.00 Regular price Unit price	13	315346
Sold Out SCREW Note: SCREW, RADIANT SHIELD Regular price $0.00 Sale price $0.00 Regular price Unit price	14	22001996
Sold Out CONVERSION KIT (240V TO 208V) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y308590

Product Details	S.P. Ref.	S.P. Code
Sold Out HOUSING, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001789
Sold Out SCREW Note: SCREW, EXHAUST DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001995
Sold Out DUCT ASSY., EXHAUST Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001800
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	3	410233
Sold Out WHEEL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33002797
Sold Out COVER, THERMOSTAT (ELEC ONLY) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001837
Sold Out SCREW (HEX HEAD) Note: SCREW, HOUSING COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001855
Sold Out SCREW----NA Note: SCREW, HOUSING TO BASE Regular price $0.00 Sale price $0.00 Regular price Unit price	7 N	313561
Sold Out CYCLING THERMOSTAT 140 DEG. Regular price $0.00 Sale price $0.00 Regular price Unit price	8	303392
Sold Out THERMOSTAT, MULTI-TEMP Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306967
Sold Out HARNESS, WIRE Note: WIRE HARNESS, THERMOSTAT Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001306
Sold Out SCREW Note: SCREW, THERMOSTAT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	22001996
Sold Out FUSE, THERMAL (W' BRACKET) Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33001762
Sold Out SCREW Note: SCREW, THERMAL CUT-OFF Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314848
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314137
Sold Out COVER, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33002711
Sold Out SCREW Note: SCREW, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	14	314818
Sold Out MOTOR, DRIVE 50HZ Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33002796
Sold Out CLIP, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33002221
Sold Out SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	17	910343
Sold Out NUT Note: NUT, LEG Regular price $0.00 Sale price $0.00 Regular price Unit price	18	Y052740
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	19	901220
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	20	310376
Sold Out PLUG FOR SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002461
Sold Out SPRING, IDLER Note: SPRING & PLUG KIT 33002459 Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33002460
Sold Out IDLER ARM & SHAFT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	22	33001840
Sold Out WASHER, IDLER SHAFT (QTY-1) Regular price $0.00 Sale price $0.00 Regular price Unit price	23	312527
Sold Out BEARING, IDLER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	24	33001783
Sold Out RETAINING RING, IDLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	25	312958
Sold Out GROMMET, IDLER ARM Regular price $0.00 Sale price $0.00 Regular price Unit price	26	33002218
Sold Out SCREW Note: SCREW, IDLER ARM SLEEVE Regular price $0.00 Sale price $0.00 Regular price Unit price	27	Y014874
Sold Out MOTOR SUPPORT, OFFSET Regular price $0.00 Sale price $0.00 Regular price Unit price	28	33002817
Sold Out SCREW----NA Note: SCREW, MOTOR & BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	29 N	313561
Sold Out BASE, (LWR) NA Regular price $0.00 Sale price $0.00 Regular price Unit price	30 N	33002465
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	31	305086
Sold Out RETAINER, WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	32	315471
Sold Out SPRING, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	33	410490

Wiring Diagram

Parts Manual

Search our store

MDE16CSDGW

MDE16CSDGW

33002938

215506

215506

22003089

212276

211252

205810

33002522

306938

307237

313588

33002243

306940

Y312706

312751

Y312702

22001365

215564

33002671

16009021

33002712

22002478

22001810

211294

910309

22002072

Y052740

22001903

910387

Y052721

22003677

33001195

33002136

33002772

22001883

22001882

22001881

33002598

33001276

314337

305798

Y305799

211790

312270

314330

314547

314335

314339

314546

211065

33002967

314548

33001708

33002702

314340

314331

314332

306104

212707

315277

Y052634

910708

211168

33002633

22001959

210186

33001826
