MDE16PDAGW

MDE16PDAGW

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

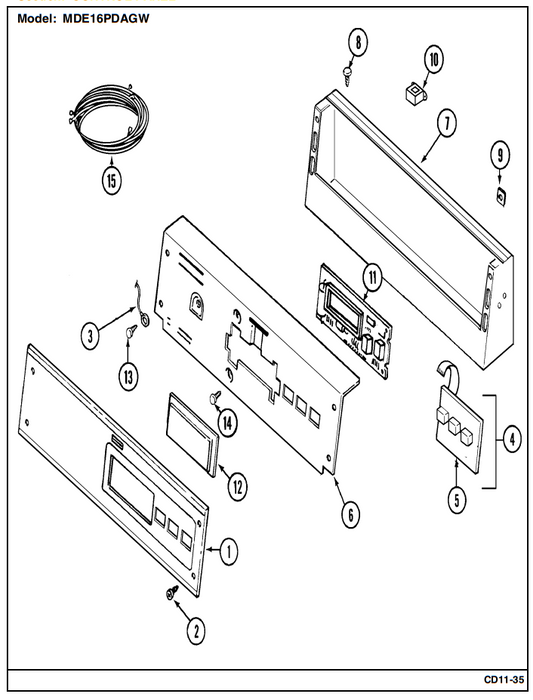

PANEL, CONTROL

$0.00
$0.00
1
33001784

SCREW, TORX Note: SCREW, CONTROL PANEL

$0.00
$0.00
2
215506

WIRE, GROUND

$0.00
$0.00
3
22001959

BACKUP PLATE WITH SWITCH Note: CONTROL SWITCH ASSEMBLY

$0.00
$0.00
4
306694

SCREW Note: SCREW, SWITCH

$0.00
$0.00
-
215527

PUSHBUTTON Note: PUSHBUTTON, CONTROL SWITCH

$0.00
$0.00
5
215517

BRACKET, BACK (WHT) Note: BRACKET, BACK (WHT)

$0.00
$0.00
6
33002519

DEFLECTOR, WATER (W/ADHESIVE)

$0.00
$0.00
-
22001511

BRACKET, BACK (WHT)

$0.00
$0.00
6
33001785

CONSOLE (WHT)

$0.00
$0.00
7
22003089

CONSOLE (WHT)

$0.00
$0.00
7
22002329

SCREW Note: SCREW, CONSOLE

$0.00
$0.00
8
22001996

FASTENER Note: CLIP, SCREW

$0.00
$0.00
9
215003

NUT (ELASTIC) Note: NUT, ELASTIC

$0.00
$0.00
-
22001419

TRANSFORMER (STEP-DOWN COMM)

$0.00
$0.00
10
22002139

SCREW Note: SCREW, TRANSFORMER

$0.00
$0.00
-
211251

BOARD ASSY., CIRCUIT

$0.00
$0.00
11
33001746

LOCKNUT

$0.00
$0.00
-
912077

STANDOFF, CIRCUIT BOARD

$0.00
$0.00
-
33001204

COVER, DISPLAY

$0.00
$0.00
12
22001962

SCREW Note: SCREW, GROUND WIRE

$0.00
$0.00
13
211252

SCREW Note: SCREW, CONTROL BOARD

$0.00
$0.00
14
215526

WIRE HARNESS, MAIN

$0.00
$0.00
15
33001953
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

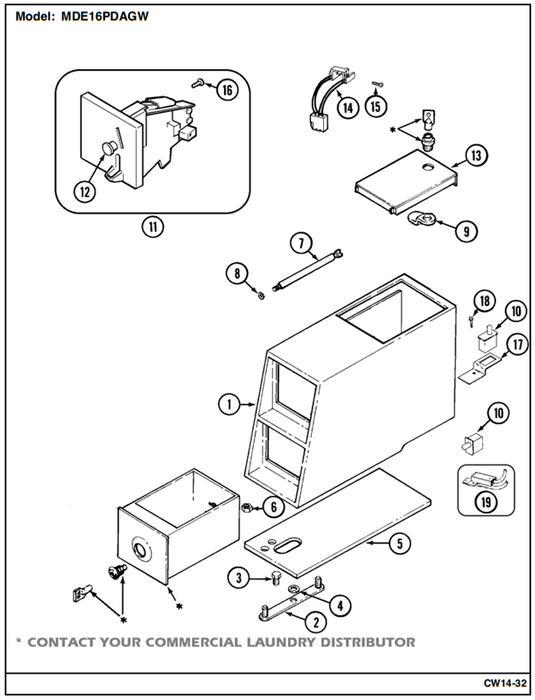

VAULT, COIN (WHT)PD Note: VAULT, COIN (WHT)

$0.00
$0.00
1
22002480

SCREW Note: SCREW, COIN VAULT

$0.00
$0.00
-
212276

STRAP, MOUNTING

$0.00
$0.00
2
22001810

SCREW Note: SCREW, MOUNTING STRAP

$0.00
$0.00
3
22001996

WASHER Note: WASHER, STRAP SCREW

$0.00
$0.00
4
910309

GASKET, CONTROL CENTER (WHT) Note: GASKET, CONTROL CENTER (WHT)

$0.00
$0.00
5
22002072

NUT Note: NUT, CASE MOUNTING

$0.00
$0.00
6
052740

BOLT, LOCKING

$0.00
$0.00
7
213035

LOCK WASHER Note: LOCKWASHER, LOCKING BOLT

$0.00
$0.00
8
910181

CAM, LOCKING

$0.00
$0.00
9 N
22001905

SWITCH, SENSOR

$0.00
$0.00
10
22002536

SWITCH, SENSOR

$0.00
$0.00
10
33001250

DUAL FACEPLATE

$0.00
$0.00
-
22003815

BUTTON, RETURN Note: BUTTON, RETURN

$0.00
$0.00
12
216200

DOOR, ACCESS (WHT)

$0.00
$0.00
13
22001910

SWITCH ASSY., OPTIC

$0.00
$0.00
14
22001965

SWITCH ASSY., OPTIC

$0.00
$0.00
14
22001965

SCREW Note: SCREW, OPTIC SWITCH

$0.00
$0.00
15
314665

SCREW Note: SCREW, OPTIC SWITCH

$0.00
$0.00
15
314665

SCREW Note: SCREW, COIN DROP

$0.00
$0.00
16
216068

BRACKET, SWITCH

$0.00
$0.00
17
22001404

SCREW Note: SCREW, SWITCH BRACKET

$0.00
$0.00
18
212276

HARNESS, SENSOR SWITCH

$0.00
$0.00
19
22001966
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

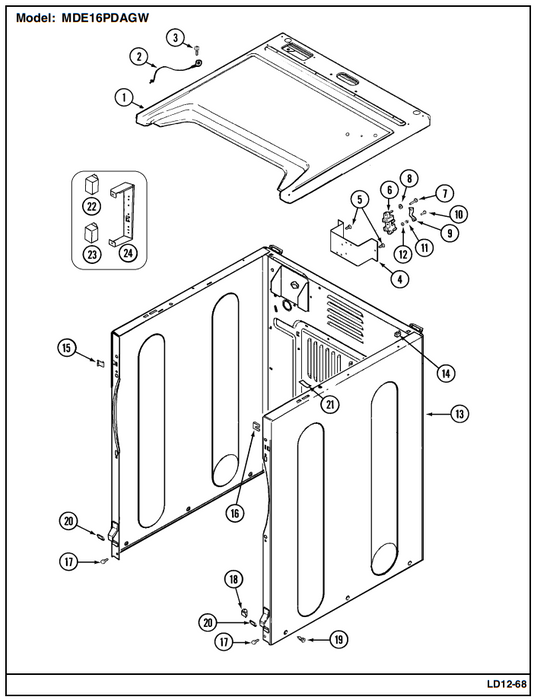

COVER, TOP (WHT)

$0.00
$0.00
1
33001949

COVER, TOP (WHT-AS PK)

$0.00
$0.00
1
33002633

WIRE, GROUND

$0.00
$0.00
2
22001959

SCREW, GROUND WIRE TO BASE--NA Note: SCREW, GROUND WIRE

$0.00
$0.00
3
210186

BRACKET, TERMINAL BLOCK NA

$0.00
$0.00
4 N
33001826

SCREW Note: SCREW, TERMINAL BLOCK BRACKET

$0.00
$0.00
5
22001995

SHIELD, TERMINAL BLOCK

$0.00
$0.00
-
33002106

BLOCK, TERMINAL

$0.00
$0.00
6
33001244

SCREW, #10-24 X 3/4 INCH Note: SCREW, TERMINAL BLOCK

$0.00
$0.00
7
312209

WASHER, TERMINAL BLOCK

$0.00
$0.00
8
311270

STRAP, GROUND

$0.00
$0.00
9
312184

SCREW----NA Note: SCREW, GROUND STRAP

$0.00
$0.00
10 N
33001245

NUT, TERMINAL BLOCK

$0.00
$0.00
11
311484

WASHER, 7/32 INCH Note: WASHER, TERMINAL BLOCK

$0.00
$0.00
12
311093

HINGE, PLASTIC

$0.00
$0.00
13
22003367

CABINET, ASSY. (WHT-AS PK)

$0.00
$0.00
13 N
33002624

SCREW Note: SCREW, HINGE

$0.00
$0.00
13
22001995

CABINET (WHT)

$0.00
$0.00
13 N
33001897

FASTENER

$0.00
$0.00
14
310933

CLIP

$0.00
$0.00
15
22002049

FRONT PANEL BRACKET/FASTENER Note: RETAINER, SHROUD

$0.00
$0.00
16
213280

SCREW Note: SCREW, CABINET

$0.00
$0.00
17
22001995

CLIP, WIRE HARNESS

$0.00
$0.00
18
310376

SCREW, CABINET

$0.00
$0.00
19
213007

SCREW----NA Note: SCREW, CABINET (TRUSS)

$0.00
$0.00
19
22003409

CLIP, LOWER FRONT PANEL

$0.00
$0.00
20
22002239

STRAP, TOP COVER SUPPORT

$0.00
$0.00
21
33001836

RELAY, SPST 24VDC

$0.00
$0.00
22
206824

SCREW Note: SCREW, HEATER RELAY

$0.00
$0.00
-
251119

RELAY - SPST HEATER Note: RELAY, HEATER

$0.00
$0.00
23
306398

SCREW Note: SCREW, RELAY BRACKET

$0.00
$0.00
-
211294

RELAY BRACKET Note: BRACKET, RELAY

$0.00
$0.00
24
314627

SCREW Note: SCREW, RELAY BRACKET

$0.00
$0.00
-
313559
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

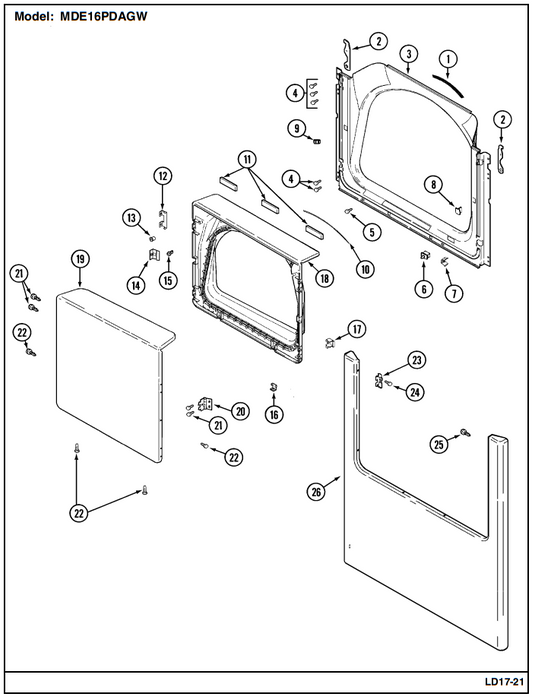

SEAL, SHROUD

$0.00
$0.00
1
33001767

HOOK, SECURITY

$0.00
$0.00
2
22002247

SHROUD (WHT) Note: (WHT)

$0.00
$0.00
3
33001954

SCREW Note: SCREW, TUMBLER FRONT & SHROUD

$0.00
$0.00
4
22001995

SCREW, SHROUD Note: SCREW, SHROUD & OUTLET DUCT

$0.00
$0.00
5
33001768

SWITCH, DOOR

$0.00
$0.00
6
33002166

BRACKET, HINGE

$0.00
$0.00
7
33001760

PLUG, DOOR CATCH

$0.00
$0.00
8 N
33001174

CATCH, DOOR (FEMALE)

$0.00
$0.00
9
304578

SEAL, DOOR

$0.00
$0.00
10
33002094

PAD, DOOR

$0.00
$0.00
11
33001268

CLIP, DOOR (DOUBLE)

$0.00
$0.00
12
22002038

BUSHING, INNER DOOR

$0.00
$0.00
13
33001771

BRACKET, STRIKE

$0.00
$0.00
14
33001793

STRIKE, DOOR (MALE)

$0.00
$0.00
15
33001761

CLIP, DOOR (SINGLE)

$0.00
$0.00
16
22002039

PLUG, INNER DOOR

$0.00
$0.00
17
33001763

DOOR, INNER (WHT)

$0.00
$0.00
18
33001899

SCREW #8-18AB WAFER HD

$0.00
$0.00
-
22002063

DOOR, OUTER (WHT) Note: DOOR, OUTER (WHT)

$0.00
$0.00
19
33001904

HINGE, DOOR

$0.00
$0.00
20
33001759

SCREW Note: SCREW, HINGE

$0.00
$0.00
21
22002062

SCREW #8-18AB WAFER HD

$0.00
$0.00
22
22002063

COVER, HINGE HOLE (WHT)

$0.00
$0.00
23
33001764

SCREW Note: SCREW, HINGE HOLE COVER

$0.00
$0.00
24
33001846

CLIP, GROUNDING

$0.00
$0.00
-
22002244

SCREW Note: SCREW, HINGE BRACKET

$0.00
$0.00
25
22002243

PANEL, FRONT (WHT)

$0.00
$0.00
26
33001901

CLIP, LOWER FRONT PANEL

$0.00
$0.00
-
22002239

FRONT PANEL BRACKET/FASTENER Note: FASTENER, FRONT PANEL

$0.00
$0.00
-
213280
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

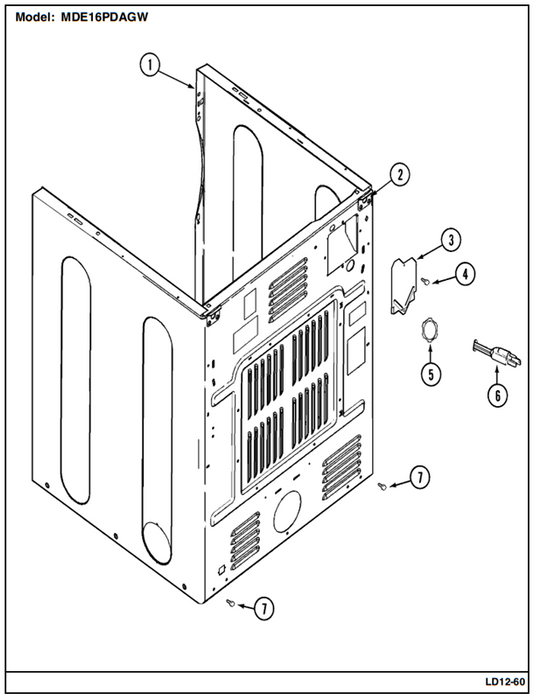

CABINET, ASSY. (WHT-AS PK)

$0.00
$0.00
1 N
33002624

CABINET (WHT)

$0.00
$0.00
1 N
33001897

HINGE, PLASTIC

$0.00
$0.00
-
22003367

SCREW Note: SCREW, HINGE

$0.00
$0.00
-
22001995

BRACKET, CABINET HINGE

$0.00
$0.00
2 N
33001827

COVER, TERMINAL BLOCK

$0.00
$0.00
3
33001795

SCREW, LATCH Note: SCREW, TERMINAL BLOCK GROUND

$0.00
$0.00
-
912873

SCREW Note: SCREW, TERMINAL BLOCK COVER

$0.00
$0.00
4
22001995

SCREW Note: SCREW, CABINET

$0.00
$0.00
7
22001995
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

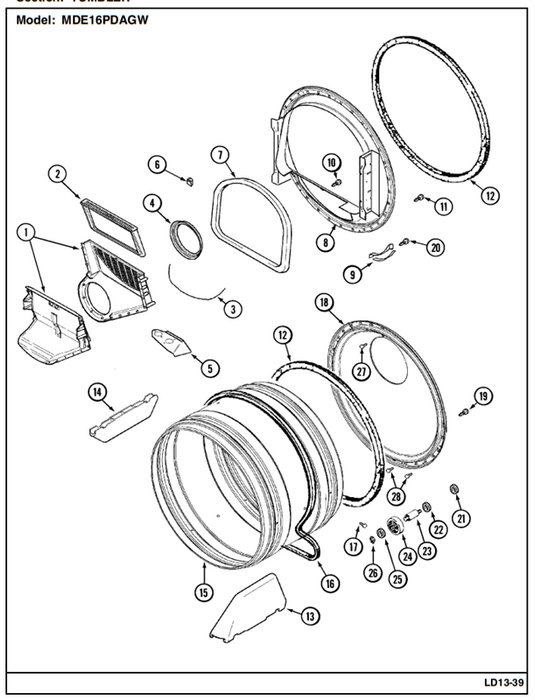

OUTLET DUCT ASSEMBLY

$0.00
$0.00
1
33001799

FILTER, LINT

$0.00
$0.00
2
33001804

SEAL, OUTLET DUCT

$0.00
$0.00
3 N
33001775

SEAL, BLOWER

$0.00
$0.00
4
33001758

COVER, THERMOSTAT (ELEC ONLY)

$0.00
$0.00
5
33001837

CLIP, WIRE HARNESS

$0.00
$0.00
6
310376

SEAL, SHROUD

$0.00
$0.00
7
33001767

FRONT, TUMBLER (W/SEAL)

$0.00
$0.00
8
33001802

TUMBLER BEARING KIT

$0.00
$0.00
9
306508

SCREW----NA Note: SCREW, OUTLET DUCT

$0.00
$0.00
10 N
312311

SCREW (HEX HEAD) Note: SCREW, OUTLET DUCT

$0.00
$0.00
11
33001855

SEAL, TUMBLER

$0.00
$0.00
12
33001807

BAFFLE (TALL)

$0.00
$0.00
13
33001756

BAFFLE (SHORT)

$0.00
$0.00
14
33001755

TUMBLER

$0.00
$0.00
15
33001794

BELT, TUMBLER

$0.00
$0.00
16
33001777

SCREW, BAFFLE

$0.00
$0.00
17
33001788

BACK, TUMBLER (W/SEAL)

$0.00
$0.00
18
33001801

SCREW

$0.00
$0.00
19
22001995

RIVET

$0.00
$0.00
20
210720

NUT, HEX (ROLLER SHAFT)

$0.00
$0.00
21
33001443

WASHER, SPRING (ROLLER SHAFT)

$0.00
$0.00
22
313347

SHAFT, TUMBLER ROLLER

$0.00
$0.00
23
312948

BEARING & ROLLER ASSEMBLY Note: ROLLER (W/BEARING)

$0.00
$0.00
24
303373

WASHER, ROLLER SHAFT

$0.00
$0.00
25
312535

RING, RETAINING

$0.00
$0.00
26
410233

SCREW, #8 X 9/16 CTSK Note: SCREW, INLET DUCT

$0.00
$0.00
27
210932

SCREW Note: SCREW, INLET DUCT

$0.00
$0.00
28
22001996
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

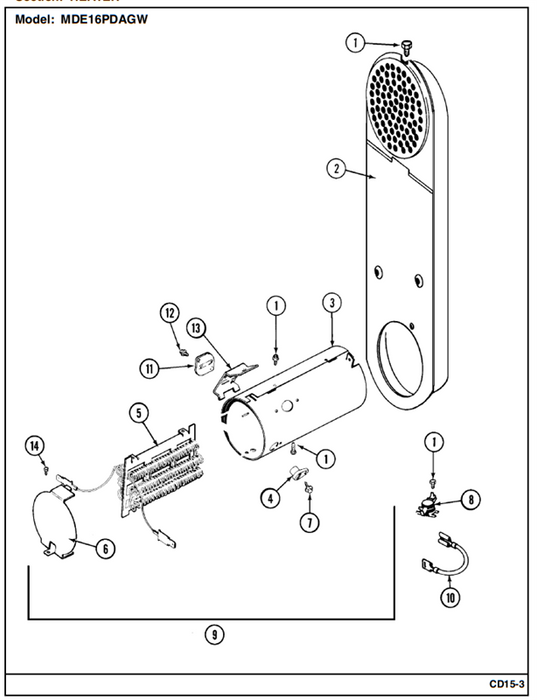

SCREW Note: SCREW, HEATER

$0.00
$0.00
1
211294

DUCT ASSY., INLET

$0.00
$0.00
2
33001803

HEATER ENCLOSURE

$0.00
$0.00
3
314995

INSULATOR, TERMINAL

$0.00
$0.00
4
314998

HEATER SUB-ASSEMBLY 240V

$0.00
$0.00
5
307186

SHIELD, RADIANT

$0.00
$0.00
6
314999

SCREW Note: SCREW, TERMINAL INSULATOR

$0.00
$0.00
7 N
314554

THERMOSTAT, HI-LIMIT (ELEC)

$0.00
$0.00
8
303396

HEATER ASSEMBLY(COMPLETE) 240

$0.00
$0.00
9
33002159

WIRE, JUMPER

$0.00
$0.00
10
307173

FUSE, THERMAL

$0.00
$0.00
11
307473

SCREW Note: SCREW

$0.00
$0.00
12
314848

BRACKET, THERMAL FUSE

$0.00
$0.00
13
315346

SCREW Note: SCREW, RADIANT SHIELD

$0.00
$0.00
14
22001996

CONVERSION KIT (240V TO 208V)

$0.00
$0.00
-
308590
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

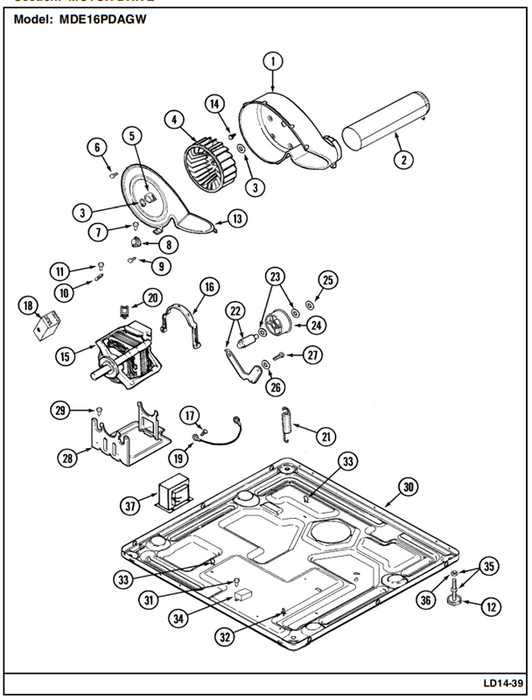

HOUSING, BLOWER

$0.00
$0.00
1
33001789

DUCT ASSY., EXHAUST

$0.00
$0.00
2
33001800

SCREW Note: SCREW, EXHAUST DUCT ASSEMBLY

$0.00
$0.00
-
22001995

RING, RETAINING

$0.00
$0.00
3
410233

WHEEL, BLOWER

$0.00
$0.00
4
33002797

WHEEL, BLOWER

$0.00
$0.00
4
33002797

WHEEL, BLOWER

$0.00
$0.00
4
33001790

CLAMP, BLOWER HOUSING

$0.00
$0.00
5
312967

SCREW (HEX HEAD) Note: SCREW, HOUSING COVER

$0.00
$0.00
6
33001855

SCREW----NA Note: SCREW, HOUSING COVER

$0.00
$0.00
7 N
313561

CYCLING THERMOSTAT 140 DEG. Note: THERMOSTAT, CYCLING (140 DEG.)

$0.00
$0.00
8
303392

THERMOSTAT, CYCLING Note: THERMOSTAT, CYCLING

$0.00
$0.00
8
33303391

SCREW Note: SCREW, THERMOSTAT

$0.00
$0.00
9
22001996

FUSE, THERMAL (W' BRACKET)

$0.00
$0.00
10
33001762

SCREW Note: SCREW, THERMAL CUT-OFF

$0.00
$0.00
11
314848

FOOT, RUBBER

$0.00
$0.00
12
314137

COVER, BLOWER HOUSING

$0.00
$0.00
13
33001796

SCREW Note: SCREW, BLOWER HOUSING

$0.00
$0.00
14
314818

MOTOR (230V 50HZ)

$0.00
$0.00
15
33002463

MOTOR & PULLEY ASSEMBLY (50HZ)

$0.00
$0.00
15
33002479

TIMER ACCESS DOOR ASSY (WHITE)

$0.00
$0.00
15
22003679

MOTOR, DRIVE 50HZ

$0.00
$0.00
15
33002796

MOTOR, DRIVE 60HZ

$0.00
$0.00
15
33002795

MOTOR

$0.00
$0.00
15
33001945

CLIP, MOTOR

$0.00
$0.00
16
015825

SCREW, GROUND WIRE

$0.00
$0.00
17
910343

SWITCH, MOTOR

$0.00
$0.00
18 N
33002451

WIRE, GROUND

$0.00
$0.00
19
901220

CLIP, WIRE HARNESS

$0.00
$0.00
20
310376

PLUG FOR SPRING

$0.00
$0.00
-
33002461

SPRING, IDLER Note: SPRING & PLUG KIT 33002459

$0.00
$0.00
21
33002460

GROMMET

$0.00
$0.00
-
33002157

SPRING, IDLER

$0.00
$0.00
21
33001754

IDLER ARM & SHAFT ASSY.

$0.00
$0.00
22
33001782

WASHER, IDLER SHAFT (QTY-1)

$0.00
$0.00
23
312527

BEARING, IDLER ASSEMBLY

$0.00
$0.00
24
33001783

RETAINING RING, IDLER SHAFT

$0.00
$0.00
25
312958

SLEEVE, IDLER ARM

$0.00
$0.00
26
315772

SCREW Note: SCREW, IDLER ARM SLEEVE

$0.00
$0.00
27
014874

SUPPORT, MOTOR

$0.00
$0.00
28
33001752

SUPPORT, MOTOR

$0.00
$0.00
28
33002466

SCREW NA

$0.00
$0.00
- N
313561

SCREW----NA Note: SCREW, MOTOR & BLOWER

$0.00
$0.00
29 N
313561

BASE Note: BASE

$0.00
$0.00
30
33001845

BASE, (LWR) NA

$0.00
$0.00
30 N
33002465

BASE, (LWR)

$0.00
$0.00
30
33002622

BASE, (LWR) NA

$0.00
$0.00
30 N
33002465

SCREW Note: SCREW, RELAY & BASE

$0.00
$0.00
31
22001078

RETAINER, WIRE

$0.00
$0.00
32
315471

SPRING, WIRE HARNESS

$0.00
$0.00
33
410490

ADJUSTABLE LEG & NUT

$0.00
$0.00
35
305086

NUT Note: NUT, LEG

$0.00
$0.00
36
052740

TRANSFORMER

$0.00
$0.00
37
33001821

SCREW Note: SCREW, TRANSFORMER

$0.00
$0.00
-
211294

SCREW Note: SCREW, TRANSFORMER

$0.00
$0.00
-
313559

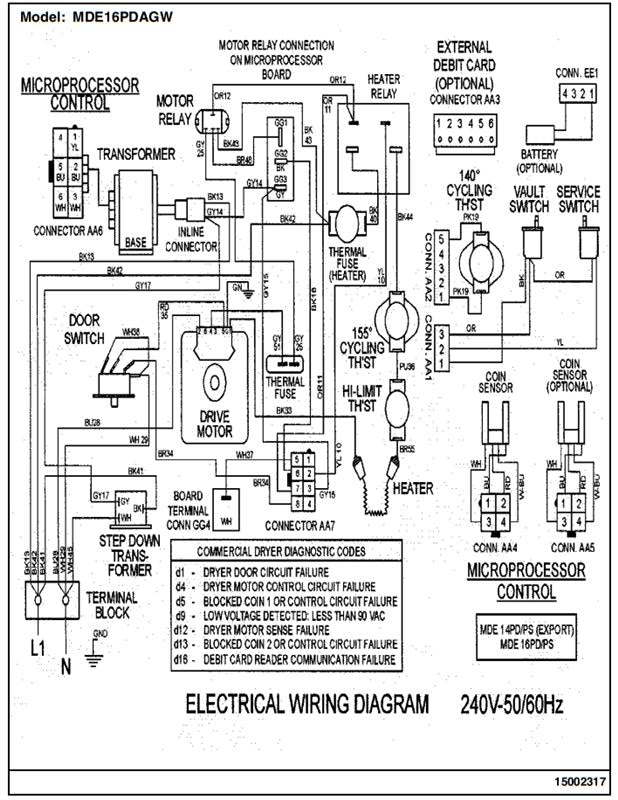

Wiring Diagram

Parts Manual
