MDE26CSAGW

Exploded View 1

Product Details	S.P. Ref.	S.P. Code

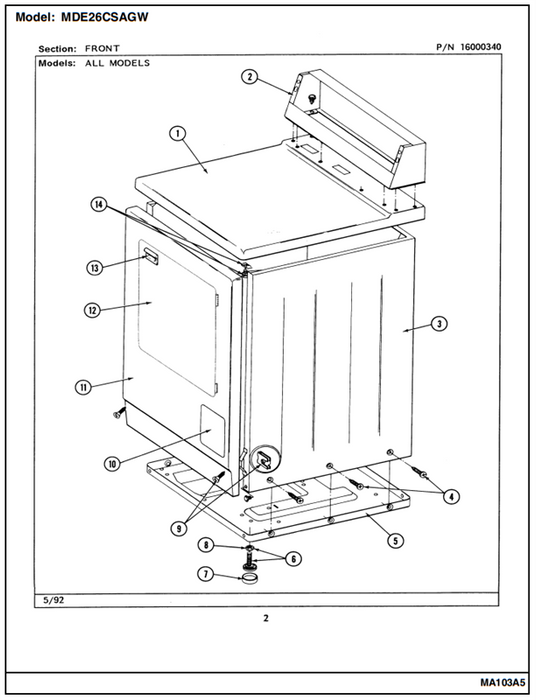

Sold Out TOP COVER ASSY Note: TOP COVER ASSY. (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	307104
Sold Out CONTROL COVER (WHT) Note: CONTROL COVER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	2 N	306689
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	212276
Sold Out CABINET (WHT) Note: CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3 N	307124
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y310632
Sold Out SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	4	213007
Sold Out BASE ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	5	Y303361
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	6	Y305086
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	7	Y314137
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	8	Y052740
Sold Out SCREW & FSTNER ASSY(FRT.PANEL) Note: SCREW & FSTNER ASSY (FT. PNL) Regular price $0.00 Sale price $0.00 Regular price Unit price	9	204439
Sold Out PANEL, FRONT (WHT) Note: PANEL, FRONT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	11 N	308000
Sold Out DOOR ASSY. COMPLETE (WHT) Note: DOOR ASSY. COMPLETE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	308061
Sold Out HANDLE WHITE Note: HANDLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	314946
Sold Out SCREW & FASTENER ASY. Regular price $0.00 Sale price $0.00 Regular price Unit price	14	204445

Product Details	S.P. Ref.	S.P. Code

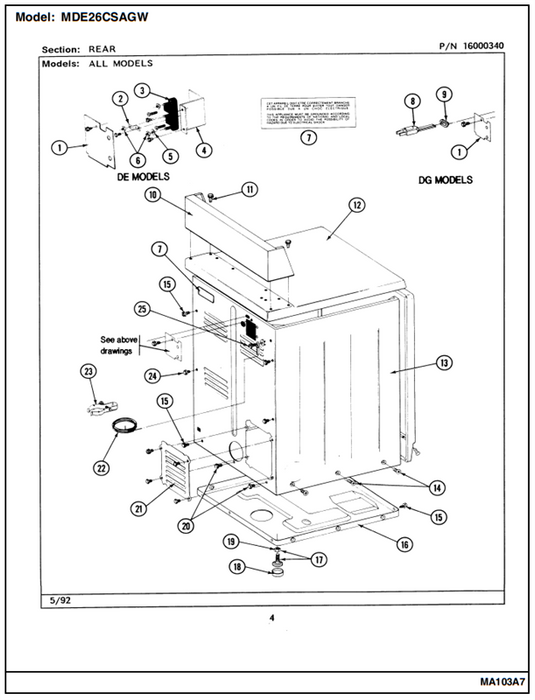

Sold Out SCREW----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	1 N	313561
Sold Out COVER, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	1	Y312905
Sold Out SCREW, #10-32 X 1/2 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	2	Y311423
Sold Out STRAP, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	2	Y312184
Sold Out SCREW, #10-24 X 3/4 INCH O Regular price $0.00 Sale price $0.00 Regular price Unit price	3	Y312209
Sold Out BLOCK, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	3	400008
Sold Out SCREW NA Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	313561
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	4	Y310632
Sold Out BRACKET, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	4	Y312904
Sold Out WASHER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	5	Y311270
Sold Out NUT, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	6	311484
Sold Out CORD, POWER (CANADA) Note: (ELECTRIC MODELS - 240V) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	305168
Sold Out CONTROL COVER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	306689
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	11	212276
Sold Out TOP COVER ASSY. (WHT) Note: TOP COVER ASSY. (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	307105
Sold Out CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	13 N	307124
Sold Out SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	14	213007
Sold Out SCREW----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	15 N	313561
Sold Out BASE ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	16	Y303361
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	17	Y305086
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	18	Y314137
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	19	Y052740
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	20	Y310632
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	21	211294
Sold Out COVER, ACCESS Regular price $0.00 Sale price $0.00 Regular price Unit price	21	Y312951
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	21	Y313559
Sold Out GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	22	311155
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	23 N	312122
Sold Out CLAMP, GROUND (W/SCREW) Regular price $0.00 Sale price $0.00 Regular price Unit price	23	301548
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	24	Y310632
Sold Out SCREW & WASHER ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	25	303846

Product Details	S.P. Ref.	S.P. Code
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	1	212276
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	2	211294

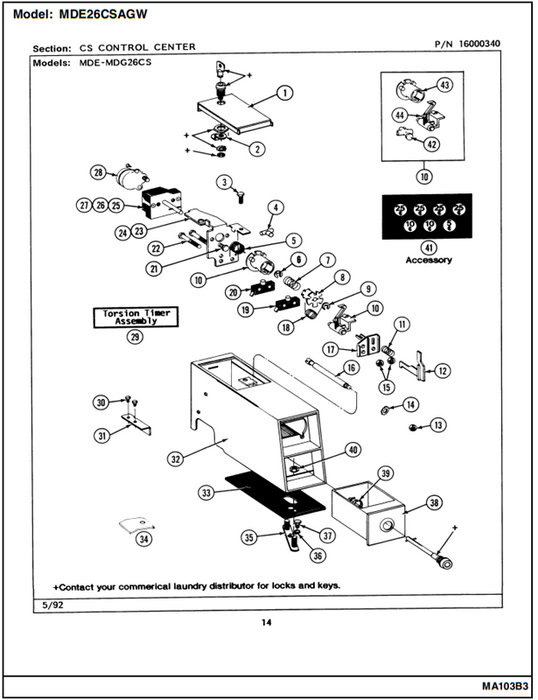

Sold Out SWITCH, CYCLE SELECTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	3	307237
Sold Out PILOT LAMP Note: LAMP, INDICATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	305473
Sold Out FASTENER Regular price $0.00 Sale price $0.00 Regular price Unit price	5	215003
Sold Out SWITCH, PUSH-TO-START Regular price $0.00 Sale price $0.00 Regular price Unit price	6	306940
Sold Out BACK-UP PLATE - WHITE Note: BACK-UP PLATE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	7	314912
Sold Out LENS, INDICATOR (AMBER) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	215564
Sold Out SCREW, #8 X 1/2 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	9	212277
Sold Out KNURLED NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	10	Y312702
Sold Out HEX NUT ON SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	11	Y312706
Sold Out KNOB, SELECTOR SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	12	306938
Sold Out LOCK WASHER Regular price $0.00 Sale price $0.00 Regular price Unit price	13	312751
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	14	Y313588
Sold Out TOP COVER ASSY. (WHT) Note: TOP COVER ASSY. (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	307105

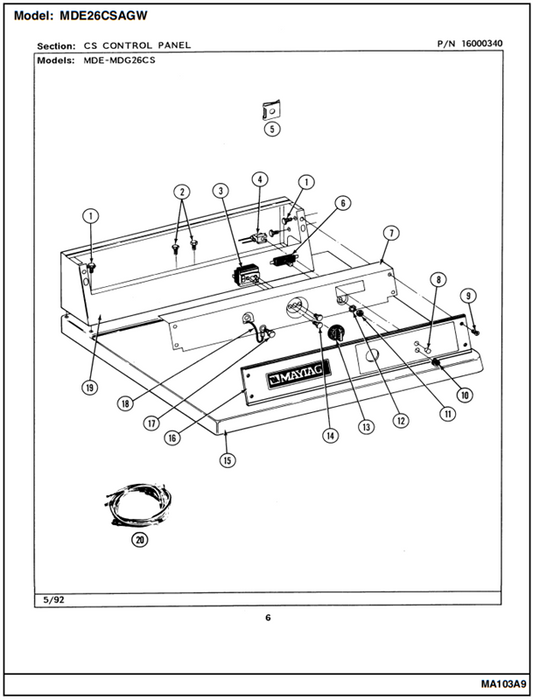

Sold Out CONTROL PANEL COMMERCIAL DRYER Note: CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	314910
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	17	211252
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	18	205810
Sold Out CONTROL COVER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	19 N	306689
Sold Out WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	20	Y308297
Sold Out MAIN WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	20 N	307174

Product Details	S.P. Ref.	S.P. Code
Sold Out DOOR, ACCESS (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	203188
Sold Out LOCKING CAM Regular price $0.00 Sale price $0.00 Regular price Unit price	2	213750
Sold Out SCREW, #8 X 5/16 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	3	211168
Sold Out TIME ADJUSTMENT PEG Regular price $0.00 Sale price $0.00 Regular price Unit price	4	314335
Sold Out RETURN SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	5	314331
Sold Out E CLIP Regular price $0.00 Sale price $0.00 Regular price Unit price	6	Y312270
Sold Out SPRING, TIMER KNOB Regular price $0.00 Sale price $0.00 Regular price Unit price	7	211065
Sold Out DRIVER FOR INDEX WHEEL Regular price $0.00 Sale price $0.00 Regular price Unit price	8	314330
Sold Out LOCK RING FOR TIMER SHAFT Note: LOCK RING, TIMER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	211790
Sold Out TORSION-TIMER KIT Note: TORSION, TIMER KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	10	306104
Sold Out HELICAL SPRING N Regular price $0.00 Sale price $0.00 Regular price Unit price	11 N	314340
Sold Out SLIDER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314337
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	13	Y052721
Sold Out LOCK WASHER Regular price $0.00 Sale price $0.00 Regular price Unit price	14	910387
Sold Out HEX. NUT, #6-32 Regular price $0.00 Sale price $0.00 Regular price Unit price	15	Y052634
Sold Out BOLT, LOCKING Regular price $0.00 Sale price $0.00 Regular price Unit price	16	215559
Sold Out SWITCH AND SLIDER BRACKET Note: SWITCH & SLIDER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	17	314339
Sold Out ACTUATOR SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	18	314332
Sold Out BYPASS SWITCH FOR MOTOR Note: BYPASS SWITCH, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	19	305798
Sold Out BYPASS SWITCH FOR HEATER Note: BYPASS SWITCH, HEATER Regular price $0.00 Sale price $0.00 Regular price Unit price	20	Y305799
Sold Out SCREW -RELAY TO TUB SUPPORT Note: SCREW, RELAY (TUB SUPPORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	910708
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	22 N	314342
Sold Out TIMER MOUNTING BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	23	314333
Sold Out INSTRUCTION LABEL Regular price $0.00 Sale price $0.00 Regular price Unit price	24 N	314341
Sold Out TIMER 240-50 Regular price $0.00 Sale price $0.00 Regular price Unit price	25	305812
Sold Out WIRE HARNESS FOR TIMER Note: WIRE HARNESS, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	27	305800
Sold Out TIMER MOTOR RPR Note: PART NOT USED Regular price $0.00 Sale price $0.00 Regular price Unit price	28	305870
Sold Out TORSION TIMER ASSM COMPLETE Note: TORSION TIMER ASSY. COMPLETE Regular price $0.00 Sale price $0.00 Regular price Unit price	29	305797
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	30	212707
Sold Out BRACKET FOR COIN SLIDE Note: BRACKET, COIN SLIDE Regular price $0.00 Sale price $0.00 Regular price Unit price	31	314334
Sold Out COIN METER ASSY - WHITE Note: COIN METER ASSY. (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	32	206956
Sold Out GASKET, METER CASE Regular price $0.00 Sale price $0.00 Regular price Unit price	33	214660
Sold Out STOP FOR TIMER MECHANISM Note: STOP, TIMER MECHANISM Regular price $0.00 Sale price $0.00 Regular price Unit price	34 N	314382
Sold Out MTG. STRAP NA Regular price $0.00 Sale price $0.00 Regular price Unit price	35 N	203307
Sold Out WASHER Regular price $0.00 Sale price $0.00 Regular price Unit price	36	910309
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	37	211294
Sold Out COIN BOX-WHITE Note: COIN BOX (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	38	205423
Sold Out NUT, HEX Regular price $0.00 Sale price $0.00 Regular price Unit price	39	212328
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	40	Y052740
Sold Out COINAGE DECAL Regular price $0.00 Sale price $0.00 Regular price Unit price	41	214648
Sold Out ADJUSTMENT RETURN STOP Regular price $0.00 Sale price $0.00 Regular price Unit price	42	314547
Sold Out INDEX WHEEL Regular price $0.00 Sale price $0.00 Regular price Unit price	43	314546
Sold Out ACTUATOR, SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	44	314548

Product Details	S.P. Ref.	S.P. Code

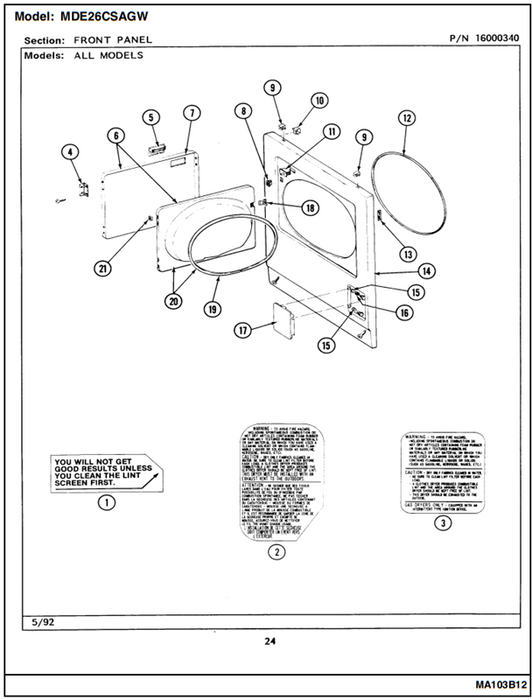

Sold Out LABEL, LINT SCREEN INSTRUCTION Note: LABEL, LINT SCREEN INSTR. Regular price $0.00 Sale price $0.00 Regular price Unit price	1	Y313340
Sold Out LABEL, INSTRUCTION Regular price $0.00 Sale price $0.00 Regular price Unit price	2	314941
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	4	Y314062
Sold Out HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	4	307099
Sold Out SCREW - INLET DUCT Note: SCREW, INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	5	312960
Sold Out HANDLE WHITE Note: HANDLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	314946
Sold Out HANDLE DOOR ALM Note: (ALM) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	314972
Sold Out HANDLE DOOR HVT WHEAT Note: (H. WHEAT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5 N	314973
Sold Out DOOR ASSY HVT WHEAT Note: (H. WHEAT) Regular price $0.00 Sale price $0.00 Regular price Unit price	6 N	307111M
Sold Out DOOR ASSY. COMPLETE (WHT) Note: DOOR ASSY. COMPLETE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	Y307111
Sold Out DOOR ASSY ALMOND Note: (ALM) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	307111L
Sold Out DOOR PANEL ALMOND Note: (ALM) Regular price $0.00 Sale price $0.00 Regular price Unit price	7 N	314966L
Sold Out DOOR PANEL HVT WHEAT Note: (H. WHEAT) Regular price $0.00 Sale price $0.00 Regular price Unit price	7 N	314966M
Sold Out PANEL, OUTER (WHT) Note: PANEL, OUTER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	7	314966
Sold Out DOOR LATCH KIT--W Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306436
Sold Out FASTENER, PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	9	212982
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	10	Y310376
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	11	Y305753
Sold Out SEAL, FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314937
Sold Out TWIN FASTENER Regular price $0.00 Sale price $0.00 Regular price Unit price	13	Y313907
Sold Out SCREW & FSTNER ASSY(FRT.PANEL) Note: SCREW & FSTNER ASSY (FT.PNL) Regular price $0.00 Sale price $0.00 Regular price Unit price	14	204439
Sold Out PANEL, FRONT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	14 N	308000
Sold Out STRIKE PLATE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	314944
Sold Out DOOR STRIKE Regular price $0.00 Sale price $0.00 Regular price Unit price	18	314936
Sold Out DOOR SEAL Regular price $0.00 Sale price $0.00 Regular price Unit price	19	314935
Sold Out DOOR, INNER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	20	307098
Sold Out CLIP, DOOR LINER TO OUTER PNL Note: CLIP, DOOR LINER (OUTER PNL) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	Y313910

Product Details	S.P. Ref.	S.P. Code

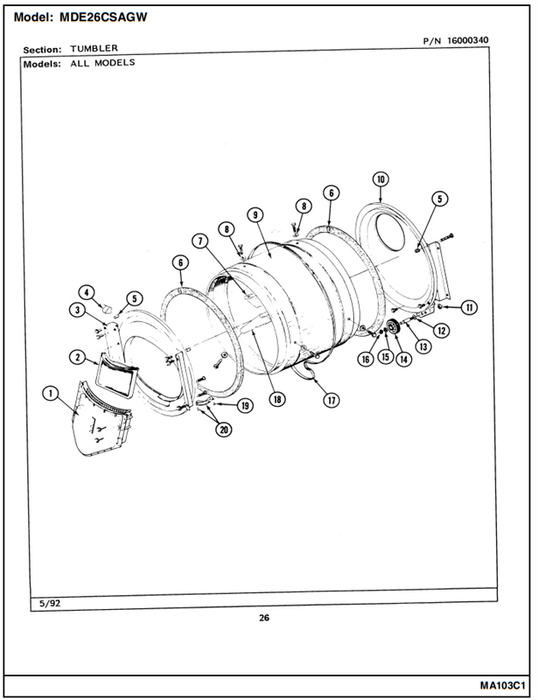

Sold Out DUCT, OUTLET ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	1	Y307112
Sold Out SCREW, INLET DUCT ----S Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y314110
Sold Out SCREEN, LINT Regular price $0.00 Sale price $0.00 Regular price Unit price	2	307108
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y310632
Sold Out SCREW NA Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	313561
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	313764
Sold Out FRONT, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	307109
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	4	Y310376
Sold Out COVER, THREAD Regular price $0.00 Sale price $0.00 Regular price Unit price	5 N	313915
Sold Out SEAL, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	6	314820
Sold Out BAFFLE (SHORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	7	314803
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y310759
Sold Out WASHER Regular price $0.00 Sale price $0.00 Regular price Unit price	8	314158
Sold Out TUMBLER W/BAFFLES Regular price $0.00 Sale price $0.00 Regular price Unit price	9	306663
Sold Out TUMBLER W/OUT BAFFLES Regular price $0.00 Sale price $0.00 Regular price Unit price	9	314802
Sold Out BACK, TUMBLER (W/SEAL) ---S Regular price $0.00 Sale price $0.00 Regular price Unit price	10	Y308544
Sold Out BACK, TUMBLER (W/SEAL) ---S Regular price $0.00 Sale price $0.00 Regular price Unit price	10	Y307114
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	211294
Sold Out NUT, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	11	312538
Sold Out WASHER,SPRING(ROLLER SHAFT)--S Regular price $0.00 Sale price $0.00 Regular price Unit price	12	Y313347
Sold Out SHAFT, TUMBLER ROLLER --- C Regular price $0.00 Sale price $0.00 Regular price Unit price	13	Y312948
Sold Out BEARING & ROLLER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	14	Y303373
Sold Out WASHER, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	15	312535
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	16	410233
Sold Out BELT, TUMBLER & MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	17	Y312959
Sold Out BAFFLE (TALL) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	314804
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y310759
Sold Out RIVET Regular price $0.00 Sale price $0.00 Regular price Unit price	19	210720
Sold Out TUMBLER BEARING KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	20	306508

Product Details	S.P. Ref.	S.P. Code

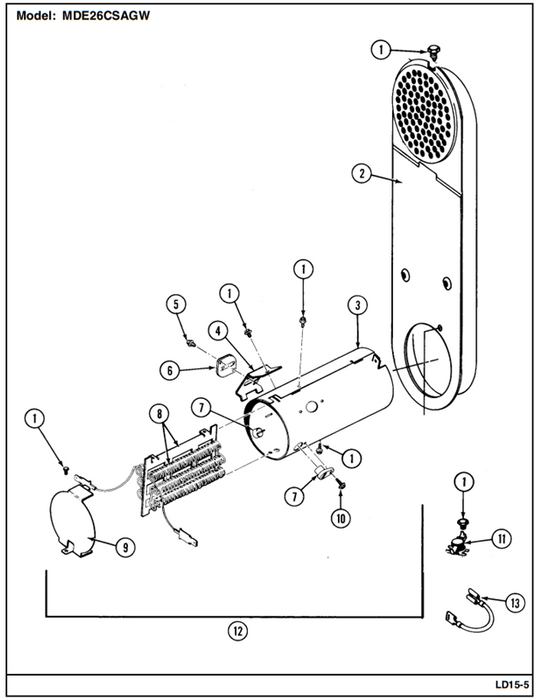

Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	1	211294
Sold Out INLET DUCT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	2 N	307120
Sold Out HEATER ENCLOSURE Regular price $0.00 Sale price $0.00 Regular price Unit price	3	314995
Sold Out BRACKET, THERMAL FUSE Regular price $0.00 Sale price $0.00 Regular price Unit price	4	315346
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	5	314848
Sold Out FUSE, THERMAL Regular price $0.00 Sale price $0.00 Regular price Unit price	6	307473
Sold Out INSULATOR, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	7	314998
Sold Out HEATER SUB-ASSEMBLY 240V Note: HEATER SUB. ASSY(240V 50/60HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	307186
Sold Out SHIELD, RADIANT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	314999
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	314554
Sold Out THERMOSTAT, HI-LIMIT (ELEC) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	303396
Sold Out HEATER ASSEMBLY (240-50) Note: HEATER ASSY (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	307180

Product Details	S.P. Ref.	S.P. Code

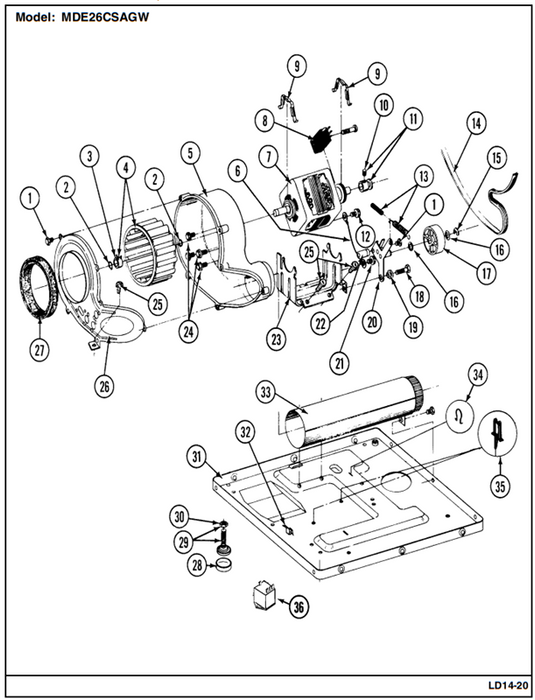

Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	1	Y312961
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	2	410233
Sold Out CLAMP, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	3	312967
Sold Out BLOWER WHEEL ASSEMBLY & CLAMP Regular price $0.00 Sale price $0.00 Regular price Unit price	4	Y303836
Sold Out HOUSING, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	5	Y312893
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	6	901220
Sold Out MOTOR 240-50 Regular price $0.00 Sale price $0.00 Regular price Unit price	7	Y304656
Sold Out CLIP, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	9	Y015825
Sold Out SET SCREW, PULLEY Regular price $0.00 Sale price $0.00 Regular price Unit price	10	Y053241
Sold Out MOTOR PULLEY - 50 CYCLE Regular price $0.00 Sale price $0.00 Regular price Unit price	11	305186
Sold Out SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	12	910343
Sold Out IDLER SPRING ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	13	Y303945
Sold Out BELT, TUMBLER & MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	14	Y312959
Sold Out RETAINING RING, IDLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	15	312958
Sold Out WASHER, IDLER SHAFT (QTY-1) Regular price $0.00 Sale price $0.00 Regular price Unit price	16	Y312527
Sold Out PULLEY, IDLER Regular price $0.00 Sale price $0.00 Regular price Unit price	17	Y303705
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	18	Y014874
Sold Out SLEEVE, IDLER ARM S Regular price $0.00 Sale price $0.00 Regular price Unit price	19	Y312894
Sold Out IDLER ARM & SHAFT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	20	Y303363
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	21	211294
Sold Out SPACER, IDLER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	22	Y313582
Sold Out SUPPORT, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	23 N	312897
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	24	Y310632
Sold Out SCREW NA Regular price $0.00 Sale price $0.00 Regular price Unit price	25 N	313561
Sold Out COVER FOR BLOWER Note: COVER, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	26	314778
Sold Out SEAL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	27	Y312901
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	28	210684
Sold Out LEG, ADJUSTABLE (W/NUT)---S Regular price $0.00 Sale price $0.00 Regular price Unit price	29	Y302699
Sold Out NUT, LOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	30	210385
Sold Out BASE ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	31	Y303361
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	32	Y310376
Sold Out EXHAUST DUCT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	33	Y303442
Sold Out SPRING, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	34	410490
Sold Out RETAINER, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	35	Y313262

Product Details	S.P. Ref.	S.P. Code

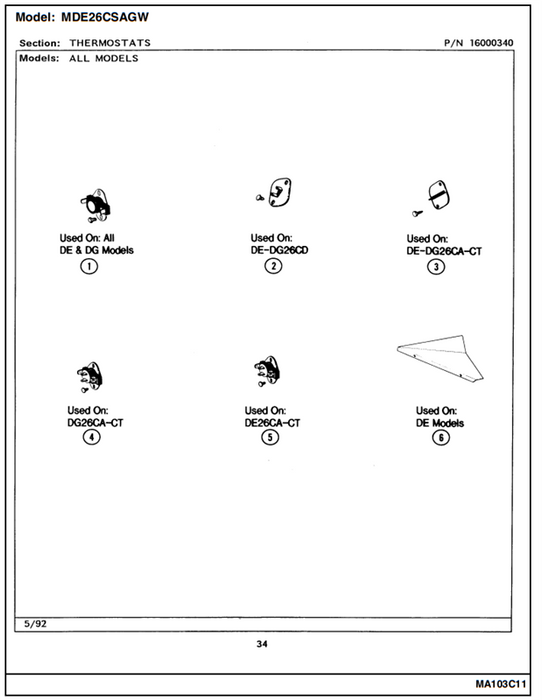

Sold Out CYCLING THERMOSTAT 140 DEG Note: CYCLING THERMOSTAT (140 DEG.) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	303392
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	1	211294
Sold Out COVER, THERMOSTAT Regular price $0.00 Sale price $0.00 Regular price Unit price	6	315122
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	6	Y310632

Product Details	S.P. Ref.	S.P. Code
Sold Out MOTOR 240-50 Note: MOTOR (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	Y304656
Sold Out MOTOR PULLEY - 50 CYCLE Note: MOTOR PULLEY (50 CYCLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	2	305186
Sold Out PILOT LAMP Regular price $0.00 Sale price $0.00 Regular price Unit price	3 N	305473
Sold Out TIMER 240-50 Note: TIMER (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	Y305758
Sold Out MAIN WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	5 N	307174
Sold Out WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	5	Y308297
Sold Out HEATER ELEMENT 240-50 Note: ELEMENT, HEATER (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	Y313950

Product Details	S.P. Ref.	S.P. Code

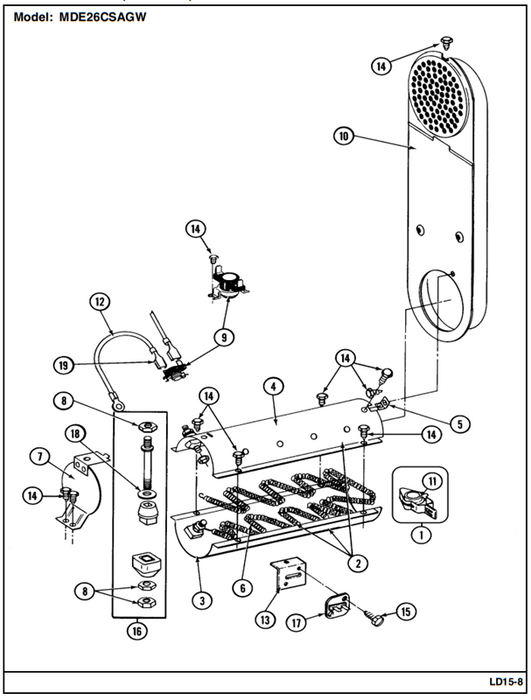

Sold Out HEATER ASSY 240V Note: PART NOT AVAILABLE Regular price $0.00 Sale price $0.00 Regular price Unit price	1	307470
Sold Out CLIP AND INSULATOR ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	2	Y303881
Sold Out HEATER CHAMBER, BOTTOM Regular price $0.00 Sale price $0.00 Regular price Unit price	3	Y313576
Sold Out HEATER CHAMBER, TOP Regular price $0.00 Sale price $0.00 Regular price Unit price	4	Y313575
Sold Out RETAINER, HEATER CHAMBER Regular price $0.00 Sale price $0.00 Regular price Unit price	5	Y312890
Sold Out HEATER ELEMENT 240-50 Regular price $0.00 Sale price $0.00 Regular price Unit price	6	Y313950
Sold Out HEATER SHIELD Regular price $0.00 Sale price $0.00 Regular price Unit price	7	304124
Sold Out NUT, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	8	311484
Sold Out INLET DUCT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	9	307120
Sold Out THERMOSTAT, HI-LIMIT (ELEC) Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	303396
Sold Out INSULATOR FOR HEATER ELEMEN Regular price $0.00 Sale price $0.00 Regular price Unit price	11	Y313270
Sold Out JUMPER WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	12	Y304693
Sold Out MOUNTING BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	13	315046
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	14	211294
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	15	314848
Sold Out TERMINAL INSULATOR ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	16	Y304596
Sold Out FUSE, THERMAL Regular price $0.00 Sale price $0.00 Regular price Unit price	17	307473
Sold Out WASHER, 7/32 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	18	311093
Sold Out WIRE TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	19	210745

Wiring Diagram

Parts Manual

Search our store

MDE26CSAGW

MDE26CSAGW

307104

306689

212276

307124

Y310632

213007

Y303361

Y305086

Y314137

Y052740

204439

308000

308061

314946

204445

313561

Y312905

Y311423

Y312184

Y312209

400008

313561

Y310632

Y312904

Y311270

311484

305168

306689

212276

307105

307124

213007

313561

Y303361

Y305086

Y314137

Y052740

Y310632

211294

Y312951

Y313559

311155

312122

301548

Y310632

303846

212276

211294

307237

305473

215003

306940

314912

215564

212277

Y312702

Y312706

306938

312751

Y313588

307105

314910

211252

205810

306689

Y308297

307174
