MDE8426AAW

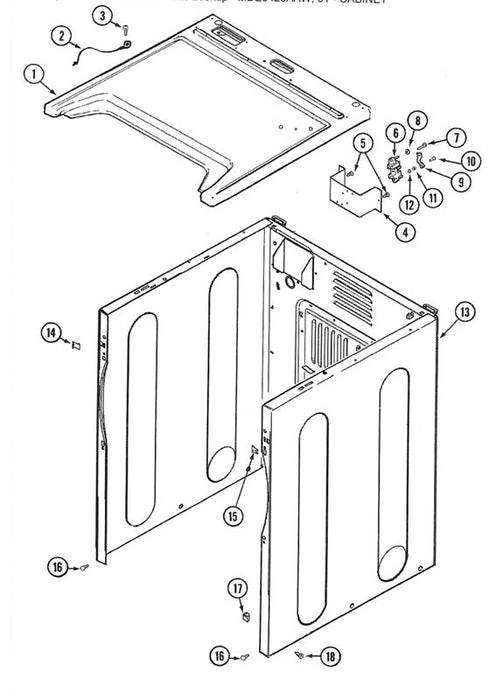

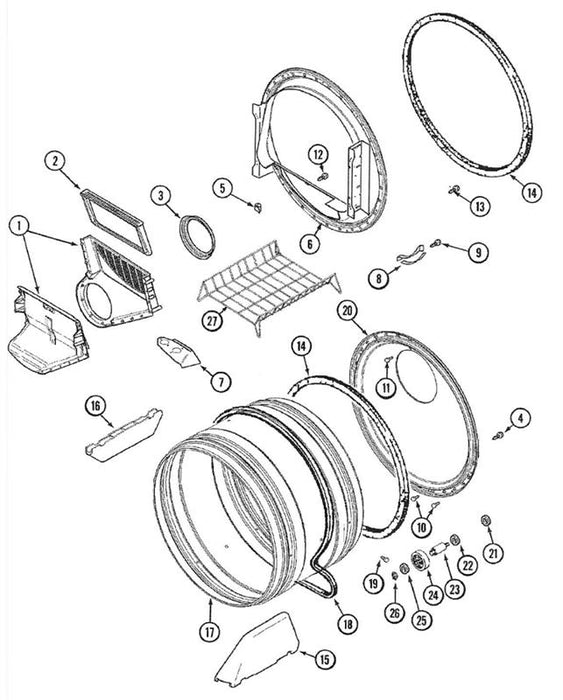

Exploded View 1

Product Details	S.P. Ref.	S.P. Code
Sold Out COVER, TOP (WHT-AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33002631
Sold Out COVER, TOP (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001896
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001859
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	3	912365
Sold Out BRACKET, TERMINAL BLOCK----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33D01826
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33002137
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001995
Sold Out SHIELD, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33002106
Sold Out BLOCK, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001244
Sold Out SCREW, No.10-24 X 3/4 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	7	Y312209
Sold Out WASHER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	8	Y311270
Sold Out STRAP, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	9	Y312184
Sold Out SCREW----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33001245
Sold Out NUT, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	11	311484
Sold Out WASHER, 7/32 INCH Regular price $0.00 Sale price $0.00 Regular price Unit price	12	311093
Sold Out CABINET ASSY (WHT-AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33002642
Sold Out HINGE, PLASTIC Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22003367
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001995
Sold Out CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001897
Sold Out CABINET, ASSY. (WHT—AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002624
Sold Out CLIP Regular price $0.00 Sale price $0.00 Regular price Unit price	14	22002049
Sold Out FRONT PANEL BRACKET/FASTENER Regular price $0.00 Sale price $0.00 Regular price Unit price	15	213280
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	16	22001995
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	17	Y310376
Sold Out SCREW----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	18	22003409
Sold Out SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	-	213007

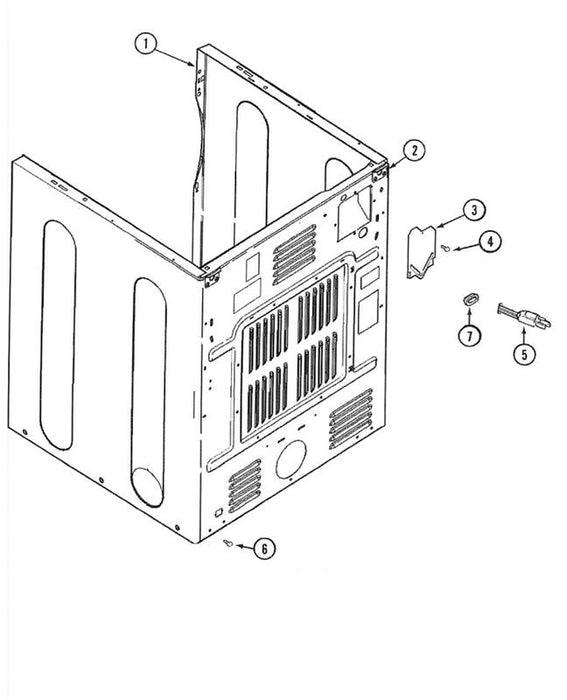

Product Details	S.P. Ref.	S.P. Code
Sold Out CABINET ASSY (WHT-AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33002642
Sold Out CABINET, ASSY. (WHT—AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002624
Sold Out CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001897
Sold Out BRACKET, CABINET HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001827
Sold Out COVER, TERI\/\INAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001795
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22001995
Sold Out SCREW----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	6	22003409
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001995

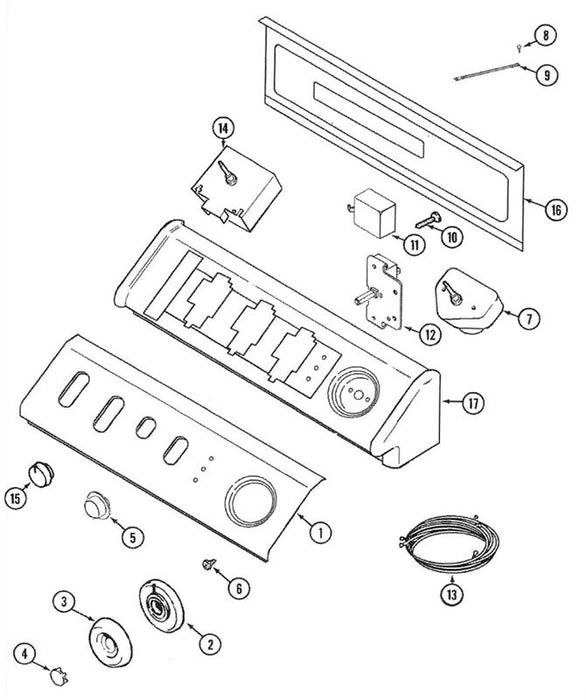

Product Details	S.P. Ref.	S.P. Code
Sold Out PANEL, CONTROL (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001942
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y22002339
Sold Out SKIRT, TIMER DIAL (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001621
Sold Out TIMER KNOB - GREY Regular price $0.00 Sale price $0.00 Regular price Unit price	3	22001659
Sold Out TIMER KNOB INSERT/CAP (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22001664
Sold Out BUTTON, PUSH TO START (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001619
Sold Out SCREW, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001690
Sold Out TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001636
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	8	912365
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	9	33001859
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	10	216423
Sold Out BUZZER Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33002252
Sold Out SWITCH, PUSH TO START (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33002251
Sold Out WIRE HARNESS, MAIN Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001943
Sold Out SWITCH, TEMPERATURE (ELC.) Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001638
Sold Out WASHER, SEALING Regular price $0.00 Sale price $0.00 Regular price Unit price	15	22001942
Sold Out KNOB, SELECTOR SWITCH (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001663
Sold Out BACK, CONSOLE PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33001806
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	216423
Sold Out CONSOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	22002285
Sold Out MANUAL, USE & CARE Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001902

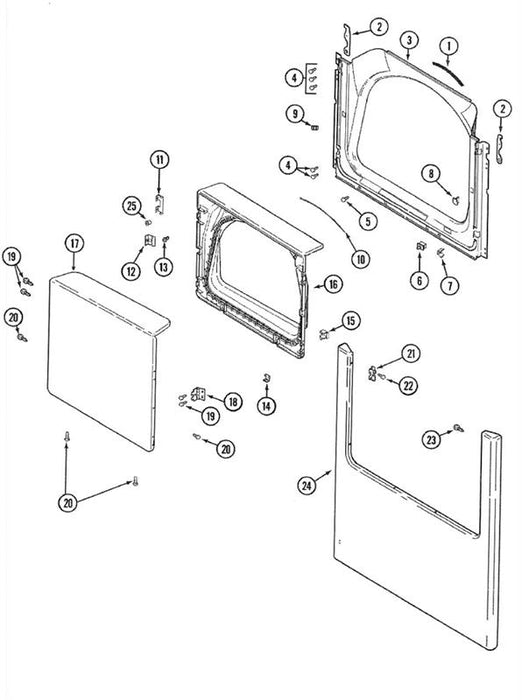

Product Details	S.P. Ref.	S.P. Code
Sold Out SEAL, SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001767
Sold Out HOOK, SECURITY Regular price $0.00 Sale price $0.00 Regular price Unit price	2	22002247
Sold Out SHROUD (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001954
Sold Out SHROUD (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001900
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22001995
Sold Out SCREW, SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001768
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33002167
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001760
Sold Out BRACKET, HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001760
Sold Out PLUG, DOOR CATCH Regular price $0.00 Sale price $0.00 Regular price Unit price	8	33001174
Sold Out CATCH, DOOR (W/PLUG) Regular price $0.00 Sale price $0.00 Regular price Unit price	9	33001791
Sold Out CATCH, DOOR (FEMALE) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y304578
Sold Out SEAL, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33002094
Sold Out CLIP, DOOR (DOUBLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	22002038
Sold Out BRACKET, STRIKE Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001793
Sold Out STRIKE, DOOR (MAKE) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001761
Sold Out CLIP, DOOR (SINGLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	14	22002039
Sold Out PLUG, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001763
Sold Out SCREW No.8-18A8 WAFER HD Regular price $0.00 Sale price $0.00 Regular price Unit price	16	22002068
Sold Out CLIP, DOOR (SINGLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22002039
Sold Out DOOR, INNER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001899
Sold Out SHEET, SOUND DAMPER (FT. PNL) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	22001817
Sold Out DOOR, OUTER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001904
Sold Out HINGE, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001759
Sold Out SGREW Regular price $0.00 Sale price $0.00 Regular price Unit price	19	22002062
Sold Out SCREW No.8—18AB WAFER HD Regular price $0.00 Sale price $0.00 Regular price Unit price	20	22002063
Sold Out COVER, HINGE HOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33001764
Sold Out SCREW, HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	22	33001787
Sold Out SCREW, HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	23	22002012
Sold Out PANEL, FRONT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	24	33001901
Sold Out BUSHING, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	25	33001771

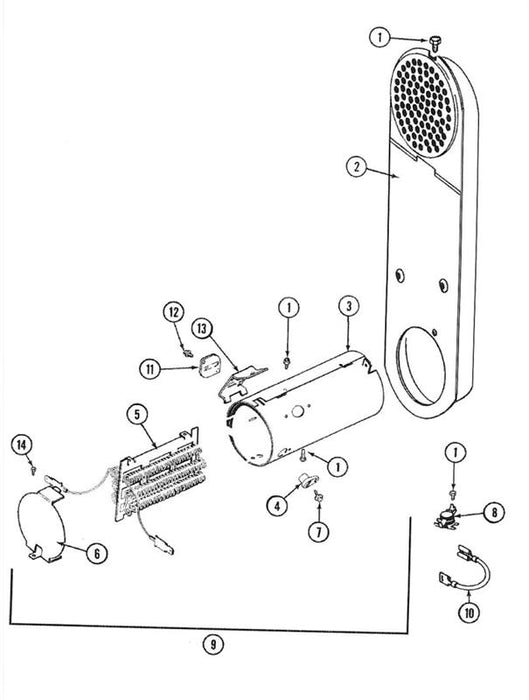

Product Details	S.P. Ref.	S.P. Code
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	1	211294
Sold Out DUCT ASSY., INLET Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001803
Sold Out HEATER ENCLOSURE Regular price $0.00 Sale price $0.00 Regular price Unit price	3	314995
Sold Out FUSE, THERMAL Regular price $0.00 Sale price $0.00 Regular price Unit price	4	307473
Sold Out INSULATOR, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	-	314998
Sold Out HEATER SUB-ASSEMBLY 240V Regular price $0.00 Sale price $0.00 Regular price Unit price	5	307186
Sold Out SHIELD, RADIANT Regular price $0.00 Sale price $0.00 Regular price Unit price	6	314999
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	7	314554
Sold Out THERMOSTAT, HI-L1MIT (ELEC) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	303396
Sold Out HEATER ASSEMBLY (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	9	307180
Sold Out WIRE, JUMPER Regular price $0.00 Sale price $0.00 Regular price Unit price	10	Y307173
Sold Out FUSE, THERMAL Regular price $0.00 Sale price $0.00 Regular price Unit price	11	307473
Sold Out SCREW, END OF CYCLE----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001860
Sold Out BRACKET, THERMAL FUSE Regular price $0.00 Sale price $0.00 Regular price Unit price	13	315346
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	14	22001996
Sold Out CONVERSION KIT (240V TO 208V) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y308590

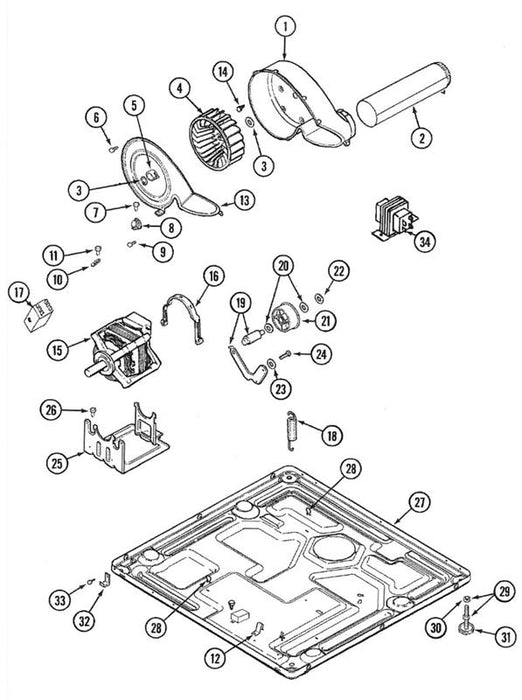

Product Details	S.P. Ref.	S.P. Code
Sold Out HOUSING, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001780
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	2	22001995
Sold Out DUCT ASSY., EXHAUST Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001800
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	3	410233
Sold Out WHEEL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33001790
Sold Out WHEEL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002797
Sold Out CLAMP, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	5	312967
Sold Out SCREW (HEX HEAD) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001855
Sold Out SCREW----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	7	Y313561
Sold Out THERMOSTAT, MULTI-TEMP (ELEC) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	307249
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	9	22001996
Sold Out FUSE, THERMAL (W BRACKET) Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33001762
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314848
Sold Out SLIP, GROUNDING Regular price $0.00 Sale price $0.00 Regular price Unit price	12	22002244
Sold Out COVER, BLOWER HOUSING----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001873
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	14	314818
Sold Out MOTOR (230V 50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33002463
Sold Out MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001945
Sold Out MOTOR & PULLEY ASSEMBLY (50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002479
Sold Out MOTOR, DRIVE 50HZ Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002796
Sold Out CLIP, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	16	Y015825
Sold Out SWITCH, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	17	33002451
Sold Out SPRING, IDLER Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001754
Sold Out PLUG FOR SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002461
Sold Out GROMMET Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002157
Sold Out SPRING, IDLER Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002460
Sold Out IDLER ARM 8 SHAFT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33001840
Sold Out WASHER, IDLER SHAFT (QTY-1) Regular price $0.00 Sale price $0.00 Regular price Unit price	20	Y312527
Sold Out BEARING, IDLER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33001783
Sold Out RETAINING RING, IDLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	22	312958
Sold Out SLEEVE, IDLER ARM Regular price $0.00 Sale price $0.00 Regular price Unit price	23	315772
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	24	Y014874
Sold Out SUPPORT, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	25	33002466
Sold Out SCREW----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	-	Y313561
Sold Out SUPPORT, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001752
Sold Out SCREW NA Regular price $0.00 Sale price $0.00 Regular price Unit price	26	Y313561
Sold Out BASE, (LWR) Regular price $0.00 Sale price $0.00 Regular price Unit price	27	33002622
Sold Out BASE, (LWR)----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002465
Sold Out BASE, (LWR)----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002465
Sold Out BASE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001845
Sold Out SPRING, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	28	410490
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	29	Y305086
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	30	Y052740
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	31	Y314137
Sold Out CLIP, LOWER FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	32	22002239
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	33	Y310632
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	34	Y313559
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	211294

Product Details	S.P. Ref.	S.P. Code
Sold Out OUTLET DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001799
Sold Out FILTER, LINT Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001808
Sold Out SEAL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001758
Sold Out SCREW (No.10-3/8“) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33002190
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	5	Y310376
Sold Out FRONT, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001802
Sold Out COVER, THERMOSTAT (ELEC ONLY) Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001837
Sold Out TUMBLER BEARING KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306508
Sold Out RIVET Regular price $0.00 Sale price $0.00 Regular price Unit price	9	210720
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	10	22001996
Sold Out SCREW, No.8 X 9/16 CTSK Regular price $0.00 Sale price $0.00 Regular price Unit price	11	210932
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001078
Sold Out SCREW----NA Regular price $0.00 Sale price $0.00 Regular price Unit price	12	312311
Sold Out SCREW (HEX HEAD) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001855
Sold Out SEAL, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001807
Sold Out BAFFLE (TALL) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001756
Sold Out BAFFLE (SHORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33001755
Sold Out TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	17	33001889
Sold Out BELT, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001777
Sold Out SCREW, BAFFLE Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33001788
Sold Out BACK, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	20	33001801
Sold Out NUT, HEY (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33001443
Sold Out WASHER, SPRING (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	22	Y313347
Sold Out SHAFT, TUMBLER ROLLER Regular price $0.00 Sale price $0.00 Regular price Unit price	23	Y312948
Sold Out BEARING & ROLLER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	24	Y303373
Sold Out WASHER, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	25	312535
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	26	410233

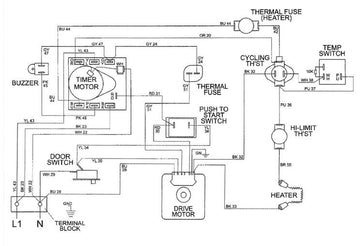

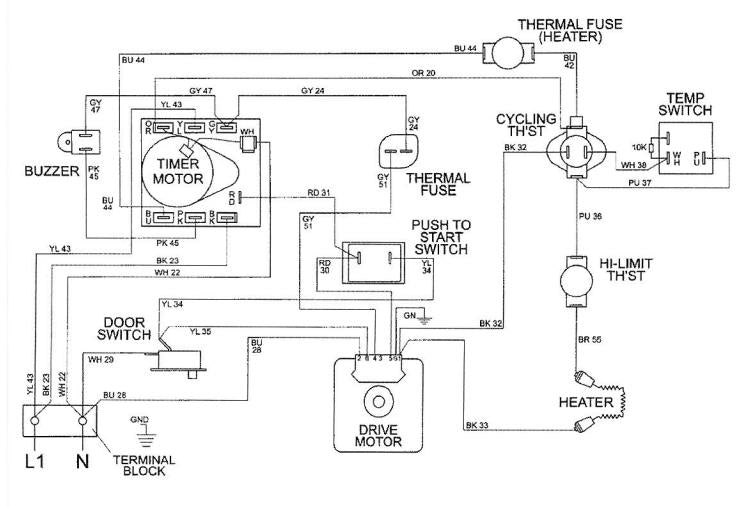

Wiring Diagram

Parts Manual

Search our store

MDE8426AAW

MDE8426AAW

33002631

33001896

33001859

912365

33D01826

33002137

22001995

33002106

33001244

Y312209

Y311270

Y312184

33001245

311484

311093

33002642

22003367

22001995

33001897

33002624

22002049

213280

22001995

Y310376

22003409

213007

33002642

33002624

33001897

33001827

33001795

22001995

22003409

22001995

33001942

Y22002339

33001621

22001659

22001664

33001619

33001690

33001636

912365

33001859

216423

33002252

33002251

33001943

33001638

22001942

22001663

33001806

216423

22002285

33001902

33001767

22002247

33001954

33001900

22001995

33001768

33002167

33001760

33001760

33001174

33001791

Y304578
