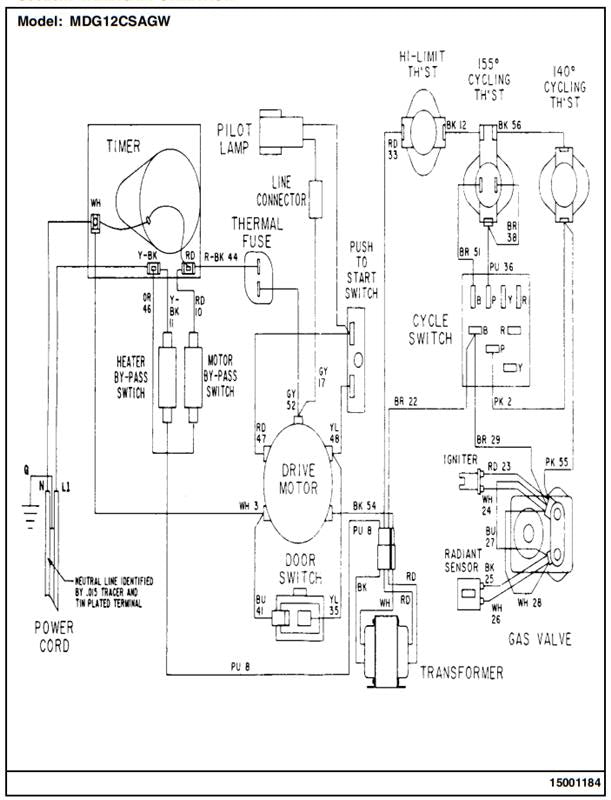

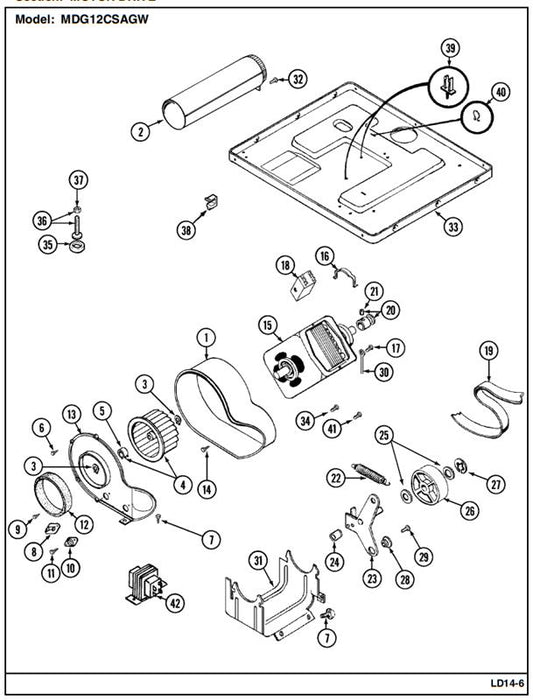

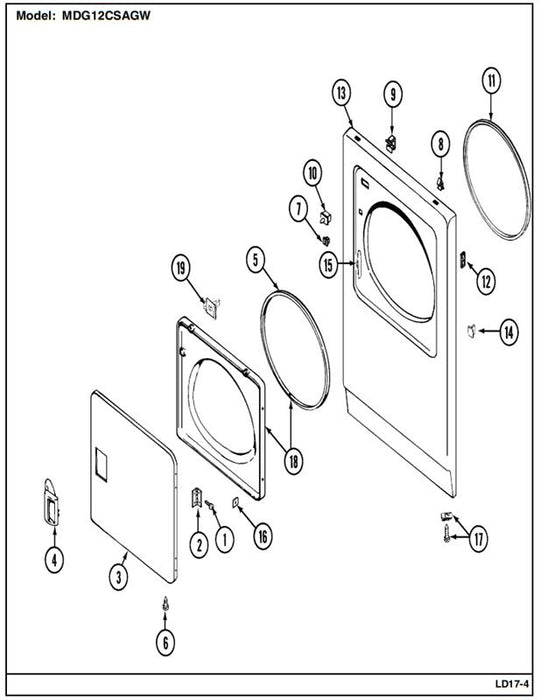

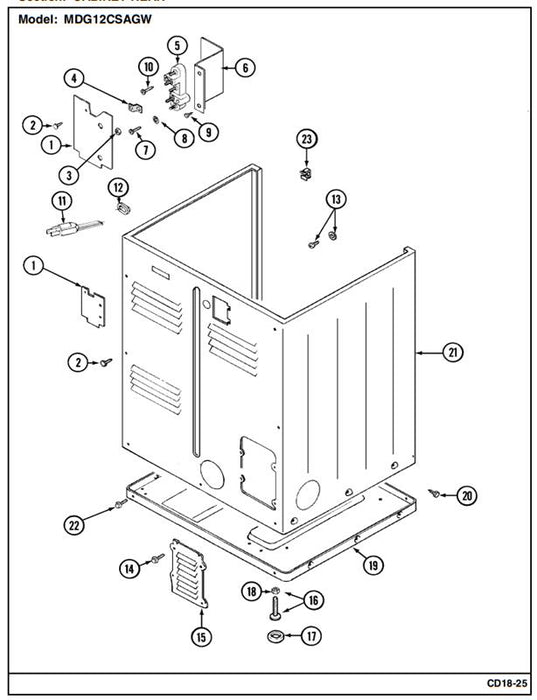

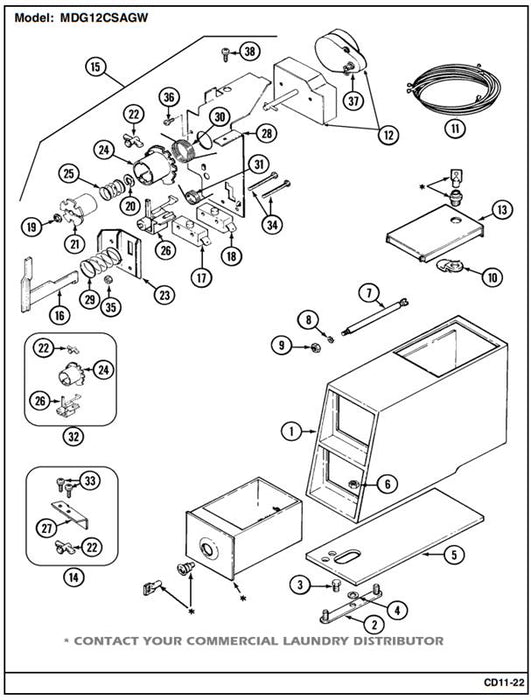

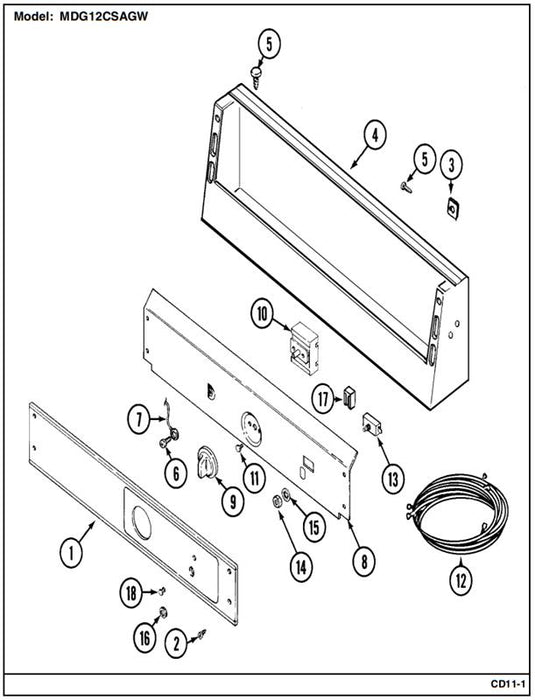

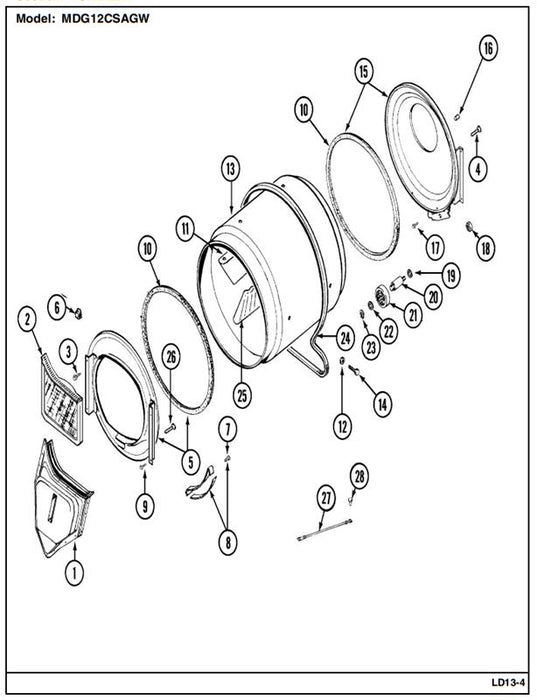

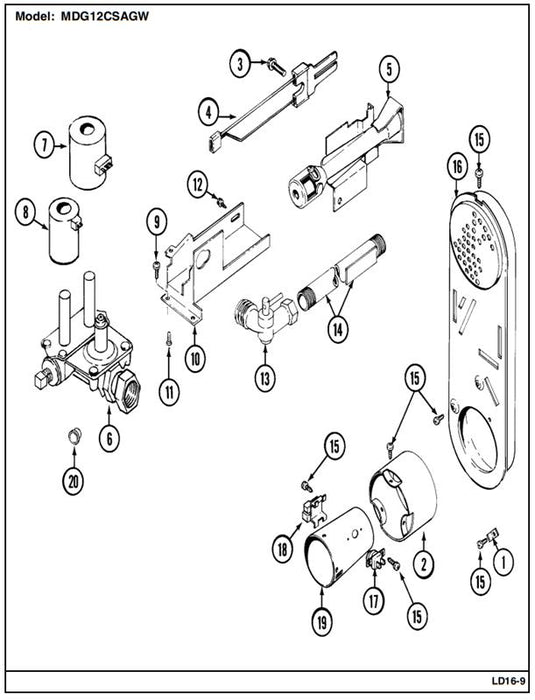

MDG12CSAGW

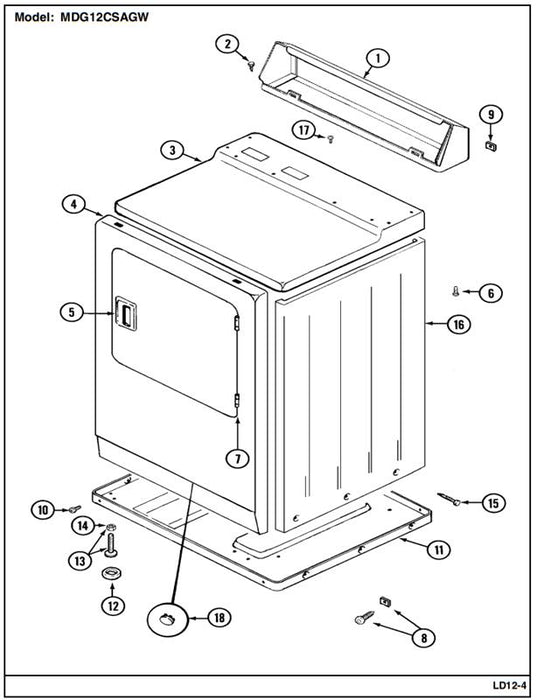

Exploded View 1

Product Details	S.P. Ref.	S.P. Code
Sold Out PANEL, CONTROL Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001707
Sold Out SCREW, TORX Note: SCREW, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	2	215506
Sold Out FASTENER Note: FASTENER, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	3	215003
Sold Out CONTROL COVER (WHT) Note: CONSOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	306689
Sold Out SCREW Note: SCREW, CONSOLE Regular price $0.00 Sale price $0.00 Regular price Unit price	5	212276
Sold Out SCREW Note: SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	6	211252
Sold Out WIRE, GROUND Note: GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	7	205810
Sold Out BACK-UP PLATE - WHITE Note: PLATE, BACK-UP (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	314912
Sold Out KNOB, SELECTOR SWITCH Note: KNOB, SELECTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	9	306938
Sold Out SWITCH, CYCLE SELECTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	307237
Sold Out SCREW Note: SCREW, SELECTOR SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	11	313588
Sold Out HARNESS, WIRE (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001531
Sold Out SWITCH, PUSH-TO-START Regular price $0.00 Sale price $0.00 Regular price Unit price	13	306940
Sold Out LOCK WASHER Note: WASHER, SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	14	312751
Sold Out HEX NUT ON SWITCH Note: NUT, SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	15	312706
Sold Out KNURLED NUT Note: NUT, KNURLED Regular price $0.00 Sale price $0.00 Regular price Unit price	16	312702
Sold Out LIGHT, INDICATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	17	22001365
Sold Out LENS, INDICATOR (AMBER) Note: LENS, INDICATOR LIGHT Regular price $0.00 Sale price $0.00 Regular price Unit price	18	215564

Product Details	S.P. Ref.	S.P. Code
Sold Out VAULT, COIN (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	22001871
Sold Out STRAP, MOUNTING Regular price $0.00 Sale price $0.00 Regular price Unit price	2	22001810
Sold Out SCREW Note: SCREW, MOUNTING STRAP Regular price $0.00 Sale price $0.00 Regular price Unit price	3	211294
Sold Out WASHER Note: WASHER, STRAP SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	4	910309
Sold Out GASKET, COIN VAULT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	22001870
Sold Out NUT Note: NUT, CASE MOUNTING Regular price $0.00 Sale price $0.00 Regular price Unit price	6	052740
Sold Out LOCKING BOLT, COIN SLIDE Note: BOLT, LOCKING Regular price $0.00 Sale price $0.00 Regular price Unit price	7	22001903
Sold Out LOCK WASHER Note: LOCKWASHER, LOCKING BOLT Regular price $0.00 Sale price $0.00 Regular price Unit price	8	910387
Sold Out NUT Note: NUT, LOCKING BOLT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	052721
Sold Out CAM, LOCKING Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	22001905
Sold Out WIRE HARNESS, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33001195
Sold Out TIMER (240V-50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001274
Sold Out GROMMET, DOUBLE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001881
Sold Out LATCH, ACCESS DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001882
Sold Out DOOR, ACCESS (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	22001910
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001883
Sold Out ACTUATOR KIT, DRYER Note: ACTUATOR KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001688
Sold Out TORSION TIMER ASSY. (240-50HZ) Note: TORSION TIMER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001276
Sold Out SLIDER Regular price $0.00 Sale price $0.00 Regular price Unit price	16	314337
Sold Out BYPASS SWITCH FOR MOTOR Note: SWITCH, BY-PASS (MOTOR) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	305798
Sold Out BYPASS SWITCH FOR HEATER Note: SWITCH, BY-PASS (HEATER) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	305799
Sold Out LOCK RING FOR TIMER SHAFT Note: RETAINER, SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	19	211790
Sold Out E CLIP Note: CLIP, SPRING RETAINER Regular price $0.00 Sale price $0.00 Regular price Unit price	20	312270
Sold Out DRIVER FOR INDEX WHEEL Note: DRIVER, INDEX WHEEL Regular price $0.00 Sale price $0.00 Regular price Unit price	21	314330
Sold Out TIME ADJUSTMENT PEG Note: PEG, TINE ADJUSTMENT Regular price $0.00 Sale price $0.00 Regular price Unit price	22	314335
Sold Out ADJUSTMENT RETURN STOP Note: STOP, ADJUSTABLE RETURN Regular price $0.00 Sale price $0.00 Regular price Unit price	22	314547
Sold Out INDEX WHEEL Note: WHEEL, INDEX Regular price $0.00 Sale price $0.00 Regular price Unit price	23	314546
Sold Out SWITCH AND SLIDER BRACKET Note: BRACKET, SWITCH & SLIDER Regular price $0.00 Sale price $0.00 Regular price Unit price	24	314339
Sold Out SPRING, TIMER KNOB Note: SPRING, INDEX WHEEL Regular price $0.00 Sale price $0.00 Regular price Unit price	25	211065
Sold Out ACTUATOR, SWITCH Note: ACTUATOR, SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	26	314548
Sold Out BRACKET, COIN SLIDE Regular price $0.00 Sale price $0.00 Regular price Unit price	27	33001708
Sold Out BRACKET, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	28	33001207
Sold Out HELICAL SPRING Note: SPRING, HELICAL Regular price $0.00 Sale price $0.00 Regular price Unit price	29	314340
Sold Out RETURN SPRING Note: SPRING, TORSION RETURN Regular price $0.00 Sale price $0.00 Regular price Unit price	30	314331
Sold Out ACTUATOR SPRING Note: SPRING, ACTUATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	31	314332
Sold Out TORSION-TIMER KIT Note: ACTUATOR KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	32	306104
Sold Out SCREW Note: SCREW, SLIDE BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	33	212707
Sold Out SCREW Note: SCREW, BY-PASS SWITCHES Regular price $0.00 Sale price $0.00 Regular price Unit price	34	315277
Sold Out HEX. NUT, #6-32 Note: NUT, BY-PASS SWITCHES Regular price $0.00 Sale price $0.00 Regular price Unit price	35	052634
Sold Out SCREW -RELAY TO TUB SUPPORT Note: SCREW, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	36	910708
Sold Out TIMER MOTOR 240-50 Note: MOTOR, TIMER (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	37	306527
Sold Out SCREW, #8 X 5/16 INCH Note: SCREW, TIMER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	38	211168
Sold Out CHUTE, COIN Regular price $0.00 Sale price $0.00 Regular price Unit price	39	22001878
Sold Out PLATE, ADAPTOR (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	40	22001917
Sold Out BRACE, COIN SLIDE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001904

Product Details	S.P. Ref.	S.P. Code
Sold Out CONTROL COVER (WHT) Note: CONSOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1 N	306689
Sold Out SCREW Note: SCREW, CONSOLE Regular price $0.00 Sale price $0.00 Regular price Unit price	2	212276
Sold Out COVER, TOP (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001703
Sold Out PANEL, FASTENER Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001486
Sold Out PANEL, FRONT (WHT) NA Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	33001610
Sold Out HANDLE, DOOR (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001241
Sold Out SCREW Note: SCREW, TOP COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	6	214354
Sold Out HINGE, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001230
Sold Out SCREW, TORX Note: SCREW, FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	8	22001496
Sold Out FASTENER,CNTRL PNL TO CONSOLE Note: FASTENER, CONSOLE Regular price $0.00 Sale price $0.00 Regular price Unit price	9	215075
Sold Out SCREW Note: SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	10	310632
Sold Out SCREW----NA Note: SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	313561
Sold Out BASE ASSY. Note: BASE ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	11	303361
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314137
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	13	305086
Sold Out NUT Note: NUT, LEG Regular price $0.00 Sale price $0.00 Regular price Unit price	14	052740
Sold Out SCREW, CABINET Note: SCREW, CABINET SIDES Regular price $0.00 Sale price $0.00 Regular price Unit price	15	213007
Sold Out CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	33001159
Sold Out SCREW, GROUND WIRE TO BASE--NA Note: SCREW, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	17	210186
Sold Out PLUG, FRONT PANEL (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001614

Product Details	S.P. Ref.	S.P. Code
Sold Out SCREW Note: SCREW, HINGE, DOOR & PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	1	314062
Sold Out HINGE, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001230
Sold Out DOOR (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001240
Sold Out HANDLE, DOOR (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33001241
Sold Out SEAL, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001131
Sold Out PLUG, SIGHT HOLE (WHT) Note: PLUG, DOOR (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001132
Sold Out CATCH, DOOR (FEMALE) Regular price $0.00 Sale price $0.00 Regular price Unit price	7	304578
Sold Out FASTENER, SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	8	22001650
Sold Out CLIP, WIRE HARNESS Note: CLIP, CABLE Regular price $0.00 Sale price $0.00 Regular price Unit price	9	310376
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33001892
Sold Out SEAL, FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314937
Sold Out SCREW, PLASTIC Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	33001172
Sold Out NUT, SPEED Note: SPEEDNUT, HINGE SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	12 N	33001173
Sold Out PANEL, FASTENER Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001486
Sold Out PANEL, FRONT (WHT) NA Regular price $0.00 Sale price $0.00 Regular price Unit price	13 N	33001610
Sold Out PLUG, DOOR CATCH Regular price $0.00 Sale price $0.00 Regular price Unit price	14 N	33001174
Sold Out COVER, HINGE HOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001175
Sold Out CLIP, DOOR LINER TO OUTER PNL Note: FASTENER, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	16	313910
Sold Out SCREW, TORX Note: SCREW, FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	17	22001496
Sold Out DOOR, INNER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001243
Sold Out STRIKE PLATE Note: BRACKET, STRIKE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	314944
Sold Out STRIKE, DOOR (W/BRACKET) Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33001305

Product Details	S.P. Ref.	S.P. Code
Sold Out DUCT ASSY., OUTLET Note: OUTLET DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001016
Sold Out FILTER, LINT Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001170
Sold Out SCREW Note: SCREW, TUMBLER SUPPORT Regular price $0.00 Sale price $0.00 Regular price Unit price	3 N	313764
Sold Out SCREW----NA Note: SCREW, TUMBLER FRONT Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	313561
Sold Out FRONT, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001179
Sold Out CLIP, WIRE HARNESS Note: CLIP, CABLE Regular price $0.00 Sale price $0.00 Regular price Unit price	6	310376
Sold Out RIVET Regular price $0.00 Sale price $0.00 Regular price Unit price	7	210720
Sold Out TUMBLER BEARING KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306508
Sold Out SCREW Note: SCREW, TUMBLER FRONT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	310632
Sold Out SEAL, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	10	314820
Sold Out BAFFLE (SHORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33001012
Sold Out WASHER Note: WASHER, BAFFLE Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314158
Sold Out DRYER TUMBLER, W/O BAFFLES Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001108
Sold Out SCREW Note: SCREW, TUMBLER BAFFLE Regular price $0.00 Sale price $0.00 Regular price Unit price	14	310759
Sold Out BACK, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001178
Sold Out COVER, THREAD Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	313915
Sold Out SCREW Note: SCREW, TUMBLER BACK Regular price $0.00 Sale price $0.00 Regular price Unit price	17	310632
Sold Out NUT, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	18	312538
Sold Out WASHER, SPRING (ROLLER SHAFT) Note: WASHER, SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	19	313347
Sold Out SHAFT, TUMBLER ROLLER Regular price $0.00 Sale price $0.00 Regular price Unit price	20	312948
Sold Out BEARING & ROLLER ASSEMBLY Note: ROLLER (W/BEARING) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	303373
Sold Out WASHER, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	22	312535
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	23	410233
Sold Out BELT, TUMBLER & MOTOR Note: BELT, DRUM Regular price $0.00 Sale price $0.00 Regular price Unit price	24	312959
Sold Out BAFFLE, TALL Note: BAFFLE (TALL) Regular price $0.00 Sale price $0.00 Regular price Unit price	25	33001004
Sold Out SCREW, INLET DUCT Note: SCREW, OUTLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	26	314110
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	27	901220
Sold Out SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	28	910343

Product Details	S.P. Ref.	S.P. Code
Sold Out RETAINER, HEATER CHAMBER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	312890
Sold Out EXTENSION F/COMBUSTION CONE Note: EXTENSION, CONE Regular price $0.00 Sale price $0.00 Regular price Unit price	2 N	304953
Sold Out SCREW Note: SCREW, IGNITER Regular price $0.00 Sale price $0.00 Regular price Unit price	3	304971
Sold Out IGNITER ASSY, GAS VALVE Note: IGNITER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	4	304970
Sold Out BURNER ASSY. Note: BURNER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001247
Sold Out VALVE, GAS Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001847
Sold Out GAS VALVE - 120V-50HZ Note: VALVE, GAS Regular price $0.00 Sale price $0.00 Regular price Unit price	6	307927
Sold Out COIL, HOLDING & BOOSTER Regular price $0.00 Sale price $0.00 Regular price Unit price	7	306106
Sold Out COIL, SECONDARY Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306105
Sold Out SCREW----NA Note: SCREW, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	9 N	313561
Sold Out BRACKET, GAS VALVE Note: BRACKET, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	10	314566
Sold Out SCREW Note: SCREW, GAS VALVE ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	11	313559
Sold Out SCREW Note: SCREW, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314082
Sold Out SCREW-GAS VALVE TO BRACKET Note: SCREW, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314568
Sold Out CONNECTOR, ANGLE Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001842
Sold Out SHUT-OFF, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	13	303349
Sold Out PIPE & BRACKET ASSY. Note: PIPE & BRACKET ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	14	303383
Sold Out SCREW Note: SCREW, DUCT, CONE & SENSOR Regular price $0.00 Sale price $0.00 Regular price Unit price	15	211294
Sold Out INLET DUCT ASSY. Note: INLET DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	16	308504
Sold Out THERMOSTAT, HI-LIMIT (GAS) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	303395
Sold Out SENSOR, RADIANT Note: SENSOR, RADIANT Regular price $0.00 Sale price $0.00 Regular price Unit price	18	303377
Sold Out CONE, COMBUSTION Regular price $0.00 Sale price $0.00 Regular price Unit price	19	308549
Sold Out CAP, GAS PIPE Regular price $0.00 Sale price $0.00 Regular price Unit price	20	33001693

Product Details	S.P. Ref.	S.P. Code
Sold Out HOUSING, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	312893
Sold Out EXHAUST DUCT ASSY. Note: EXHAUST DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	2	303442
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	3	410233
Sold Out BLOWER WHEEL ASSEMBLY & CLAMP Note: BLOWER WHEEL ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	4	303836
Sold Out CLAMP, BLOWER HOUSING Note: CLAMP, BLOWER WHEEL Regular price $0.00 Sale price $0.00 Regular price Unit price	5	312967
Sold Out SCREW Note: SCREW, HOUSING COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	6	312961
Sold Out SCREW----NA Note: SCREW, HOUSING COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	7 N	313561
Sold Out THERMOSTAT, MULTI-TEMP Regular price $0.00 Sale price $0.00 Regular price Unit price	-	306966
Sold Out CYCLING THERMOSTAT 140 DEG. Note: THERMOSTAT, CYCLING Regular price $0.00 Sale price $0.00 Regular price Unit price	8	303392
Sold Out SCREW Note: SCREW, THERMOSTAT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	211294
Sold Out CUT-OFF, THERMAL Note: CUT-OFF, THERMAL Regular price $0.00 Sale price $0.00 Regular price Unit price	10	306604
Sold Out SCREW Note: SCREW, THERMAL CUT-OFF Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314848
Sold Out SEAL, BLOWER Note: SEAL, HOUSING COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	312901
Sold Out COVER FOR BLOWER Note: COVER, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	13	314778
Sold Out SCREW Note: SCREW, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	14	314818
Sold Out MOTOR 240-50 Note: MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	15	304656
Sold Out CLIP, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	16	015825
Sold Out SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	17	910343
Sold Out SWITCH, MOTOR STARTPROD. Note: SWITCH, MOTOR EXTERNAL START (PROD. # 303358 & 303358-6) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	303879
Sold Out SWITCH, MOTOR START-PROD. Note: SWITCH, MOTOR EXTERNAL START (PROD. # 303358-8 & 303358-9) Regular price $0.00 Sale price $0.00 Regular price Unit price	18 N	306207
Sold Out SWITCH, MOTOR Note: SWITCH, MOTOR EXTERNAL START (#303358-2, 303358-4,303358-7) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	303877
Sold Out BELT, TUMBLER & MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	19	312959
Sold Out MOTOR PULLEY - 50 CYCLE Note: PULLEY, MOTOR (W/SET SCREW) Regular price $0.00 Sale price $0.00 Regular price Unit price	20	305186
Sold Out SET SCREW, PULLEY Note: SCREW, SET Regular price $0.00 Sale price $0.00 Regular price Unit price	21	053241
Sold Out IDLER SPRING ASSEMBLY Note: IDLER SPRING ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	22	303945
Sold Out IDLER ARM & SHAFT ASSY. Note: IDLER ARM & SHAFT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	23	303363
Sold Out SPACER, IDLER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	24	313582
Sold Out WASHER, IDLER SHAFT (QTY-1) Regular price $0.00 Sale price $0.00 Regular price Unit price	25	312527
Sold Out PULLEY, IDLER Regular price $0.00 Sale price $0.00 Regular price Unit price	26	303705
Sold Out RETAINING RING, IDLER SHAFT Note: RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	27	312958
Sold Out SLEEVE, IDLER ARM Regular price $0.00 Sale price $0.00 Regular price Unit price	28 N	312894
Sold Out SCREW Note: SCREW, IDLER ARM Regular price $0.00 Sale price $0.00 Regular price Unit price	29	014874
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	30	901220
Sold Out SUPPORT, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	31 N	312897
Sold Out SCREW Note: SCREW, EXHAUST DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	32	310632
Sold Out BASE Note: BASE ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	33	305084
Sold Out SCREW Note: SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	34	211294
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	35	314137
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	36	305086
Sold Out NUT Note: NUT, LEG Regular price $0.00 Sale price $0.00 Regular price Unit price	37	052740
Sold Out CLIP, WIRE HARNESS Note: CLIP, CABLE Regular price $0.00 Sale price $0.00 Regular price Unit price	38	310376
Sold Out RETAINER, WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	39	315471
Sold Out SPRING, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	40	410490
Sold Out SCREW Note: SCREW, SPACER Regular price $0.00 Sale price $0.00 Regular price Unit price	41	312961
Sold Out TRANSFORMER 240V 50HZ Note: TRANSFORMER Regular price $0.00 Sale price $0.00 Regular price Unit price	42	307928
Sold Out SCREW Note: SCREW, TRANSFORMER Regular price $0.00 Sale price $0.00 Regular price Unit price	-	211294

Product Details	S.P. Ref.	S.P. Code
Sold Out COVER, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	1	312905
Sold Out SCREW----NA Note: SCREW, TERMINAL COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	2 N	313561
Sold Out LOCKNUT, EARED FOR CANADIAN Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001425
Sold Out CORD, POWER Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33001285
Sold Out GROMMET, CORD EXPORT Regular price $0.00 Sale price $0.00 Regular price Unit price	12	216183
Sold Out SCREW & WASHER ASSY. Note: SCREW & WASHER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	13	303846
Sold Out SCREW Note: SCREW, ACCESS COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	14	216423
Sold Out COVER, ACCESS Regular price $0.00 Sale price $0.00 Regular price Unit price	15	312951
Sold Out ADJUSTABLE LEG & NUT Note: LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	16	305086
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	17	314137
Sold Out NUT Note: NUT, LEG Regular price $0.00 Sale price $0.00 Regular price Unit price	18	052740
Sold Out BASE ASSY. Note: BASE ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	19	303361
Sold Out SCREW, CABINET Note: SCREW, CABINET SIDES Regular price $0.00 Sale price $0.00 Regular price Unit price	20	213007
Sold Out CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	21 N	33001159
Sold Out SCREW----NA Note: SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	313561
Sold Out SCREW Note: SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	22	310632
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	23	310376

Wiring Diagram

Parts Manual

Search our store

MDG12CSAGW

MDG12CSAGW

33001707

215506

215003

306689

212276

211252

205810

314912

306938

307237

313588

33001531

306940

312751

312706

312702

22001365

215564

22001871

22001810

211294

910309

22001870

052740

22001903

910387

052721

22001905

33001195

33001274

22001881

22001882

22001910

22001883

33001688

33001276

314337

305798

305799

211790

312270

314330

314335

314547

314546

314339

211065

314548

33001708

33001207

314340

314331

314332

306104

212707

315277

052634

910708

306527

211168

22001878

22001917

22001904

306689

212276

33001703

33001486
