MDG16CSDGW

Exploded View 1

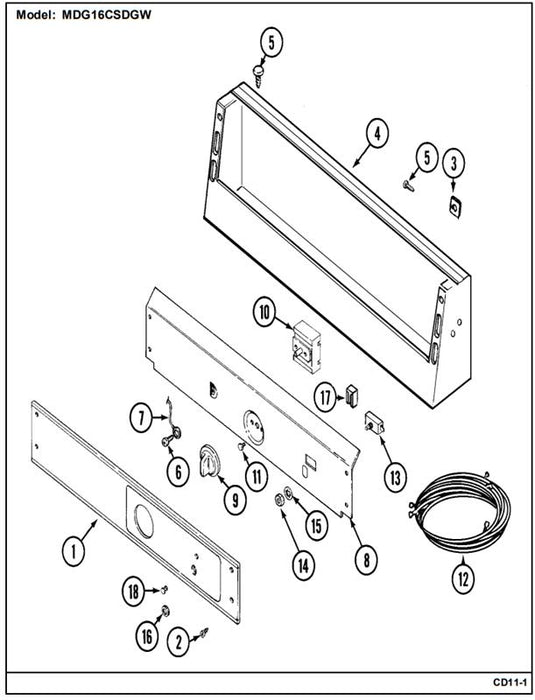

Product Details	S.P. Ref.	S.P. Code
Sold Out FACIA - CS (CONTROL PANEL) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33002938
Sold Out SCREW, TORX Note: SCREW, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	2	215506
Sold Out SCREW, TORX Note: FASTENER, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	3	215506
Sold Out TRANSFORMER Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001948
Sold Out CONSOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22003089
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22002925
Sold Out SCREW Note: SCREW, CONSOLE Regular price $0.00 Sale price $0.00 Regular price Unit price	5	212276
Sold Out SCREW Note: SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	6	211252
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	7	205810
Sold Out BRACKET, BACK (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	33002522
Sold Out KNOB, SELECTOR SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	9	306938
Sold Out SWITCH, CYCLE SELECTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33002276
Sold Out SCREW Note: SCREW, SELECTOR SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	11	313588
Sold Out HARNESS, WIRE MAIN Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33002771
Sold Out SWITCH, PUSH-TO-START Regular price $0.00 Sale price $0.00 Regular price Unit price	13	306940
Sold Out HEX NUT ON SWITCH Note: NUT, SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	14	Y312706
Sold Out LOCK WASHER Note: WASHER, LOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	15	312751
Sold Out KNURLED NUT Note: NUT, KNURLED Regular price $0.00 Sale price $0.00 Regular price Unit price	16	Y312702
Sold Out LIGHT, INDICATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	17	22001365
Sold Out LENS, INDICATOR (AMBER) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	215564
Sold Out MANUAL, SERVICE-NO REFUND Regular price $0.00 Sale price $0.00 Regular price Unit price	-	16009021

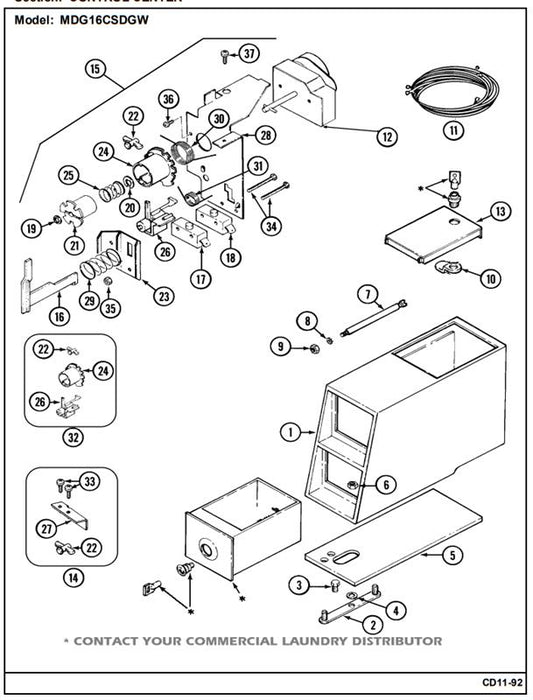

Product Details	S.P. Ref.	S.P. Code
Sold Out VAULT, COIN (WHT)CS Regular price $0.00 Sale price $0.00 Regular price Unit price	1	22002478
Sold Out STRAP, MOUNTING Regular price $0.00 Sale price $0.00 Regular price Unit price	2	22001810
Sold Out SCREW Note: SCREW, MOUNTING STRAP Regular price $0.00 Sale price $0.00 Regular price Unit price	3	211294
Sold Out WASHER Note: WASHER, STRAP SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	4	910309
Sold Out GASKET, CONTROL CENTER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	22002072
Sold Out NUT Note: NUT, CASE MOUNTING Regular price $0.00 Sale price $0.00 Regular price Unit price	6	Y052740
Sold Out LOCKING BOLT, COIN SLIDE Note: BOLT, LOCKING Regular price $0.00 Sale price $0.00 Regular price Unit price	7	22001903
Sold Out LOCK WASHER Note: LOCKWASHER, LOCKING BOLT Regular price $0.00 Sale price $0.00 Regular price Unit price	8	910387
Sold Out NUT Note: NUT, LOCKING BOLT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	Y052721
Sold Out LOCKING CAM Regular price $0.00 Sale price $0.00 Regular price Unit price	10	22003677
Sold Out WIRE HARNESS, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33001195
Sold Out TIMER (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33002136
Sold Out TIMER ACCESS DOOR ASSY (WHITE) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	22003679
Sold Out GROMMET, DOUBLE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001881
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001883
Sold Out LATCH, ACCESS DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001882
Sold Out ACTUATOR, DRYER KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33002598
Sold Out TORSION TIMER ASSY. (240-50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001276
Sold Out SLIDER Regular price $0.00 Sale price $0.00 Regular price Unit price	16	314337
Sold Out BYPASS SWITCH FOR MOTOR Note: SWITCH, BY-PASS (MOTOR) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	305798
Sold Out BYPASS SWITCH FOR HEATER Note: SWITCH, BY-PASS (HEATER) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	Y305799
Sold Out LOCK RING FOR TIMER SHAFT Note: RETAINER, SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	19	211790
Sold Out E CLIP Note: CLIP, SPRING RETAINER Regular price $0.00 Sale price $0.00 Regular price Unit price	20	312270
Sold Out DRIVER FOR INDEX WHEEL Note: DRIVER, INDEX WHEEL Regular price $0.00 Sale price $0.00 Regular price Unit price	21	314330
Sold Out TIME ADJUSTMENT PEG Note: PEG, TINE ADJUSTMENT Regular price $0.00 Sale price $0.00 Regular price Unit price	22	314335
Sold Out ADJUSTMENT RETURN STOP Note: STOP, ADJUSTABLE RETURN Regular price $0.00 Sale price $0.00 Regular price Unit price	22	314547
Sold Out SWITCH AND SLIDER BRACKET Note: BRACKET, SWITCH & SLIDER Regular price $0.00 Sale price $0.00 Regular price Unit price	23	314339
Sold Out INDEX WHEEL Note: WHEEL, INDEX Regular price $0.00 Sale price $0.00 Regular price Unit price	24	314546
Sold Out SPRING, TIMER KNOB Note: SPRING, INDEX WHEEL Regular price $0.00 Sale price $0.00 Regular price Unit price	25	211065
Sold Out BRACKET, COIN SLIDE Regular price $0.00 Sale price $0.00 Regular price Unit price	26	33001708
Sold Out BRACKET, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	26	33001207
Sold Out HELICAL SPRING Note: SPRING, HELICAL Regular price $0.00 Sale price $0.00 Regular price Unit price	27	314340
Sold Out RETURN SPRING Note: SPRING, TORSION RETURN Regular price $0.00 Sale price $0.00 Regular price Unit price	28	314331
Sold Out ACTUATOR SPRING Note: SPRING, ACTUATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	29	314332
Sold Out TORSION-TIMER KIT Note: ACTUATOR KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	30	306104
Sold Out SCREW Note: SCREW, SLIDE BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	31	212707
Sold Out SCREW Note: SCREW, BY-PASS SWITCHES Regular price $0.00 Sale price $0.00 Regular price Unit price	32	315277
Sold Out HEX. NUT, #6-32 Note: NUT, BY-PASS SWITCHES Regular price $0.00 Sale price $0.00 Regular price Unit price	33	Y052634
Sold Out SCREW -RELAY TO TUB SUPPORT Note: SCREW, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	34	910708
Sold Out SCREW, #8 X 5/16 INCH Note: SCREW, TIMER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	35	211168

Product Details	S.P. Ref.	S.P. Code

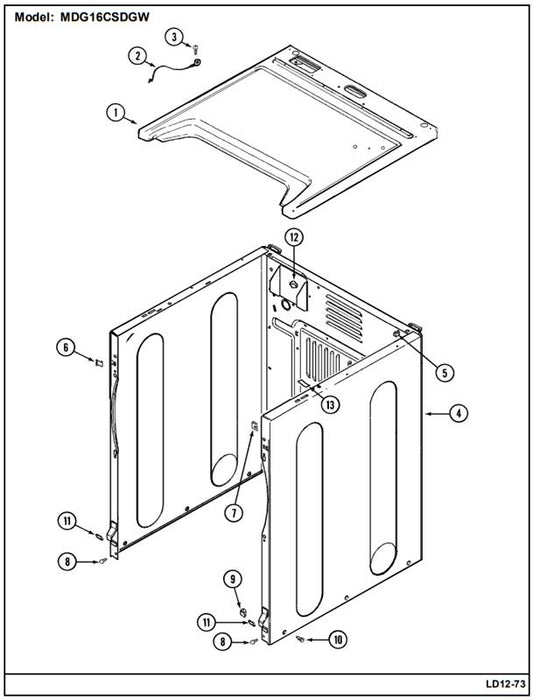

Sold Out COVER, TOP (WHT-AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33002633
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	2	22001959
Sold Out SCREW, GROUND WIRE TO BASE--NA Note: SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	3	210186
Sold Out CABINET ASSY. (WHT AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	22003643
Sold Out FASTENER Regular price $0.00 Sale price $0.00 Regular price Unit price	5	310933
Sold Out CLIP Regular price $0.00 Sale price $0.00 Regular price Unit price	6	22002049
Sold Out FRONT PANEL BRACKET/FASTENER Note: RETAINER, SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	7	213280
Sold Out SCREW Note: SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	8	22001995
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	9	310376
Sold Out SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	10	213007
Sold Out SCREW----NA Note: SCREW, CABINET (TRUSS) Regular price $0.00 Sale price $0.00 Regular price Unit price	10	22003409
Sold Out CLIP, LOWER FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	11	22002239
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	12	310376
Sold Out STRAP, TOP COVER SUPPORT Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001836

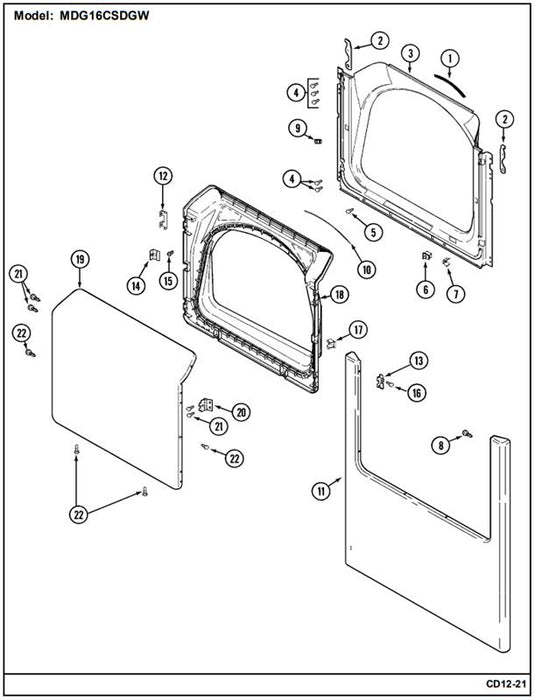

Product Details	S.P. Ref.	S.P. Code
Sold Out SEAL, SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001767
Sold Out HOOK, SECURITY Regular price $0.00 Sale price $0.00 Regular price Unit price	2	22002247
Sold Out SHROUD (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001900
Sold Out SCREW Note: SCREW, TUMBLER FRONT & SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22001995
Sold Out SCREW, SHROUD Note: SCREW, SHROUD & OUTLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001768
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33002239
Sold Out BRACKET, HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001760
Sold Out CATCH, DOOR (FEMALE) Regular price $0.00 Sale price $0.00 Regular price Unit price	9	Y304578
Sold Out SEAL, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33002094
Sold Out CLIP, DOOR (DOUBLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	22002038
Sold Out BUSHING, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001771
Sold Out BRACKET, STRIKE Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001793
Sold Out STRIKE, DOOR (MALE) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001761
Sold Out CLIP, DOOR (SINGLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	16	22002039
Sold Out PLUG, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	17	33001763
Sold Out DOOR, INNER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001899
Sold Out DOOR, OUTER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33001904
Sold Out HINGE, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	20	33001759
Sold Out SCREW Note: SCREW, HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	21	22002062
Sold Out SCREW #8-18AB WAFER HD Regular price $0.00 Sale price $0.00 Regular price Unit price	22	22002063
Sold Out COVER, HINGE HOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	23	33001764
Sold Out SCREW Note: SCREW, HINGE HOLE COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	24	33001846
Sold Out CLIP, GROUNDING Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22002244
Sold Out SCREW Note: SCREW, HINGE BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	25	22002243
Sold Out CLIP, LOWER FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22002239
Sold Out PANEL, FRONT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	26	33001901
Sold Out FRONT PANEL BRACKET/FASTENER Note: FASTENER, FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	-	213280

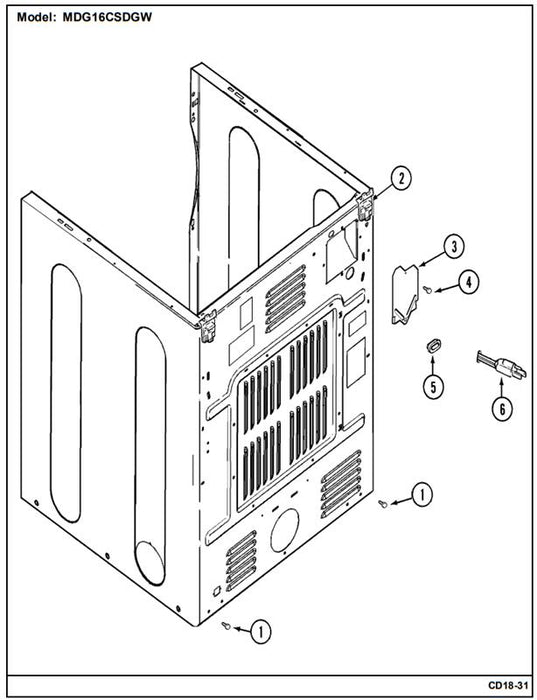

Product Details	S.P. Ref.	S.P. Code
Sold Out SCREW Note: SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	1	22001995
Sold Out HINGE, PLASTIC Regular price $0.00 Sale price $0.00 Regular price Unit price	2	22004095
Sold Out SCREW Note: SCREW, HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001995
Sold Out COVER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001795
Sold Out SCREW Note: SCREW, TERMINAL BLOCK COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22001995
Sold Out GROMMET, CORD EXPORT Regular price $0.00 Sale price $0.00 Regular price Unit price	5	216183
Sold Out CORD ADAPTER ASSY Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22004405
Sold Out CORD, POWER (EXPORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	22003540
Sold Out ADAPTER, CORD EXPORT Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22003705

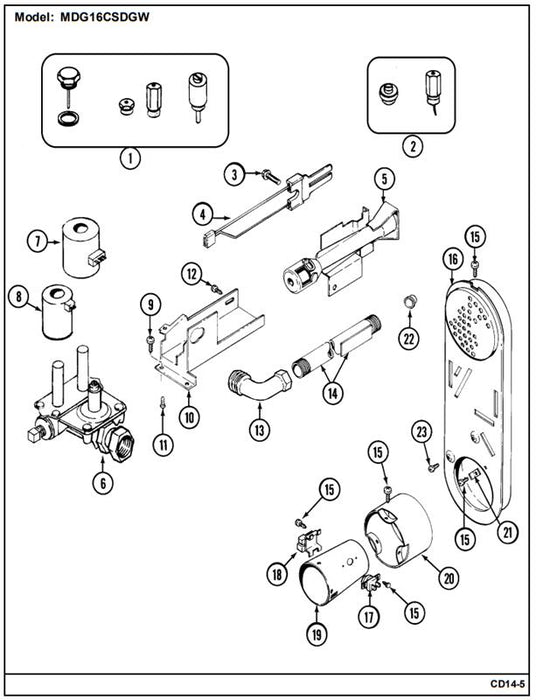

Product Details	S.P. Ref.	S.P. Code
Sold Out CONVERSION KIT (NATURAL TO LP) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	308378
Sold Out CONVERSION KIT (LP TO NATURAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	2	Y308377
Sold Out SCREW Note: SCREW, IGNITER Regular price $0.00 Sale price $0.00 Regular price Unit price	3	304971
Sold Out IGNITER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33002789
Sold Out BURNER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33002793
Sold Out CONTROL, GAS ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33003030
Sold Out GAS VALVE - 120V-50HZ Note: VALVE, GAS (240V-50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	307927
Sold Out GAS VALVE - 120V-50HZ Regular price $0.00 Sale price $0.00 Regular price Unit price	6	307927
Sold Out COIL, HOLDING & BOOSTER Regular price $0.00 Sale price $0.00 Regular price Unit price	7	306106
Sold Out COIL, SECONDARY Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306105
Sold Out SCREW----NA Note: SCREW, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	9 N	313561
Sold Out BRACKET, GAS CONTROL Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33002710
Sold Out SCREW Note: SCREW, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314082
Sold Out SCREW-GAS VALVE TO BRACKET Note: SCREW, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314568
Sold Out SCREW Note: SCREW, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	12	22001995
Sold Out CONNECTOR, ANGLE Note: SERIES 18 NOT NEEDED USE VAVLE Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001842
Sold Out PIPE & BRACKET ASSY. Note: SERIES 18 NOT NEEDED USE VAVLE Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001735
Sold Out SCREW Note: SCREW, DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	15	211294
Sold Out DUCT ASSY., INLET (GAS) Note: INLET DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33001810
Sold Out ASSY,INLET DUCT-GAS Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33003039
Sold Out THERMOSTAT, HI-LIMIT (GAS) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	303395
Sold Out SENSOR, RADIANT Regular price $0.00 Sale price $0.00 Regular price Unit price	18	303377
Sold Out CONE ASSY., COMBUSTION Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33001835
Sold Out CONE, EXTENSION (COMBUSTION) Regular price $0.00 Sale price $0.00 Regular price Unit price	20	Y303841
Sold Out RETAINER, HEATER CHAMBER Regular price $0.00 Sale price $0.00 Regular price Unit price	21	Y312890
Sold Out CAP, GAS PIPE Regular price $0.00 Sale price $0.00 Regular price Unit price	22	33001693
Sold Out SCREW Note: SCREW, DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	23	211294

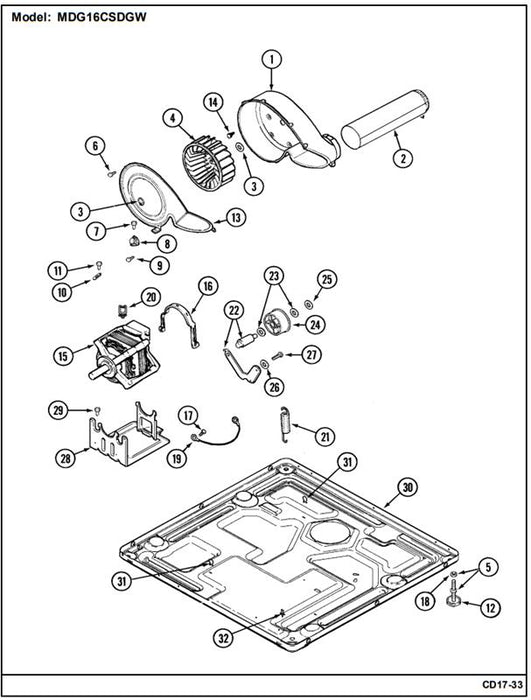

Product Details	S.P. Ref.	S.P. Code
Sold Out HOUSING, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001789
Sold Out DUCT ASSY., EXHAUST Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001800
Sold Out SCREW Note: SCREW, EXHAUST DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001995
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	3	410233
Sold Out WHEEL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33001790
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	5	305086
Sold Out SCREW (HEX HEAD) Note: SCREW, HOUSING COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001855
Sold Out SCREW----NA Note: SCREW, HOUSING COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	7 N	313561
Sold Out CYCLING THERMOSTAT 140 DEG. Note: THERMOSTAT, CYCLING Regular price $0.00 Sale price $0.00 Regular price Unit price	8	303392
Sold Out THERMOSTAT, MULTI-TEMP Note: THERMOSTAT, MULTI-TEMP. Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306966
Sold Out SCREW Note: SCREW, THERMOSTAT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	22001996
Sold Out FUSE, THERMAL (W' BRACKET) Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33001762
Sold Out SCREW Note: SCREW, THERMAL CUT-OFF Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314848
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314137
Sold Out COVER, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33002711
Sold Out SCREW Note: SCREW, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	14	314818
Sold Out MOTOR, DRIVE 60HZ Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33002795
Sold Out CLIP, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33002221
Sold Out SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	17	910343
Sold Out NUT Note: NUT, LEG Regular price $0.00 Sale price $0.00 Regular price Unit price	18	Y052740
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	19	901220
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	20	310376
Sold Out SPRING, IDLER Note: SPRING & PLUG KIT 33002459 Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33002460
Sold Out PLUG FOR SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002461
Sold Out IDLER ARM & SHAFT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	22	33001840
Sold Out WASHER, IDLER SHAFT (QTY-1) Regular price $0.00 Sale price $0.00 Regular price Unit price	23	312527
Sold Out BEARING, IDLER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	24	33001783
Sold Out RETAINING RING, IDLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	25	312958
Sold Out GROMMET, IDLER ARM Regular price $0.00 Sale price $0.00 Regular price Unit price	26	33002218
Sold Out SCREW Note: SCREW, IDLER ARM SLEEVE Regular price $0.00 Sale price $0.00 Regular price Unit price	27	Y014874
Sold Out MOTOR SUPPORT, OFFSET Regular price $0.00 Sale price $0.00 Regular price Unit price	28	33002817
Sold Out SCREW----NA Note: SCREW, MOTOR & BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	29 N	313561
Sold Out BASE, (LWR) NA Regular price $0.00 Sale price $0.00 Regular price Unit price	30 N	33002465
Sold Out SPRING, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	31	410490
Sold Out RETAINER, WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	32	315471

Product Details	S.P. Ref.	S.P. Code

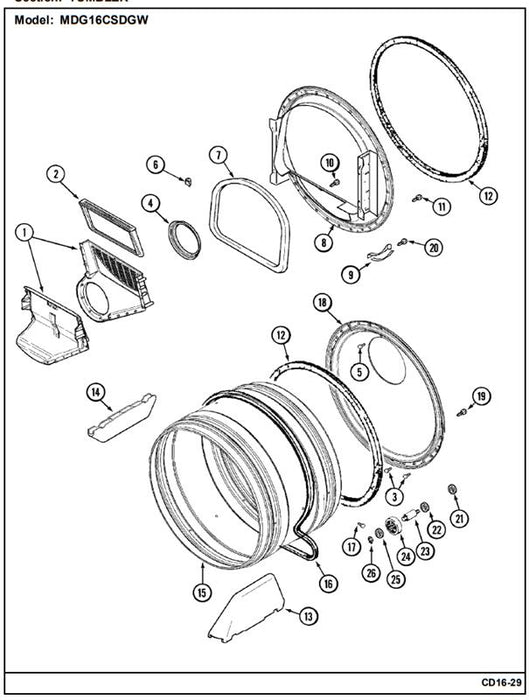

Sold Out OUTLET DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001799
Sold Out FILTER, LINT Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001804
Sold Out SCREW, #8 X 9/16 CTSK Note: SCREW, INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	3	210932
Sold Out SEAL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33001758
Sold Out SCREW Note: SCREW, INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	5	22001996
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	6	310376
Sold Out SEAL, SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001767
Sold Out FRONT, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	33001802
Sold Out TUMBLER BEARING KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	306508
Sold Out SCREW----NA Note: SCREW, OUTLET DUCT (PHILLIPS) Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	312311
Sold Out SCREW (HEX HEAD) Note: SCREW, DUCT TO TUMBLER (HEX) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33001855
Sold Out SEAL, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001807
Sold Out BAFFLE (TALL) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001756
Sold Out BAFFLE (SHORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001755
Sold Out TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001794
Sold Out V-BELT (TUMBLER) Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33002535
Sold Out SCREW, BAFFLE Regular price $0.00 Sale price $0.00 Regular price Unit price	17	33001788
Sold Out TUMBLER BACK & SEAL AS-PACK Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33002779
Sold Out TUMBLER BACK & SEAL Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33003037
Sold Out SCREW (#10-3/8") Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33002190
Sold Out RIVET Regular price $0.00 Sale price $0.00 Regular price Unit price	20	210720
Sold Out NUT, HEX (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33001443
Sold Out WASHER, SPRING (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	22	Y313347
Sold Out SHAFT, TUMBLER ROLLER Regular price $0.00 Sale price $0.00 Regular price Unit price	23	312948
Sold Out BEARING & ROLLER ASSEMBLY Note: ROLLER (W/BEARING) Regular price $0.00 Sale price $0.00 Regular price Unit price	24	Y303373
Sold Out WASHER, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	25	312535
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	26	410233

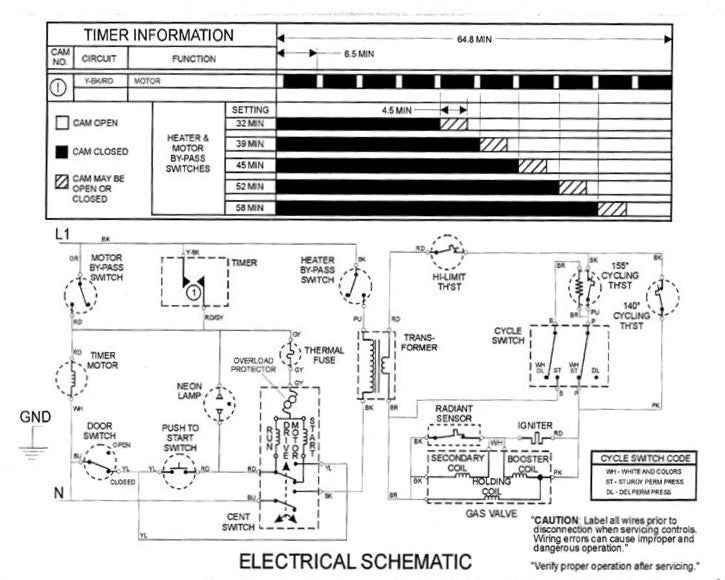

Wiring Diagram

Parts Manual

Search our store

MDG16CSDGW

MDG16CSDGW

33002938

215506

215506

33001948

22003089

22002925

212276

211252

205810

33002522

306938

33002276

313588

33002771

306940

Y312706

312751

Y312702

22001365

215564

16009021

22002478

22001810

211294

910309

22002072

Y052740

22001903

910387

Y052721

22003677

33001195

33002136

22003679

22001881

22001883

22001882

33002598

33001276

314337

305798

Y305799

211790

312270

314330

314335

314547

314339

314546

211065

33001708

33001207

314340

314331

314332

306104

212707

315277

Y052634

910708

211168

33002633

22001959

210186

22003643

310933

22002049
