MDG27CSAGW

MDG27CSAGW

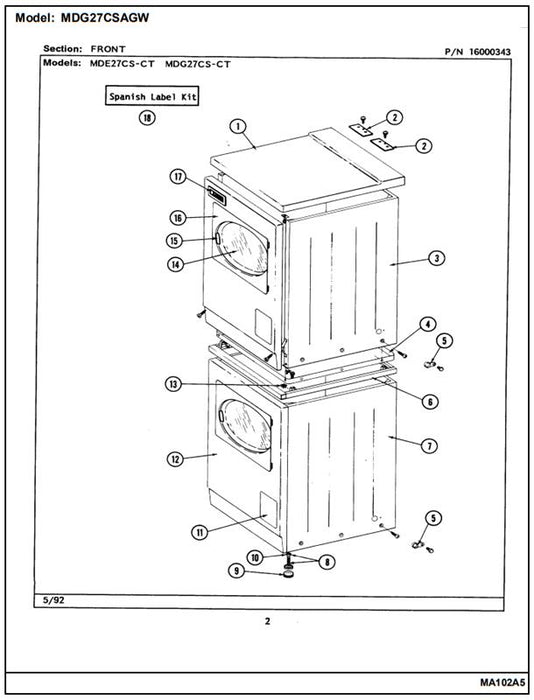

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

TOP COVER ASSY Note: TOP COVER ASSY. (WHT)

$0.00
$0.00
1
307104

SCREW

$0.00
$0.00
2
313559

COVER PLATE Note: TOP COVER PLATE

$0.00
$0.00
2 N
314943

CABINET, UPPER (WHITE) Note: CABINET, UPPER (WHT)

$0.00
$0.00
3 N
307127

BASE ASSY.

$0.00
$0.00
4
303361

SCREW

$0.00
$0.00
4
314663

SCREW, #8 X 5/16 INCH Note: SCREW

$0.00
$0.00
5
211168

CABLE STRAP-HARNESS TO BASE Note: CABLE STOP

$0.00
$0.00
5
910768

SCREW

$0.00
$0.00
6 N
810239

SPACER ASSM-WHITE Note: SPACER ASSY. (WHT)

$0.00
$0.00
6 N
303983

CABINET, LOWER (WHITE) Note: CABINET, LOWER (WHT)

$0.00
$0.00
7
307125

LEG, ADJUSTABLE (W/NUT) Note: ADJUSTABLE LEG & NUT

$0.00
$0.00
8
302699

FOOT, RUBBER Note: RUBBER FOOT

$0.00
$0.00
9
210684

NUT, LOCK Note: LOCK NUT, ADJUSTABLE LEG

$0.00
$0.00
10
210385

ACCESS DOOR-WHITE Note: ACCESS DOOR (WHT)

$0.00
$0.00
11 N
302542

FRONT PANEL Note: FRONT PANEL (WHT)

$0.00
$0.00
12 N
307998

FASTENER

$0.00
$0.00
13
310933

INNER DOOR Note: INNER DOOR W/GASKET

$0.00
$0.00
14
308069

HANDLE Note: HANDLE, DOOR (WHT)

$0.00
$0.00
15
314939

DOOR, COMPLETE LESS HINGES (WH Note: DOOR ASSY. COMPLETE (WHT)

$0.00
$0.00
16 N
308058

NAMEPLATE

$0.00
$0.00
17 N
307129

SPANISH LABEL KIT

$0.00
$0.00
18 N
305857

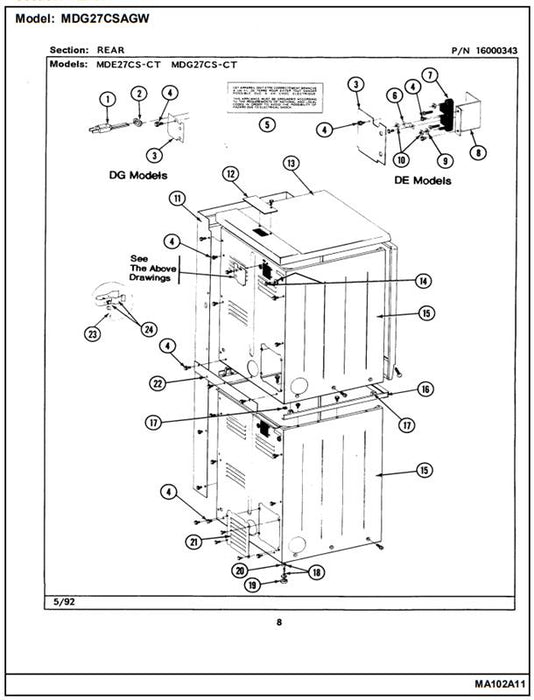

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

POWER CORD 50HZ Note: POWER CORD

$0.00
$0.00
1
307164

GROMMET, CORD Note: CORD HOLDER

$0.00
$0.00
2
211881

COVER, TERMINAL Note: TERMINAL COVER

$0.00
$0.00
3
312905

SCREW----NA Note: SCREW

$0.00
$0.00
4 N
313561

LABEL, ELECTRICAL INSTRUCTION Note: LABEL, ELECTRICAL INSTR.

$0.00
$0.00
5
214519

WASHER, TERMINAL BLOCK Note: WASHER

$0.00
$0.00
9
311270

CONTROL SHROUD-WHITE Note: CONTROL SHROUD (WHT)

$0.00
$0.00
11 N
305535

SCREW

$0.00
$0.00
12
313559

COVER PLATE Note: TOP COVER PLATE

$0.00
$0.00
12 N
314943

TOP COVER ASSY Note: TOP COVER ASSY. (WHT)

$0.00
$0.00
13
307104

SCREW & WASHER ASSY. Note: SCREW & WASHER ASSY.

$0.00
$0.00
14
303846

SCREW

$0.00
$0.00
15
310632

CABINET, LOWER (WHITE) Note: CABINET, LOWER (WHITE)

$0.00
$0.00
15
307125

CABINET, UPPER (WHITE) Note: CABINET, UPPER (WHT)

$0.00
$0.00
15 N
307127

SCREW Note: SCREW (HEX HD #10 X 3/8")

$0.00
$0.00
16
911050

SPACER ASSM-WHITE Note: SPACER ASSY. (WHT)

$0.00
$0.00
16 N
303983

SCREW Note: SCREW (HEX HD TYPE B)

$0.00
$0.00
16
310632

FASTENER

$0.00
$0.00
17
310933

LEG, ADJUSTABLE (W/NUT) Note: ADJUSTABLE LEG & NUT

$0.00
$0.00
18
302699

FOOT, RUBBER Note: RUBBER FOOT

$0.00
$0.00
19
210684

NUT, LOCK Note: LOCK NUT, ADJUSTABLE LEG

$0.00
$0.00
20
210385

SCREW Note: SCREW (HEX HD SEMS #8 X 3/8")

$0.00
$0.00
21
313559

COVER, ACCESS Note: ACCESS COVER

$0.00
$0.00
21
312951

SCREW Note: SCREW (HEX HD #8 X 3/8")

$0.00
$0.00
21
211294

FILLER STRIP

$0.00
$0.00
22 N
313418

SCREW

$0.00
$0.00
22
310632

GROUND WIRE

$0.00
$0.00
23
311155

CLAMP, GROUND (W/SCREW) Note: GROUND CLAMP

$0.00
$0.00
24
301548

SCREW - BAFFLE TO TUMBLER Note: SCREW

$0.00
$0.00
24
313122

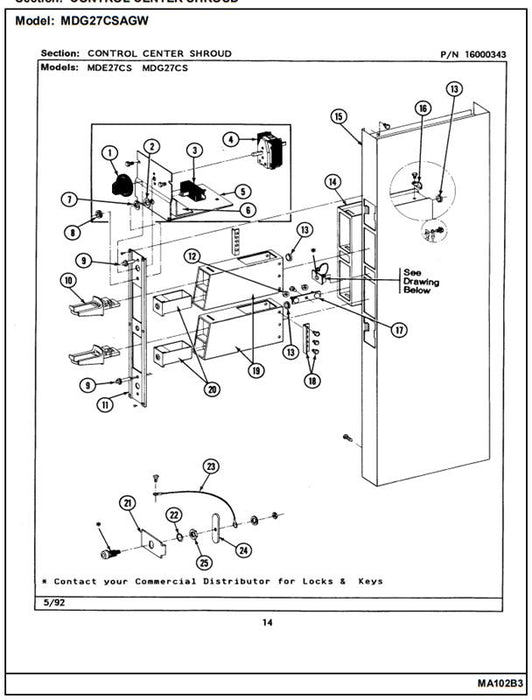

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

KNOB FOR SELECTOR SWITCH Note: KNOB

$0.00
$0.00
1
205663

LOCK WASHER Note: LOCK WASHER

$0.00
$0.00
2
312751

SWITCH, PUSH-TO-START Note: SWITCH, PUSH-TO-START

$0.00
$0.00
3
306940

SWITCH CYCLE SEL Note: SWITCH, CYCLE SELECTOR

$0.00
$0.00
4
307253

SCREW

$0.00
$0.00
4
313588

SWITCH AND RELAY BRACKET Note: SWITCH & RELAY BRACKET

$0.00
$0.00
5
314261

SCREW Note: SCREW, BRACKET (VAULT ASSY)

$0.00
$0.00
5
212276

INSULATOR

$0.00
$0.00
6 N
313423

HEX NUT ON SWITCH Note: HEX NUT

$0.00
$0.00
7
312706

KNURLED NUT

$0.00
$0.00
8
312702

INDICATOR LIGHT 240-50

$0.00
$0.00
9 N
304712

MAYTAG COIN SLIDE Note: MAYTAG COIN SLIDE (ACCY)

$0.00
$0.00
10 N
205470

SCREW

$0.00
$0.00
11
313424

VAULT PANEL

$0.00
$0.00
11
315037

NUT Note: NUT

$0.00
$0.00
12
052740

GROMMET FOR CONTROL CENTER Note: GROMMET

$0.00
$0.00
13
313671

VAULT ASSEMBLY Note: VAULT ASSY.

$0.00
$0.00
14
305534

SCREW Note: SCREW, GROUND WIRE (VAULT)

$0.00
$0.00
14
310632

SCREW

$0.00
$0.00
14
313559

SCREW

$0.00
$0.00
14
211294

CONTROL SHROUD-WHITE Note: CONTROL SHROUD (WHT)

$0.00
$0.00
15 N
305535

SCREW, #8 X 5/16 INCH Note: SCREW

$0.00
$0.00
16
211168

CABLE STRAP-HARNESS TO BASE Note: CABLE STRAP

$0.00
$0.00
16
910768

MTG. STRAP NA

$0.00
$0.00
17 N
203307

SCREW Note: SCREW

$0.00
$0.00
17
212276

SCREW, #10 X 3/8 Note: SCREW

$0.00
$0.00
18
014872

COIN METER STOP WITH SCREWS Note: COIN METER STOP

$0.00
$0.00
18 N
305160

COIN METER WELD ASSEMBLY Note: OUTER CASE (WHT)

$0.00
$0.00
19 N
307081

COIN BOX-WHITE Note: COIN BOX (WHT)

$0.00
$0.00
20
205423

PLATE FOR LATCH Note: PLATE, LATCH

$0.00
$0.00
21
313428

SPRING WASHER FOR LOCK Note: SPRING WASHER

$0.00
$0.00
22 N
213626

GROUND WIRE FOR LATCH Note: GROUND WIRE

$0.00
$0.00
23
303981

SCREW, #8 X 5/16 INCH Note: SCREW

$0.00
$0.00
23
211168

LATCH FOR COVER PLATE Note: LATCH

$0.00
$0.00
24
313427

NUT, HEX

$0.00
$0.00
25
212328
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

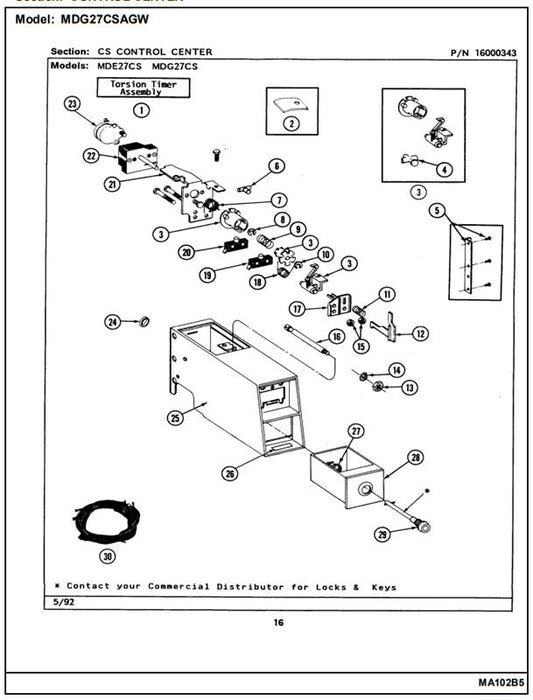

TORSION TIMER ASSM COMPLETE Note: TORSION TIMER ASSY.

$0.00
$0.00
1
305797

STOP FOR TIMER MECHANISM Note: STOP, TIMER MECHANISM

$0.00
$0.00
2 N
314382

TORSION-TIMER KIT Note: TORSION TIMER KIT

$0.00
$0.00
3
306104

ADJUSTMENT RETURN STOP Note: ADJUSTMENT RETURN

$0.00
$0.00
4
314547

COIN METER STOP WITH SCREWS Note: COIN METER STOP

$0.00
$0.00
5 N
305160

SCREW, #10 X 3/8 Note: SCREW

$0.00
$0.00
5
014872

TIME ADJUSTMENT PEG

$0.00
$0.00
6
314335

RETURN SPRING

$0.00
$0.00
7
314331

E CLIP

$0.00
$0.00
8
312270

SPRING, TIMER KNOB Note: SPRING

$0.00
$0.00
9
211065

LOCK RING FOR TIMER SHAFT Note: LOCK RING

$0.00
$0.00
10
211790

HELICAL SPRING

$0.00
$0.00
11
314340

SLIDER

$0.00
$0.00
12
314337

NUT Note: HEX NUT

$0.00
$0.00
13
052721

LOCK WASHER

$0.00
$0.00
14
910387

HEX. NUT, #6-32 Note: HEX NUT

$0.00
$0.00
15
052634

BOLT, LOCKING

$0.00
$0.00
16
215559

LOCKING BOLT

$0.00
$0.00
16 N
215560

SWITCH AND SLIDER BRACKET Note: SWITCH & SLIDER BRACKET

$0.00
$0.00
17
314339

ACTUATOR SPRING

$0.00
$0.00
18
314332

BYPASS SWITCH FOR MOTOR Note: BYPASS SWITCH, MOTOR

$0.00
$0.00
19
305798

BYPASS SWITCH FOR HEATER Note: BYPASS SWITCH, HEATER

$0.00
$0.00
20
305799

SCREW -RELAY TO TUB SUPPORT Note: SCREW (HEX HD MACHINE)

$0.00
$0.00
21
910708

SCREW Note: SCREW (HEX HD #6-32 X 1 5/8")

$0.00
$0.00
21
315277

INSTRUCTION LABEL

$0.00
$0.00
21 N
314341

TIMER MOUNTING BRACKET

$0.00
$0.00
21
314333

TIMER 240-50

$0.00
$0.00
22
305812

WIRE HARNESS FOR TIMER Note: WIRE HARNESS, TIMER

$0.00
$0.00
22
305800

TIMER MOTOR RPR Note: TIMER MOTOR (305796 TIMER)

$0.00
$0.00
23
305870

GROMMET FOR CONTROL CENTER Note: GROMMET

$0.00
$0.00
24
313671

COIN METER WELD ASSEMBLY Note: OUTER CASE (WHT)

$0.00
$0.00
25 N
307081

INSTRUCTION LABEL

$0.00
$0.00
26
313439

NUT, HEX

$0.00
$0.00
27
212328

COIN BOX-WHITE Note: COIN BOX (WHT)

$0.00
$0.00
28
205423

SPRING WASHER FOR LOCK Note: SPRING WASHER, LOCK

$0.00
$0.00
29 N
213626

WIRE HARNESS Note: (LOWER)

$0.00
$0.00
30
307463

WIRE HARNESS Note: WIRE HARNESS (UPPER)

$0.00
$0.00
30 N
307461

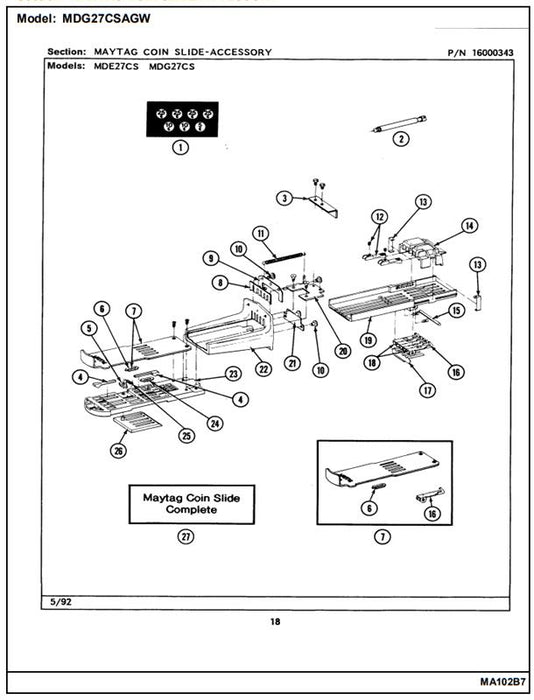

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

COINAGE DECAL

$0.00
$0.00
1
214648

BOLT, LOCKING

$0.00
$0.00
2
215559

LOCKING BOLT

$0.00
$0.00
2 N
215560

BRACKET FOR COIN SLIDE Note: BRACKET

$0.00
$0.00
3
314334

PLUG FOR COIN OPENING Note: PLUG, COIN OPENING

$0.00
$0.00
4 N
214590

RATCHET ARM

$0.00
$0.00
5
214572

NICKEL INSERT

$0.00
$0.00
6 N
215111

SCREW

$0.00
$0.00
7
214597

SLIDE PLATE W/NICKEL INSERT

$0.00
$0.00
7 N
206152

GATE FOR COIN OPENING Note: GATE

$0.00
$0.00
8
214578

RETAINER FOR GATE Note: RETAINER

$0.00
$0.00
9 N
214579

STUD FOR COIN SLIDE Note: STUD

$0.00
$0.00
10 N
214574

RETURN SPRING

$0.00
$0.00
11
214581

SET SCREW FOR GAGE Note: SET SCREW

$0.00
$0.00
12 N
214599

MOVABLE COIN GAGE

$0.00
$0.00
12 N
205471

SPRING CLIP

$0.00
$0.00
13
214589

MEASURING BLOCK ASSEMBLY Note: MEASURING BLOCK ASSY.

$0.00
$0.00
14 N
205419

PIN FOR LOWER GAGE ARM Note: PIN

$0.00
$0.00
15 N
214583

LOWER GAGE ARM

$0.00
$0.00
16 N
215109

SPRING FOR LOWER GAGE ARM Note: SPRING

$0.00
$0.00
17
214596

LOWER GAGE ARM ASSEMBLY Note: LOWER GAGE ARM ASSY.

$0.00
$0.00
18
205343

BASE INSERT FOR HOUSING Note: BASE INSERT

$0.00
$0.00
19
214594

SCREW

$0.00
$0.00
19
214597

END BRACKET FOR SLIDE Note: END BRACKET

$0.00
$0.00
20 N
214576

SCREW

$0.00
$0.00
20
214597

RETAINER FOR GAGE SPRING Note: RETAINER

$0.00
$0.00
21 N
214580

HOUSING FOR COIN SLIDE Note: HOUSING

$0.00
$0.00
22
214584

SLIDE BODY

$0.00
$0.00
23 N
214595

DIME INSERT

$0.00
$0.00
24 N
214645

SPRING FOR RATCHET ARM Note: SPRING

$0.00
$0.00
25
214582

STUD FOR COIN SLIDE Note: STUD

$0.00
$0.00
26 N
214574

MAYTAG COIN SLIDE

$0.00
$0.00
27 N
205470

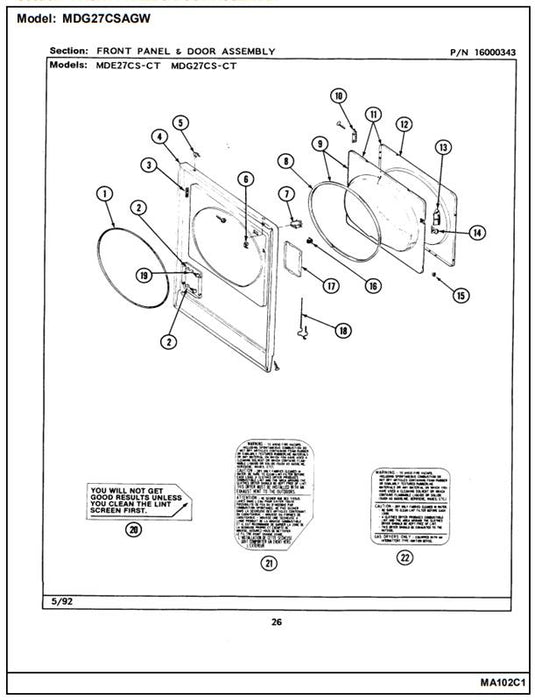

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

SEAL, FRONT PANEL Note: SEAL

$0.00
$0.00
1
314937

BUSHING FOR ACCESS STUD Note: BUSHING

$0.00
$0.00
2 N
312301

TWIN FASTENER Note: FASTENER

$0.00
$0.00
3
313907

FRONT PANEL Note: FRONT PANEL (WHT)

$0.00
$0.00
4 N
307998

FASTENER, PANEL Note: SPRING FASTENER

$0.00
$0.00
5
212982

CLIP, WIRE HARNESS Note: CLIP

$0.00
$0.00
6
310376

SWITCH, DOOR Note: SWITCH, DOOR

$0.00
$0.00
7
305753

DOOR SEAL Note: SEAL, DOOR

$0.00
$0.00
8
314935

INNER DOOR Note: INNER DOOR W/GASKET

$0.00
$0.00
9
308069

SCREW

$0.00
$0.00
10
314062

HINGE

$0.00
$0.00
10
307099

DOOR, COMPLETE LESS HINGES (WH Note: DOOR ASSY. COMPLETE (WHT)

$0.00
$0.00
11 N
308058

DOOR W/WIN CUT OUT OUTER WHT Note: PANEL, DOOR-OUTER (WHT)

$0.00
$0.00
12
314967

HANDLE Note: HANDLE (WHT)

$0.00
$0.00
13
314939

DOOR STRIKE

$0.00
$0.00
14
314936

STRIKE PLATE Note: STRIKE BRACKET

$0.00
$0.00
14
314944

CLIP, DOOR LINER TO OUTER PNL Note: CLIP

$0.00
$0.00
15
313910

DOOR LATCH KIT

$0.00
$0.00
16
306436

ACCESS DOOR-WHITE Note: ACCESS DOOR (WHT)

$0.00
$0.00
17 N
302542

LATCH FOR ACCESS DOOR Note: LATCH, ACCESS DOOR

$0.00
$0.00
18
314025

SLEEVE-ACCESS PANEL STUD Note: RUBBER SLEEVE

$0.00
$0.00
19
312369

LABEL, LINT SCREEN INSTRUCTION Note: INSTRUCTION DECAL

$0.00
$0.00
20 N
313340

LABEL, INSTRUCTION Note: INSTRUCTION DECAL

$0.00
$0.00
21
314941

INSTRUCTION LABEL

$0.00
$0.00
22 N
314942
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

SCREW, INLET DUCT Note: SCREW

$0.00
$0.00
-

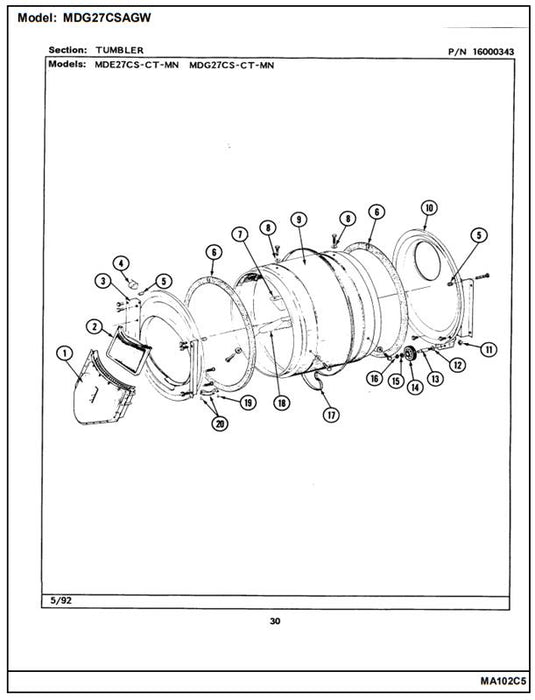

314110

DUCT, OUTLET ASSY.

$0.00
$0.00
1
307112

SCREEN, LINT Note: LINT SCREEN

$0.00
$0.00
2
307108

SCREW

$0.00
$0.00
-
310632

FRONT, TUMBLER (W/SEAL) Note: TUMBLER FRONT W/SEAL

$0.00
$0.00
3
307109

SCREW

$0.00
$0.00
- N
313764

SCREW----NA Note: SCREW

$0.00
$0.00
- N
313561

CLIP, WIRE HARNESS Note: FASTENER CLIP

$0.00
$0.00
4
310376

COVER, THREAD Note: THREAD COVER

$0.00
$0.00
5 N
313915

SEAL, TUMBLER Note: TUMBLER SEAL

$0.00
$0.00
6
314820

BAFFLE (SHORT) Note: BAFFLE, SHORT

$0.00
$0.00
7
314803

SCREW

$0.00
$0.00
-
310759

WASHER

$0.00
$0.00
8
314158

TUMBLER W/OUT BAFFLES Note: TUMBLER LESS BAFFLES

$0.00
$0.00
9
314802

TUMBLER W/BAFFLES Note: TUMBLER W/BAFFLES

$0.00
$0.00
9
306663

SCREW Note: SCREW

$0.00
$0.00
-
211294

BACK, TUMBLER (W/SEAL) Note: TUMBLER BACK W/SEAL

$0.00
$0.00
10
307114

BACK, TUMBLER (W/SEAL)

$0.00
$0.00
10
308544

NUT, ROLLER SHAFT Note: NUT

$0.00
$0.00
11
312538

WASHER, SPRING (ROLLER SHAFT) Note: WASHER, SPRING (ROLLER SFT)

$0.00
$0.00
12
313347

SHAFT, TUMBLER ROLLER Note: SHAFT, TUMBLER ROLLER

$0.00
$0.00
13
312948

BEARING & ROLLER ASSEMBLY Note: ROLLER W/BEARING

$0.00
$0.00
14
303373

WASHER, ROLLER SHAFT Note: WASHER, ROLLER SHAFT

$0.00
$0.00
15
312535

RING, RETAINING Note: "C" CLIP

$0.00
$0.00
16
410233

BELT, TUMBLER & MOTOR Note: POLY "V" BELT

$0.00
$0.00
17
312959

BAFFLE (TALL) Note: BAFFLE, TALL

$0.00
$0.00
18
314804

SCREW

$0.00
$0.00
-
310759

RIVET Note: RIVET, BEARING (TUMBLER FRNT)

$0.00
$0.00
19
210720

TUMBLER BEARING KIT Note: TUMBLER BEARING KIT

$0.00
$0.00
20
306508
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

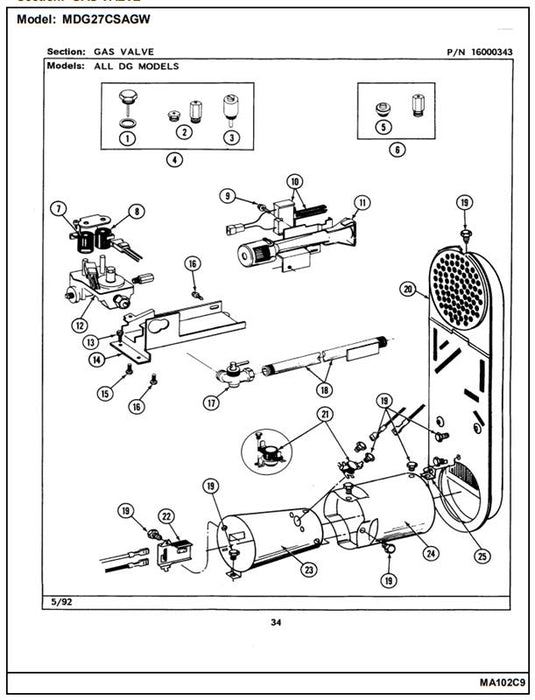

SCREW ASSM - BLUE BLOCK OPE Note: SCREW ASSY. (BLUE BLOCK OPEN)

$0.00
$0.00
1 N
302810

MAIN BURNER ORIFICE KIT-LPG Note: BURNER ORIFICE KIT, MAIN (LP)

$0.00
$0.00
2 N
305861

PLUG, BLOCKING (LPG REGULATOR) Note: PLUG, BLOCKING REGULATOR (LP)

$0.00
$0.00
3
306184

CONVERSION KIT (NATURAL TO LP) Note: CONVERSION KIT (NAT TO LP)

$0.00
$0.00
4
306195

LEAK LIMITER (LPG) Note: LEAK LIMITER (LP)

$0.00
$0.00
5
314602

CONVERSION KIT (LP TO NATURAL) Note: PART NOT AVAILABLE

$0.00
$0.00
6
306204

COIL, HOLDING & BOOSTER

$0.00
$0.00
7
306106

COIL, SECONDARY

$0.00
$0.00
8
306105

SCREW Note: SCREW, IGNITER

$0.00
$0.00
9
304971

IGNITER ASSY, GAS VALVE

$0.00
$0.00
10
304970

BURNER ASSY.

$0.00
$0.00
11
308457

BURNER ASSEMBLY Note: BURNER ASSY.

$0.00
$0.00
11
304974

GAS VALVE - 120V-50HZ

$0.00
$0.00
12
307927

SCREW----NA Note: SCREW, GAS VALVE BRACKET

$0.00
$0.00
13 N
313561

BRACKET, GAS VALVE

$0.00
$0.00
14
314566

SCREW Note: SCREW, GAS VALVE

$0.00
$0.00
15
314082

SCREW Note: SCREW, BURNER ASSY.

$0.00
$0.00
16
310632

SHUT-OFF, GAS VALVE

$0.00
$0.00
17
303349

PIPE & BRACKET ASSY.

$0.00
$0.00
18
303383

SCREW

$0.00
$0.00
19
211294

INLET DUCT ASSY. Note: DUCT, INLET ASSY.

$0.00
$0.00
20
307119

INLET DUCT ASSY.

$0.00
$0.00
20
308504

THERMOSTAT, HI-LIMIT GAS

$0.00
$0.00
21
305169

SENSOR, RADIANT

$0.00
$0.00
22
303377

COMBUSTION CONE

$0.00
$0.00
23 N
304706

CONE, COMBUSTION

$0.00
$0.00
23
308549

CONE, EXTENSION (COMBUSTION) Note: CONE, EXTENSION (COMB.)

$0.00
$0.00
24
303841

RETAINER, HEATER CHAMBER

$0.00
$0.00
25
312890
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

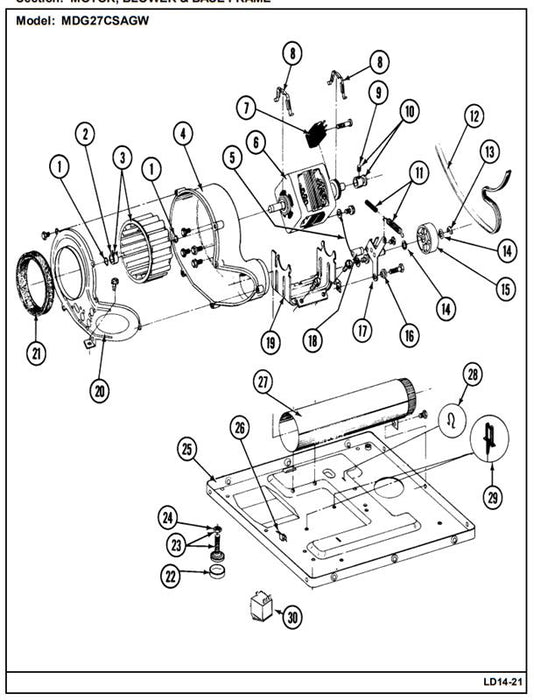

RING, RETAINING Note: RETAINING RING (MOTOR SHAFT)

$0.00
$0.00
1
410233

CLAMP, BLOWER HOUSING Note: CLAMP, BLOWER HOUSING

$0.00
$0.00
2
312967

BLOWER WHEEL ASSEMBLY & CLAMP Note: BLOWER WHEEL W/CLAMP

$0.00
$0.00
3
303836

HOUSING, BLOWER Note: BLOWER HOUSING

$0.00
$0.00
4
312893

SCREW, GROUND WIRE Note: SCREW

$0.00
$0.00
5
910343

WIRE, GROUND Note: GROUND WIRE

$0.00
$0.00
5
901220

MOTOR 240-50

$0.00
$0.00
6
304656

SWITCH, MOTOR STARTPROD. Note: PART NOT AVAILABLE #3-3358 & 3-3358-6

$0.00
$0.00
7
303879

SWITCH, MOTOR START-PROD. Note: PART NOT AVAILABLE #3-3358-8 & 3-3358-9

$0.00
$0.00
7 N
306207

SWITCH, MOTOR Note: PART NOT AVAILABLE #3-3358-2, 3-3358-4, & 3-3358-7

$0.00
$0.00
7
303877

CLIP, MOTOR Note: CLIP, MOTOR (MOTOR SUPPORT)

$0.00
$0.00
8
015825

SET SCREW, PULLEY Note: SET SCREW, MOTOR PULLEY

$0.00
$0.00
9
053241

MOTOR PULLEY - 50 CYCLE Note: MOTOR PULLEY W/SET SCREW

$0.00
$0.00
10
305186

IDLER SPRING ASSEMBLY Note: IDLER SPRING ASSY. W/PLUG

$0.00
$0.00
11
303945

BELT, TUMBLER & MOTOR Note: POLY "V" BELT, TUMBLER

$0.00
$0.00
12
312959

RETAINING RING, IDLER SHAFT Note: LOCK RING, IDLER PULLEY

$0.00
$0.00
13
312958

WASHER, IDLER SHAFT (QTY-1) Note: WASHER, IDLER PULLEY

$0.00
$0.00
14
312527

PULLEY, IDLER Note: IDLER PULLEY W/BEARING

$0.00
$0.00
15
303705

SLEEVE, IDLER ARM Note: SLEEVE, IDLER ARM

$0.00
$0.00
16 N
312894

SCREW

$0.00
$0.00
17
312961

IDLER ARM & SHAFT ASSY.

$0.00
$0.00
17
303363

SCREW Note: SCREW

$0.00
$0.00
17
014874

SPACER, IDLER BRACKET Note: SPACER, IDLER

$0.00
$0.00
18
313582

SUPPORT, MOTOR Note: MOTOR SUPPORT

$0.00
$0.00
19 N
312897

SCREW----NA Note: SCREW

$0.00
$0.00
19 N
313561

SCREW----NA Note: SCREW

$0.00
$0.00
20 N
313561

COVER, BLOWER HOUSING Note: COVER, BLOWER

$0.00
$0.00
20
314847

SEAL, BLOWER Note: SEAL, BLOWER

$0.00
$0.00
21
312901

FOOT, RUBBER Note: RUBBER FOOT

$0.00
$0.00
22
210684

LEG, ADJUSTABLE (W/NUT) Note: ADJUSTABLE LEG & NUT

$0.00
$0.00
23
302699

NUT, LOCK Note: LOCK NUT, ADJUSTABLE LEG

$0.00
$0.00
24
210385

BASE ASSY. Note: BASE ASSY. (UPPER & LOWER)

$0.00
$0.00
25
303361

CLIP, WIRE HARNESS Note: FASTENER CLIP (BASE)

$0.00
$0.00
26
310376

EXHAUST DUCT ASSY. Note: EXHAUST DUCT PIPE

$0.00
$0.00
27
303442

SPRING, WIRE HARNESS Note: HARNESS SPRING

$0.00
$0.00
28
410490

RETAINER, WIRE HARNESS Note: WIRE RETAINER

$0.00
$0.00
29 N
313262

TRANSFORMER 240V 50HZ

$0.00
$0.00
30
307928
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

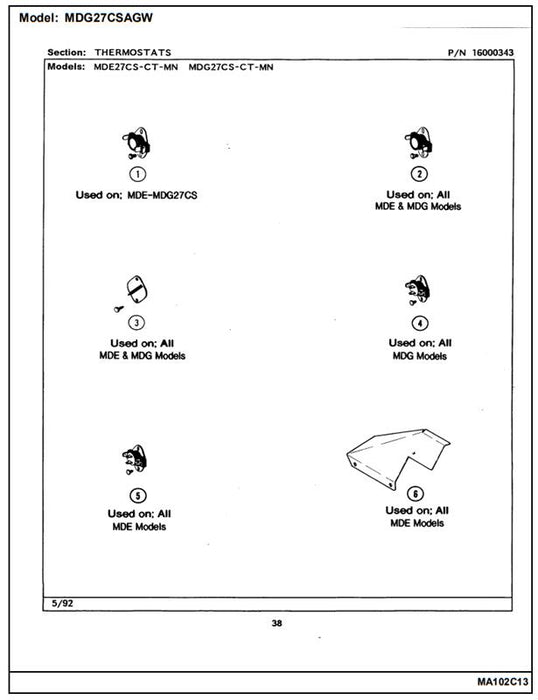

SCREW Note: SCREW

$0.00
$0.00
1
211294

THERMOSTAT, PERMANENT PRESS Note: THERMOSTAT, PERMANENT PRESS

$0.00
$0.00
1
303225

SCREW

$0.00
$0.00
2
211294

CYCLING THERMOSTAT 140 DEG. Note: THERMOSTAT, CYCLING (140 DEG.)

$0.00
$0.00
2
303392

CUT-OFF, THERMAL Note: THERMAL CUT-OFF

$0.00
$0.00
3
306604

SCREW

$0.00
$0.00
3
211294

THERMOSTAT, MULTI-TEMP Note: THERMOSTAT, MULTI-TEMPERATURE

$0.00
$0.00
4
306966

SCREW Note: SCREW

$0.00
$0.00
4
211294
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

PLUG, BLOCKING (LPG REGULATOR) Note: BLOCKING PLUG

$0.00
$0.00
1
306184

SCREW ASSM - BLUE BLOCK OPE Note: SCREW ASSY. (BLUE BLOCK-LP)

$0.00
$0.00
2 N
302810

MAIN BURNER ORIFICE KIT-LPG Note: MAIN BURNER ORIFICE KIT (LP)

$0.00
$0.00
3 N
305861

CONVERSION KIT (NATURAL TO LP) Note: CONVERSION KIT (NAT TO LP)

$0.00
$0.00
4
306195

SCREW

$0.00
$0.00
5
304971

IGNITER ASSY, GAS VALVE Note: IGNITER, GAS VALVE

$0.00
$0.00
6
304970

BURNER ASSEMBLY

$0.00
$0.00
7
304974

SCREW

$0.00
$0.00
8
310632

BRACKET, GAS VALVE Note: GAS CONTROL BRACKET

$0.00
$0.00
9
314566

PIPE & BRACKET ASSY.

$0.00
$0.00
10
303383

SHUT-OFF, GAS VALVE Note: ANGLE SHUT-OFF, GAS VALVE

$0.00
$0.00
11
303349

SCREW Note: SCREW

$0.00
$0.00
12
313559

SCREW

$0.00
$0.00
13
314082

SCREW----NA Note: SCREW

$0.00
$0.00
14 N
313561

LEAK LIMITER (LPG) Note: LEAK LIMITER (NAT)

$0.00
$0.00
15
314602

GAS VALVE - 120V-50HZ Note: GAS VALVE (240V-50)

$0.00
$0.00
16
307927

HOLDING - BOOSTER COIL Note: HOLDING, BOOSTER COIL

$0.00
$0.00
17
307931

SECONDARY COIL

$0.00
$0.00
18
307930
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

MOTOR 240-50 Note: MOTOR (240-50)

$0.00
$0.00
1
304656

CONE, COMBUSTION

$0.00
$0.00
2
308549

COMBUSTION CONE

$0.00
$0.00
2 N
304706

INDICATOR LIGHT 240-50 Note: INDICATOR LIGHT (240-50)

$0.00
$0.00
3 N
304712

MOTOR PULLEY - 50 CYCLE Note: MOTOR PULLEY (50 CYCLE)

$0.00
$0.00
4
305186

TIMER 240-50 Note: TIMER (240-50)

$0.00
$0.00
5
305812

POWER CORD 50HZ Note: POWER CORD (50HZ)

$0.00
$0.00
6
307164

WIRE HARNESS Note: WIRE HARNESS (UPPER)

$0.00
$0.00
7 N
307461

WIRE HARNESS Note: WIRE HARNESS (LOWER)

$0.00
$0.00
8
307463

GAS VALVE - 120V-50HZ Note: GAS VALVE (240V-50HZ)

$0.00
$0.00
9
307927

TRANSFORMER 240V 50HZ Note: TRANSFORMER (240V 50HZ)

$0.00
$0.00
10
307928

CONVERSION KIT (NATURAL TO LP)

$0.00
$0.00
11
306195

Wiring Diagram

Parts Manual
