MDG8426AAW

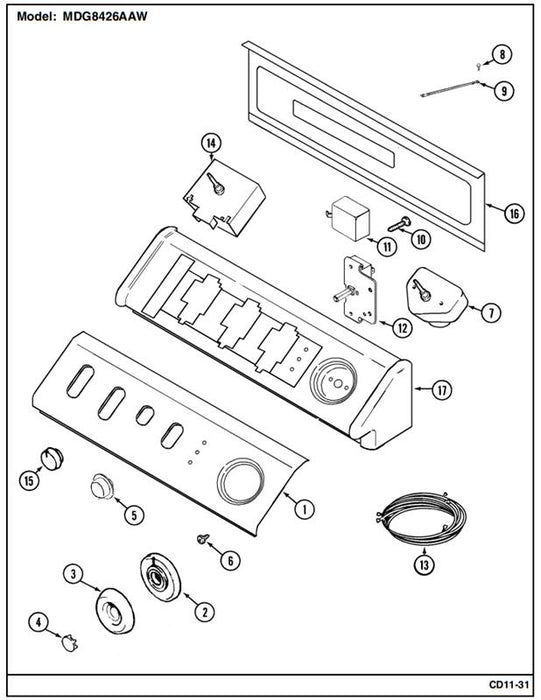

Exploded View 1

Product Details	S.P. Ref.	S.P. Code
Sold Out SCREW Note: SCREW, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22002339
Sold Out PANEL, CONTROL (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1 N	33001942
Sold Out SKIRT, TIMER DIAL (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001621
Sold Out TIMER KNOB - GREY Regular price $0.00 Sale price $0.00 Regular price Unit price	3	22001659
Sold Out TIMER KNOB INSERT/CAP (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22001664
Sold Out BUTTON, PUSH TO START (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001619
Sold Out SCREW, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001690
Sold Out TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001636
Sold Out SCREW Note: SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	8	912365
Sold Out WIRE, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	9 N	33001859
Sold Out SCREW Note: SCREW, NON-ADJUSTABLE BUZZER Regular price $0.00 Sale price $0.00 Regular price Unit price	10	216423
Sold Out BUZZER Note: BUZZER, NON-ADJUSTABLE Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33002252
Sold Out SWITCH, PUSH TO START (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33002251
Sold Out WIRE HARNESS, MAIN Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001944
Sold Out SWITCH, TEMPERATURE (ELC.) Note: SWITCH, TEMPERATURE Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001638
Sold Out KNOB, SELECTOR SWITCH (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	22001663
Sold Out WASHER, SEALING Note: WASHER, KNOB SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001942
Sold Out BACK, CONSOLE PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33001806
Sold Out SCREW Note: SCREW, CONSOLE BACK PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	-	216423
Sold Out CONSOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	22002285
Sold Out MANUAL, USE & CARE Note: MANUAL, USE & CARE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001902

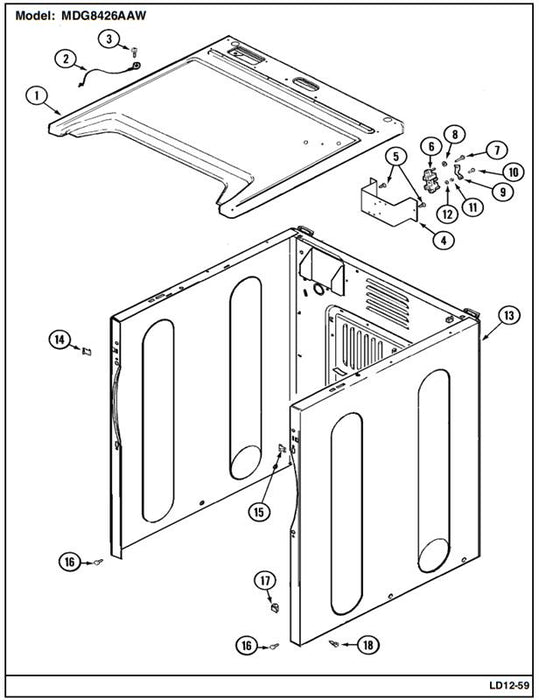

Product Details	S.P. Ref.	S.P. Code
Sold Out COVER, TOP (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001896
Sold Out COVER, TOP (WHT-AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33002631
Sold Out BRACKET, TERMINAL BLOCK NA Regular price $0.00 Sale price $0.00 Regular price Unit price	4 N	33001826
Sold Out SCREW Note: SCREW, TERMINAL BLOCK BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	5	22001995
Sold Out CABINET, ASSY. (WHT-AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	13 N	33002624
Sold Out CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	13 N	33001897
Sold Out HINGE, PLASTIC Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22003367
Sold Out SCREW Note: SCREW, HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001995
Sold Out CLIP Note: CLIP, FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	14	22002049
Sold Out FRONT PANEL BRACKET/FASTENER Note: RETAINER, FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	15	213280
Sold Out SCREW Note: SCREW, FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	16	22001995
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	17	310376
Sold Out SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	18	213007
Sold Out SCREW----NA Note: SCREW, CABINET (TRUSS) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	22003409

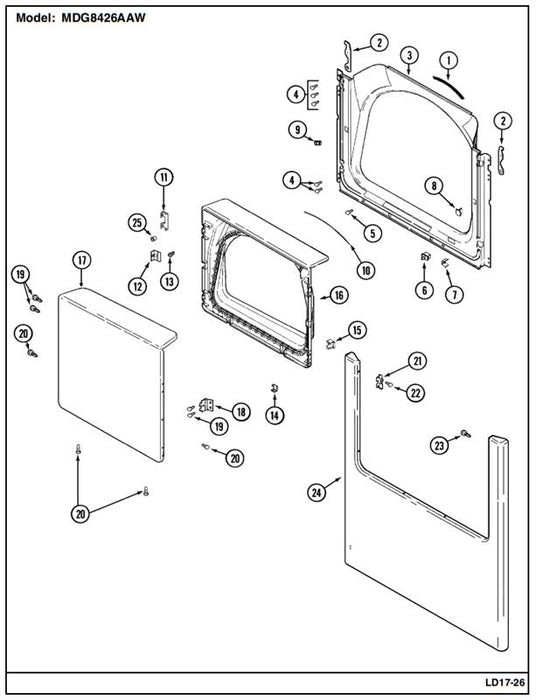

Product Details	S.P. Ref.	S.P. Code
Sold Out SEAL, SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001767
Sold Out HOOK, SECURITY Regular price $0.00 Sale price $0.00 Regular price Unit price	2	22002247
Sold Out SHROUD (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001900
Sold Out SHROUD (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001954
Sold Out SCREW Note: SCREW, TUMBLER FRONT & SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22001995
Sold Out SCREW, SHROUD Note: SCREW, SHROUD & OUTLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001768
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33002239
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33002167
Sold Out BRACKET, HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001760
Sold Out PLUG, DOOR CATCH Regular price $0.00 Sale price $0.00 Regular price Unit price	8 N	33001174
Sold Out CATCH, DOOR (FEMALE) Regular price $0.00 Sale price $0.00 Regular price Unit price	9	304578
Sold Out CATCH, DOOR (W/PLUG) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001791
Sold Out SEAL, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33002094
Sold Out CLIP, DOOR (DOUBLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	22002038
Sold Out BRACKET, STRIKE Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001793
Sold Out STRIKE, DOOR (MALE) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001761
Sold Out CLIP, DOOR (SINGLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	14	22002039
Sold Out PLUG, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001763
Sold Out DOOR, INNER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33001899
Sold Out SCREW #8-18AB WAFER HD Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22002063
Sold Out CLIP, DOOR (SINGLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22002039
Sold Out DOOR, OUTER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	33001904
Sold Out SHEET, SOUND DAMPER (FT. PNL) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001817
Sold Out HINGE, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001759
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	19	22002062
Sold Out SCREW #8-18AB WAFER HD Regular price $0.00 Sale price $0.00 Regular price Unit price	20	22002063
Sold Out COVER, HINGE HOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33001764
Sold Out SCREW, HINGE Note: SCREW, HINGE HOLE COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	22	33001787
Sold Out SCREW, HINGE Note: SCREW, HINGE BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	23	22002012
Sold Out PANEL, FRONT (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	24	33001901
Sold Out BUSHING, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	25	33001771

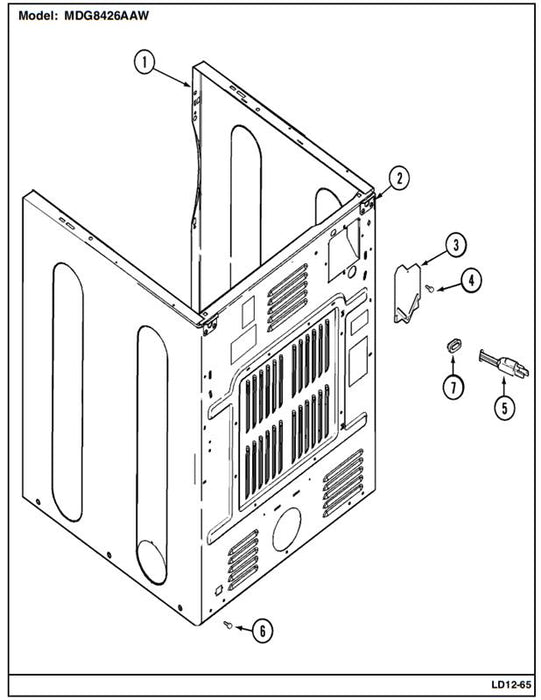

Product Details	S.P. Ref.	S.P. Code
Sold Out CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1 N	33001897
Sold Out CABINET, ASSY. (WHT-AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	1 N	33002624
Sold Out CABINET ASSY (WHT-AS PK) Regular price $0.00 Sale price $0.00 Regular price Unit price	1 N	33002642
Sold Out BRACKET, CABINET HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	2 N	33001827
Sold Out COVER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001795
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22001995
Sold Out CORD, POWER Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001285
Sold Out SCREW----NA Note: SCREW, CABINET (TRUSS) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	22003409
Sold Out SCREW Note: SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	6	22001995

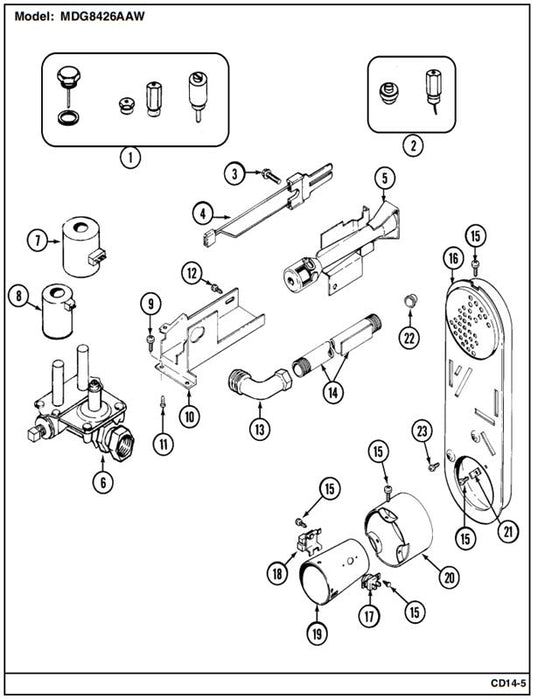

Product Details	S.P. Ref.	S.P. Code
Sold Out CONVERSION KIT (NATURAL TO LP) Note: CONVERSION KIT (NAT. TO LP) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	306195
Sold Out CONVERSION KIT (LP TO NATURAL) Note: CONVERSION KIT (LP TO NAT.) Regular price $0.00 Sale price $0.00 Regular price Unit price	2	306204
Sold Out SCREW Note: SCREW, IGNITER Regular price $0.00 Sale price $0.00 Regular price Unit price	3	304971
Sold Out IGNITER ASSY, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	4	304970
Sold Out BURNER ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001247
Sold Out VALVE, GAS Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001847
Sold Out COIL, HOLDING & BOOSTER Regular price $0.00 Sale price $0.00 Regular price Unit price	7	306106
Sold Out COIL, SECONDARY Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306105
Sold Out SCREW----NA Note: SCREW, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	9 N	313561
Sold Out BRACKET, GAS VALVE NA Regular price $0.00 Sale price $0.00 Regular price Unit price	10 N	33001834
Sold Out SCREW-GAS VALVE TO BRACKET Note: SCREW, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314568
Sold Out SCREW Note: SCREW, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314082
Sold Out SCREW Note: SCREW, GAS VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	12	310632
Sold Out CONNECTOR, ANGLE Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001842
Sold Out PIPE & BRACKET ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001735
Sold Out SCREW Note: SCREW, DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	15	211294
Sold Out DUCT ASSY., INLET (GAS) Note: INLET DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33001810
Sold Out THERMOSTAT, HI-LIMIT (GAS) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	303395
Sold Out SENSOR, RADIANT Regular price $0.00 Sale price $0.00 Regular price Unit price	18	303377
Sold Out CONE ASSY., COMBUSTION Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33001946
Sold Out SCREW Note: SCREW, COMBUSTION CONE ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001996
Sold Out EXTENSION F/COMBUSTION CONE Note: EXTENSION, COMBUSTION CONE Regular price $0.00 Sale price $0.00 Regular price Unit price	20 N	304953
Sold Out RETAINER, HEATER CHAMBER Regular price $0.00 Sale price $0.00 Regular price Unit price	21	312890
Sold Out SCREW Note: SCREW, HEATER CHAMBER RETAINER Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001996
Sold Out CAP, GAS PIPE Regular price $0.00 Sale price $0.00 Regular price Unit price	22	33001693
Sold Out SCREW Note: SCREW, DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	23	22001996

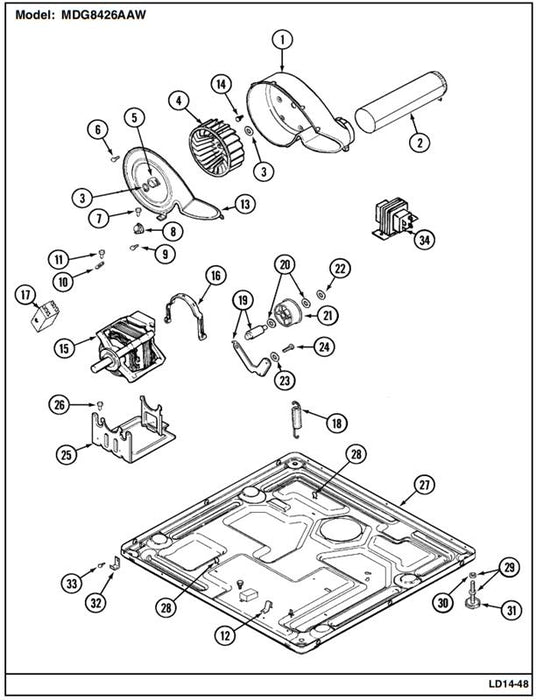

Product Details	S.P. Ref.	S.P. Code
Sold Out HOUSING, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001789
Sold Out SCREW Note: SCREW, EXHAUST DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001995
Sold Out DUCT ASSY., EXHAUST Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001800
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	3	410233
Sold Out WHEEL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002797
Sold Out WHEEL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33001790
Sold Out CLAMP, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	5	312967
Sold Out SCREW (HEX HEAD) Note: SCREW, HOUSING COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001855
Sold Out SCREW----NA Note: SCREW, HOUSING COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	7 N	313561
Sold Out THERMOSTAT, MULTI-TEMP (ELEC) Note: THERMOSTAT, MULTI-TEMP. Regular price $0.00 Sale price $0.00 Regular price Unit price	8	307249
Sold Out SCREW Note: SCREW, THERMOSTAT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	22001996
Sold Out FUSE, THERMAL (W' BRACKET) Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33001762
Sold Out SCREW Note: SCREW, THERMAL CUT-OFF Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314848
Sold Out CLIP, GROUNDING Regular price $0.00 Sale price $0.00 Regular price Unit price	12	22002244
Sold Out COVER, BLOWER HOUSING NA Regular price $0.00 Sale price $0.00 Regular price Unit price	13 N	33001873
Sold Out SCREW Note: SCREW, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	14	314818
Sold Out MOTOR & PULLEY ASSEMBLY (50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33002479
Sold Out MOTOR (230V 50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33002463
Sold Out MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001945
Sold Out CLIP, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	16	015825
Sold Out SWITCH, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	17 N	33002451
Sold Out SPRING, IDLER Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001754
Sold Out PLUG FOR SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002461
Sold Out SPRING, IDLER Note: SPRING & PLUG KIT 533002459 Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33002460
Sold Out GROMMET Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33002157
Sold Out IDLER ARM & SHAFT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33001840
Sold Out WASHER, IDLER SHAFT (QTY-1) Regular price $0.00 Sale price $0.00 Regular price Unit price	20	312527
Sold Out BEARING, IDLER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33001783
Sold Out RETAINING RING, IDLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	22	312958
Sold Out SLEEVE, IDLER ARM Regular price $0.00 Sale price $0.00 Regular price Unit price	23	315772
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	24	014874
Sold Out SUPPORT, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	25	33001752
Sold Out SCREW----NA Note: SCREW, MOUNT TO BASE Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	313561
Sold Out SUPPORT, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	25	33002466
Sold Out SCREW----NA Note: SCREW, MOTOR & BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	26 N	313561
Sold Out BASE, (LWR) NA Regular price $0.00 Sale price $0.00 Regular price Unit price	27 N	33002465
Sold Out BASE, (LWR) Regular price $0.00 Sale price $0.00 Regular price Unit price	27	33002622
Sold Out BASE, (LWR) NA Regular price $0.00 Sale price $0.00 Regular price Unit price	27 N	33002465
Sold Out BASE Regular price $0.00 Sale price $0.00 Regular price Unit price	27	33001845
Sold Out SPRING, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	28	410490
Sold Out ADJUSTABLE LEG & NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	29	305086
Sold Out NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	30	052740
Sold Out FOOT, RUBBER Regular price $0.00 Sale price $0.00 Regular price Unit price	31	314137
Sold Out CLIP, LOWER FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	32	22002239
Sold Out SCREW Note: SCREW, CLIP Regular price $0.00 Sale price $0.00 Regular price Unit price	33	310632
Sold Out SCREW Note: SCREW, TRANSFORMER Regular price $0.00 Sale price $0.00 Regular price Unit price	-	211294
Sold Out TRANSFORMER Regular price $0.00 Sale price $0.00 Regular price Unit price	34	33001948
Sold Out SCREW Note: SCREW, TRANSFORMER Regular price $0.00 Sale price $0.00 Regular price Unit price	-	313559

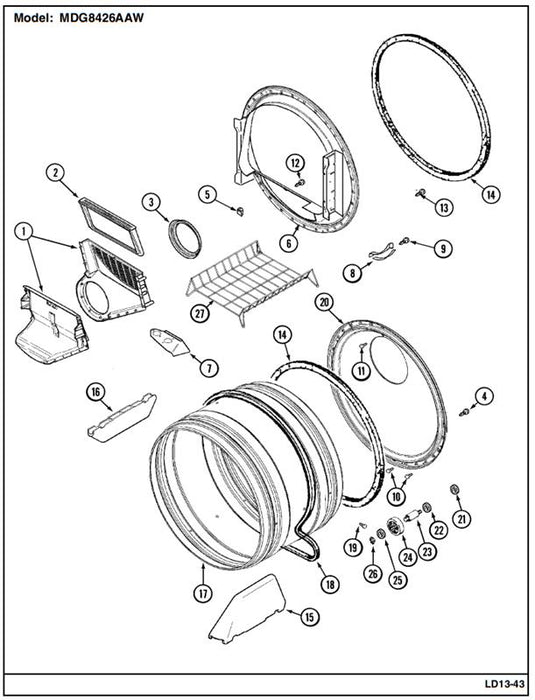

Product Details	S.P. Ref.	S.P. Code
Sold Out OUTLET DUCT ASSEMBLY Note: OUTLET DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001799
Sold Out FILTER, LINT Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001808
Sold Out SEAL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001758
Sold Out SCREW (#10-3/8") Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33002190
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	5	310376
Sold Out FRONT, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001802
Sold Out TUMBLER BEARING KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306508
Sold Out RIVET Note: RIVET, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	9	210720
Sold Out SCREW Note: SCREW, INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	10	22001996
Sold Out SCREW, #8 X 9/16 CTSK Note: SCREW, INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	11	210932
Sold Out SCREW Note: SCREW, SENSOR BAR ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001078
Sold Out SCREW----NA Note: SCREW, OUTLET DUCT (PHILLIPS) Regular price $0.00 Sale price $0.00 Regular price Unit price	12 N	312311
Sold Out SCREW (HEX HEAD) Note: SCREW, DUCT TO TUMBLER (HEX) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001855
Sold Out SEAL, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001807
Sold Out BAFFLE (TALL) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001756
Sold Out BAFFLE (SHORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33001755
Sold Out TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	17	33001889
Sold Out BELT, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001777
Sold Out SCREW, BAFFLE Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33001788
Sold Out BACK, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	20	33001801
Sold Out NUT, HEX (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33001443
Sold Out WASHER, SPRING (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	22	313347
Sold Out SHAFT, TUMBLER ROLLER Regular price $0.00 Sale price $0.00 Regular price Unit price	23	312948
Sold Out BEARING & ROLLER ASSEMBLY Note: ROLLER (W/BEARING) Regular price $0.00 Sale price $0.00 Regular price Unit price	24	303373
Sold Out WASHER, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	25	312535
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	26	410233

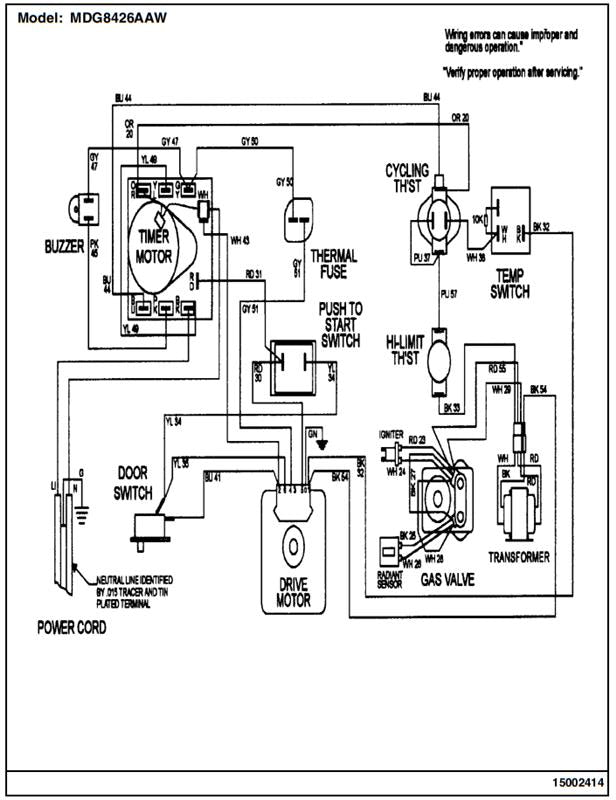

Wiring Diagram

Parts Manual

Search our store

MDG8426AAW

MDG8426AAW

22002339

33001942

33001621

22001659

22001664

33001619

33001690

33001636

912365

33001859

216423

33002252

33002251

33001944

33001638

22001663

22001942

33001806

216423

22002285

33001902

33001896

33002631

33001826

22001995

33002624

33001897

22003367

22001995

22002049

213280

22001995

310376

213007

22003409

33001767

22002247

33001900

33001954

22001995

33001768

33002239

33002167

33001760

33001174

304578

33001791

33002094

22002038

33001793

33001761

22002039

33001763

33001899

22002063

22002039

33001904

22001817

33001759

22002062
