MED26MNAGW

MED26MNAGW

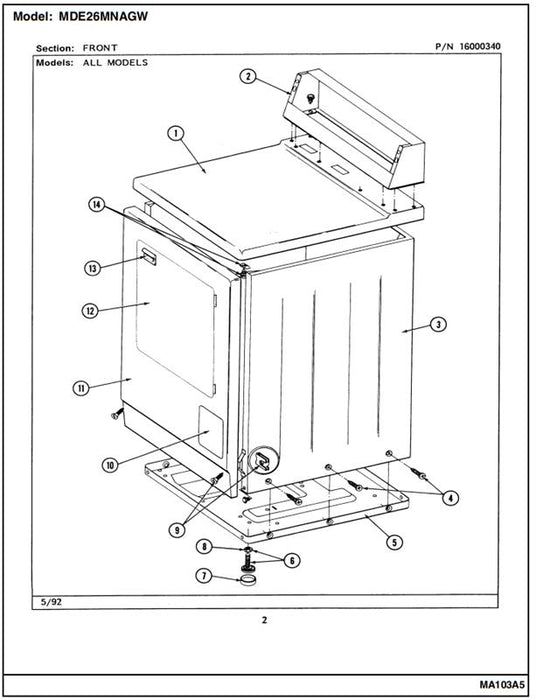

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

TOP COVER ASSY Note: TOP COVER ASSY. (WHT)

$0.00
$0.00
1
307104

CONSOLE-WHITE Note: CONSOLE (WHT)

$0.00
$0.00
2 N
305212

SCREW

$0.00
$0.00
-
212276

CABINET (WHT)

$0.00
$0.00
3 N
307124

SCREW

$0.00
$0.00
-
Y310632

SCREW, CABINET

$0.00
$0.00
4
213007

BASE ASSY.

$0.00
$0.00
5
Y303361

ADJUSTABLE LEG & NUT

$0.00
$0.00
6
Y305086

FOOT, RUBBER

$0.00
$0.00
7
Y314137

NUT

$0.00
$0.00
8
Y052740

SCREW & FSTNER ASSY(FRT.PANEL)

$0.00
$0.00
9
204439

PANEL, FRONT (WHT) Note: FRONT PANEL ASSY. (WHT)

$0.00
$0.00
11 N
308000

DOOR ASSY. COMPLETE (WHT)

$0.00
$0.00
12
308061

HANDLE WHITE Note: HANDLE (WHT)

$0.00
$0.00
13
314946

SCREW & FASTENER ASY.

$0.00
$0.00
14
204445

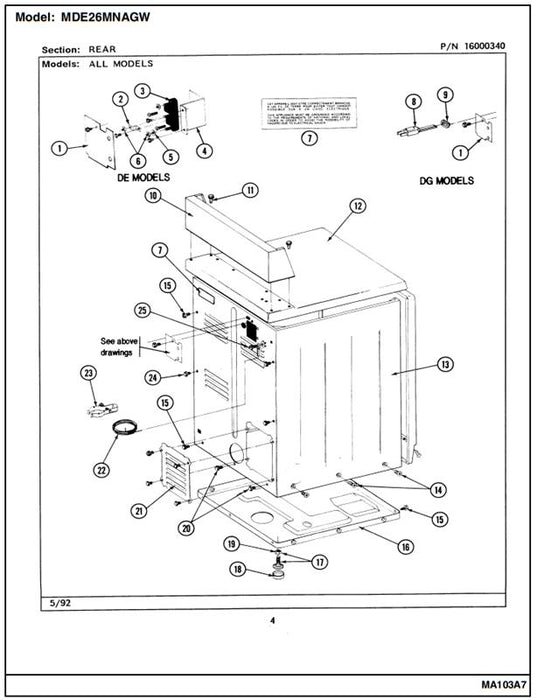

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

COVER, TERMINAL

$0.00
$0.00
1
Y312905

SCREW NA

$0.00
$0.00
1 N
313561

SCREW, #10-32 X 1/2 INCH

$0.00
$0.00
2
Y311423

STRAP, GROUND

$0.00
$0.00
2
Y312184

SCREW, #10-24 X 3/4 INCH O

$0.00
$0.00
3
Y312209

BLOCK, TERMINAL

$0.00
$0.00
3
400008

SCREW

$0.00
$0.00
4
Y310632

SCREW NA

$0.00
$0.00
4 N
313561

BRACKET, TERMINAL BLOCK

$0.00
$0.00
4
Y312904

WASHER, TERMINAL BLOCK

$0.00
$0.00
5
Y311270

NUT, TERMINAL BLOCK

$0.00
$0.00
6
311484

CORD, POWER (CANADA)

$0.00
$0.00
8
305168

CONSOLE-WHITE Note: CONSOLE (WHT)

$0.00
$0.00
10 N
305212

SCREW

$0.00
$0.00
11
212276

TOP COVER ASSY. (WHT) Note: TOP COVER ASSY. (WHT)

$0.00
$0.00
12
307105

CABINET (WHT)

$0.00
$0.00
13 N
307124

SCREW, CABINET

$0.00
$0.00
14
213007

SCREW NA

$0.00
$0.00
15 N
313561

BASE ASSY.

$0.00
$0.00
16
Y303361

ADJUSTABLE LEG & NUT

$0.00
$0.00
17
Y305086

FOOT, RUBBER

$0.00
$0.00
18
Y314137

NUT

$0.00
$0.00
19
Y052740

SCREW

$0.00
$0.00
20
Y310632

SCREW

$0.00
$0.00
21
211294

COVER, ACCESS

$0.00
$0.00
21
Y312951

SCREW

$0.00
$0.00
21
Y313559

GROUND WIRE

$0.00
$0.00
22
311155

CLAMP, GROUND (W/SCREW)

$0.00
$0.00
23
301548

SCREW

$0.00
$0.00
23 N
312122

SCREW

$0.00
$0.00
24
Y310632

SCREW & WASHER ASSY.

$0.00
$0.00
25
303846

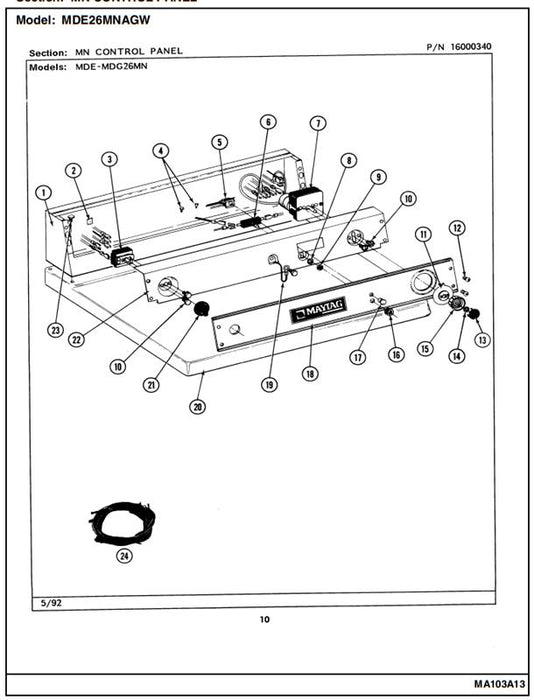

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

CONSOLE-WHITE Note: CONSOLE (WHT)

$0.00
$0.00
1 N
305212

FASTENER

$0.00
$0.00
2
215003

SWITCH, CYCLE SELECTOR

$0.00
$0.00
3
307237

SCREW

$0.00
$0.00
4
211294

PILOT LAMP

$0.00
$0.00
5 N
305473

SWITCH, PUSH-TO-START

$0.00
$0.00
6
306940

TIMER 240-50

$0.00
$0.00
7
Y305758

LOCK WASHER

$0.00
$0.00
8
312751

HEX NUT ON SWITCH

$0.00
$0.00
9
Y312706

SCREW

$0.00
$0.00
10
Y313588

TIMER DIAL INDICATOR

$0.00
$0.00
11
314725

SCREW, #8 X 1/2 INCH

$0.00
$0.00
12
212277

CAP FOR TIMER KNOB

$0.00
$0.00
13
314723

NUT

$0.00
$0.00
14
312273

KNOB FOR TIMER

$0.00
$0.00
15
314724

KNURLED NUT

$0.00
$0.00
16
Y312702

LENS, INDICATOR (AMBER)

$0.00
$0.00
17
215564

CONTROL PANEL COMMERCIAL DRYER

$0.00
$0.00
18
314909

SCREW

$0.00
$0.00
19
211252

WIRE, GROUND

$0.00
$0.00
19
205810

TOP COVER ASSY Note: TOP COVER ASSY. (WHT)

$0.00
$0.00
20
307104

KNOB, SELECTOR SWITCH

$0.00
$0.00
21
306938

BACK-UP PLATE - WHITE Note: BACK-UP PLATE (WHT)

$0.00
$0.00
22 N
314911

SCREW

$0.00
$0.00
23
212276

WIRE HARNESS

$0.00
$0.00
24 N
308303

WIRE HARNESS

$0.00
$0.00
24 N
307405

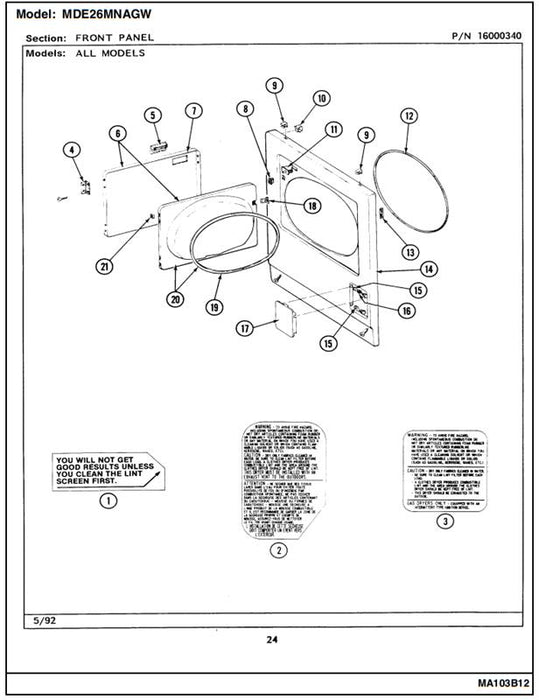

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

LABEL, LINT SCREEN INSTRUCTION Note: LABEL, LINT SCREEN INSTR.

$0.00
$0.00
1
Y313340

LABEL, INSTRUCTION

$0.00
$0.00
2
314941

INSTRUCTION LABEL Note: PART NOT USED

$0.00
$0.00
3 N
314942

SCREW

$0.00
$0.00
4
Y314062

HINGE

$0.00
$0.00
4
307099

SCREW - INLET DUCT Note: SCREW, INLET DUCT

$0.00
$0.00
-
312960

HANDLE WHITE Note: HANDLE (WHT)

$0.00
$0.00
5
314946

DOOR ASSY. COMPLETE (WHT) Note: DOOR ASSY. COMPLETE (WHT)

$0.00
$0.00
6
Y307111

PANEL, OUTER (WHT) Note: PANEL, OUTER (WHT)

$0.00
$0.00
7
314966

DOOR LATCH KIT--W

$0.00
$0.00
8
306436

FASTENER, PANEL

$0.00
$0.00
9
212982

CLIP, WIRE HARNESS

$0.00
$0.00
10
Y310376

SWITCH, DOOR

$0.00
$0.00
11
Y305753

SEAL, FRONT PANEL

$0.00
$0.00
12
314937

TWIN FASTENER

$0.00
$0.00
13
Y313907

SCREW & FSTNER ASSY(FRT.PANEL) Note: SCREW & FSTNER ASSY (FT.PNL)

$0.00
$0.00
-
204439

PANEL, FRONT (WHT)

$0.00
$0.00
14 N
308000

STRIKE PLATE

$0.00
$0.00
-
314944

DOOR STRIKE

$0.00
$0.00
18
314936

DOOR SEAL

$0.00
$0.00
19
314935

DOOR, INNER (W/SEAL)

$0.00
$0.00
20
307098

CLIP, DOOR LINER TO OUTER PNL Note: CLIP, DOOR LINER (OUTER PNL)

$0.00
$0.00
21
Y313910

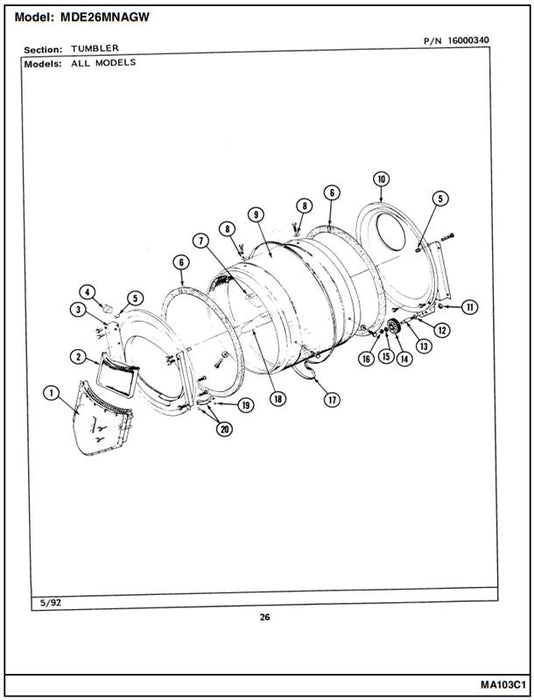

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

SCREW, INLET DUCT ----S

$0.00
$0.00
-
Y314110

DUCT, OUTLET ASSY.

$0.00
$0.00
1
Y307112

SCREEN, LINT

$0.00
$0.00
2
307108

FRONT, TUMBLER (W/SEAL)

$0.00
$0.00
3
307109

SCREW

$0.00
$0.00
-
Y310632

SCREW

$0.00
$0.00
- N
313764

SCREW----NA

$0.00
$0.00
- N
313561

CLIP, WIRE HARNESS

$0.00
$0.00
4
Y310376

COVER, THREAD

$0.00
$0.00
5 N
313915

SEAL, TUMBLER

$0.00
$0.00
6
314820

BAFFLE (SHORT)

$0.00
$0.00
7
314803

SCREW

$0.00
$0.00
-
Y310759

WASHER

$0.00
$0.00
8
314158

TUMBLER W/BAFFLES

$0.00
$0.00
9
306663

TUMBLER W/OUT BAFFLES

$0.00
$0.00
9
314802

SCREW

$0.00
$0.00
-
211294

BACK, TUMBLER (W/SEAL) ---S

$0.00
$0.00
10
Y308544

BACK, TUMBLER (W/SEAL) ---S

$0.00
$0.00
10
Y307114

NUT, ROLLER SHAFT

$0.00
$0.00
11
312538

WASHER,SPRING(ROLLER SHAFT)--S

$0.00
$0.00
12
Y313347

SHAFT, TUMBLER ROLLER C

$0.00
$0.00
13
Y312948

BEARING & ROLLER ASSEMBLY

$0.00
$0.00
14
Y303373

WASHER, ROLLER SHAFT

$0.00
$0.00
15
312535

RING, RETAINING

$0.00
$0.00
16
410233

BELT, TUMBLER & MOTOR

$0.00
$0.00
17
Y312959

SCREW

$0.00
$0.00
-
Y310759

BAFFLE (TALL)

$0.00
$0.00
18
314804

RIVET

$0.00
$0.00
19
210720

TUMBLER BEARING KIT

$0.00
$0.00
20
306508

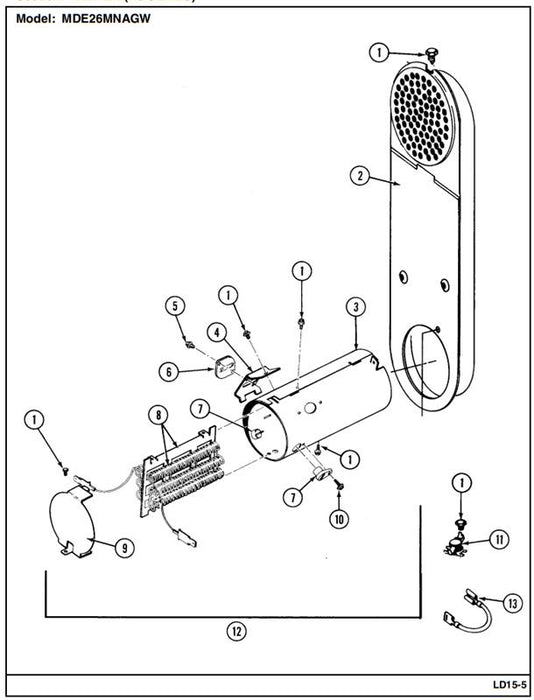

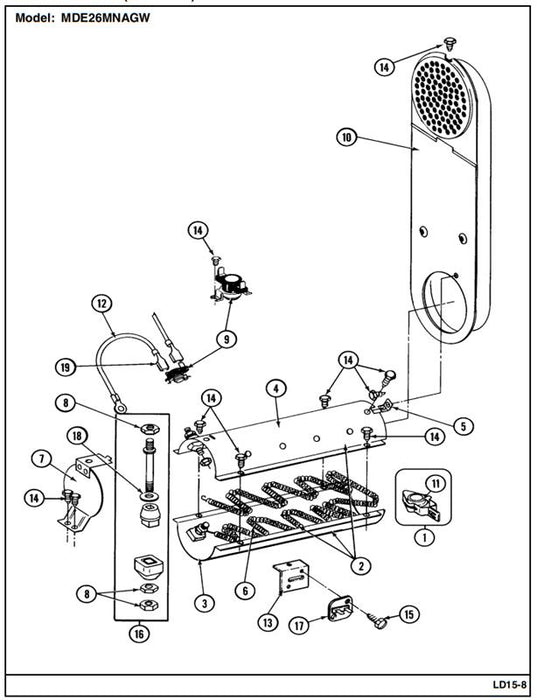

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

SCREW

$0.00
$0.00
1
211294

INLET DUCT ASSY.

$0.00
$0.00
2 N
307120

HEATER ENCLOSURE

$0.00
$0.00
3
314995

BRACKET, THERMAL FUSE

$0.00
$0.00
4
315346

SCREW

$0.00
$0.00
5
314848

FUSE, THERMAL

$0.00
$0.00
6
307473

INSULATOR, TERMINAL

$0.00
$0.00
7
314998

HEATER SUB-ASSEMBLY 240V

$0.00
$0.00
8
307186

SHIELD, RADIANT

$0.00
$0.00
9
314999

SCREW

$0.00
$0.00
10 N
314554

THERMOSTAT, HI-LIMIT (ELEC)

$0.00
$0.00
11
303396

HEATER ASSEMBLY (240-50) Note: HEATER ASSY. (240-50)

$0.00
$0.00
12
307180
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

SCREW

$0.00
$0.00
1
Y312961

RING, RETAINING

$0.00
$0.00
2
410233

CLAMP, BLOWER HOUSING

$0.00
$0.00
3
312967

BLOWER WHEEL ASSEMBLY & CLAMP

$0.00
$0.00
4
Y303836

HOUSING, BLOWER

$0.00
$0.00
5
Y312893

WIRE, GROUND

$0.00
$0.00
6
901220

MOTOR 240-50

$0.00
$0.00
7
Y304656

SWITCH, MOTOR STARTPROD. Note: SWITCH, MOTOR START-PROD. #3-3358 & 3-3358-6

$0.00
$0.00
8
Y303879

SWITCH, MOTOR START-PROD. Note: #3-3358-8 & 3-3358-9

$0.00
$0.00
8 N
306207

SWITCH, MOTOR----C Note: PRODUCTION #3-3358-2, 3-3358-4& 3-3358-7

$0.00
$0.00
8
Y303877

CLIP, MOTOR

$0.00
$0.00
9
Y015825

SET SCREW, PULLEY

$0.00
$0.00
10
Y053241

MOTOR PULLEY - 50 CYCLE

$0.00
$0.00
11
305186

SCREW, GROUND WIRE

$0.00
$0.00
12
910343

IDLER SPRING ASSEMBLY

$0.00
$0.00
13
Y303945

BELT, TUMBLER & MOTOR

$0.00
$0.00
14
Y312959

RETAINING RING, IDLER SHAFT

$0.00
$0.00
15
312958

WASHER, IDLER SHAFT (QTY-1)

$0.00
$0.00
16
Y312527

PULLEY, IDLER

$0.00
$0.00
17
Y303705

SCREW

$0.00
$0.00
18
Y014874

SLEEVE, IDLER ARM S

$0.00
$0.00
19
Y312894

IDLER ARM & SHAFT ASSY.

$0.00
$0.00
20
Y303363

SCREW

$0.00
$0.00
21
211294

SPACER, IDLER BRACKET

$0.00
$0.00
22
Y313582

SUPPORT, MOTOR

$0.00
$0.00
23 N
312897

SCREW

$0.00
$0.00
24
Y310632

SCREW----NA

$0.00
$0.00
25 N
313561

COVER FOR BLOWER Note: COVER, BLOWER

$0.00
$0.00
26
314778

SEAL, BLOWER

$0.00
$0.00
27
Y312901

FOOT, RUBBER

$0.00
$0.00
28
210684

LEG, ADJUSTABLE (W/NUT)---S

$0.00
$0.00
29
Y302699

NUT, LOCK

$0.00
$0.00
30
210385

BASE ASSY.

$0.00
$0.00
31
Y303361

CLIP, WIRE HARNESS

$0.00
$0.00
32
Y310376

EXHAUST DUCT ASSY.

$0.00
$0.00
33
Y303442

SPRING, WIRE HARNESS

$0.00
$0.00
34
410490

RETAINER, WIRE HARNESS

$0.00
$0.00
35
Y313262

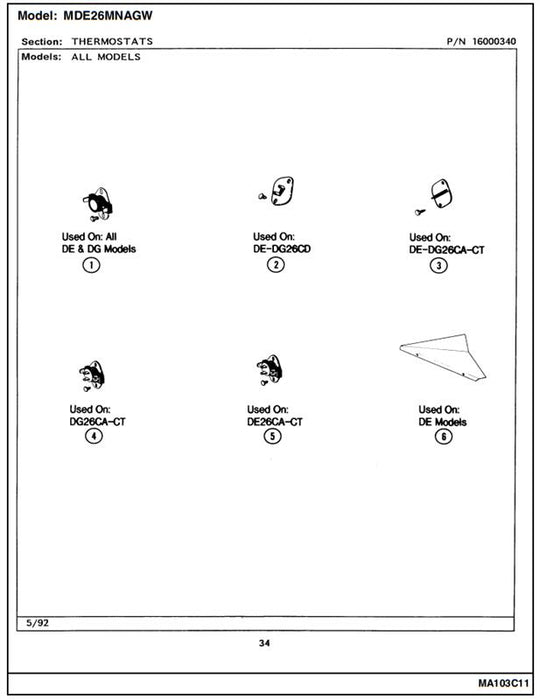

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

CYCLING THERMOSTAT 140 DEG Note: CYCLING THERMOSTAT (140 DEG.)

$0.00
$0.00
1
303392

CUT-OFF, THERMAL

$0.00
$0.00
-
306604

SCREW

$0.00
$0.00
3
211294

THERMOSTAT, MULTI-TEMP

$0.00
$0.00
3
306967

SCREW

$0.00
$0.00
-
Y310632

COVER, THERMOSTAT

$0.00
$0.00
5
315122
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

MOTOR 240-50 Note: MOTOR (240-50)

$0.00
$0.00
1
Y304656

MOTOR PULLEY - 50 CYCLE Note: MOTOR PULLEY (50 CYCLE)

$0.00
$0.00
2
305186

PILOT LAMP

$0.00
$0.00
3 N
305473

TIMER 240-50

$0.00
$0.00
4
Y305758

WIRE HARNESS

$0.00
$0.00
5 N
308303

WIRE HARNESS

$0.00
$0.00
5 N
307405

HEATER ELEMENT 240-50 Note: ELEMENT, HEATER (240-50)

$0.00
$0.00
6
Y313950
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

CLIP AND INSULATOR ASSEMBLY

$0.00
$0.00
1
Y303881

HEATER ASSY 240V Note: PART NOT AVAILABLE

$0.00
$0.00
2
307470

HEATER CHAMBER, BOTTOM

$0.00
$0.00
3
Y313576

HEATER CHAMBER, TOP

$0.00
$0.00
4
Y313575

RETAINER, HEATER CHAMBER

$0.00
$0.00
5
Y312890

HEATER ELEMENT 240-50

$0.00
$0.00
6
Y313950

HEATER SHIELD

$0.00
$0.00
7
304124

NUT, TERMINAL BLOCK

$0.00
$0.00
8
311484

THERMOSTAT, HI-LIMIT (ELEC)

$0.00
$0.00
9
303396

INLET DUCT ASSY.

$0.00
$0.00
10 N
307120

INSULATOR FOR HEATER ELEMEN

$0.00
$0.00
11
Y313270

JUMPER WIRE

$0.00
$0.00
12
Y304693

MOUNTING BRACKET

$0.00
$0.00
13
315046

SCREW

$0.00
$0.00
14
211294

SCREW

$0.00
$0.00
15
314848

TERMINAL INSULATOR ASSEMBLY

$0.00
$0.00
16
Y304596

FUSE, THERMAL

$0.00
$0.00
17
307473

WASHER, 7/32 INCH

$0.00
$0.00
18
311093

WIRE TERMINAL

$0.00
$0.00
19
210745

Wiring Diagram

Parts Manual
