MUE15MNAGW

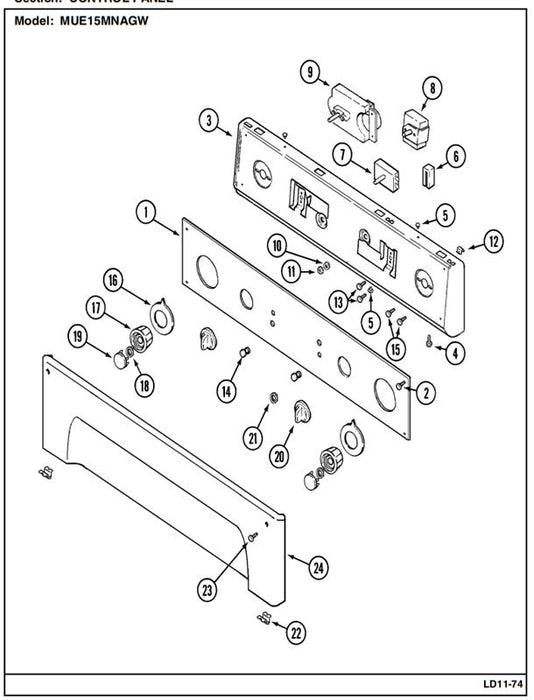

Exploded View 1

Product Details	S.P. Ref.	S.P. Code
Sold Out OVERLAY, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33002070
Sold Out SCREW, TORX Note: SCREW, CONTROL PANEL OVERLAY Regular price $0.00 Sale price $0.00 Regular price Unit price	2	215506
Sold Out PANEL, CONTROL (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33002071
Sold Out FASTENER CLIP, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002003
Sold Out SCREW, TORX Note: SCREW, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	4	215506
Sold Out PLUG, SIGHT HOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33001132
Sold Out LIGHT, INDICATOR Note: LAMP, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	6	22001365
Sold Out SWITCH, PUSH-TO-START Regular price $0.00 Sale price $0.00 Regular price Unit price	7	306940
Sold Out SWITCH CYCLE SEL Note: SWITCH, CYCLE SELECTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	8	307253
Sold Out TIMER 240-50 Note: TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	9 N	307496
Sold Out LOCK WASHER Note: WASHER, LOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	10	312751
Sold Out HEX NUT ON SWITCH Note: NUT, PUSH TO START SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	11	312706
Sold Out FASTENER, CONTROL PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001977
Sold Out SCREW Note: SCREW, SELECTOR SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	13	313588
Sold Out LENS, INDICATOR (AMBER) Note: LENS, INDICATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	14	215564
Sold Out SCREW Note: SCREW, TIMER Regular price $0.00 Sale price $0.00 Regular price Unit price	15	313588
Sold Out SKIRT, DIAL Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33001500
Sold Out KNOB FOR TIMER Note: KNOB, CONTROL Regular price $0.00 Sale price $0.00 Regular price Unit price	17	314724
Sold Out NUT Note: NUT, CONTROL KNOB Regular price $0.00 Sale price $0.00 Regular price Unit price	18	312273
Sold Out CAP FOR TIMER KNOB Note: CAP, KNOB Regular price $0.00 Sale price $0.00 Regular price Unit price	19	314723
Sold Out KNOB FOR SELECTOR SWITCH Note: KNOB, CYCLE SELECTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	20	205663
Sold Out KNURLED NUT Note: NUT, PUSH TO START SWITCH Regular price $0.00 Sale price $0.00 Regular price Unit price	21	312702
Sold Out CLIP, ACCESS PANEL Note: FASTENER, ACCESS PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	22	33001980
Sold Out SCREW, TORX Note: SCREW, ACCESS PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	23	215506
Sold Out PANEL, ACCESS (WHT) Note: PANEL, ACCESS (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	24	33002072
Sold Out WIRE HARNESS, MAIN (UPR) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002086

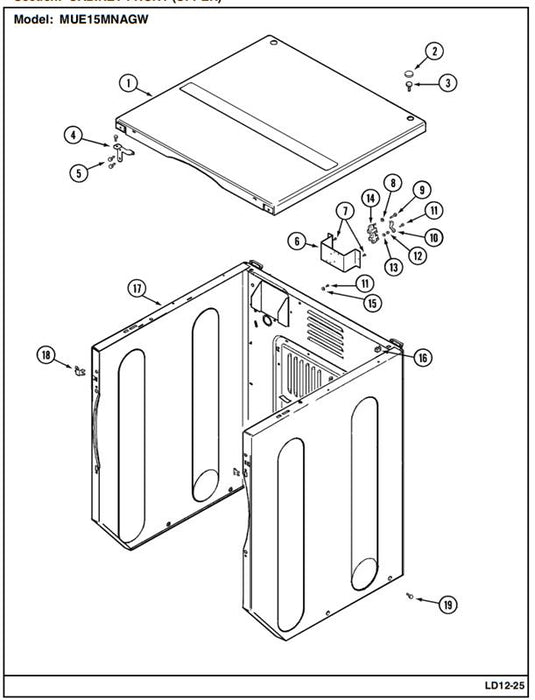

Product Details	S.P. Ref.	S.P. Code
Sold Out COVER, TOP (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001995
Sold Out PLUG, HOLE Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001997
Sold Out SCREW Note: SCREW, TOP COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	3	22001883
Sold Out BRACKET, TOP COVER (RT) Note: (RT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33001999
Sold Out BRACKET, TOP COVER (LT) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33001998
Sold Out SCREW Note: SCREW, TOP COVER BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	5	22001995
Sold Out BRACKET, TERMINAL BLOCK NA Regular price $0.00 Sale price $0.00 Regular price Unit price	6 N	33001826
Sold Out SCREW Note: SCREW, TERMINAL BLOCK BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	7	22001995
Sold Out WASHER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	8	311270
Sold Out SCREW, #10-24 X 3/4 INCH Note: SCREW, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	9	312209
Sold Out STRAP, GROUND Regular price $0.00 Sale price $0.00 Regular price Unit price	10	312184
Sold Out SCREW----NA Note: SCREW, GROUND STRAP Regular price $0.00 Sale price $0.00 Regular price Unit price	11 N	33001245
Sold Out NUT, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	12	311484
Sold Out WASHER, 7/32 INCH Note: WASHER, BRASS Regular price $0.00 Sale price $0.00 Regular price Unit price	13	311093
Sold Out BLOCK, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001244
Sold Out WASHER Note: WASHER, GROUND LUG Regular price $0.00 Sale price $0.00 Regular price Unit price	15 N	313363
Sold Out FASTENER, U-NUT Regular price $0.00 Sale price $0.00 Regular price Unit price	16	22001502
Sold Out CABINET (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	33002000
Sold Out CLIP, ACCESS PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001980
Sold Out SCREW, CABINET Regular price $0.00 Sale price $0.00 Regular price Unit price	19	213007

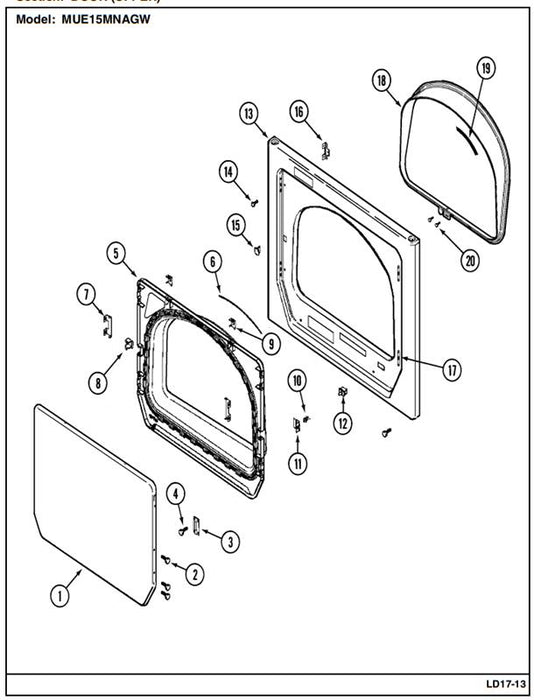

Product Details	S.P. Ref.	S.P. Code
Sold Out DOOR, OUTER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33002079
Sold Out SCREW #8-18AB WAFER HD Regular price $0.00 Sale price $0.00 Regular price Unit price	2	22002063
Sold Out HINGE, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33002017
Sold Out SCREW Note: SCREW, HINGE Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22002062
Sold Out DOOR, INNER (WHT) Note: DOOR, INNER (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	5	33002020
Sold Out SEAL, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33002094
Sold Out CLIP, DOOR (DOUBLE) Regular price $0.00 Sale price $0.00 Regular price Unit price	7	22002038
Sold Out PLUG, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	8	33001763
Sold Out CLIP, DOOR (SINGLE) Note: CLIP, INNER DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	9	22002039
Sold Out STRIKE, DOOR (MALE) Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33001761
Sold Out BRACKET, STRIKE Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33001793
Sold Out SWITCH, DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33002239
Sold Out PANEL, FRONT (WHT-UPR) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33002081
Sold Out SCREW, TORX Note: SCREW, FRONT PANEL Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002051
Sold Out NAMEPLATE Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001711
Sold Out PANEL, FASTENER Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001486
Sold Out CATCH, DOOR (W/PLUG) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001791
Sold Out TWIN SPEEDNUT Regular price $0.00 Sale price $0.00 Regular price Unit price	16	33002025
Sold Out COVER, HINGE HOLE (WHT) Regular price $0.00 Sale price $0.00 Regular price Unit price	17	33001175
Sold Out EXTENSION, TUMBLER FRONT Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33002026
Sold Out SEAL, SHROUD Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33001767
Sold Out SCREW (HEX HEAD) Note: SCREW, TUMBLER FRONT EXTENSION Regular price $0.00 Sale price $0.00 Regular price Unit price	20	33001855

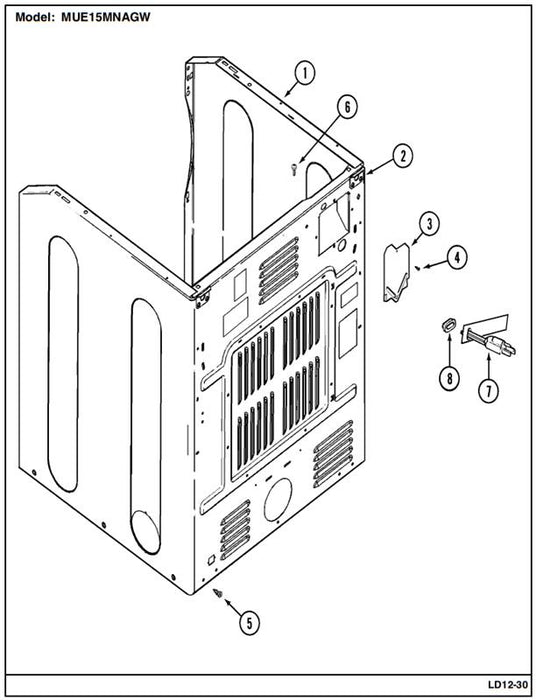

Product Details	S.P. Ref.	S.P. Code
Sold Out CABINET (WHT) Note: (WHT-UPR) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33002000
Sold Out COVER, TERMINAL BLOCK Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33001795
Sold Out SCREW Note: SCREW, TERMINAL COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	4	22001995
Sold Out SCREW Note: SCREW, CABINET BACK Regular price $0.00 Sale price $0.00 Regular price Unit price	5	22001995

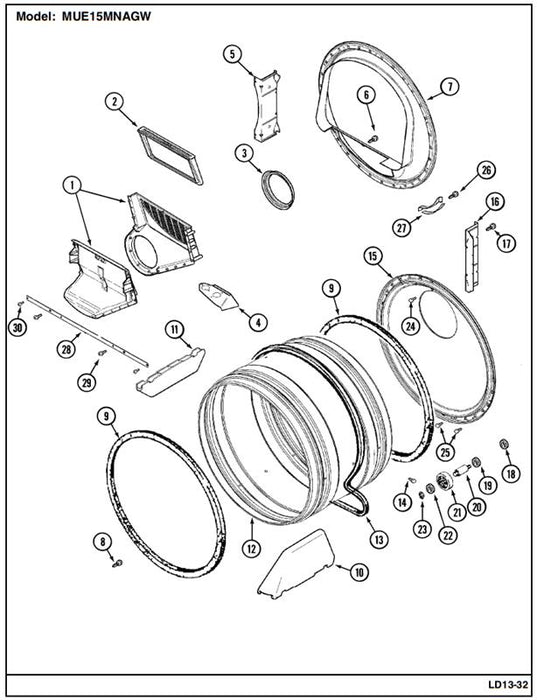

Product Details	S.P. Ref.	S.P. Code
Sold Out OUTLET DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001799
Sold Out FILTER, LINT Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001804
Sold Out SEAL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	3	33002082
Sold Out COVER, THERMOSTAT (ELEC ONLY) Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33001837
Sold Out SUPPORT, TUMBLER FRONT Regular price $0.00 Sale price $0.00 Regular price Unit price	5 N	33001828
Sold Out SCREW----NA Note: SCREW, OUTLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	6 N	312311
Sold Out FRONT, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	7	33001802
Sold Out SCREW (HEX HEAD) Note: SCREW, OUTLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	8	33001855
Sold Out SEAL, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	9	33001807
Sold Out BAFFLE (TALL) Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33002032
Sold Out BAFFLE (SHORT) Regular price $0.00 Sale price $0.00 Regular price Unit price	11	33001755
Sold Out TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	12	33001794
Sold Out BELT, TUMBLER Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001777
Sold Out SCREW, BAFFLE Regular price $0.00 Sale price $0.00 Regular price Unit price	14	33001788
Sold Out BACK, TUMBLER (W/SEAL) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001801
Sold Out SUPPORT, BACK Regular price $0.00 Sale price $0.00 Regular price Unit price	16 N	33001832
Sold Out SCREW Note: SCREW, TUMBLER BACK Regular price $0.00 Sale price $0.00 Regular price Unit price	17	22001995
Sold Out NUT, HEX (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	33001443
Sold Out WASHER, SPRING (ROLLER SHAFT) Regular price $0.00 Sale price $0.00 Regular price Unit price	19	313347
Sold Out SHAFT, TUMBLER ROLLER Regular price $0.00 Sale price $0.00 Regular price Unit price	20	312948
Sold Out BEARING & ROLLER ASSEMBLY Note: ROLLER (W/BEARING) Regular price $0.00 Sale price $0.00 Regular price Unit price	21	303373
Sold Out WASHER, ROLLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	22	312535
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	23	410233
Sold Out SCREW, #8 X 9/16 CTSK Note: SCREW, INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	24	210932
Sold Out SCREW Note: SCREW, INLET DUCT Regular price $0.00 Sale price $0.00 Regular price Unit price	25	22001996
Sold Out RIVET Regular price $0.00 Sale price $0.00 Regular price Unit price	26	210720
Sold Out TUMBLER BEARING KIT Regular price $0.00 Sale price $0.00 Regular price Unit price	27	306508
Sold Out BRACE, TUMBLER FRONT Regular price $0.00 Sale price $0.00 Regular price Unit price	28	33002039
Sold Out SCREW, SHROUD Note: SCREW, TUMBLER FRONT BRACE Regular price $0.00 Sale price $0.00 Regular price Unit price	29	33001768
Sold Out SCREW Note: SCREW, TUMBLER FRONT BRACE Regular price $0.00 Sale price $0.00 Regular price Unit price	30	22001995

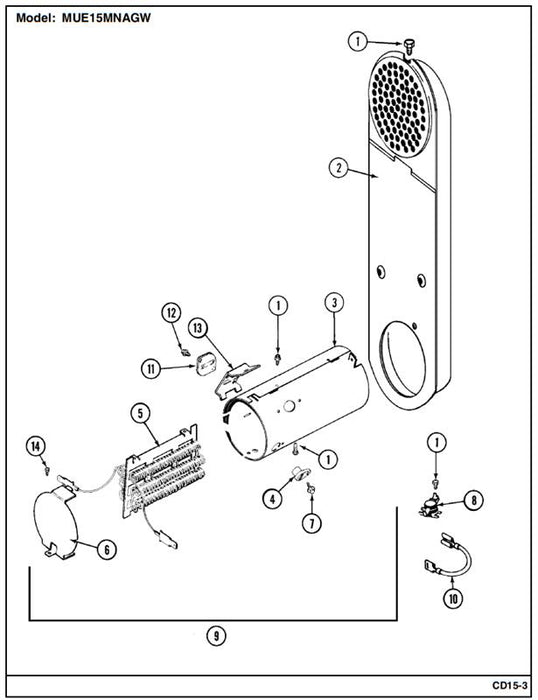

Product Details	S.P. Ref.	S.P. Code
Sold Out SCREW Note: SCREW, HEATER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	211294
Sold Out DUCT ASSY., INLET Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001803
Sold Out HEATER ENCLOSURE Regular price $0.00 Sale price $0.00 Regular price Unit price	3	314995
Sold Out INSULATOR, TERMINAL Regular price $0.00 Sale price $0.00 Regular price Unit price	4	314998
Sold Out HEATER SUB-ASSEMBLY 240V Note: HEATER SUB-ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	5	307186
Sold Out SHIELD, RADIANT Regular price $0.00 Sale price $0.00 Regular price Unit price	6	314999
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	7 N	314554
Sold Out THERMOSTAT, HI-LIMIT (ELEC) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	303396
Sold Out HEATER ASSEMBLY (240-50) Regular price $0.00 Sale price $0.00 Regular price Unit price	9	307180
Sold Out WIRE, JUMPER Regular price $0.00 Sale price $0.00 Regular price Unit price	10	307173
Sold Out FUSE, THERMAL Regular price $0.00 Sale price $0.00 Regular price Unit price	11	307473
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	12	314848
Sold Out BRACKET, THERMAL FUSE Regular price $0.00 Sale price $0.00 Regular price Unit price	13	315346
Sold Out SCREW Note: SCREW, RADIANT SHIELD Regular price $0.00 Sale price $0.00 Regular price Unit price	14	22001996
Sold Out CONVERSION KIT (240V TO 208V) Regular price $0.00 Sale price $0.00 Regular price Unit price	-	308590

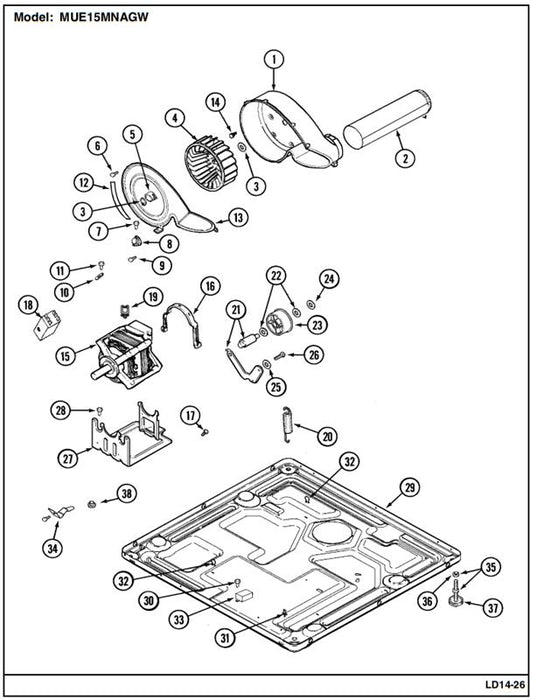

Product Details	S.P. Ref.	S.P. Code
Sold Out HOUSING, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	33001789
Sold Out SCREW Note: SCREW, EXHAUST DUCT ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001995
Sold Out DUCT ASSY., EXHAUST Regular price $0.00 Sale price $0.00 Regular price Unit price	2	33001800
Sold Out RING, RETAINING Regular price $0.00 Sale price $0.00 Regular price Unit price	3	410233
Sold Out WHEEL, BLOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	4	33001790
Sold Out CLAMP, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	5	312967
Sold Out SCREW (HEX HEAD) Note: SCREW, HOUSING COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	6	33001855
Sold Out SCREW----NA Note: SCREW, HOUSING COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	7 N	313561
Sold Out CYCLING THERMOSTAT 140 DEG. Note: THERMOSTAT, CYCLING Regular price $0.00 Sale price $0.00 Regular price Unit price	8	303392
Sold Out THERMOSTAT, MULTI-TEMP Note: THERMOSTAT, MULTI-TEMP. Regular price $0.00 Sale price $0.00 Regular price Unit price	8	306967
Sold Out HARNESS, WIRE Note: WIRE HARNESS, THERMOSTAT Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33001306
Sold Out SCREW Note: SCREW, THERMOSTAT Regular price $0.00 Sale price $0.00 Regular price Unit price	9	22001996
Sold Out FUSE, THERMAL (W' BRACKET) Regular price $0.00 Sale price $0.00 Regular price Unit price	10	33001762
Sold Out SCREW Note: SCREW, THERMAL CUT-OFF Regular price $0.00 Sale price $0.00 Regular price Unit price	11	314848
Sold Out SEAL, BLOWER COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	12 N	33001772
Sold Out COVER, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	13	33001796
Sold Out SCREW Note: SCREW, BLOWER HOUSING Regular price $0.00 Sale price $0.00 Regular price Unit price	14	314818
Sold Out MOTOR & PULLEY ASSEMBLY (50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33002479
Sold Out MOTOR (230V 50HZ) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33002463
Sold Out MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	15	33001945
Sold Out CLIP, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	16	015825
Sold Out SCREW, GROUND WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	17	910343
Sold Out SWITCH, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	18 N	33002451
Sold Out CLIP, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	19	33002040
Sold Out PLUG FOR SPRING Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002461
Sold Out SPRING, IDLER Regular price $0.00 Sale price $0.00 Regular price Unit price	20	33002460
Sold Out GROMMET Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002157
Sold Out SPRING, IDLER Regular price $0.00 Sale price $0.00 Regular price Unit price	20	33001754
Sold Out IDLER ARM & SHAFT ASSY. Regular price $0.00 Sale price $0.00 Regular price Unit price	21	33001840
Sold Out WASHER, IDLER SHAFT (QTY-1) Regular price $0.00 Sale price $0.00 Regular price Unit price	22	312527
Sold Out BEARING, IDLER ASSEMBLY Regular price $0.00 Sale price $0.00 Regular price Unit price	23	33001783
Sold Out RETAINING RING, IDLER SHAFT Regular price $0.00 Sale price $0.00 Regular price Unit price	24	312958
Sold Out SLEEVE, IDLER ARM Regular price $0.00 Sale price $0.00 Regular price Unit price	25	315772
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	26	014874
Sold Out SCREW----NA Note: SCREW, SUPPORT Regular price $0.00 Sale price $0.00 Regular price Unit price	- N	313561
Sold Out SUPPORT, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	27	33002466
Sold Out SUPPORT, MOTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	27	33001752
Sold Out SCREW----NA Note: SCREW, MOTOR SUPPORT Regular price $0.00 Sale price $0.00 Regular price Unit price	28 N	313561
Sold Out STRIP, GROMMET Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002049
Sold Out BASE (UPR) Regular price $0.00 Sale price $0.00 Regular price Unit price	29	33002467
Sold Out BASE, (LWR) NA Regular price $0.00 Sale price $0.00 Regular price Unit price	29 N	33002465
Sold Out FASTENER, PUSH Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002048
Sold Out SCREW-GAS VALVE TO BRACKET Note: SCREW, HARNESS PROTECTOR Regular price $0.00 Sale price $0.00 Regular price Unit price	-	314568
Sold Out BASE (UPR) Regular price $0.00 Sale price $0.00 Regular price Unit price	29	33002041
Sold Out PROTECTOR, HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	-	33002050
Sold Out RETAINER, WIRE Regular price $0.00 Sale price $0.00 Regular price Unit price	31	315471
Sold Out SPRING, WIRE HARNESS Regular price $0.00 Sale price $0.00 Regular price Unit price	32	410490
Sold Out BRACKET (LT) Regular price $0.00 Sale price $0.00 Regular price Unit price	34	33002042
Sold Out BRACKET (RT) Note: (RT) Regular price $0.00 Sale price $0.00 Regular price Unit price	34	33002043
Sold Out SCREW Note: SCREW, BRACKET Regular price $0.00 Sale price $0.00 Regular price Unit price	-	22001995
Sold Out GUIDE Regular price $0.00 Sale price $0.00 Regular price Unit price	38	33002044

Search our store

MUE15MNAGW

MUE15MNAGW

33002070

215506

33002071

33002003

215506

33001132

22001365

306940

307253

307496

312751

312706

33001977

313588

215564

313588

33001500

314724

312273

314723

205663

312702

33001980

215506

33002072

33002086

33001995

33001997

22001883

33001999

33001998

22001995

33001826

22001995

311270

312209

312184

33001245

311484

311093

33001244

313363

22001502

33002000

33001980

213007

33002079

22002063

33002017

22002062

33002020

33002094

22002038

33001763

22002039

33001761

33001793

33002239

33002081

33002051

33001711

33001486

33001791

33002025

33001175

33002026

33001767
