W4 OMK38HU0BA

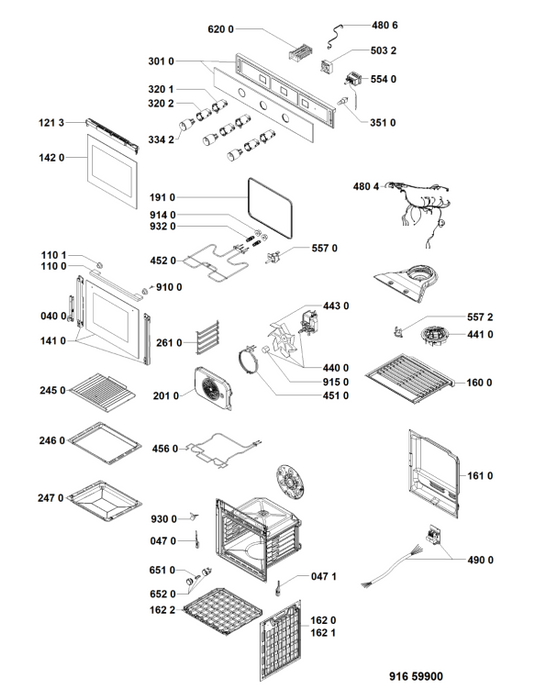

Product Details	S.P. Ref.	S.P. Code
Sold Out hinge 2 glass std materia Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4880 005 69438
Sold Out oven door hinge support left Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4810 108 22422
Sold Out oven door hinge support right Regular price $0.00 Sale price $0.00 Regular price Unit price	0471	4810 108 22421
Sold Out handle black aspire Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4880 008 53641
Sold Out washer handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4810 108 54294
Sold Out exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	1213	4810 108 26358
Sold Out oven glass assy black whirlpool Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4880 008 53649
Sold Out inner glass std mtr Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4810 108 26397
Sold Out cover top electric oven Regular price $0.00 Sale price $0.00 Regular price Unit price	1600	4810 111 16252
Sold Out cover rear electric oven Regular price $0.00 Sale price $0.00 Regular price Unit price	1610	4810 111 16938
Sold Out side panel right Regular price $0.00 Sale price $0.00 Regular price Unit price	1620	4810 111 16927
Sold Out side panel left Regular price $0.00 Sale price $0.00 Regular price Unit price	1621	4810 111 16929
Sold Out cover lower std/pyro Regular price $0.00 Sale price $0.00 Regular price Unit price	1622	4810 111 22328
Sold Out gasket oven door std materia Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4880 007 25238
Sold Out cover fan rear grey Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4810 108 29821
Sold Out grid oven 478,5 x 365 mm Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4880 007 29819
Sold Out baking tray grey Regular price $0.00 Sale price $0.00 Regular price Unit price	2460	4810 110 91369
Sold Out fat pan grey, stop position Regular price $0.00 Sale price $0.00 Regular price Unit price	2470	4810 111 90524
Sold Out lateral grid materia Regular price $0.00 Sale price $0.00 Regular price Unit price	2610	4810 108 28289
Sold Out control panel black Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4880 008 53661
Sold Out support push-push knob glass panel Regular price $0.00 Sale price $0.00 Regular price Unit price	3201	4810 107 53397
Sold Out anti-wobbling holder fk on g-bl painted Regular price $0.00 Sale price $0.00 Regular price Unit price	3202	4880 006 35922
Sold Out knob push push index black matt Regular price $0.00 Sale price $0.00 Regular price Unit price	3342	4810 105 91863
Sold Out pilot light 220v 1526p Regular price $0.00 Sale price $0.00 Regular price Unit price	3510	4880 005 08060
Sold Out circulating fan motor assy Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4880 005 33053
Sold Out cooling fan assy Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4810 108 36697
Sold Out impeller fan almes Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4810 108 68315
Sold Out heating element circular 1800w 230v Regular price $0.00 Sale price $0.00 Regular price Unit price	4510	4880 008 57687
Sold Out heating element upper 1500w 230v Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4810 110 35379
Sold Out heating element lower 1150w 230v Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4880 005 26533
Sold Out cable harness cpl. mf8 ao glass Regular price $0.00 Sale price $0.00 Regular price Unit price	4804	4880 008 53667
Sold Out cable harness cpl. mf8 ao Regular price $0.00 Sale price $0.00 Regular price Unit price	4804	4880 008 58493
Sold Out grounding wire Regular price $0.00 Sale price $0.00 Regular price Unit price	4806	4880 008 53676
Sold Out mains cable 1000 mm w/o plug Regular price $0.00 Sale price $0.00 Regular price Unit price	4900	4880 008 48921
Sold Out timer automatic off 0-120 min Regular price $0.00 Sale price $0.00 Regular price Unit price	5032	4810 107 92471
Sold Out thermostat oven Regular price $0.00 Sale price $0.00 Regular price Unit price	5540	4810 108 67971
Sold Out thermolimiter 300±10/255±15 °c Regular price $0.00 Sale price $0.00 Regular price Unit price	5570	4810 108 72481
Sold Out cut in 50±5/40±5°c no Regular price $0.00 Sale price $0.00 Regular price Unit price	5572	4812 282 28282
Sold Out oven selector 10 pos. Regular price $0.00 Sale price $0.00 Regular price Unit price	6200	4810 103 99151
Sold Out this item is not fitted to this model Regular price $0.00 Sale price $0.00 Regular price Unit price	6510	4820 000 91621
Sold Out lamp halogen assy g9 25w 230v 300°c Regular price $0.00 Sale price $0.00 Regular price Unit price	6520	4810 111 35050
Sold Out screw 4.2-1.4 x 16 mrd 6l ab Regular price $0.00 Sale price $0.00 Regular price Unit price	9100	4880 006 37319
Sold Out nut m4 Regular price $0.00 Sale price $0.00 Regular price Unit price	9140	4812 505 18421
Sold Out nut propeller cavity fan minerwa Regular price $0.00 Sale price $0.00 Regular price Unit price	9150	4810 107 81713
Sold Out clamp fixation capillary thermostat Regular price $0.00 Sale price $0.00 Regular price Unit price	9300	4812 404 18649
Sold Out spring upper heating element Regular price $0.00 Sale price $0.00 Regular price Unit price	9320	4819 492 68714
Sold Out mounting kit not shown Regular price $0.00 Sale price $0.00 Regular price Unit price	9938	4880 005 25857

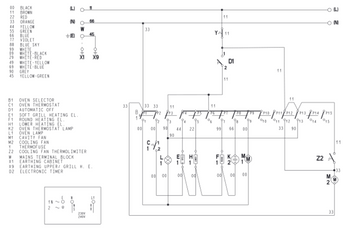

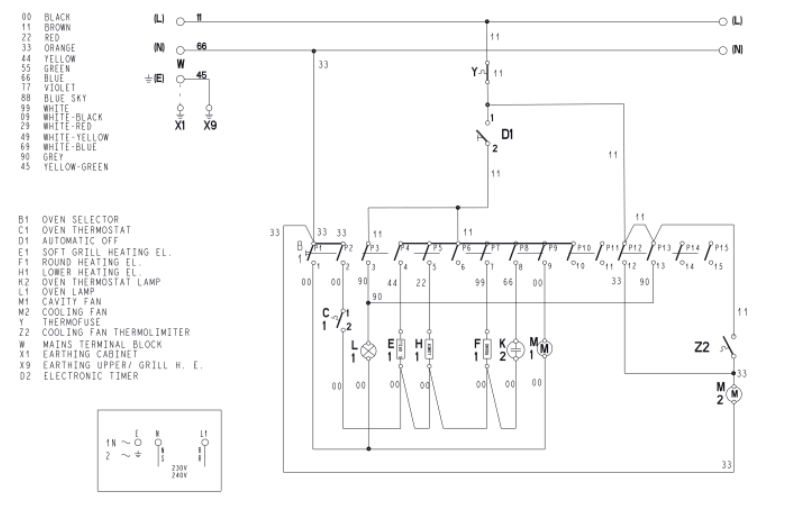

Wiring Diagram

Technical Data

Main Features

Product group	Oven
Commercial code	W4 0MK3BHU0BA
Main colour of product	Black
Construction type	Built-in
Type of control	Mechanical
Type of control settings	-
Are any hobs controls integrated?	No
Which kind of hobs can be controlled?	-
Automatic programmes	No
Current (A)	13
Voltage (V)	220-240
Frequency (Hz)	50/60
Length of Electrical Supply Cord (cm)	90
Plug type	No
Depth with open door 90 degree (mm)	-
Height of the product	595
Width of the product	595
Depth of the product	551
Minimum niche height	0
Minimum niche width	0
Niche depth	0
Net weight (kg)	26.9
Usable volume (of cavity)	71
Integrated Cleaning system	Hydrolytic
Grids of the cavity	2
Trays	2

Technical Features

Timer	Yes
Time control	Mechanical
Time-setting options	Stop
Safety device	-
Interior light	Yes
Number of interior lights of the cavity	1
Position of interior lights of the cavity	Front left
Oven guides of the cavity	Grids
Probe of the cavity	No

Performances

Energy input	Electric
Type of energy of the cavity	Electricity
Energy efficiency class - NEW (2010/30/EU)	A
Energy consumption per cycle conventional - NEW (2010/30/EU)	0.99
Energy consumption per cycle forced air convection - NEW (2010/30/EU)	0.81

Parts Manual
