W7 OSPBLAUS

Product Details	S.P. Ref.	S.P. Code
Sold Out foot Regular price $0.00 Sale price $0.00 Regular price Unit price	0110	4812 462 18255
Sold Out profile ventilator top Regular price $0.00 Sale price $0.00 Regular price Unit price	0251	4810 109 14742
Sold Out trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	0252	4801 211 01163
Sold Out soft hinge (2pcs) aspire short 4v gebl Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4880 005 22336
Sold Out hinge running mechanism (brera/ns) Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4880 006 28004
Sold Out door handle aspire short gebl Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4880 005 22327
Sold Out rubber door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4812 466 68928
Sold Out washer door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1102	4812 462 48451
Sold Out exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	1214	4801 211 01593
Sold Out spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	1215	4801 211 01615
Sold Out door lock assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	1300	4801 211 01623
Sold Out spring Regular price $0.00 Sale price $0.00 Regular price Unit price	1302	4880 005 37637
Sold Out external glass + mounting rails Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4880 005 25209
Sold Out oven door inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4801 211 01609
Sold Out door glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1430	4801 211 01611
Sold Out screw Regular price $0.00 Sale price $0.00 Regular price Unit price	1431	4812 502 18791
Sold Out support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1431	4801 211 01613
Sold Out support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1433	4801 211 02664
Sold Out pin spring Regular price $0.00 Sale price $0.00 Regular price Unit price	1810	4880 005 37636
Sold Out gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4801 211 01583
Sold Out gasket sensor Regular price $0.00 Sale price $0.00 Regular price Unit price	1911	4880 005 37622
Sold Out steam generator assy tank+resist.+sensor Regular price $0.00 Sale price $0.00 Regular price Unit price	2000	4880 005 37615
Sold Out panel fan Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4880 005 33929
Sold Out drawer steamer assy with holder Regular price $0.00 Sale price $0.00 Regular price Unit price	2420	4880 005 37634
Sold Out push push Regular price $0.00 Sale price $0.00 Regular price Unit price	2422	4880 005 37639
Sold Out grid oven Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4810 106 35612
Sold Out baking tray enamelled grey Regular price $0.00 Sale price $0.00 Regular price Unit price	2460	4810 106 74818
Sold Out fat pan enamelled grey Regular price $0.00 Sale price $0.00 Regular price Unit price	2470	4810 106 74817
Sold Out grid support minerva left/right Regular price $0.00 Sale price $0.00 Regular price Unit price	2610	4810 107 62741
Sold Out sliding rail left/right partial ext. Regular price $0.00 Sale price $0.00 Regular price Unit price	2612	4810 107 64710
Sold Out screw Regular price $0.00 Sale price $0.00 Regular price Unit price	2614	4801 211 03347
Sold Out nut Regular price $0.00 Sale price $0.00 Regular price Unit price	2617	4810 417 01023
Sold Out panel g3evo touch kitchen steam Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4880 008 53445
Sold Out display g3evo bio std/pyro Regular price $0.00 Sale price $0.00 Regular price Unit price	3560	4880 008 53446
Sold Out anti-interference (emi) filter Regular price $0.00 Sale price $0.00 Regular price Unit price	4210	4812 122 08003
Sold Out draining pump 230v 50hz 22w ulka Regular price $0.00 Sale price $0.00 Regular price Unit price	4300	4880 005 37242
Sold Out bracket pump sauna Regular price $0.00 Sale price $0.00 Regular price Unit price	4301	4880 005 35473
Sold Out motor gebl Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4880 005 37117
Sold Out cooling fan tang. Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4880 005 22034
Sold Out rear panel oven Regular price $0.00 Sale price $0.00 Regular price Unit price	4417	4880 006 27741
Sold Out impeller fan cebi Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4810 109 01438
Sold Out heating element circular 2000w 230v Regular price $0.00 Sale price $0.00 Regular price Unit price	4510	4801 211 01186
Sold Out heating element pyro upper Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4860 815 00036
Sold Out heating element boiler 1550w Regular price $0.00 Sale price $0.00 Regular price Unit price	4530	4880 006 29085
Sold Out heating element lower 1150w 230v Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4810 105 51720
Sold Out g3evo touch flat harness gebl Regular price $0.00 Sale price $0.00 Regular price Unit price	4800	4880 005 22232
Sold Out wiring board-display (20mm) gebl Regular price $0.00 Sale price $0.00 Regular price Unit price	4801	4880 005 22235
Sold Out oven harness pyro steam drawer bbg Regular price $0.00 Sale price $0.00 Regular price Unit price	4804	4880 008 43986
Sold Out mains cable w/o plug 3x1.5mm Regular price $0.00 Sale price $0.00 Regular price Unit price	4838	4880 006 29590
Sold Out clamp cable Regular price $0.00 Sale price $0.00 Regular price Unit price	4901	4812 290 68255
Sold Out cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	4902	4812 321 48026
Sold Out power board babbage wls pyro Regular price $0.00 Sale price $0.00 Regular price Unit price	5210	4880 006 37853
Sold Out thermolimiter (single) 300°c with probe Regular price $0.00 Sale price $0.00 Regular price Unit price	5570	4810 105 52514
Sold Out thermostat 165°c Regular price $0.00 Sale price $0.00 Regular price Unit price	5571	4812 282 28314
Sold Out halogen lamp lateral 40w ht assy Regular price $0.00 Sale price $0.00 Regular price Unit price	6520	4880 005 36016
Sold Out probe oven temperature l780mm Regular price $0.00 Sale price $0.00 Regular price Unit price	6910	4880 005 35802
Sold Out sensor level 4 elements Regular price $0.00 Sale price $0.00 Regular price Unit price	6915	4880 005 37626
Sold Out this item is not fitted to this model Regular price $0.00 Sale price $0.00 Regular price Unit price	6940	4820 000 91621
Sold Out this item is not fitted to this model Regular price $0.00 Sale price $0.00 Regular price Unit price	6941	4820 000 91621
Sold Out plug Regular price $0.00 Sale price $0.00 Regular price Unit price	6942	4810 103 50523
Sold Out plug support Regular price $0.00 Sale price $0.00 Regular price Unit price	6944	4810 103 87617
Sold Out overfilling hose l 200mm Regular price $0.00 Sale price $0.00 Regular price Unit price	7810	4880 005 37298
Sold Out hose draining pump Regular price $0.00 Sale price $0.00 Regular price Unit price	7812	4880 005 37302
Sold Out hose between drawer and water tank Regular price $0.00 Sale price $0.00 Regular price Unit price	7813	4880 005 37300
Sold Out tank to drain pump hose Regular price $0.00 Sale price $0.00 Regular price Unit price	7814	4880 005 37537
Sold Out hose tank to metal elbow l 215mm Regular price $0.00 Sale price $0.00 Regular price Unit price	7815	4880 005 37610
Sold Out hose overpressure l 170mm Regular price $0.00 Sale price $0.00 Regular price Unit price	7816	4880 005 37612
Sold Out hose upper boiler l 55mm Regular price $0.00 Sale price $0.00 Regular price Unit price	7817	4880 005 37618
Sold Out hose lower boiler l 30mm Regular price $0.00 Sale price $0.00 Regular price Unit price	7818	4880 005 37619
Sold Out spacer glass door Regular price $0.00 Sale price $0.00 Regular price Unit price	9040	4801 211 01594
Sold Out cap for end line test Regular price $0.00 Sale price $0.00 Regular price Unit price	9042	4810 602 83111
Sold Out this item is not fitted to this model Regular price $0.00 Sale price $0.00 Regular price Unit price	9141	4820 000 91621
Sold Out nut propeller cavity fan cebi Regular price $0.00 Sale price $0.00 Regular price Unit price	9150	4810 109 01439
Sold Out this item is not fitted to this model Regular price $0.00 Sale price $0.00 Regular price Unit price	9210	4820 000 91621
Sold Out washer Regular price $0.00 Sale price $0.00 Regular price Unit price	9227	4819 532 28281
Sold Out clamp hose silver Regular price $0.00 Sale price $0.00 Regular price Unit price	9300	4880 005 37297
Sold Out hose clamp d.16.4 d.1.8 black Regular price $0.00 Sale price $0.00 Regular price Unit price	9301	4880 005 37611
Sold Out clamp fzb 9.8x10.4 mattssons not shown Regular price $0.00 Sale price $0.00 Regular price Unit price	9302	4810 713 00007
Sold Out hose clamp black Regular price $0.00 Sale price $0.00 Regular price Unit price	9303	4880 005 37629
Sold Out gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	9640	4801 211 02934
Sold Out damper black Regular price $0.00 Sale price $0.00 Regular price Unit price	9930	4810 105 78780
Sold Out kit oven fixation Regular price $0.00 Sale price $0.00 Regular price Unit price	9931	4801 211 04721
Sold Out cavity service 67l pyro flat mf8 gebl st Regular price $0.00 Sale price $0.00 Regular price Unit price	9940	4880 006 62088
Sold Out service manual Regular price $0.00 Sale price $0.00 Regular price Unit price	999	4880 006 27305
Sold Out oven centre temperature test manual Regular price $0.00 Sale price $0.00 Regular price Unit price	999	4880 005 25422
Sold Out kit cavity screws zinc 4.2x14 Regular price $0.00 Sale price $0.00 Regular price Unit price	9990	4880 007 27512

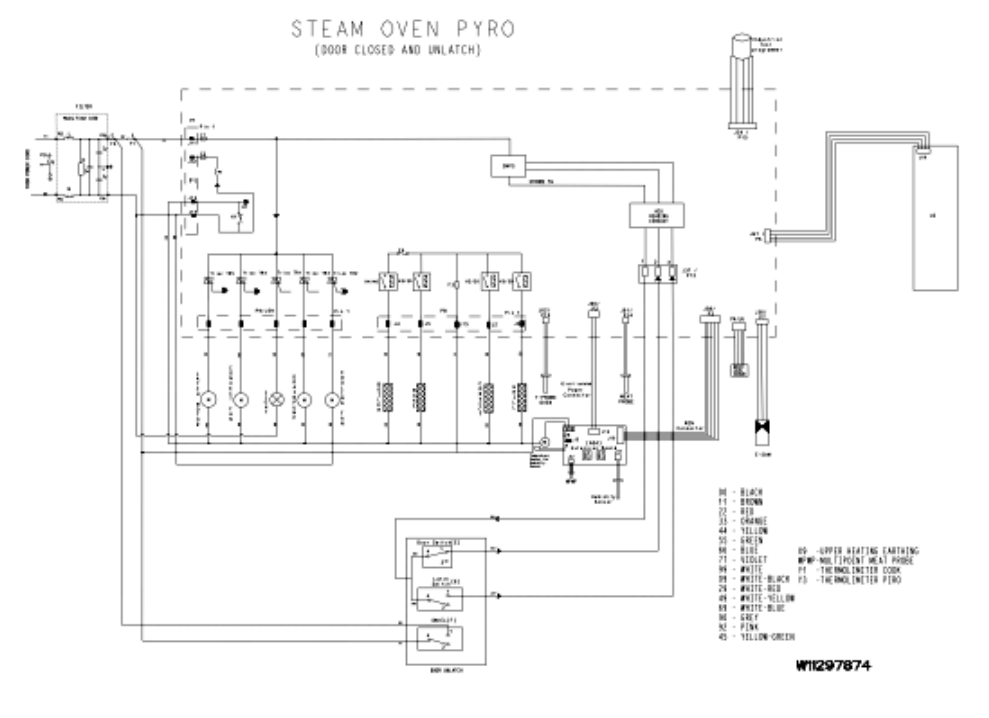

Wiring Diagram

Technical Data

Main Features

Product group	Oven
Commercial code	W7 OSPBLAUS
Main colour of product	Black
Construction type	Built-in
Type of control	Electronic
Type of control settings	-
Are any hobs controls integrated?	No
Which kind of hobs can be controlled?	-
Automatic programmes	Yes
Current (A)	16
Voltage (V)	220-240
Frequency (Hz)	50/60
Length of Electrical Supply Cord (cm)	90
Plug type	No
Depth with open door 90 degree (mm)	-
Height of the product	595
Width of the product	595
Depth of the product	564
Minimum niche height	0
Minimum niche width	0
Niche depth	0
Net weight (kg)	40.5
Usable volume (of cavity)	73
Integrated Cleaning system	Pyrolytic
Grids of the cavity	2
Trays	2

Technical Features

Timer	Yes
Time control	Electronic
Time-setting options	Start and Stop
Safety device	-
Interior light	Yes
Number of interior lights of the cavity	1
Position of interior lights of the cavity	Right side
Oven guides of the cavity	Telescopic
Probe of the cavity	No

Performances

Energy input	Electric
Type of energy of the cavity	Electricity
Energy efficiency class - NEW (2010/30/EU)	A+
Energy consumption per cycle conventional - NEW (2010/30/EU)	0.91
Energy consumption per cycle forced air convection - NEW (2010/30/EU)	0.70

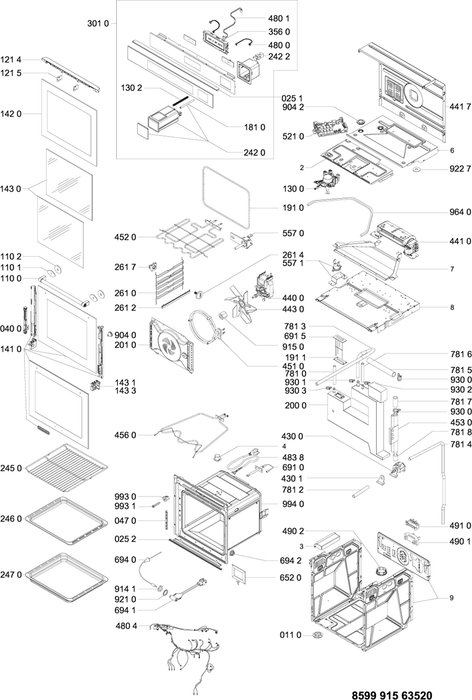

Parts Manual
