WFO3O33PLAUS

WFO3O33PLAUS

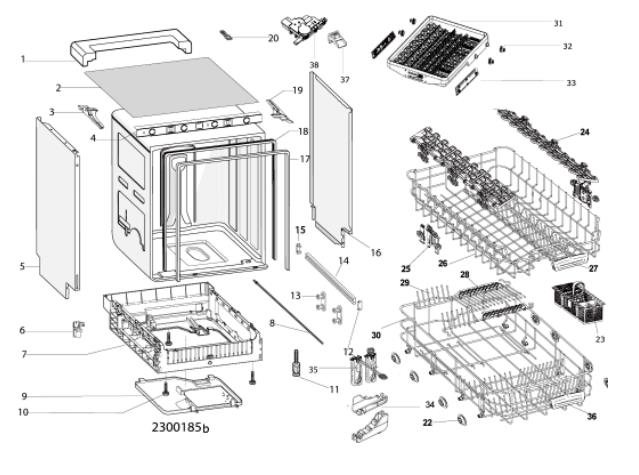

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

worktop assy,fs,60,wh,uns

$0.00
$0.00
001
4880 006 50340

support

$0.00
$0.00
001
4820 000 21980

support rear cross beam eps 60 plp2

$0.00
$0.00
003
4820 000 32181

soundproofing sx+dx+top

$0.00
$0.00
004
4880 005 02140

cover fix (sx) lh

$0.00
$0.00
005
4820 000 21990

left side panel lh

$0.00
$0.00
006
4820 000 40433

cover filter dea700 hanning

$0.00
$0.00
007
4820 000 21978

radio interference suppressor dea70x

$0.00
$0.00
008
4880 005 14073

base + feet (f.s.) 60cm

$0.00
$0.00
009
4880 003 86904

base moulding cover plate left silver

$0.00
$0.00
010
4880 005 40990

tray on bottom of tub 60cm

$0.00
$0.00
011
4820 000 87504

adjustable foot

$0.00
$0.00
012
4820 000 30621

plinth panel 60 uns

$0.00
$0.00
013
4880 006 50342

base moulding cover plate right silver

$0.00
$0.00
014
4820 000 21974

rail support assembly kit

$0.00
$0.00
015
4820 000 21974

basket runner - upper eos

$0.00
$0.00
016
4820 000 21974

rail back stop dark grey whp

$0.00
$0.00
018
4880 003 86600

right side panel rh

$0.00
$0.00
019
4880 003 45553

frame support for tub seal 60cm

$0.00
$0.00
020
4880 003 45553

door seal - top and sides 60cm

$0.00
$0.00
022
4820 000 32549

cover fix (dx) rh

$0.00
$0.00
022
4820 000 21991

catch plate new

$0.00
$0.00
023
4820 000 21982

basket runner - upper plp2 right

$0.00
$0.00
024
4880 004 80788

third basket wheel 45, dgra 45; dkg

$0.00
$0.00
024
4880 005 36411

rail support assembly right third basket

$0.00
$0.00
025
4880 005 02279

rail support assembly left third basket

$0.00
$0.00
025
4880 005 02278

basket runner - upper plp2left

$0.00
$0.00
026
4880 004 80786

fix ring rail support third basket

$0.00
$0.00
028
4880 003 01202

third basket rail guide assembly ass

$0.00
$0.00
028
4880 004 80946

tray hook 3-rd basket

$0.00
$0.00
028
4880 004 80946

upper cutlery basket side.

$0.00
$0.00
028
4880 004 80943

track flap 60 plp2

$0.00
$0.00
029
4880 003 86610

flap grey plp2

$0.00
$0.00
029
4880 003 86609

basket hight lift up rh basic red dg

$0.00
$0.00
030
4880 005 33262

basket hight lift up left basic red dg

$0.00
$0.00
036
4880 005 33261

upper basket 2 fold,gs,iec,60,assy,dkg

$0.00
$0.00
099
4880 006 31230

glass wire support - upper basket

$0.00
$0.00
099
4880 005 42616

handle with inox insert 60

$0.00
$0.00
099
4880 004 80616

right long flap dark gray iec

$0.00
$0.00
999
4880 006 30895

left long flap dark gray iec

$0.00
$0.00
999
4880 006 30893

left short flap ,dark gray ,iec

$0.00
$0.00
4880 006 30902

right short flap dark gray iec

$0.00
$0.00
4880 006 30899

rail front stop slim dark grey plp2

$0.00
$0.00
4880 006 32524

lower basket high,60,iec,assy,dkg

$0.00
$0.00
4880 006 32524

lower basket wheel dkg

$0.00
$0.00
4880 005 36679

basket wheel axis dgra

$0.00
$0.00
4880 005 36679

door spring adjuster

$0.00
$0.00
4880 005 36361

power clean pan hanger assy,dkg,eer,60cm

$0.00
$0.00
4880 006 64679

handle with inox insert 60

$0.00
$0.00
4880 005 38439

upper cutlery basket centr. gr

$0.00
$0.00
4880 005 38439

power clean crocodile (red color)

$0.00
$0.00
4880 003 87779

left flap iec,60,front,dkg

$0.00
$0.00
4880 006 31201

right flap iec,60,front,,dkg

$0.00
$0.00
4880 006 31200

left flap iec,60,back,dkg

$0.00
$0.00
4880 006 31199

combs fixing clip - top korb

$0.00
$0.00
4880 005 02327

right flap 60,back,right,dkg iec,

$0.00
$0.00
4880 006 31198

door opening system

$0.00
$0.00
4880 005 36648

door opening system - cover

$0.00
$0.00
4880 005 36648

serial port cover

$0.00
$0.00
4820 000 21989

basket buffer

$0.00
$0.00
4820 000 21993

screw af ab 3,5x16

$0.00
$0.00
4880 005 45783

screw 3.5x8

$0.00
$0.00
4880 005 40857

tank border top strip 60 dos

$0.00
$0.00
4880 005 40857

tank bottom border strip

$0.00
$0.00
4880 003 73185

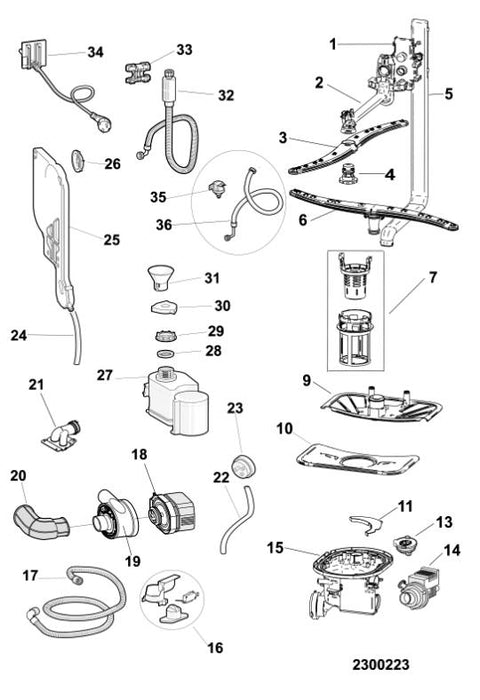

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

power clean body (dark grey & red color)

$0.00
$0.00
001
4880 003 87773

fixing ring assembly

$0.00
$0.00
002
4880 005 35795

upper sprinkler kit plp2

$0.00
$0.00
002
4880 005 02280

shower together with conduct c

$0.00
$0.00
003
4880 004 80701

rack guide casing c

$0.00
$0.00
004
4880 003 87520

upper wash arm clip plp2 dark grey whp

$0.00
$0.00
005
4880 005 34202

upper wash arm feed pipe

$0.00
$0.00
006
4880 005 25300

set upper wash arm plp2

$0.00
$0.00
007
4880 003 86499

ring nut of upper wash arm

$0.00
$0.00
009
4880 003 86505

lower spray arm

$0.00
$0.00
010
4880 003 86682

support - lower wash arm bush dark grey

$0.00
$0.00
011
4880 003 86682

ass. short microfilter dark ikea grey

$0.00
$0.00
013
4880 003 86682

outlet filter stainless inox plp2

$0.00
$0.00
013
4820 000 89344

water channeler

$0.00
$0.00
014
4820 000 22007

flap for set sump

$0.00
$0.00
015
4820 000 32666

turbidity sensor ntc marquardt

$0.00
$0.00
016
4820 000 32666

drain pump blac 50 hz copreci

$0.00
$0.00
017
4820 000 23392

set sump 3out plp2 + gasket

$0.00
$0.00
018
4820 000 89338

float - overflow unit 45cm

$0.00
$0.00
019
4820 000 22013

drain hose 45-60cm 1750mm

$0.00
$0.00
021
4820 000 22012

wash mot/pump blac9/6 50hz 220/240v+seal

$0.00
$0.00
022
4820 000 22216

heating bldc9/6 + seal

$0.00
$0.00
023
4820 000 22217

pipe sump-wash motor

$0.00
$0.00
024
4820 000 89336

pipe wash motor-motor washing altern.

$0.00
$0.00
025
4820 000 89336

motor alter. welded sensing 3way ps9

$0.00
$0.00
026
4880 005 23075

seal o-ring 20 x 3mm blue qty 1 pr pack

$0.00
$0.00
027
4820 000 89379

tube - softener/sump 170mm eos

$0.00
$0.00
028
4820 000 22022

air break + turbine

$0.00
$0.00
029
4820 000 22022

ring-nut for air-flow body

$0.00
$0.00
030
4880 003 86598

water softener

$0.00
$0.00
031
4880 003 86530

seal - softener/wash chamber

$0.00
$0.00
032
4820 000 22025

retaining ring - softener dark grey whp

$0.00
$0.00
032
4880 003 86533

salt cap

$0.00
$0.00
033
4880 003 86599

salt funnel

$0.00
$0.00
034
4820 000 22028

inlet hose long waterstop 1640mm

$0.00
$0.00
099
4820 000 23524

connector housing

$0.00
$0.00
099
4880 005 13408

hose support 45-60cm

$0.00
$0.00
099
4820 000 31300

earth wire spring

$0.00
$0.00
099
4820 000 22211

supply cable aus with ferrite

$0.00
$0.00
099
4880 005 33061

hose clamp d=14,9

$0.00
$0.00
099
4820 000 22034

hose clamp d=45,5 pipe sump/motor pump

$0.00
$0.00
4820 000 22036

hose clamp d=38,1 pipe syncr.mot/wash ar

$0.00
$0.00
4820 000 22037

hose clamp d=18.5

$0.00
$0.00
4820 000 22220

tie l=276

$0.00
$0.00
4820 000 22039

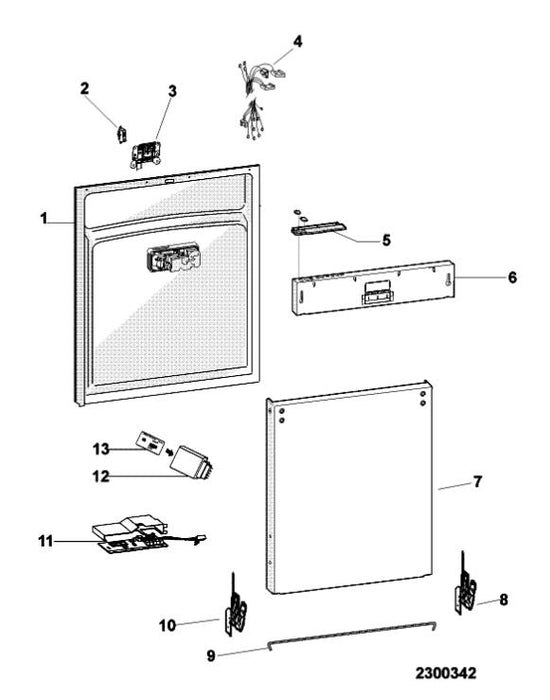

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

inner door panel stainless 60 el dg no s

$0.00
$0.00
001
4880 006 19998

locking assembly long distance

$0.00
$0.00
001
4880 005 18542

microswitch

$0.00
$0.00
001
4820 000 22042

wiring earth hinge/resistance

$0.00
$0.00
001
4880 005 18542

wiring power supply

$0.00
$0.00
001
4880 005 18541

wiring dos 60 cm

$0.00
$0.00
001
4820 000 88736

wiring dea700 turbine-tray

$0.00
$0.00
002
4820 000 88736

wiring dea700 ev1/ev2

$0.00
$0.00
003
4820 000 22222

wiring vsm wash w/o ferrite vsm drain

$0.00
$0.00
004
4880 005 25427

wiring salt card-softener

$0.00
$0.00
004
4820 000 22225

wiring module earth

$0.00
$0.00
004
4820 000 22225

wiring dea700 alternato itw

$0.00
$0.00
004
4880 002 98179

wiring dea700 turbidity sensor/ntc

$0.00
$0.00
004
4820 000 22224

wiring dispenser / holder micro new

$0.00
$0.00
004
4880 005 04770

wiring module earth door hinge whr

$0.00
$0.00
004
4880 003 85569

wiring modulo seriale dx nebula whr

$0.00
$0.00
004
4880 003 85569

front wiring assembly dx nebula 60

$0.00
$0.00
004
4880 006 30824

wir. mod.sensore brill. nebula 3 fili 60

$0.00
$0.00
004
4880 004 80335

door external 60cm inox

$0.00
$0.00
004
4880 003 87539

hinge item right smart door fs

$0.00
$0.00
004
4880 005 16565

hinge wire 60cm

$0.00
$0.00
004
4880 005 16565

hinge item left smart_door_fs

$0.00
$0.00
005
4880 005 38168

timer dea701 st full dos 2019

$0.00
$0.00
007
4880 006 29611

smart reader for card 8kb 32kb + hood

$0.00
$0.00
008
4880 002 72306

card w06-op-4-fs-3r-aus32kb 400011429154

$0.00
$0.00
009
4880 006 72337

seal front fs/bi 60

$0.00
$0.00
010
4880 005 02489

interface ui-nebula,8 btn,white 2019

$0.00
$0.00
011
4880 006 37311

front piece wfo 3o41 pl x

$0.00
$0.00
012
4880 006 42267

distance lath fs,whr,chrome

$0.00
$0.00
013
4880 005 02542

buttons optimal. black right

$0.00
$0.00
009
4880 005 02540

handle fs,wh,black

$0.00
$0.00
009
4880 005 02541

buttons optimal black-left

$0.00
$0.00
009
4880 005 02541

fixing bolt inner/outer door eos

$0.00
$0.00
009
4820 000 22064

fixing bolt inner door/dashboard

$0.00
$0.00
999
4820 000 22062

screw 3.5x8

$0.00
$0.00
999
4820 000 22063

hinge screw m5x14 tsp 6l-t20 90g

$0.00
$0.00
999
4820 000 22063
