WHP80250

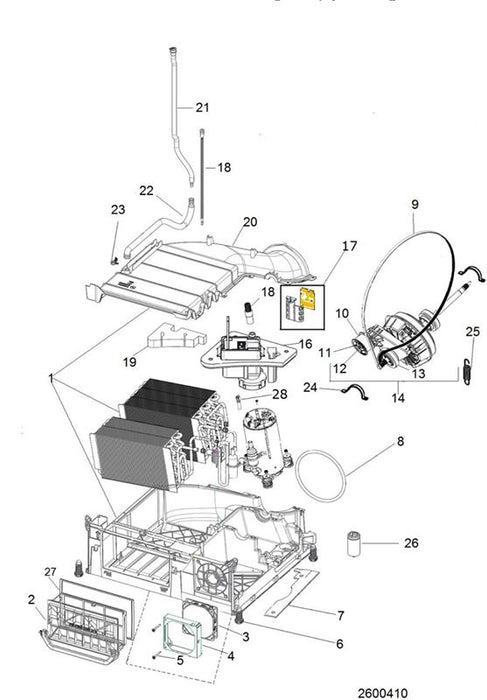

Exploded View 1

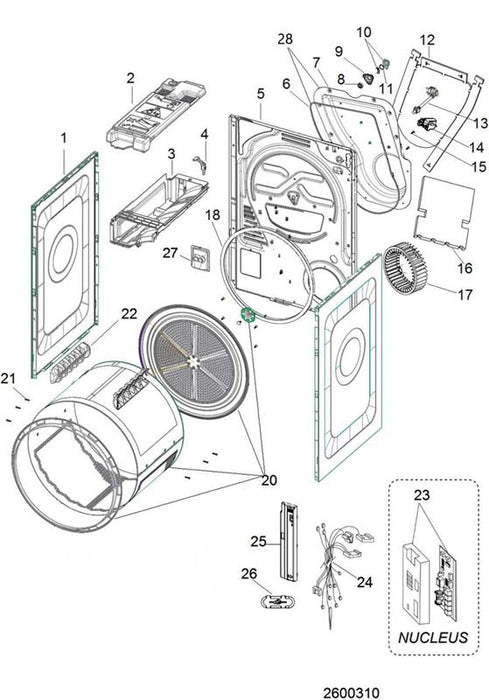

Exploded View 2

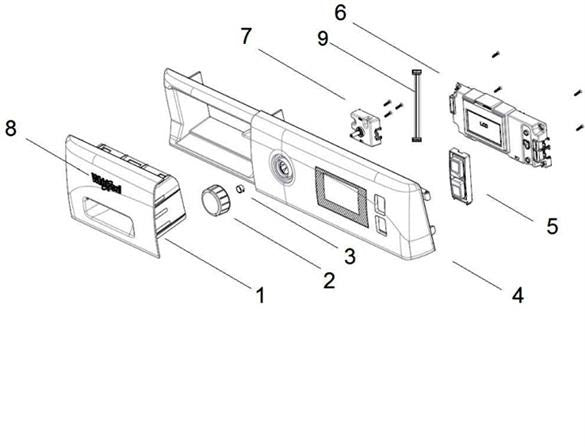

Exploded View 3

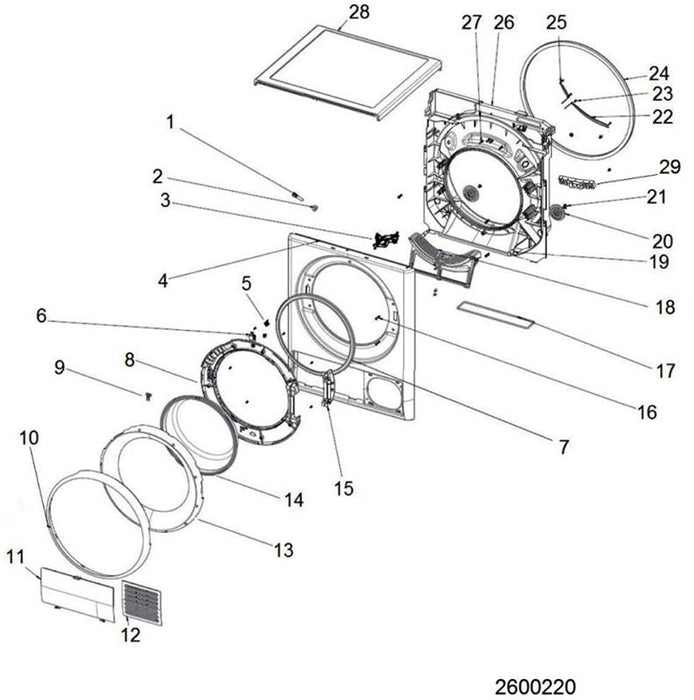

Exploded View 4

Product Details	S.P. Ref.	S.P. Code
Sold Out drawer handle global white fc Regular price $0.00 Sale price $0.00 Regular price Unit price	001	4880 006 46995
Sold Out knob asm-wht/chr Regular price $0.00 Sale price $0.00 Regular price Unit price	002	4880 006 46995
Sold Out collar components knob aq hd lcd Regular price $0.00 Sale price $0.00 Regular price Unit price	003	4820 000 88958
Sold Out dashboard whp80250 Regular price $0.00 Sale price $0.00 Regular price Unit price	004	4880 007 38185
Sold Out button on\off s/p white fc Regular price $0.00 Sale price $0.00 Regular price Unit price	005	4880 006 45169
Sold Out m22l-m2lcdl foil - 9 sensors Regular price $0.00 Sale price $0.00 Regular price Unit price	006	4880 005 90419
Sold Out interface module hmi asm m22l, dr Regular price $0.00 Sale price $0.00 Regular price Unit price	006	4880 005 34145
Sold Out ass_pcb_encoder_sn Regular price $0.00 Sale price $0.00 Regular price Unit price	007	4880 005 34143
Sold Out harness from ui to encoder- supernova Regular price $0.00 Sale price $0.00 Regular price Unit price	009	4880 005 34148
Sold Out screw vite plst 3x12 tsp Regular price $0.00 Sale price $0.00 Regular price Unit price	099	4820 000 86798

Product Details	S.P. Ref.	S.P. Code
Sold Out sensor ntc Regular price $0.00 Sale price $0.00 Regular price Unit price	001	4812 282 19485
Sold Out gasket ntc Regular price $0.00 Sale price $0.00 Regular price Unit price	002	4812 282 98014
Sold Out supernova door switch Regular price $0.00 Sale price $0.00 Regular price Unit price	003	4880 005 26571
Sold Out front panel white Regular price $0.00 Sale price $0.00 Regular price Unit price	004	4880 005 72972
Sold Out switch pin Regular price $0.00 Sale price $0.00 Regular price Unit price	005	4880 005 26618
Sold Out door lock nar Regular price $0.00 Sale price $0.00 Regular price Unit price	006	4810 109 03697
Sold Out seal, air channel Regular price $0.00 Sale price $0.00 Regular price Unit price	007	4880 005 26631
Sold Out door back grey fc Regular price $0.00 Sale price $0.00 Regular price Unit price	008	4880 005 34115
Sold Out screw hi-lo d3,5x12 zn 12μ Regular price $0.00 Sale price $0.00 Regular price Unit price	008	4880 005 26628
Sold Out pin - door lock (latch) Regular price $0.00 Sale price $0.00 Regular price Unit price	009	4801 121 01519
Sold Out door outer frame fc chrome Regular price $0.00 Sale price $0.00 Regular price Unit price	010	4880 006 41605
Sold Out flap white Regular price $0.00 Sale price $0.00 Regular price Unit price	011	4880 005 34119
Sold Out grid white Regular price $0.00 Sale price $0.00 Regular price Unit price	012	4880 005 34118
Sold Out door inner frame white fc Regular price $0.00 Sale price $0.00 Regular price Unit price	013	4880 005 34114
Sold Out door bowl Regular price $0.00 Sale price $0.00 Regular price Unit price	014	4880 005 26619
Sold Out screw d4.5x8 plast tmt zn Regular price $0.00 Sale price $0.00 Regular price Unit price	015	4810 109 06645
Sold Out hinge assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	015	4880 005 34117
Sold Out screw pf 4.50 x 28 tcpm scad 6l- t20 Regular price $0.00 Sale price $0.00 Regular price Unit price	016	4880 008 58240
Sold Out screw 4.0-1.3 x 25 mpnw cr hl cone Regular price $0.00 Sale price $0.00 Regular price Unit price	016	4880 005 26629
Sold Out seal, air channel base Regular price $0.00 Sale price $0.00 Regular price Unit price	017	4880 006 09789
Sold Out primary lint filter Regular price $0.00 Sale price $0.00 Regular price Unit price	018	4880 005 26665
Sold Out pin roller, drum Regular price $0.00 Sale price $0.00 Regular price Unit price	019	4880 005 26587
Sold Out roller drum Regular price $0.00 Sale price $0.00 Regular price Unit price	020	4880 005 26585
Sold Out screw m5-0.8 x 10 mhw lc Regular price $0.00 Sale price $0.00 Regular price Unit price	021	4880 005 26591
Sold Out big sensor, humidity Regular price $0.00 Sale price $0.00 Regular price Unit price	022	4880 005 26574
Sold Out screw,selftap 3,5x14 Regular price $0.00 Sale price $0.00 Regular price Unit price	023	4812 502 48347
Sold Out seal drum, front Regular price $0.00 Sale price $0.00 Regular price Unit price	024	4880 005 26577
Sold Out sensor small, humidity Regular price $0.00 Sale price $0.00 Regular price Unit price	025	4880 005 26575
Sold Out air channel Regular price $0.00 Sale price $0.00 Regular price Unit price	026	4880 005 26569
Sold Out air channel std, v0 Regular price $0.00 Sale price $0.00 Regular price Unit price	026	4880 007 38485
Sold Out screw Regular price $0.00 Sale price $0.00 Regular price Unit price	028	4801 121 01528
Sold Out top white Regular price $0.00 Sale price $0.00 Regular price Unit price	028	4880 005 26658
Sold Out screw pt 4x14 fzb Regular price $0.00 Sale price $0.00 Regular price Unit price	099	4880 005 26600
Sold Out screw screws p x c f z 4x2 Regular price $0.00 Sale price $0.00 Regular price Unit price	099	4860 815 00210
Sold Out screw 4,0x16-torx. Regular price $0.00 Sale price $0.00 Regular price Unit price	099	4812 502 48015
Sold Out screw Regular price $0.00 Sale price $0.00 Regular price Unit price	099	4801 121 01488
Sold Out screw 4.2-1.4 x 8.5 mhf/6l sg lser Regular price $0.00 Sale price $0.00 Regular price Unit price	099	4880 005 37443

Product Details	S.P. Ref.	S.P. Code
Sold Out panel side white Regular price $0.00 Sale price $0.00 Regular price Unit price	001	4880 006 20178
Sold Out water container Regular price $0.00 Sale price $0.00 Regular price Unit price	002	4880 005 26656
Sold Out housing-container,water Regular price $0.00 Sale price $0.00 Regular price Unit price	003	4880 005 26655
Sold Out water container 1l Regular price $0.00 Sale price $0.00 Regular price Unit price	003	4880 007 28094
Sold Out water container 1l Regular price $0.00 Sale price $0.00 Regular price Unit price	003	4880 007 28094
Sold Out housing-container,water Regular price $0.00 Sale price $0.00 Regular price Unit price	003	4880 008 58229
Sold Out pipe Regular price $0.00 Sale price $0.00 Regular price Unit price	004	4810 106 29345
Sold Out rear panel only no seal Regular price $0.00 Sale price $0.00 Regular price Unit price	005	4880 005 26632
Sold Out seal heater channel hybrid(hp) Regular price $0.00 Sale price $0.00 Regular price Unit price	006	4880 008 58746
Sold Out seal heater channel hybrid(hp) Regular price $0.00 Sale price $0.00 Regular price Unit price	006	4880 006 20170
Sold Out heater channel Regular price $0.00 Sale price $0.00 Regular price Unit price	007	4880 005 26650
Sold Out bearing Regular price $0.00 Sale price $0.00 Regular price Unit price	008	4801 121 01499
Sold Out spring washer Regular price $0.00 Sale price $0.00 Regular price Unit price	009	4801 121 01561
Sold Out connection cable aus Regular price $0.00 Sale price $0.00 Regular price Unit price	010	4880 006 28630
Sold Out radio interference suppressor elc,bpm Regular price $0.00 Sale price $0.00 Regular price Unit price	011	4880 005 26645
Sold Out screw 4,0x16-torx. Regular price $0.00 Sale price $0.00 Regular price Unit price	013	4812 502 48015
Sold Out acoustic panel,heat exchanger cover Regular price $0.00 Sale price $0.00 Regular price Unit price	014	4880 005 33826
Sold Out blower wheel condenser Regular price $0.00 Sale price $0.00 Regular price Unit price	015	4880 005 26646
Sold Out seal drum, rear Regular price $0.00 Sale price $0.00 Regular price Unit price	016	4880 005 26634
Sold Out drum hybrid asm compl, inox, std Regular price $0.00 Sale price $0.00 Regular price Unit price	017	4880 006 33779
Sold Out screw 4x20 Regular price $0.00 Sale price $0.00 Regular price Unit price	018	4812 502 48353
Sold Out drum lifter Regular price $0.00 Sale price $0.00 Regular price Unit price	020	4880 005 26607
Sold Out nucleus progr. module 769991591472 bpm s Regular price $0.00 Sale price $0.00 Regular price Unit price	021	4880 008 49999
Sold Out nucleus progr. module 769991637663 bpm s Regular price $0.00 Sale price $0.00 Regular price Unit price	022	4880 009 27495
Sold Out module basic dryer nucleus 769991580331 Regular price $0.00 Sale price $0.00 Regular price Unit price	023	4880 008 44461
Sold Out nucleus progr. module 769991613971 bpm s Regular price $0.00 Sale price $0.00 Regular price Unit price	023	4880 006 45171
Sold Out main harness, hp, bpm, fix, supernova Regular price $0.00 Sale price $0.00 Regular price Unit price	023	4880 006 25788
Sold Out front harness 2 strip Regular price $0.00 Sale price $0.00 Regular price Unit price	023	4880 008 55485
Sold Out ln jumper, supernova Regular price $0.00 Sale price $0.00 Regular price Unit price	024	4880 006 24870
Sold Out front harness 2 strip, supernova Regular price $0.00 Sale price $0.00 Regular price Unit price	024	4880 006 25790
Sold Out upper box acu ndp Regular price $0.00 Sale price $0.00 Regular price Unit price	024	4880 005 33829
Sold Out blanking plate-rear (test plug) windy Regular price $0.00 Sale price $0.00 Regular price Unit price	024	4880 005 10051
Sold Out blanking plate-rear acu ndp supernova Regular price $0.00 Sale price $0.00 Regular price Unit price	025	4880 009 15895
Sold Out cover pump rear panel sheet metal Regular price $0.00 Sale price $0.00 Regular price Unit price	026	4880 005 33818
Sold Out kit heater channel+seal Regular price $0.00 Sale price $0.00 Regular price Unit price	026	4880 008 58036
Sold Out nut m6 Regular price $0.00 Sale price $0.00 Regular price Unit price	027	4801 121 01464
Sold Out screw torx 4,2x13 Regular price $0.00 Sale price $0.00 Regular price Unit price	028	4812 502 38057
Sold Out washer Regular price $0.00 Sale price $0.00 Regular price Unit price	099	4801 121 01631
Sold Out screw 4.2-1.4 x 8.5 mhf/6l sg lser Regular price $0.00 Sale price $0.00 Regular price Unit price	099	4880 005 37443
Sold Out screw 4x10 Regular price $0.00 Sale price $0.00 Regular price Unit price	099	4812 502 38352

Product Details	S.P. Ref.	S.P. Code
Sold Out base assembly a++_std_hp_r450a Regular price $0.00 Sale price $0.00 Regular price Unit price	001	4880 005 36101
Sold Out nut m6 Regular price $0.00 Sale price $0.00 Regular price Unit price	001	4801 121 01464
Sold Out front filter asm Regular price $0.00 Sale price $0.00 Regular price Unit price	002	4880 007 31593
Sold Out front filter Regular price $0.00 Sale price $0.00 Regular price Unit price	002	4880 005 26666
Sold Out fan assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	003	4880 005 33553
Sold Out bracket-fan Regular price $0.00 Sale price $0.00 Regular price Unit price	004	4880 005 33554
Sold Out screw 4.2-1.4 x 45 mpnw 6l sg Regular price $0.00 Sale price $0.00 Regular price Unit price	005	4880 005 26678
Sold Out foot adjustable Regular price $0.00 Sale price $0.00 Regular price Unit price	006	4812 500 18054
Sold Out heat pump insulation Regular price $0.00 Sale price $0.00 Regular price Unit price	007	4880 005 26677
Sold Out seal-base,rear panel Regular price $0.00 Sale price $0.00 Regular price Unit price	008	4880 005 33949
Sold Out belt driving 8ph 2010 Regular price $0.00 Sale price $0.00 Regular price Unit price	009	4810 108 24411
Sold Out pulley jokey Regular price $0.00 Sale price $0.00 Regular price Unit price	010	4810 105 07633
Sold Out pulley nut m8 (sav) Regular price $0.00 Sale price $0.00 Regular price Unit price	011	4880 005 26675
Sold Out screw m8-1.25 x 60 hx unthd Regular price $0.00 Sale price $0.00 Regular price Unit price	012	4880 005 26674
Sold Out silent block Regular price $0.00 Sale price $0.00 Regular price Unit price	013	4880 005 26673
Sold Out motor assembly bpm Regular price $0.00 Sale price $0.00 Regular price Unit price	014	4880 005 26670
Sold Out sump-cover,pump std hp nbr impeller Regular price $0.00 Sale price $0.00 Regular price Unit price	016	4880 008 51885
Sold Out sump-cover,pump std hp Regular price $0.00 Sale price $0.00 Regular price Unit price	016	4880 006 27328
Sold Out screw 4,0x16-torx. Regular price $0.00 Sale price $0.00 Regular price Unit price	016	4812 502 48015
Sold Out screw 4.2-1.4 x 8.5 mhf/6l sg lser Regular price $0.00 Sale price $0.00 Regular price Unit price	016	4880 005 37443
Sold Out seal of level sensor Regular price $0.00 Sale price $0.00 Regular price Unit price	017	4880 005 60310
Sold Out water level sensor with cover std/cd Regular price $0.00 Sale price $0.00 Regular price Unit price	017	4880 006 28635
Sold Out inflow hose Regular price $0.00 Sale price $0.00 Regular price Unit price	018	4880 005 26683
Sold Out pump insulation Regular price $0.00 Sale price $0.00 Regular price Unit price	019	4880 005 26676
Sold Out base cover Regular price $0.00 Sale price $0.00 Regular price Unit price	020	4880 005 26679
Sold Out hose-cradle to drain return Regular price $0.00 Sale price $0.00 Regular price Unit price	021	4880 007 28632
Sold Out hose-cradle to drain return Regular price $0.00 Sale price $0.00 Regular price Unit price	021	4880 005 26651
Sold Out hose - drain return Regular price $0.00 Sale price $0.00 Regular price Unit price	022	4880 005 26653
Sold Out hose clampl=99 5pz Regular price $0.00 Sale price $0.00 Regular price Unit price	023	4880 005 13579
Sold Out clamp hose 16.8mm Regular price $0.00 Sale price $0.00 Regular price Unit price	023	4880 005 26682
Sold Out clamp Regular price $0.00 Sale price $0.00 Regular price Unit price	024	4801 121 01471
Sold Out belt tensioning spring Regular price $0.00 Sale price $0.00 Regular price Unit price	025	4880 005 26667
Sold Out capacitor compressor Regular price $0.00 Sale price $0.00 Regular price Unit price	026	4810 103 44796
Sold Out sensor ntc Regular price $0.00 Sale price $0.00 Regular price Unit price	028	4812 282 19485
Sold Out screw m4x8 Regular price $0.00 Sale price $0.00 Regular price Unit price	099	4820 000 85243
