WMH9900BLAUS

Product Details	S.P. Ref.	S.P. Code
Sold Out Junction Box Regular price $0.00 Sale price $0.00 Regular price Unit price	1	0301 026 00028
Sold Out Power Line No Plug Regular price $0.00 Sale price $0.00 Regular price Unit price	2	0301 024 00451
Sold Out Overheat Protector Regular price $0.00 Sale price $0.00 Regular price Unit price	3	0301 007 00008
Sold Out Slid Block Regular price $0.00 Sale price $0.00 Regular price Unit price	4	0302 006 00008
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	5	0304 016 00042
Sold Out Micro Switch Regular price $0.00 Sale price $0.00 Regular price Unit price	6	0301 017 00040
Sold Out Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	7	0302 175 00003
Sold Out Fixed Base For Oven Regular price $0.00 Sale price $0.00 Regular price Unit price	8	0303 029 00280
Sold Out Turnspit Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	9	0301 013 00022
Sold Out Turnspit Assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	10	0304 004 00012
Sold Out Handle Of Turnspit Regular price $0.00 Sale price $0.00 Regular price Unit price	11	0302 015 00001
Sold Out Rack Of Turnspit Regular price $0.00 Sale price $0.00 Regular price Unit price	12	0304 005 00010
Sold Out Baking Tray Regular price $0.00 Sale price $0.00 Regular price Unit price	13	0303 042 00053
Sold Out Grill Rack Regular price $0.00 Sale price $0.00 Regular price Unit price	14	0304 001 00052
Sold Out Bottom Heating Element Baffle Regular price $0.00 Sale price $0.00 Regular price Unit price	15	0303 029 00321
Sold Out Bottom Heating Element Retaining Block Regular price $0.00 Sale price $0.00 Regular price Unit price	16	0303 029 00301
Sold Out Heating Element Regular price $0.00 Sale price $0.00 Regular price Unit price	17	0301 012 00220
Sold Out Doorframe Sealer Regular price $0.00 Sale price $0.00 Regular price Unit price	18	0020 304 00018
Sold Out Grill Rack Regular price $0.00 Sale price $0.00 Regular price Unit price	19	0304 001 00044
Sold Out Fixed Base For Bottom Heating Element Regular price $0.00 Sale price $0.00 Regular price Unit price	20	0303 012 00013
Sold Out Right Hinge Retaining Block Regular price $0.00 Sale price $0.00 Regular price Unit price	21	0303 133 00059
Sold Out Cavity Panel Assy Regular price $0.00 Sale price $0.00 Regular price Unit price	22	0020 309 00044
Sold Out Left Hinge Retaining Block Regular price $0.00 Sale price $0.00 Regular price Unit price	23	0303 133 00058
Sold Out Hinge Plate Regular price $0.00 Sale price $0.00 Regular price Unit price	24	0303 029 00303
Sold Out Switch Panel Fastener Regular price $0.00 Sale price $0.00 Regular price Unit price	25	0302 174 00001
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	26	0304 006 00065
Sold Out Door Frame Bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	27	0303 034 00220
Sold Out Door Upper Frame Regular price $0.00 Sale price $0.00 Regular price Unit price	28	0303 035 00146
Sold Out Inner Glass Regular price $0.00 Sale price $0.00 Regular price Unit price	29	0305 004 00186
Sold Out Oven Door Panel Regular price $0.00 Sale price $0.00 Regular price Unit price	30	0305 002 01344
Sold Out Middle Glass Regular price $0.00 Sale price $0.00 Regular price Unit price	31	0305 003 00098
Sold Out Fixed Base For Control Panel Regular price $0.00 Sale price $0.00 Regular price Unit price	32	0303 014 00119
Sold Out Knob K82 Regular price $0.00 Sale price $0.00 Regular price Unit price	33	0304 025 00397
Sold Out Handle H20-666 Regular price $0.00 Sale price $0.00 Regular price Unit price	34	0304 007 00313
Sold Out Door Fixing Bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	35	0303 034 00219
Sold Out Handle Washer Regular price $0.00 Sale price $0.00 Regular price Unit price	36	0302 014 00005
Sold Out Control Panel Glass Regular price $0.00 Sale price $0.00 Regular price Unit price	37	0305 001 01029
Sold Out Fixed Base For Handle Regular price $0.00 Sale price $0.00 Regular price Unit price	38	0303 036 00001
Sold Out Middle Glass Retaining Block Regular price $0.00 Sale price $0.00 Regular price Unit price	39	0302 010 00020
Sold Out Middle Glass Limit Block Regular price $0.00 Sale price $0.00 Regular price Unit price	40	0303 037 00011
Sold Out Middle Glass Retaining Block Regular price $0.00 Sale price $0.00 Regular price Unit price	41	0302 010 00018
Sold Out Set Installation Kit Regular price $0.00 Sale price $0.00 Regular price Unit price	42	0302 004 00001
Sold Out Oven Wall Side Rack Regular price $0.00 Sale price $0.00 Regular price Unit price	43	3040 020 0079
Sold Out Oven Wall Side Rack Regular price $0.00 Sale price $0.00 Regular price Unit price	44	3040 020 0080
Sold Out Body Case Bottom Plate Regular price $0.00 Sale price $0.00 Regular price Unit price	45	0303 206 00007
Sold Out Gear Switch Regular price $0.00 Sale price $0.00 Regular price Unit price	46	0301 005 00070
Sold Out Touch Timer Regular price $0.00 Sale price $0.00 Regular price Unit price	47	0301 002 00162
Sold Out Temperature Control Switch Regular price $0.00 Sale price $0.00 Regular price Unit price	48	0301 009 00003
Sold Out Indicator Lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	49	0301 025 00060
Sold Out Lamp Assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	50	0301 011 00008
Sold Out Smoke Flue Cover Plate Regular price $0.00 Sale price $0.00 Regular price Unit price	51	0303 126 00040
Sold Out Cavity Regular price $0.00 Sale price $0.00 Regular price Unit price	52	0020 303 00355
Sold Out Smoke Flue Cover Plate Regular price $0.00 Sale price $0.00 Regular price Unit price	53	0303 126 00039
Sold Out Cavity Back Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	54	0303 018 00043
Sold Out Cooling Fan Assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	55	0301 004 00083
Sold Out Clamp Regular price $0.00 Sale price $0.00 Regular price Unit price	56	0304 087 00001
Sold Out Smoke Vent Regular price $0.00 Sale price $0.00 Regular price Unit price	57	0304 011 00018
Sold Out Heat-Resistant Panel Regular price $0.00 Sale price $0.00 Regular price Unit price	58	0303 013 00037
Sold Out Top Grill Regular price $0.00 Sale price $0.00 Regular price Unit price	59	0301 012 00282
Sold Out Thermostat Regular price $0.00 Sale price $0.00 Regular price Unit price	60	0301 008 00001
Sold Out Oven Bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	61	0303 132 00108
Sold Out Back Grill Regular price $0.00 Sale price $0.00 Regular price Unit price	62	0301 012 00283
Sold Out Temperature Probe Fixed Clamp Regular price $0.00 Sale price $0.00 Regular price Unit price	63	0303 041 00001
Sold Out Round Lamp Assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	64	0301 010 00014
Sold Out Top Back Panel Regular price $0.00 Sale price $0.00 Regular price Unit price	65	0303 207 00006
Sold Out Circulation Fan Regular price $0.00 Sale price $0.00 Regular price Unit price	66	0301 003 00058
Sold Out Cavity Rear Fixed Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	67	0303 015 00026
Sold Out Bottom Heating Element Baffle Regular price $0.00 Sale price $0.00 Regular price Unit price	68	0303 011 00133

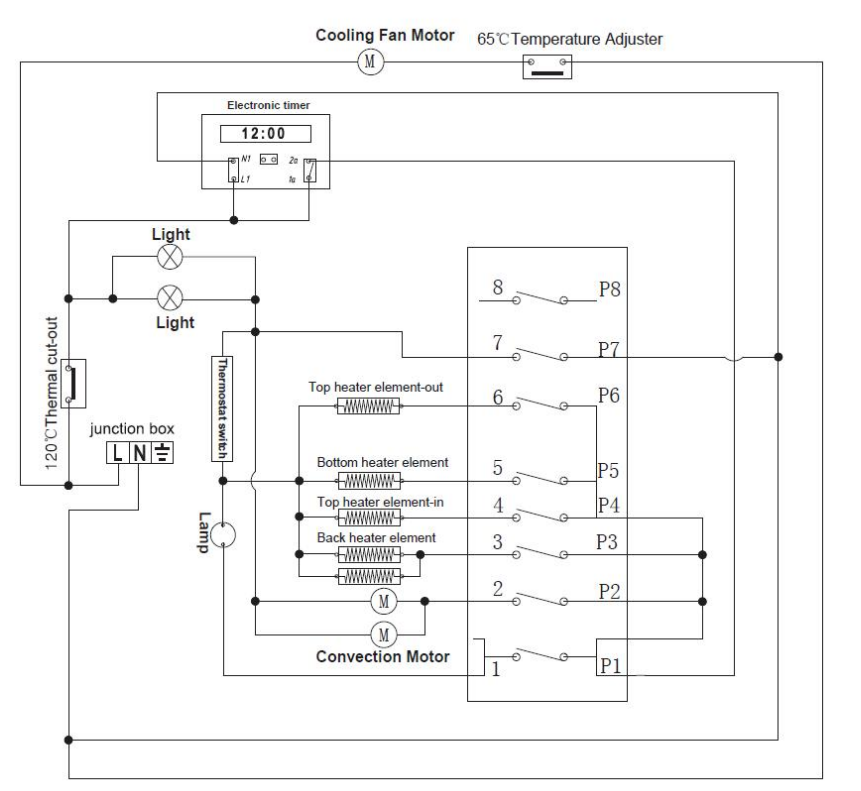

Wiring Diagram

Technical Data

Product Specification	90cm Built-in Oven
Supply Voltage & Frequency	220-240	V
Usable Capacity	133	L
Total Capacity	148	L
Output Power	3000 - 3600	W
Net Weight	48.5	kg
Gross Weight	53.5	kg
Product Dimensions	894 (W) x 595 (H) x 575 (D)	mm
Cut-out Dimensions	896-900 (W) x 597-600 (H) x 580-600 (D)	mm

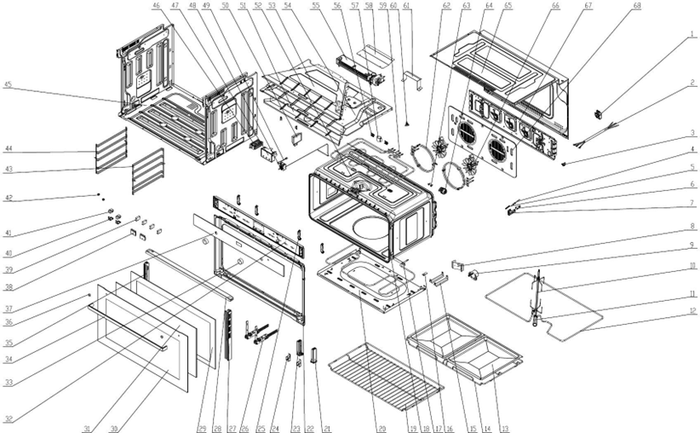

Parts Manual
