WQ70900SXX

WQ70900SXX

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

magnet door lamp switch

$0.00
$0.00
1
810F550006301

screw cover

$0.00
$0.00
2
8102868900001

4-Pin terminal housing

$0.00
$0.00
3
8104031600002

drier filter

$0.00
$0.00
4
8105090101140

HMI GODDESS_PCA

$0.00
$0.00
5
70C03289

Jupiter_Theseus_ACU

$0.00
$0.00
6
70C04309

crisper bin assembly

$0.00
$0.00
7
810F100008263

PULL OUT TRAY ASSY,FC

$0.00
$0.00
8
810F100006374

MID PAN ASSY,OPP, LH

$0.00
$0.00
9
810F100008286

LOWER PAN ASSY,OPP, LH

$0.00
$0.00
10
810F100008296

MID PAN ASSY,OPP, RH

$0.00
$0.00
11
810F100008287

LOWER PAN ASSY,OPP, RH

$0.00
$0.00
12
810F100008297

RC glass shelf assembly

$0.00
$0.00
13
810F110008244

upper door bin

$0.00
$0.00
14
810F120008008

bottom door bin

$0.00
$0.00
15
810F120008010

top hinge cover

$0.00
$0.00
16
810F140005841

center hinge assembly RH

$0.00
$0.00
17
810F140005921

center hinge assembly LH

$0.00
$0.00
18
810F140005945

top hinge assembly RH

$0.00
$0.00
19
810F140005961

top hinge assembly LH

$0.00
$0.00
20
810F140005987

bottom hinge assembly RH

$0.00
$0.00
21
810F140006003

bottom hinge assembly LH

$0.00
$0.00
22
810F140006004

fresh box

$0.00
$0.00
23
810F130010249

compressor cabin rear cover

$0.00
$0.00
24
810F160006188

PCB housing lid

$0.00
$0.00
25
810F160006190

sky lighting trim

$0.00
$0.00
26
810F160006560

sky lighting lens

$0.00
$0.00
27
810F160006568

compressor mounting plate assembly

$0.00
$0.00
28
810F170006191

crisper support assembly RH

$0.00
$0.00
29
810F170006351

crisper support assembly LH

$0.00
$0.00
30
810F170006350

crisper support assembly center

$0.00
$0.00
31
810F170006352

evaporator pan

$0.00
$0.00
32
810F180006184

compressor roller cover

$0.00
$0.00
33
810F190006187

FC divider assembly

$0.00
$0.00
34
810F190007094

Cross recessed hex flange locking screw

$0.00
$0.00
35
810F800006964

compressor cabin drain pipe

$0.00
$0.00
37
810F270006186

FC liner wind-shield strip

$0.00
$0.00
38
810F290006412

LH Refrigerator door assembly

$0.00
$0.00
39
810F300009126

RH Refrigerator door assembly

$0.00
$0.00
40
810F300009129

LH Freezer door assembly

$0.00
$0.00
41
810F230009131

RH Freezer door assembly

$0.00
$0.00
42
810F300009133

vertical inner door seal

$0.00
$0.00
43
810F350006784

horizontal inner door seal

$0.00
$0.00
44
810F350006785

RC door gasket assembly

$0.00
$0.00
45
810F350006841

IMD cover,UI HT

$0.00
$0.00
46
810F390009152

screw cover

$0.00
$0.00
47
810F390006243

door locker-right

$0.00
$0.00
48
810F390006292

door stop

$0.00
$0.00
49
810F390006297

door locker-left

$0.00
$0.00
50
810F390006294

flipper mullion pivot block

$0.00
$0.00
51
810F390007248

flipper mullion assembly

$0.00
$0.00
52
810F390010561

compressor assembly

$0.00
$0.00
53
810F400007761

FC evaporator

$0.00
$0.00
55
810F410006984

RC temperature sensor

$0.00
$0.00
56
810F500006304

FC temperature sensor

$0.00
$0.00
57
810F500006305

FC defrost sensor

$0.00
$0.00
58
810F500006306

CC temperature sensor

$0.00
$0.00
59
810F500006307

humiture sensor

$0.00
$0.00
60
810F500006946

sky lighting assembly

$0.00
$0.00
61
810F520006303

FC defrost heater

$0.00
$0.00
62
810F530006985

Power cord

$0.00
$0.00
63
810F540009281

electric damper assembly

$0.00
$0.00
64
810F570006308

power filter assembly

$0.00
$0.00
65
810F590006302

TUBE-SUCTION

$0.00
$0.00
66
810F490009341

RC air tower cover

$0.00
$0.00
67
810F600008044

return duct grille

$0.00
$0.00
68
810F610006346

RC air tower decoration strip

$0.00
$0.00
69
810F610006555

FC evaporator block-left

$0.00
$0.00
73
810F740008522

FC evaporator block-right

$0.00
$0.00
74
810F740008523

LH Refrigerator door complete assembly

$0.00
$0.00
75
810F300009125

RH Refrigerator door complete assembly

$0.00
$0.00
76
810F300009127

LH Freezer door complete assembly

$0.00
$0.00
77
810F300009130

RH Freezer door complete assembly

$0.00
$0.00
78
810F300009132

FC door gasket assembly

$0.00
$0.00
79
810F350006842

FC evaporator cover assembly

$0.00
$0.00
82
810F190006426

RC air tower assembly

$0.00
$0.00
83
810F190009120

ice maker assembly

$0.00
$0.00
84
810F190009208

Whirlpool badge

$0.00
$0.00
N.I.
810F990007501

Freezer drawer glass partition

$0.00
$0.00
N.I.
810F110007361

FC drain pan

$0.00
$0.00
N.I.
810F290006169

FC air tower insulation aluminum foil

$0.00
$0.00
N.I.
810F720006445

mid hinge screw cover (white)

$0.00
$0.00
N.I.
8102640109141

top hinger wire harness

$0.00
$0.00
N.I.
810F540008107

Sponge support block

$0.00
$0.00
N.I.
8105901700001

Press plate of exhaust transition tube

$0.00
$0.00
N.I.
8105901900001

Compressor U-shaped fixed circlip

$0.00
$0.00
N.I.
810F170006561

Exhaust pipe (evaporator pan)

$0.00
$0.00
N.I.
810F490006646

Damping block

$0.00
$0.00
N.I.
8103307500001

Process tube

$0.00
$0.00
N.I.
8102204900001

fan motor

$0.00
$0.00
N.I.
810F560006642
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

magnet door lamp switch

$0.00
$0.00
1
810F550006301

screw cover

$0.00
$0.00
2
8102868900001

4-Pin terminal housing

$0.00
$0.00
3
8104031600002

drier filter

$0.00
$0.00
4
8105090101140

HMI GODDESS_PCA

$0.00
$0.00
5
70C03289

Jupiter_Theseus_ACU

$0.00
$0.00
6
70C04309

crisper bin assembly

$0.00
$0.00
7
810F100008263

PULL OUT TRAY ASSY,FC

$0.00
$0.00
8
810F100006374

MID PAN ASSY,OPP, LH

$0.00
$0.00
9
810F100008286

LOWER PAN ASSY,OPP, LH

$0.00
$0.00
10
810F100008296

MID PAN ASSY,OPP, RH

$0.00
$0.00
11
810F100008287

LOWER PAN ASSY,OPP, RH

$0.00
$0.00
12
810F100008297

RC glass shelf assembly

$0.00
$0.00
13
810F110008244

upper door bin

$0.00
$0.00
14
810F120008008

bottom door bin

$0.00
$0.00
15
810F120008010

top hinge cover

$0.00
$0.00
16
810F140005841

center hinge assembly RH

$0.00
$0.00
17
810F140005921

center hinge assembly LH

$0.00
$0.00
18
810F140005945

top hinge assembly RH

$0.00
$0.00
19
810F140005961

top hinge assembly LH

$0.00
$0.00
20
810F140005987

bottom hinge assembly RH

$0.00
$0.00
21
810F140006003

bottom hinge assembly LH

$0.00
$0.00
22
810F140006004

fresh box

$0.00
$0.00
23
810F130010249

compressor cabin rear cover

$0.00
$0.00
24
810F160006188

PCB housing lid

$0.00
$0.00
25
810F160006190

sky lighting trim

$0.00
$0.00
26
810F160006560

sky lighting lens

$0.00
$0.00
27
810F160006568

compressor mounting plate assembly

$0.00
$0.00
28
810F170006191

crisper support assembly RH

$0.00
$0.00
29
810F170006351

crisper support assembly LH

$0.00
$0.00
30
810F170006350

crisper support assembly center

$0.00
$0.00
31
810F170006352

evaporator pan

$0.00
$0.00
32
810F180006184

compressor roller cover

$0.00
$0.00
33
810F190006187

FC divider assembly

$0.00
$0.00
34
810F190007094

Cross recessed hex flange locking screw

$0.00
$0.00
35
810F800006964

compressor cabin drain pipe

$0.00
$0.00
37
810F270006186

FC liner wind-shield strip

$0.00
$0.00
38
810F290006412

LH Refrigerator door assembly

$0.00
$0.00
39
810F300009126

RH Refrigerator door assembly

$0.00
$0.00
40
810F300009129

LH Freezer door assembly

$0.00
$0.00
41
810F230009131

RH Freezer door assembly

$0.00
$0.00
42
810F300009133

vertical inner door seal

$0.00
$0.00
43
810F350006784

horizontal inner door seal

$0.00
$0.00
44
810F350006785

RC door gasket assembly

$0.00
$0.00
45
810F350006841

IMD cover,UI HT

$0.00
$0.00
46
810F390009152

screw cover

$0.00
$0.00
47
810F390006243

door locker-right

$0.00
$0.00
48
810F390006292

door stop

$0.00
$0.00
49
810F390006297

door locker-left

$0.00
$0.00
50
810F390006294

flipper mullion pivot block

$0.00
$0.00
51
810F390007248

flipper mullion assembly

$0.00
$0.00
52
810F390010561

compressor assembly

$0.00
$0.00
53
810F400007761

FC evaporator

$0.00
$0.00
55
810F410006984

RC temperature sensor

$0.00
$0.00
56
810F500006304

FC temperature sensor

$0.00
$0.00
57
810F500006305

FC defrost sensor

$0.00
$0.00
58
810F500006306

CC temperature sensor

$0.00
$0.00
59
810F500006307

humiture sensor

$0.00
$0.00
60
810F500006946

sky lighting assembly

$0.00
$0.00
61
810F520006303

FC defrost heater

$0.00
$0.00
62
810F530006985

Power cord

$0.00
$0.00
63
810F540009281

electric damper assembly

$0.00
$0.00
64
810F570006308

power filter assembly

$0.00
$0.00
65
810F590006302

TUBE-SUCTION

$0.00
$0.00
66
810F490009341

RC air tower cover

$0.00
$0.00
67
810F600008044

return duct grille

$0.00
$0.00
68
810F610006346

RC air tower decoration strip

$0.00
$0.00
69
810F610006555

FC evaporator block-left

$0.00
$0.00
73
810F740008522

FC evaporator block-right

$0.00
$0.00
74
810F740008523

LH Refrigerator door complete assembly

$0.00
$0.00
75
810F300009125

RH Refrigerator door complete assembly

$0.00
$0.00
76
810F300009127

LH Freezer door complete assembly

$0.00
$0.00
77
810F300009130

RH Freezer door complete assembly

$0.00
$0.00
78
810F300009132

FC door gasket assembly

$0.00
$0.00
79
810F350006842

FC evaporator cover assembly

$0.00
$0.00
82
810F190006426

RC air tower assembly

$0.00
$0.00
83
810F190009120

ice maker assembly

$0.00
$0.00
84
810F190009208

Whirlpool badge

$0.00
$0.00
N.I.
810F990007501

Freezer drawer glass partition

$0.00
$0.00
N.I.
810F110007361

FC drain pan

$0.00
$0.00
N.I.
810F290006169

FC air tower insulation aluminum foil

$0.00
$0.00
N.I.
810F720006445

mid hinge screw cover (white)

$0.00
$0.00
N.I.
8102640109141

top hinger wire harness

$0.00
$0.00
N.I.
810F540008107

Sponge support block

$0.00
$0.00
N.I.
8105901700001

Press plate of exhaust transition tube

$0.00
$0.00
N.I.
8105901900001

Compressor U-shaped fixed circlip

$0.00
$0.00
N.I.
810F170006561

Exhaust pipe (evaporator pan)

$0.00
$0.00
N.I.
810F490006646

Damping block

$0.00
$0.00
N.I.
8103307500001

Process tube

$0.00
$0.00
N.I.
8102204900001

fan motor

$0.00
$0.00
N.I.
810F560006642
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

magnet door lamp switch

$0.00
$0.00
1
810F550006301

screw cover

$0.00
$0.00
2
8102868900001

4-Pin terminal housing

$0.00
$0.00
3
8104031600002

drier filter

$0.00
$0.00
4
8105090101140

HMI GODDESS_PCA

$0.00
$0.00
5
70C03289

Jupiter_Theseus_ACU

$0.00
$0.00
6
70C04309

crisper bin assembly

$0.00
$0.00
7
810F100008263

PULL OUT TRAY ASSY,FC

$0.00
$0.00
8
810F100006374

MID PAN ASSY,OPP, LH

$0.00
$0.00
9
810F100008286

LOWER PAN ASSY,OPP, LH

$0.00
$0.00
10
810F100008296

MID PAN ASSY,OPP, RH

$0.00
$0.00
11
810F100008287

LOWER PAN ASSY,OPP, RH

$0.00
$0.00
12
810F100008297

RC glass shelf assembly

$0.00
$0.00
13
810F110008244

upper door bin

$0.00
$0.00
14
810F120008008

bottom door bin

$0.00
$0.00
15
810F120008010

top hinge cover

$0.00
$0.00
16
810F140005841

center hinge assembly RH

$0.00
$0.00
17
810F140005921

center hinge assembly LH

$0.00
$0.00
18
810F140005945

top hinge assembly RH

$0.00
$0.00
19
810F140005961

top hinge assembly LH

$0.00
$0.00
20
810F140005987

bottom hinge assembly RH

$0.00
$0.00
21
810F140006003

bottom hinge assembly LH

$0.00
$0.00
22
810F140006004

fresh box

$0.00
$0.00
23
810F130010249

compressor cabin rear cover

$0.00
$0.00
24
810F160006188

PCB housing lid

$0.00
$0.00
25
810F160006190

sky lighting trim

$0.00
$0.00
26
810F160006560

sky lighting lens

$0.00
$0.00
27
810F160006568

compressor mounting plate assembly

$0.00
$0.00
28
810F170006191

crisper support assembly RH

$0.00
$0.00
29
810F170006351

crisper support assembly LH

$0.00
$0.00
30
810F170006350

crisper support assembly center

$0.00
$0.00
31
810F170006352

evaporator pan

$0.00
$0.00
32
810F180006184

compressor roller cover

$0.00
$0.00
33
810F190006187

FC divider assembly

$0.00
$0.00
34
810F190007094

Cross recessed hex flange locking screw

$0.00
$0.00
35
810F800006964

compressor cabin drain pipe

$0.00
$0.00
37
810F270006186

FC liner wind-shield strip

$0.00
$0.00
38
810F290006412

LH Refrigerator door assembly

$0.00
$0.00
39
810F300009126

RH Refrigerator door assembly

$0.00
$0.00
40
810F300009129

LH Freezer door assembly

$0.00
$0.00
41
810F230009131

RH Freezer door assembly

$0.00
$0.00
42
810F300009133

vertical inner door seal

$0.00
$0.00
43
810F350006784

horizontal inner door seal

$0.00
$0.00
44
810F350006785

RC door gasket assembly

$0.00
$0.00
45
810F350006841

IMD cover,UI HT

$0.00
$0.00
46
810F390009152

screw cover

$0.00
$0.00
47
810F390006243

door locker-right

$0.00
$0.00
48
810F390006292

door stop

$0.00
$0.00
49
810F390006297

door locker-left

$0.00
$0.00
50
810F390006294

flipper mullion pivot block

$0.00
$0.00
51
810F390007248

flipper mullion assembly

$0.00
$0.00
52
810F390010561

compressor assembly

$0.00
$0.00
53
810F400007761

FC evaporator

$0.00
$0.00
55
810F410006984

RC temperature sensor

$0.00
$0.00
56
810F500006304

FC temperature sensor

$0.00
$0.00
57
810F500006305

FC defrost sensor

$0.00
$0.00
58
810F500006306

CC temperature sensor

$0.00
$0.00
59
810F500006307

humiture sensor

$0.00
$0.00
60
810F500006946

sky lighting assembly

$0.00
$0.00
61
810F520006303

FC defrost heater

$0.00
$0.00
62
810F530006985

Power cord

$0.00
$0.00
63
810F540009281

electric damper assembly

$0.00
$0.00
64
810F570006308

power filter assembly

$0.00
$0.00
65
810F590006302

TUBE-SUCTION

$0.00
$0.00
66
810F490009341

RC air tower cover

$0.00
$0.00
67
810F600008044

return duct grille

$0.00
$0.00
68
810F610006346

RC air tower decoration strip

$0.00
$0.00
69
810F610006555

FC evaporator block-left

$0.00
$0.00
73
810F740008522

FC evaporator block-right

$0.00
$0.00
74
810F740008523

LH Refrigerator door complete assembly

$0.00
$0.00
75
810F300009125

RH Refrigerator door complete assembly

$0.00
$0.00
76
810F300009127

LH Freezer door complete assembly

$0.00
$0.00
77
810F300009130

RH Freezer door complete assembly

$0.00
$0.00
78
810F300009132

FC door gasket assembly

$0.00
$0.00
79
810F350006842

FC evaporator cover assembly

$0.00
$0.00
82
810F190006426

RC air tower assembly

$0.00
$0.00
83
810F190009120

ice maker assembly

$0.00
$0.00
84
810F190009208

Whirlpool badge

$0.00
$0.00
N.I.
810F990007501

Freezer drawer glass partition

$0.00
$0.00
N.I.
810F110007361

FC drain pan

$0.00
$0.00
N.I.
810F290006169

FC air tower insulation aluminum foil

$0.00
$0.00
N.I.
810F720006445

mid hinge screw cover (white)

$0.00
$0.00
N.I.
8102640109141

top hinger wire harness

$0.00
$0.00
N.I.
810F540008107

Sponge support block

$0.00
$0.00
N.I.
8105901700001

Press plate of exhaust transition tube

$0.00
$0.00
N.I.
8105901900001

Compressor U-shaped fixed circlip

$0.00
$0.00
N.I.
810F170006561

Exhaust pipe (evaporator pan)

$0.00
$0.00
N.I.
810F490006646

Damping block

$0.00
$0.00
N.I.
8103307500001

Process tube

$0.00
$0.00
N.I.
8102204900001

fan motor

$0.00
$0.00
N.I.
810F560006642
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

magnet door lamp switch

$0.00
$0.00
1
810F550006301

screw cover

$0.00
$0.00
2
8102868900001

4-Pin terminal housing

$0.00
$0.00
3
8104031600002

drier filter

$0.00
$0.00
4
8105090101140

HMI GODDESS_PCA

$0.00
$0.00
5
70C03289

Jupiter_Theseus_ACU

$0.00
$0.00
6
70C04309

crisper bin assembly

$0.00
$0.00
7
810F100008263

PULL OUT TRAY ASSY,FC

$0.00
$0.00
8
810F100006374

MID PAN ASSY,OPP, LH

$0.00
$0.00
9
810F100008286

LOWER PAN ASSY,OPP, LH

$0.00
$0.00
10
810F100008296

MID PAN ASSY,OPP, RH

$0.00
$0.00
11
810F100008287

LOWER PAN ASSY,OPP, RH

$0.00
$0.00
12
810F100008297

RC glass shelf assembly

$0.00
$0.00
13
810F110008244

upper door bin

$0.00
$0.00
14
810F120008008

bottom door bin

$0.00
$0.00
15
810F120008010

top hinge cover

$0.00
$0.00
16
810F140005841

center hinge assembly RH

$0.00
$0.00
17
810F140005921

center hinge assembly LH

$0.00
$0.00
18
810F140005945

top hinge assembly RH

$0.00
$0.00
19
810F140005961

top hinge assembly LH

$0.00
$0.00
20
810F140005987

bottom hinge assembly RH

$0.00
$0.00
21
810F140006003

bottom hinge assembly LH

$0.00
$0.00
22
810F140006004

fresh box

$0.00
$0.00
23
810F130010249

compressor cabin rear cover

$0.00
$0.00
24
810F160006188

PCB housing lid

$0.00
$0.00
25
810F160006190

sky lighting trim

$0.00
$0.00
26
810F160006560

sky lighting lens

$0.00
$0.00
27
810F160006568

compressor mounting plate assembly

$0.00
$0.00
28
810F170006191

crisper support assembly RH

$0.00
$0.00
29
810F170006351

crisper support assembly LH

$0.00
$0.00
30
810F170006350

crisper support assembly center

$0.00
$0.00
31
810F170006352

evaporator pan

$0.00
$0.00
32
810F180006184

compressor roller cover

$0.00
$0.00
33
810F190006187

FC divider assembly

$0.00
$0.00
34
810F190007094

Cross recessed hex flange locking screw

$0.00
$0.00
35
810F800006964

compressor cabin drain pipe

$0.00
$0.00
37
810F270006186

FC liner wind-shield strip

$0.00
$0.00
38
810F290006412

LH Refrigerator door assembly

$0.00
$0.00
39
810F300009126

RH Refrigerator door assembly

$0.00
$0.00
40
810F300009129

LH Freezer door assembly

$0.00
$0.00
41
810F230009131

RH Freezer door assembly

$0.00
$0.00
42
810F300009133

vertical inner door seal

$0.00
$0.00
43
810F350006784

horizontal inner door seal

$0.00
$0.00
44
810F350006785

RC door gasket assembly

$0.00
$0.00
45
810F350006841

IMD cover,UI HT

$0.00
$0.00
46
810F390009152

screw cover

$0.00
$0.00
47
810F390006243

door locker-right

$0.00
$0.00
48
810F390006292

door stop

$0.00
$0.00
49
810F390006297

door locker-left

$0.00
$0.00
50
810F390006294

flipper mullion pivot block

$0.00
$0.00
51
810F390007248

flipper mullion assembly

$0.00
$0.00
52
810F390010561

compressor assembly

$0.00
$0.00
53
810F400007761

FC evaporator

$0.00
$0.00
55
810F410006984

RC temperature sensor

$0.00
$0.00
56
810F500006304

FC temperature sensor

$0.00
$0.00
57
810F500006305

FC defrost sensor

$0.00
$0.00
58
810F500006306

CC temperature sensor

$0.00
$0.00
59
810F500006307

humiture sensor

$0.00
$0.00
60
810F500006946

sky lighting assembly

$0.00
$0.00
61
810F520006303

FC defrost heater

$0.00
$0.00
62
810F530006985

Power cord

$0.00
$0.00
63
810F540009281

electric damper assembly

$0.00
$0.00
64
810F570006308

power filter assembly

$0.00
$0.00
65
810F590006302

TUBE-SUCTION

$0.00
$0.00
66
810F490009341

RC air tower cover

$0.00
$0.00
67
810F600008044

return duct grille

$0.00
$0.00
68
810F610006346

RC air tower decoration strip

$0.00
$0.00
69
810F610006555

FC evaporator block-left

$0.00
$0.00
73
810F740008522

FC evaporator block-right

$0.00
$0.00
74
810F740008523

LH Refrigerator door complete assembly

$0.00
$0.00
75
810F300009125

RH Refrigerator door complete assembly

$0.00
$0.00
76
810F300009127

LH Freezer door complete assembly

$0.00
$0.00
77
810F300009130

RH Freezer door complete assembly

$0.00
$0.00
78
810F300009132

FC door gasket assembly

$0.00
$0.00
79
810F350006842

FC evaporator cover assembly

$0.00
$0.00
82
810F190006426

RC air tower assembly

$0.00
$0.00
83
810F190009120

ice maker assembly

$0.00
$0.00
84
810F190009208

Whirlpool badge

$0.00
$0.00
N.I.
810F990007501

Freezer drawer glass partition

$0.00
$0.00
N.I.
810F110007361

FC drain pan

$0.00
$0.00
N.I.
810F290006169

FC air tower insulation aluminum foil

$0.00
$0.00
N.I.
810F720006445

mid hinge screw cover (white)

$0.00
$0.00
N.I.
8102640109141

top hinger wire harness

$0.00
$0.00
N.I.
810F540008107

Sponge support block

$0.00
$0.00
N.I.
8105901700001

Press plate of exhaust transition tube

$0.00
$0.00
N.I.
8105901900001

Compressor U-shaped fixed circlip

$0.00
$0.00
N.I.
810F170006561

Exhaust pipe (evaporator pan)

$0.00
$0.00
N.I.
810F490006646

Damping block

$0.00
$0.00
N.I.
8103307500001

Process tube

$0.00
$0.00
N.I.
8102204900001

fan motor

$0.00
$0.00
N.I.
810F560006642
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

magnet door lamp switch

$0.00
$0.00
1
810F550006301

screw cover

$0.00
$0.00
2
8102868900001

4-Pin terminal housing

$0.00
$0.00
3
8104031600002

drier filter

$0.00
$0.00
4
8105090101140

HMI GODDESS_PCA

$0.00
$0.00
5
70C03289

Jupiter_Theseus_ACU

$0.00
$0.00
6
70C04309

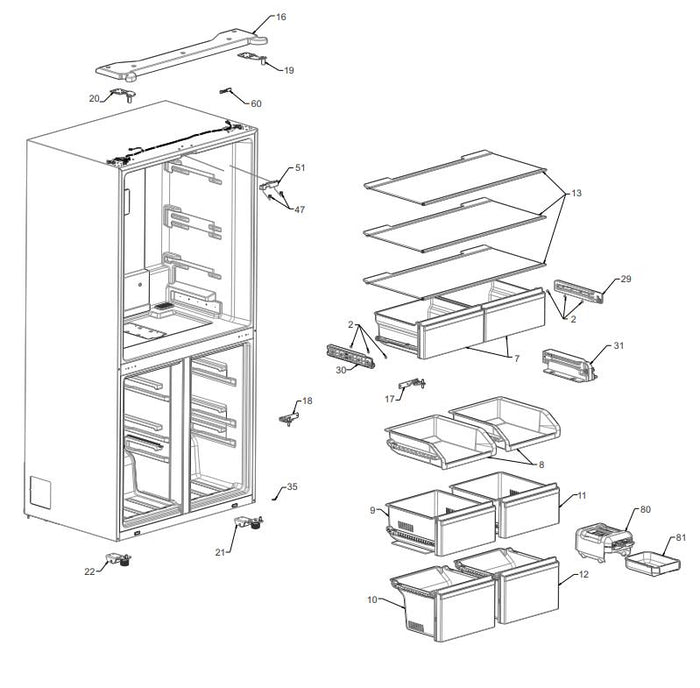

crisper bin assembly

$0.00
$0.00
7
810F100008263

PULL OUT TRAY ASSY,FC

$0.00
$0.00
8
810F100006374

MID PAN ASSY,OPP, LH

$0.00
$0.00
9
810F100008286

LOWER PAN ASSY,OPP, LH

$0.00
$0.00
10
810F100008296

MID PAN ASSY,OPP, RH

$0.00
$0.00
11
810F100008287

LOWER PAN ASSY,OPP, RH

$0.00
$0.00
12
810F100008297

RC glass shelf assembly

$0.00
$0.00
13
810F110008244

upper door bin

$0.00
$0.00
14
810F120008008

bottom door bin

$0.00
$0.00
15
810F120008010

top hinge cover

$0.00
$0.00
16
810F140005841

center hinge assembly RH

$0.00
$0.00
17
810F140005921

center hinge assembly LH

$0.00
$0.00
18
810F140005945

top hinge assembly RH

$0.00
$0.00
19
810F140005961

top hinge assembly LH

$0.00
$0.00
20
810F140005987

bottom hinge assembly RH

$0.00
$0.00
21
810F140006003

bottom hinge assembly LH

$0.00
$0.00
22
810F140006004

fresh box

$0.00
$0.00
23
810F130010249

compressor cabin rear cover

$0.00
$0.00
24
810F160006188

PCB housing lid

$0.00
$0.00
25
810F160006190

sky lighting trim

$0.00
$0.00
26
810F160006560

sky lighting lens

$0.00
$0.00
27
810F160006568

compressor mounting plate assembly

$0.00
$0.00
28
810F170006191

crisper support assembly RH

$0.00
$0.00
29
810F170006351

crisper support assembly LH

$0.00
$0.00
30
810F170006350

crisper support assembly center

$0.00
$0.00
31
810F170006352

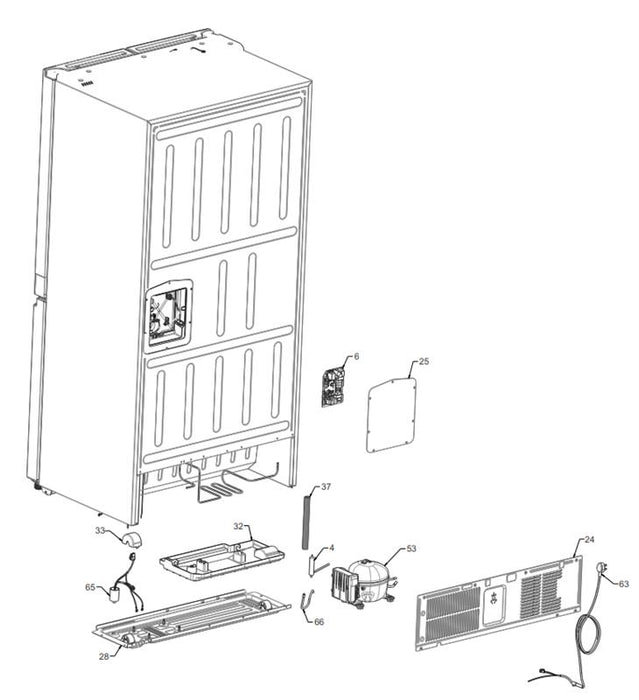

evaporator pan

$0.00
$0.00
32
810F180006184

compressor roller cover

$0.00
$0.00
33
810F190006187

FC divider assembly

$0.00
$0.00
34
810F190007094

Cross recessed hex flange locking screw

$0.00
$0.00
35
810F800006964

compressor cabin drain pipe

$0.00
$0.00
37
810F270006186

FC liner wind-shield strip

$0.00
$0.00
38
810F290006412

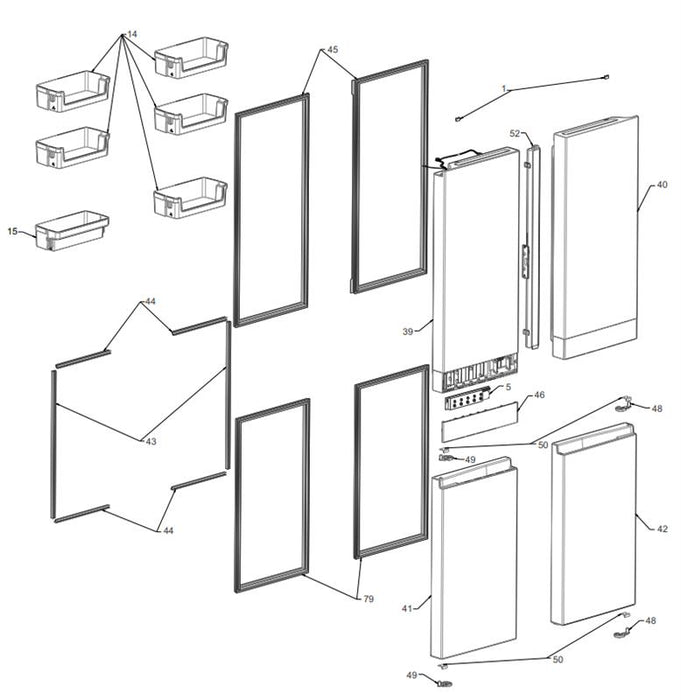

LH Refrigerator door assembly

$0.00
$0.00
39
810F300009126

RH Refrigerator door assembly

$0.00
$0.00
40
810F300009129

LH Freezer door assembly

$0.00
$0.00
41
810F230009131

RH Freezer door assembly

$0.00
$0.00
42
810F300009133

vertical inner door seal

$0.00
$0.00
43
810F350006784

horizontal inner door seal

$0.00
$0.00
44
810F350006785

RC door gasket assembly

$0.00
$0.00
45
810F350006841

IMD cover,UI HT

$0.00
$0.00
46
810F390009152

screw cover

$0.00
$0.00
47
810F390006243

door locker-right

$0.00
$0.00
48
810F390006292

door stop

$0.00
$0.00
49
810F390006297

door locker-left

$0.00
$0.00
50
810F390006294

flipper mullion pivot block

$0.00
$0.00
51
810F390007248

flipper mullion assembly

$0.00
$0.00
52
810F390010561

compressor assembly

$0.00
$0.00
53
810F400007761

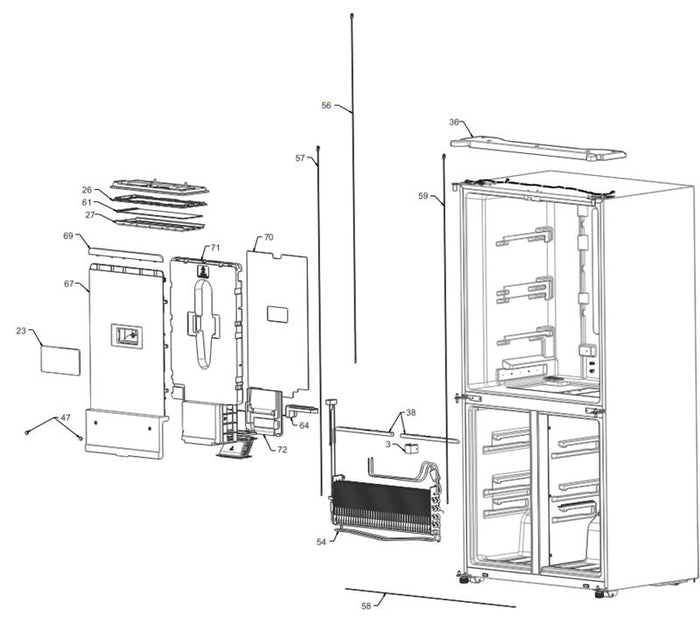

FC evaporator

$0.00
$0.00
55
810F410006984

RC temperature sensor

$0.00
$0.00
56
810F500006304

FC temperature sensor

$0.00
$0.00
57
810F500006305

FC defrost sensor

$0.00
$0.00
58
810F500006306

CC temperature sensor

$0.00
$0.00
59
810F500006307

humiture sensor

$0.00
$0.00
60
810F500006946

sky lighting assembly

$0.00
$0.00
61
810F520006303

FC defrost heater

$0.00
$0.00
62
810F530006985

Power cord

$0.00
$0.00
63
810F540009281

electric damper assembly

$0.00
$0.00
64
810F570006308

power filter assembly

$0.00
$0.00
65
810F590006302

TUBE-SUCTION

$0.00
$0.00
66
810F490009341

RC air tower cover

$0.00
$0.00
67
810F600008044

return duct grille

$0.00
$0.00
68
810F610006346

RC air tower decoration strip

$0.00
$0.00
69
810F610006555

FC evaporator block-left

$0.00
$0.00
73
810F740008522

FC evaporator block-right

$0.00
$0.00
74
810F740008523

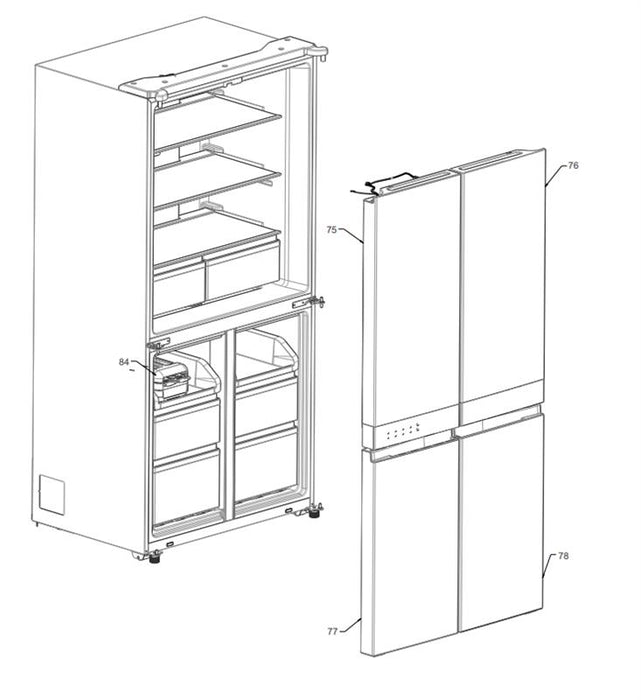

LH Refrigerator door complete assembly

$0.00
$0.00
75
810F300009125

RH Refrigerator door complete assembly

$0.00
$0.00
76
810F300009127

LH Freezer door complete assembly

$0.00
$0.00
77
810F300009130

RH Freezer door complete assembly

$0.00
$0.00
78
810F300009132

FC door gasket assembly

$0.00
$0.00
79
810F350006842

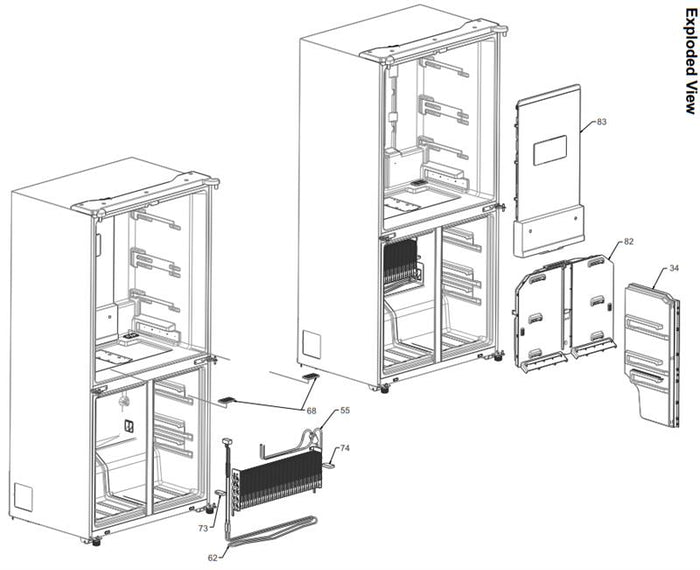

FC evaporator cover assembly

$0.00
$0.00
82
810F190006426

RC air tower assembly

$0.00
$0.00
83
810F190009120

ice maker assembly

$0.00
$0.00
84
810F190009208

Whirlpool badge

$0.00
$0.00
N.I.
810F990007501

Freezer drawer glass partition

$0.00
$0.00
N.I.
810F110007361

FC drain pan

$0.00
$0.00
N.I.
810F290006169

FC air tower insulation aluminum foil

$0.00
$0.00
N.I.
810F720006445

mid hinge screw cover (white)

$0.00
$0.00
N.I.
8102640109141

top hinger wire harness

$0.00
$0.00
N.I.
810F540008107

Sponge support block

$0.00
$0.00
N.I.
8105901700001

Press plate of exhaust transition tube

$0.00
$0.00
N.I.
8105901900001

Compressor U-shaped fixed circlip

$0.00
$0.00
N.I.
810F170006561

Exhaust pipe (evaporator pan)

$0.00
$0.00
N.I.
810F490006646

Damping block

$0.00
$0.00
N.I.
8103307500001

Process tube

$0.00
$0.00
N.I.
8102204900001

fan motor

$0.00
$0.00
N.I.
810F560006642
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

magnet door lamp switch

$0.00
$0.00
1
810F550006301

screw cover

$0.00
$0.00
2
8102868900001

4-Pin terminal housing

$0.00
$0.00
3
8104031600002

drier filter

$0.00
$0.00
4
8105090101140

HMI GODDESS_PCA

$0.00
$0.00
5
70C03289

Jupiter_Theseus_ACU

$0.00
$0.00
6
70C04309

crisper bin assembly

$0.00
$0.00
7
810F100008263

PULL OUT TRAY ASSY,FC

$0.00
$0.00
8
810F100006374

MID PAN ASSY,OPP, LH

$0.00
$0.00
9
810F100008286

LOWER PAN ASSY,OPP, LH

$0.00
$0.00
10
810F100008296

MID PAN ASSY,OPP, RH

$0.00
$0.00
11
810F100008287

LOWER PAN ASSY,OPP, RH

$0.00
$0.00
12
810F100008297

RC glass shelf assembly

$0.00
$0.00
13
810F110008244

upper door bin

$0.00
$0.00
14
810F120008008

bottom door bin

$0.00
$0.00
15
810F120008010

top hinge cover

$0.00
$0.00
16
810F140005841

center hinge assembly RH

$0.00
$0.00
17
810F140005921

center hinge assembly LH

$0.00
$0.00
18
810F140005945

top hinge assembly RH

$0.00
$0.00
19
810F140005961

top hinge assembly LH

$0.00
$0.00
20
810F140005987

bottom hinge assembly RH

$0.00
$0.00
21
810F140006003

bottom hinge assembly LH

$0.00
$0.00
22
810F140006004

fresh box

$0.00
$0.00
23
810F130010249

compressor cabin rear cover

$0.00
$0.00
24
810F160006188

PCB housing lid

$0.00
$0.00
25
810F160006190

sky lighting trim

$0.00
$0.00
26
810F160006560

sky lighting lens

$0.00
$0.00
27
810F160006568

compressor mounting plate assembly

$0.00
$0.00
28
810F170006191

crisper support assembly RH

$0.00
$0.00
29
810F170006351

crisper support assembly LH

$0.00
$0.00
30
810F170006350

crisper support assembly center

$0.00
$0.00
31
810F170006352

evaporator pan

$0.00
$0.00
32
810F180006184

compressor roller cover

$0.00
$0.00
33
810F190006187

FC divider assembly

$0.00
$0.00
34
810F190007094

Cross recessed hex flange locking screw

$0.00
$0.00
35
810F800006964

compressor cabin drain pipe

$0.00
$0.00
37
810F270006186

FC liner wind-shield strip

$0.00
$0.00
38
810F290006412

LH Refrigerator door assembly

$0.00
$0.00
39
810F300009126

RH Refrigerator door assembly

$0.00
$0.00
40
810F300009129

LH Freezer door assembly

$0.00
$0.00
41
810F230009131

RH Freezer door assembly

$0.00
$0.00
42
810F300009133

vertical inner door seal

$0.00
$0.00
43
810F350006784

horizontal inner door seal

$0.00
$0.00
44
810F350006785

RC door gasket assembly

$0.00
$0.00
45
810F350006841

IMD cover,UI HT

$0.00
$0.00
46
810F390009152

screw cover

$0.00
$0.00
47
810F390006243

door locker-right

$0.00
$0.00
48
810F390006292

door stop

$0.00
$0.00
49
810F390006297

door locker-left

$0.00
$0.00
50
810F390006294

flipper mullion pivot block

$0.00
$0.00
51
810F390007248

flipper mullion assembly

$0.00
$0.00
52
810F390010561

compressor assembly

$0.00
$0.00
53
810F400007761

FC evaporator

$0.00
$0.00
55
810F410006984

RC temperature sensor

$0.00
$0.00
56
810F500006304

FC temperature sensor

$0.00
$0.00
57
810F500006305

FC defrost sensor

$0.00
$0.00
58
810F500006306

CC temperature sensor

$0.00
$0.00
59
810F500006307

humiture sensor

$0.00
$0.00
60
810F500006946

sky lighting assembly

$0.00
$0.00
61
810F520006303

FC defrost heater

$0.00
$0.00
62
810F530006985

Power cord

$0.00
$0.00
63
810F540009281

electric damper assembly

$0.00
$0.00
64
810F570006308

power filter assembly

$0.00
$0.00
65
810F590006302

TUBE-SUCTION

$0.00
$0.00
66
810F490009341

RC air tower cover

$0.00
$0.00
67
810F600008044

return duct grille

$0.00
$0.00
68
810F610006346

RC air tower decoration strip

$0.00
$0.00
69
810F610006555

FC evaporator block-left

$0.00
$0.00
73
810F740008522

FC evaporator block-right

$0.00
$0.00
74
810F740008523

LH Refrigerator door complete assembly

$0.00
$0.00
75
810F300009125

RH Refrigerator door complete assembly

$0.00
$0.00
76
810F300009127

LH Freezer door complete assembly

$0.00
$0.00
77
810F300009130

RH Freezer door complete assembly

$0.00
$0.00
78
810F300009132

FC door gasket assembly

$0.00
$0.00
79
810F350006842

FC evaporator cover assembly

$0.00
$0.00
82
810F190006426

RC air tower assembly

$0.00
$0.00
83
810F190009120

ice maker assembly

$0.00
$0.00
84
810F190009208

Whirlpool badge

$0.00
$0.00
N.I.
810F990007501

Freezer drawer glass partition

$0.00
$0.00
N.I.
810F110007361

FC drain pan

$0.00
$0.00
N.I.
810F290006169

FC air tower insulation aluminum foil

$0.00
$0.00
N.I.
810F720006445

mid hinge screw cover (white)

$0.00
$0.00
N.I.
8102640109141

top hinger wire harness

$0.00
$0.00
N.I.
810F540008107

Sponge support block

$0.00
$0.00
N.I.
8105901700001

Press plate of exhaust transition tube

$0.00
$0.00
N.I.
8105901900001

Compressor U-shaped fixed circlip

$0.00
$0.00
N.I.
810F170006561

Exhaust pipe (evaporator pan)

$0.00
$0.00
N.I.
810F490006646

Damping block

$0.00
$0.00
N.I.
8103307500001

Process tube

$0.00
$0.00
N.I.
8102204900001

fan motor

$0.00
$0.00
N.I.
810F560006642
