WQ70902TBX

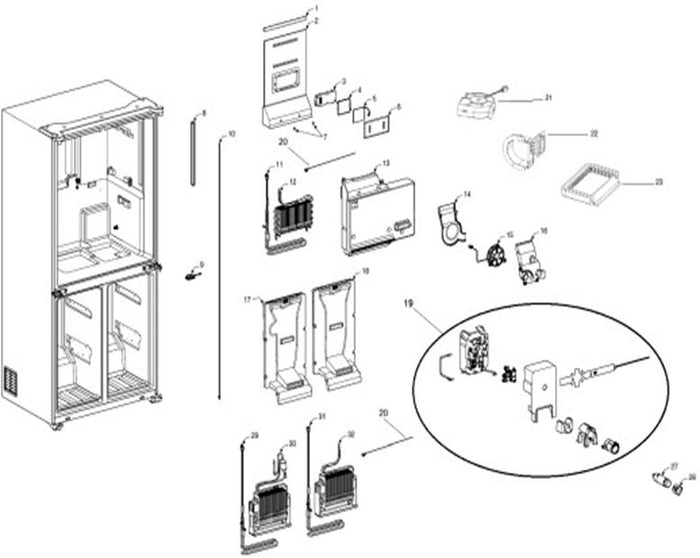

Exploded View 1

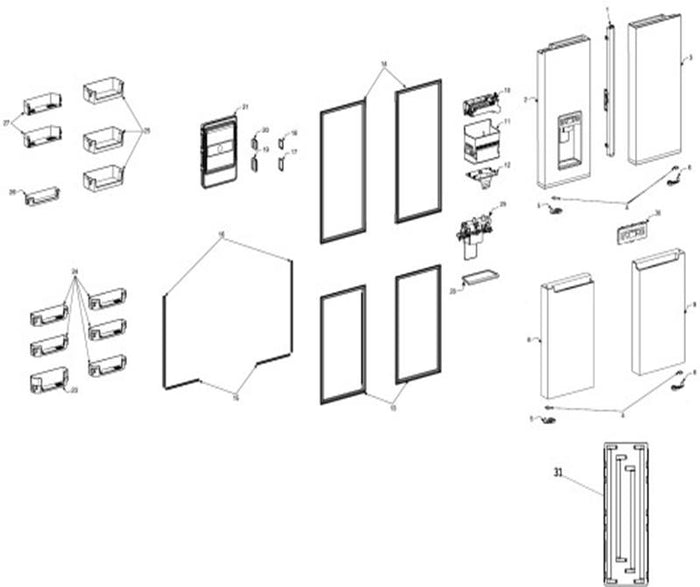

Exploded View 2

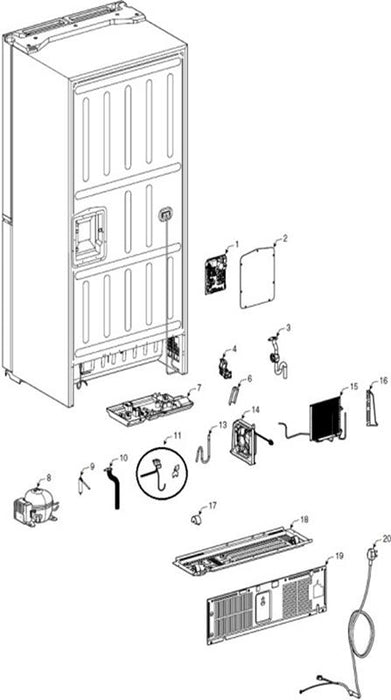

Exploded View 3

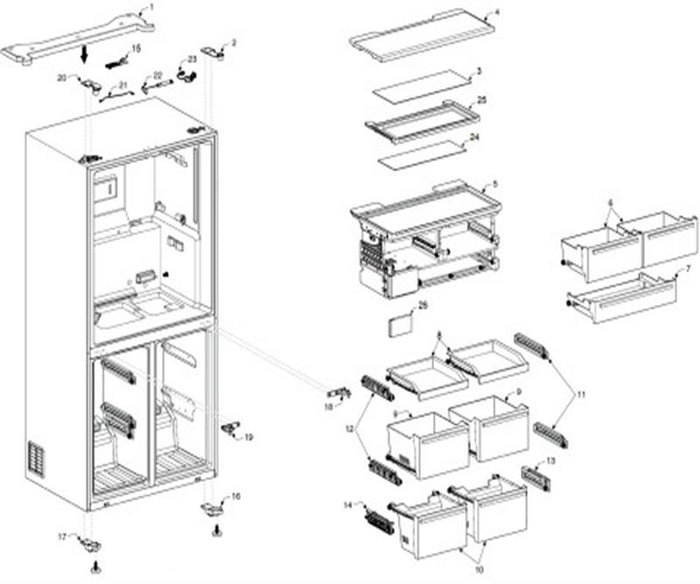

Exploded View 4

Product Details	S.P. Ref.	S.P. Code
Sold Out TOP HINGE COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	1	810F140012765
Sold Out TOP HINGE RH Regular price $0.00 Sale price $0.00 Regular price Unit price	2	810F140011782
Sold Out GLASS-PLATTER Regular price $0.00 Sale price $0.00 Regular price Unit price	3	810F110008803
Sold Out FULL SHELF ASSY,WHP Regular price $0.00 Sale price $0.00 Regular price Unit price	4	810F110008875
Sold Out PANTRY CRISPER STRUCTURE ASSY,IDI Regular price $0.00 Sale price $0.00 Regular price Unit price	5	810F100011604
Sold Out CRISPER PAN ASSY,WHP Regular price $0.00 Sale price $0.00 Regular price Unit price	6	810F100011483
Sold Out PANTRY PAN ASSY,IDI,WHP Regular price $0.00 Sale price $0.00 Regular price Unit price	7	810F100012241
Sold Out PULLOUT TRAY ASSY,FC,WHP Regular price $0.00 Sale price $0.00 Regular price Unit price	8	810F100013402
Sold Out DRAWER ASSY,MID,FC,WHP - FAST FREEZE Regular price $0.00 Sale price $0.00 Regular price Unit price	9	810F100011210
Sold Out DRAWER ASSY,MID,CC,WHP - CONVERTIBLE SPACE Regular price $0.00 Sale price $0.00 Regular price Unit price	9	810F100011212
Sold Out DRAWER,BTM ASSY,FC,WHP - FAST FREEZE Regular price $0.00 Sale price $0.00 Regular price Unit price	10	810F100011204
Sold Out DRAWER,BTM ASSY,CC,WHP - CONVERTIBLE SPACE Regular price $0.00 Sale price $0.00 Regular price Unit price	10	810F100011206
Sold Out ADAPTOR PLATE ASSY,ROLLER,RH,FC Regular price $0.00 Sale price $0.00 Regular price Unit price	11	810F170011207
Sold Out ADAPTOR PLATE ASSY,ROLLER,LH,FC Regular price $0.00 Sale price $0.00 Regular price Unit price	12	810F170011208
Sold Out ADAPTOR PLATE ASSY,BTM,RH,FC Regular price $0.00 Sale price $0.00 Regular price Unit price	13	810F170011201
Sold Out ADAPTOR PLATE ASSY, BTM,LH,FC Regular price $0.00 Sale price $0.00 Regular price Unit price	14	810F170011202
Sold Out FOIL_HINGE COVER Regular price $0.00 Sale price $0.00 Regular price Unit price	15	810F720000265
Sold Out HINGE ASSY,BOTTOM,RH Regular price $0.00 Sale price $0.00 Regular price Unit price	16	810F140011786
Sold Out HINGE ASSY,BOTTOM,LH Regular price $0.00 Sale price $0.00 Regular price Unit price	17	810F140011787
Sold Out HINGE ASSY,CTR,RH Regular price $0.00 Sale price $0.00 Regular price Unit price	18	810F140011784
Sold Out HINGE ASSY,CTR,LH Regular price $0.00 Sale price $0.00 Regular price Unit price	19	810F140011785
Sold Out TOP HINGE LH Regular price $0.00 Sale price $0.00 Regular price Unit price	20	810F140011783
Sold Out JUMPER WIRE ASSY - HING, NIDI Regular price $0.00 Sale price $0.00 Regular price Unit price	21	810F540011342
Sold Out SWITCH-REED,MDG Regular price $0.00 Sale price $0.00 Regular price Unit price	22	810F550006301
Sold Out SENSOR-HUMIDITY,EXTERNAL Regular price $0.00 Sale price $0.00 Regular price Unit price	23	810F500009001
Sold Out GLASS-COVER CRSP,IDI Regular price $0.00 Sale price $0.00 Regular price Unit price	24	810F110008831
Sold Out PLATTER ASSY Regular price $0.00 Sale price $0.00 Regular price Unit price	25	810F110011488

Product Details	S.P. Ref.	S.P. Code
Sold Out AIR TOWER TRIM Regular price $0.00 Sale price $0.00 Regular price Unit price	1	810F610011682
Sold Out DECORATION COVER,TOWER Regular price $0.00 Sale price $0.00 Regular price Unit price	2	810F600011755
Sold Out OZONIZER ASSEMBLY HP/BK/AT Regular price $0.00 Sale price $0.00 Regular price Unit price	3	810F130011761
Sold Out COVER-LED Regular price $0.00 Sale price $0.00 Regular price Unit price	4	810F160011756
Sold Out AIR TOWER LOGO LIGHTING Regular price $0.00 Sale price $0.00 Regular price Unit price	5	810F520012041
Sold Out FRONT COVER-OZONIZER HOUSING,WHP,HP,CF Regular price $0.00 Sale price $0.00 Regular price Unit price	6	810F160011687
Sold Out PIVOT BLOCK-FLIPPER MULLION Regular price $0.00 Sale price $0.00 Regular price Unit price	7	810F390013411
Sold Out INDIRECT LIGHTING, CRM Regular price $0.00 Sale price $0.00 Regular price Unit price	8	810F520012661
Sold Out FC TOP LIGTHING (POINT LED) Regular price $0.00 Sale price $0.00 Regular price Unit price	9	810F520007925
Sold Out THERMISTOR W/ CLIP, 400MM, WIRE-WIRE CON RC Regular price $0.00 Sale price $0.00 Regular price Unit price	10	810F500012123
Sold Out HEATER-DEFROST,RC Regular price $0.00 Sale price $0.00 Regular price Unit price	11	810F530011865
Sold Out RC EVAPORATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	12	810F420011861
Sold Out COVER-EVAP,RC,DGL Regular price $0.00 Sale price $0.00 Regular price Unit price	13	810F600012755
Sold Out SCROLL-FAN, COVER,REAR Regular price $0.00 Sale price $0.00 Regular price Unit price	14	810F690011802
Sold Out RC EVAP FAN ASSY MOTOR + BLADES + GROMMET Regular price $0.00 Sale price $0.00 Regular price Unit price	15	810F190011930
Sold Out SCROLL-FAN, COVER,FRONT Regular price $0.00 Sale price $0.00 Regular price Unit price	16	810F690011801
Sold Out COVER ASSY-EVAP,FC IDI DGL Regular price $0.00 Sale price $0.00 Regular price Unit price	17	810F190012946
Sold Out EVAP COVER ASSEMBLY, DGL Regular price $0.00 Sale price $0.00 Regular price Unit price	18	810F190000634
Sold Out WATER BOX ASSY-SINGLE IM Regular price $0.00 Sale price $0.00 Regular price Unit price	19	810F190001389
Sold Out DEFROSTING SENSOR Regular price $0.00 Sale price $0.00 Regular price Unit price	20	810F500012123
Sold Out COVER-WATER VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	22	810F190011398
Sold Out CARTRIDGE-WATER FILTER Regular price $0.00 Sale price $0.00 Regular price Unit price	27	810F190011410
Sold Out CAP-FILTER Regular price $0.00 Sale price $0.00 Regular price Unit price	28	810F190013283
Sold Out DEFROST HEATER FC/CC Regular price $0.00 Sale price $0.00 Regular price Unit price	29	810F530011938
Sold Out FC EVAPORATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	30	810F410011933
Sold Out DEFROST HEATER FC/CC Regular price $0.00 Sale price $0.00 Regular price Unit price	31	810F530011938
Sold Out CC EVAPORATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	32	810F490011937
Sold Out FAN-ICEBOX Regular price $0.00 Sale price $0.00 Regular price Unit price	N.I.	810F190011932
Sold Out BRAKET-FAN,ICE BOX Regular price $0.00 Sale price $0.00 Regular price Unit price	N.I.	810F190012598
Sold Out FIX FAN_IM BOX Regular price $0.00 Sale price $0.00 Regular price Unit price	N.I.	810F800000704
Sold Out SEAL-IB FAN Regular price $0.00 Sale price $0.00 Regular price Unit price	N.I.	810F190012599

Product Details	S.P. Ref.	S.P. Code
Sold Out MULLION ASSY-VERT, GRY Regular price $0.00 Sale price $0.00 Regular price Unit price	1	810F390012681
Sold Out FOAM ASSY - RLDR, IDI, BSS, PLAT, WP Regular price $0.00 Sale price $0.00 Regular price Unit price	2	810F300001410
Sold Out FOAM ASSY-RRDR, WP, IDI, BLK Regular price $0.00 Sale price $0.00 Regular price Unit price	3	810F300001899
Sold Out DOOR STOPPER Regular price $0.00 Sale price $0.00 Regular price Unit price	4	810F390006297
Sold Out SPRING FINGER-DOOR,LH,NAT Regular price $0.00 Sale price $0.00 Regular price Unit price	5	810F390011752
Sold Out SPRING FINGER-DOOR,RH,NAT Regular price $0.00 Sale price $0.00 Regular price Unit price	6	810F390011751
Sold Out FOAM ASSY-FCLH, WP, NON-IDI,BSS Regular price $0.00 Sale price $0.00 Regular price Unit price	8	810F300001406
Sold Out FOAM ASSY-FCRH, WP,BSS Regular price $0.00 Sale price $0.00 Regular price Unit price	9	810F300001408
Sold Out ICE MAKER ASSEMBLY, DG Regular price $0.00 Sale price $0.00 Regular price Unit price	10	810F560013323
Sold Out ICE BIN ASSY, DGL Regular price $0.00 Sale price $0.00 Regular price Unit price	11	810F190013321
Sold Out ICE CHUTE MTG PLATE ASSY-DGL Regular price $0.00 Sale price $0.00 Regular price Unit price	12	810F190013284
Sold Out DOOR GASKET FC Regular price $0.00 Sale price $0.00 Regular price Unit price	13	810F350001062
Sold Out DOOR GASKET RC Regular price $0.00 Sale price $0.00 Regular price Unit price	14	810F350001063
Sold Out FLAP-SEALING,HORZ,MDG Regular price $0.00 Sale price $0.00 Regular price Unit price	15	810F350013216
Sold Out FLAP-SEALING,VERT,MDG Regular price $0.00 Sale price $0.00 Regular price Unit price	16	810F350013201
Sold Out GASKET CLIP-DUCT,SUPPLY Regular price $0.00 Sale price $0.00 Regular price Unit price	17	810F390011383
Sold Out GASKET CLIP-DUCT,RETURN Regular price $0.00 Sale price $0.00 Regular price Unit price	18	810F390011399
Sold Out GASKET-DUCT,COOLING,DGL Regular price $0.00 Sale price $0.00 Regular price Unit price	19	810F350011387
Sold Out GASKET-DUCT,SUPPLY,DGL Regular price $0.00 Sale price $0.00 Regular price Unit price	20	810F350011385
Sold Out FOAM ASSY-ICE DOOR, DGL, WHP Regular price $0.00 Sale price $0.00 Regular price Unit price	21	810F300000892
Sold Out BIN - DOOR, TALL, FC, LCI, NPT Regular price $0.00 Sale price $0.00 Regular price Unit price	23	810F120011123
Sold Out BIN - DOOR, FC, LCI, NPT Regular price $0.00 Sale price $0.00 Regular price Unit price	24	810F120011105
Sold Out BIN - DOOR, RC, LCI, NPT Regular price $0.00 Sale price $0.00 Regular price Unit price	25	810F120011032
Sold Out BIN - MEDIUM, RC, LCI, NPT Regular price $0.00 Sale price $0.00 Regular price Unit price	26	810F120011027
Sold Out TRIVET - ICE COMPARTMENT, DOOR, RC, NPT Regular price $0.00 Sale price $0.00 Regular price Unit price	27	810F120011023
Sold Out METAL GRILL Regular price $0.00 Sale price $0.00 Regular price Unit price	28	810F190001023
Sold Out TRAY-DRIP,DISP,CONT,SC Regular price $0.00 Sale price $0.00 Regular price Unit price	28	810F190001024
Sold Out BRACKET ASSY - MOTOR, ICE DOOR Regular price $0.00 Sale price $0.00 Regular price Unit price	29	810F390011443
Sold Out HMI ASSY, WHP Regular price $0.00 Sale price $0.00 Regular price Unit price	30	810F390012463
Sold Out SCREW Regular price $0.00 Sale price $0.00 Regular price Unit price	N.I.	8.10373E+12
Sold Out DIVIDER - BIN, DGL Regular price $0.00 Sale price $0.00 Regular price Unit price	N.I.	810F120011102

Product Details	S.P. Ref.	S.P. Code
Sold Out MAIN BOARD PCA-CALLISTO ACU Regular price $0.00 Sale price $0.00 Regular price Unit price	1	70C06551
Sold Out LID,MAIN PCB Regular price $0.00 Sale price $0.00 Regular price Unit price	2	810F160006190
Sold Out DRAIN TUBE ASSY, FC Regular price $0.00 Sale price $0.00 Regular price Unit price	3	810F190012583
Sold Out VALVE ASSY-WATER, PILOT, DC Regular price $0.00 Sale price $0.00 Regular price Unit price	4	810F580008084
Sold Out GUARD-SINGLE WTR VALVE Regular price $0.00 Sale price $0.00 Regular price Unit price	6	810F190011408
Sold Out TRAY-EVAPORATOR Regular price $0.00 Sale price $0.00 Regular price Unit price	7	810F190012593
Sold Out COMP ASSY VEMX11C+ 220V/50HZ Regular price $0.00 Sale price $0.00 Regular price Unit price	8	810F400007761
Sold Out DRIER ASSY Regular price $0.00 Sale price $0.00 Regular price Unit price	9	8.10509E+12
Sold Out DRAIN TUBE,FC,MC, DEF Regular price $0.00 Sale price $0.00 Regular price Unit price	10	810F270000499
Sold Out VALVE ASSY-REFRIGERANT,4 WAY Regular price $0.00 Sale price $0.00 Regular price Unit price	11	810F490000694
Sold Out TUBE-SUCTION (EMBRACO) Regular price $0.00 Sale price $0.00 Regular price Unit price	13	8.10545E+12
Sold Out FAN ASSY-CONDENSER Regular price $0.00 Sale price $0.00 Regular price Unit price	14	810F190011921
Sold Out CONDENSER ASM Regular price $0.00 Sale price $0.00 Regular price Unit price	15	810F430011462
Sold Out BRACKET - CONDENSER FOAM Regular price $0.00 Sale price $0.00 Regular price Unit price	16	810F190011606
Sold Out ROLLER COVER,COMPR MOUNTPLATE Regular price $0.00 Sale price $0.00 Regular price Unit price	17	810F190006187
Sold Out BASE PLATE & BOLT ASSY Regular price $0.00 Sale price $0.00 Regular price Unit price	18	810F170006191
Sold Out COVER-MC Regular price $0.00 Sale price $0.00 Regular price Unit price	19	810F160006261
Sold Out POWERCORD Regular price $0.00 Sale price $0.00 Regular price Unit price	20	810F540009281
