WT9BTABC

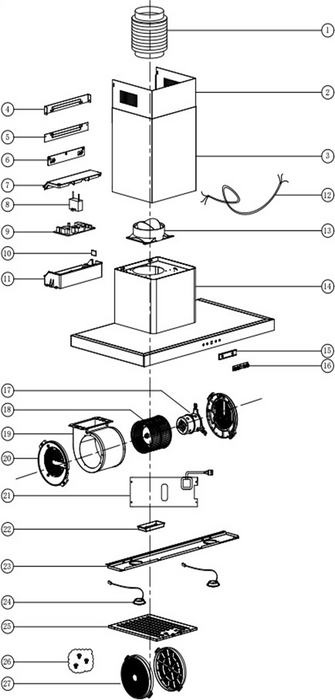

Product Details	S.P. Ref.	S.P. Code
Sold Out Plastic extension pipe Regular price $0.00 Sale price $0.00 Regular price Unit price	1	3010 314 00012
Sold Out Inside chimney Regular price $0.00 Sale price $0.00 Regular price Unit price	2	3010 214 00301
Sold Out Outside chimney Regular price $0.00 Sale price $0.00 Regular price Unit price	3	3010 214 00486
Sold Out Bracket for inside chimney Regular price $0.00 Sale price $0.00 Regular price Unit price	4	3010 216 00007
Sold Out Bracket for outside chimney Regular price $0.00 Sale price $0.00 Regular price Unit price	5	3010 216 00008
Sold Out Mounted bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	6	3010 215 00005
Sold Out Junction box cover Regular price $0.00 Sale price $0.00 Regular price Unit price	7	3010 302 00019
Sold Out Capacitor Regular price $0.00 Sale price $0.00 Regular price Unit price	8	3010 401 00136
Sold Out PCB board Regular price $0.00 Sale price $0.00 Regular price Unit price	9	2900 101 00142
Sold Out Junction box seal cover Regular price $0.00 Sale price $0.00 Regular price Unit price	10	3010 302 00138
Sold Out Junction box Regular price $0.00 Sale price $0.00 Regular price Unit price	11	3010 302 00018
Sold Out Plug and cord Regular price $0.00 Sale price $0.00 Regular price Unit price	12	3010 407 00010
Sold Out V-flap Regular price $0.00 Sale price $0.00 Regular price Unit price	13	3010 307 00018
Sold Out Motor casing Regular price $0.00 Sale price $0.00 Regular price Unit price	14	3010 703 00348
Sold Out Touch control board Box Regular price $0.00 Sale price $0.00 Regular price Unit price	15	3010 301 00016
Sold Out Touch control board Regular price $0.00 Sale price $0.00 Regular price Unit price	16	2900 102 00148
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	17	3010 406 00520
Sold Out Impeller Regular price $0.00 Sale price $0.00 Regular price Unit price	18	3010 304 00015
Sold Out Blower Regular price $0.00 Sale price $0.00 Regular price Unit price	19	2010 110 00012
Sold Out Plastic mesh Regular price $0.00 Sale price $0.00 Regular price Unit price	20	3010 305 00010
Sold Out Heat element Regular price $0.00 Sale price $0.00 Regular price Unit price	21	3010 411 00001
Sold Out Plastic oil cup Regular price $0.00 Sale price $0.00 Regular price Unit price	22	3010 315 00002
Sold Out Light panel Regular price $0.00 Sale price $0.00 Regular price Unit price	23	3010 104 00440
Sold Out LED light Regular price $0.00 Sale price $0.00 Regular price Unit price	24	3010 402 00126
Sold Out Baffle filter Regular price $0.00 Sale price $0.00 Regular price Unit price	25	3010 601 00424
Sold Out Screw kit Regular price $0.00 Sale price $0.00 Regular price Unit price	26	N/A
Sold Out Carbon filter (if applicable) Regular price $0.00 Sale price $0.00 Regular price Unit price	27	3010 306 00002

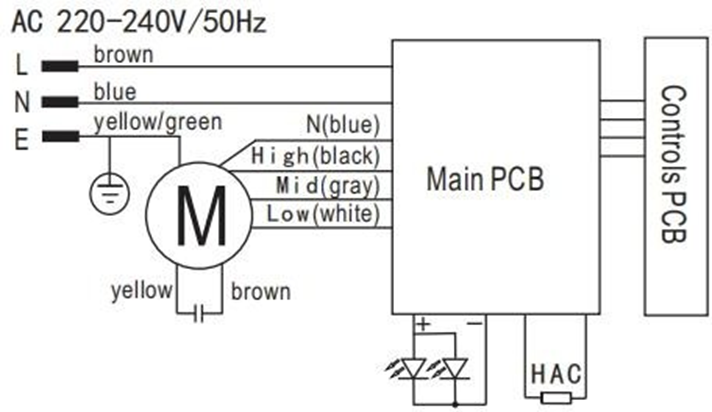

Wiring Diagram

Technical Data

Model#	WT9BTABC
Electricity Supply	Voltage: 220V-240			V
Frequency	50			HZ
Installation Distance	65~75cm above the cooking surface
Power	Total: 322	Motor: 320	Lamp: 2*1	W
Air Exhaust Outlet	Diameter: 150			mm
Product size	900×505×830			mm

Parts Manual
